ABS Warning Light Does Not Come on

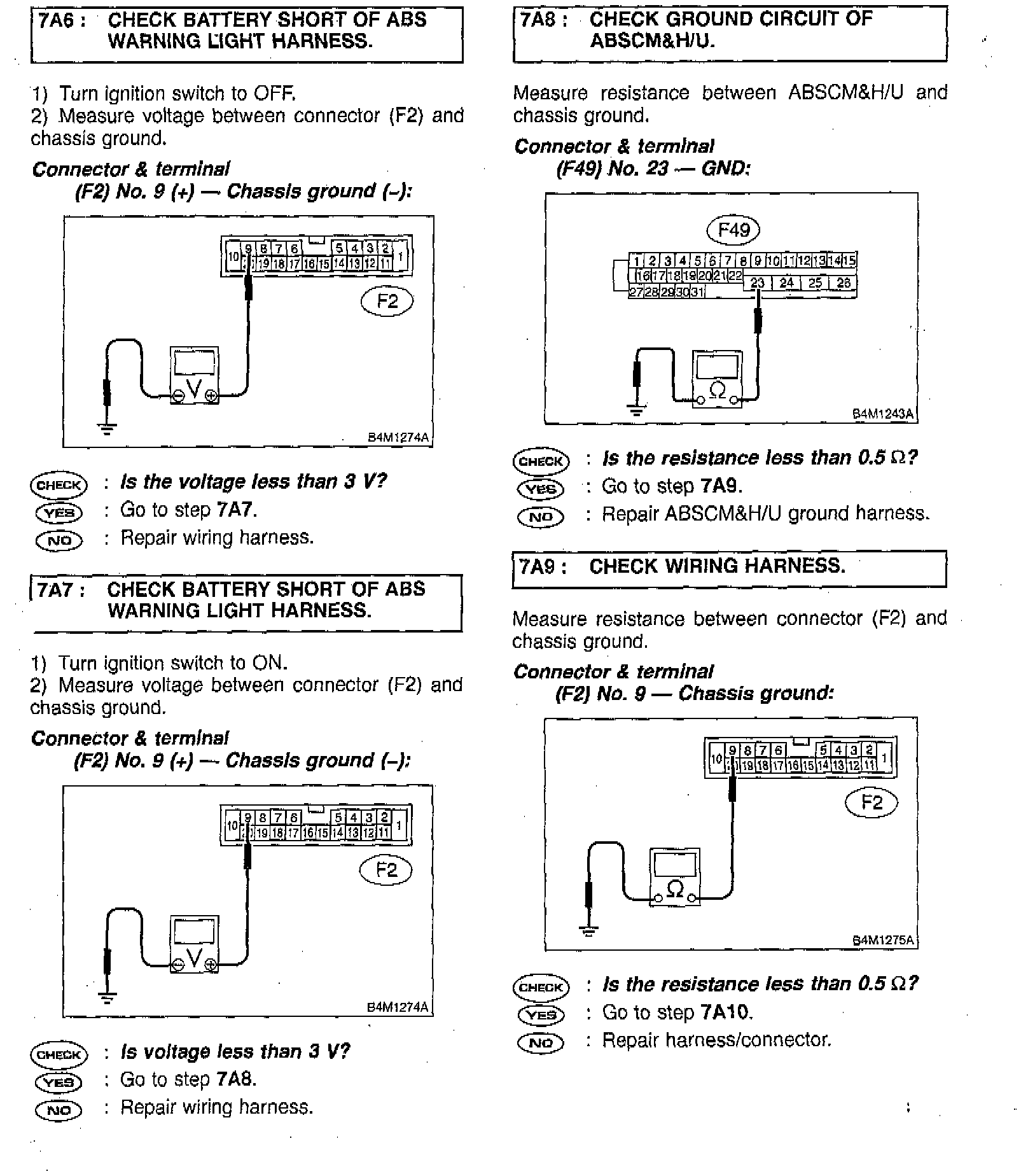

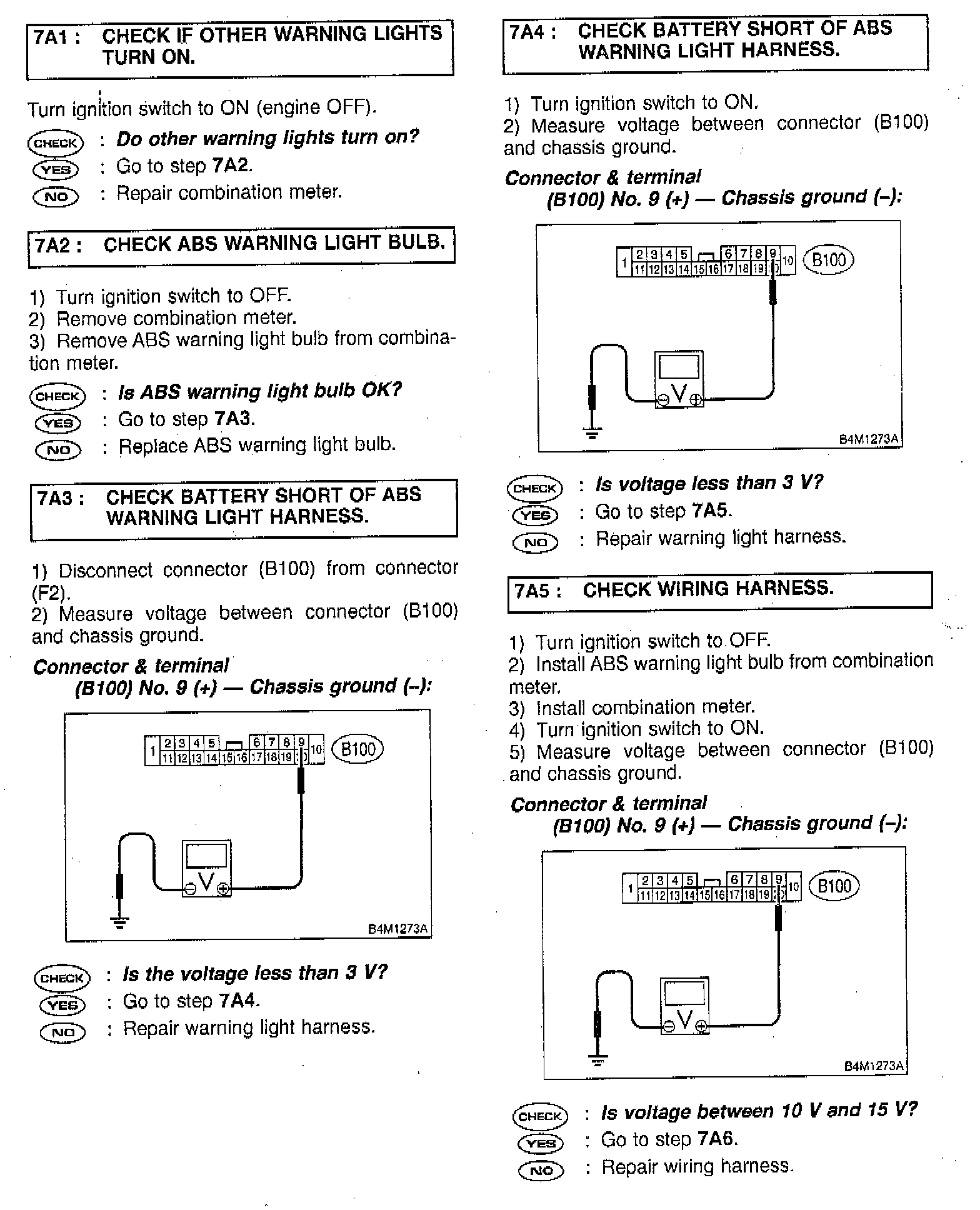

Part 1 Of 3:

Part 2 Of 3:

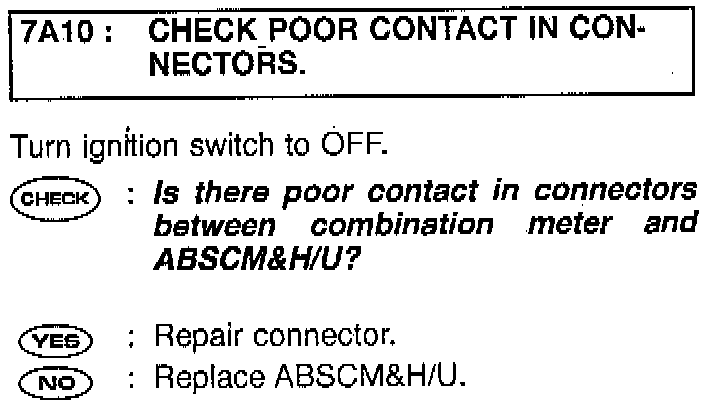

Part 3 Of 3:

DIAGNOSIS:
ABS warning light circuit is open or shorted.

TROUBLE SYSTEM:
When ignition switch is turned ON (engine OFF), ABS warning light does not come on.

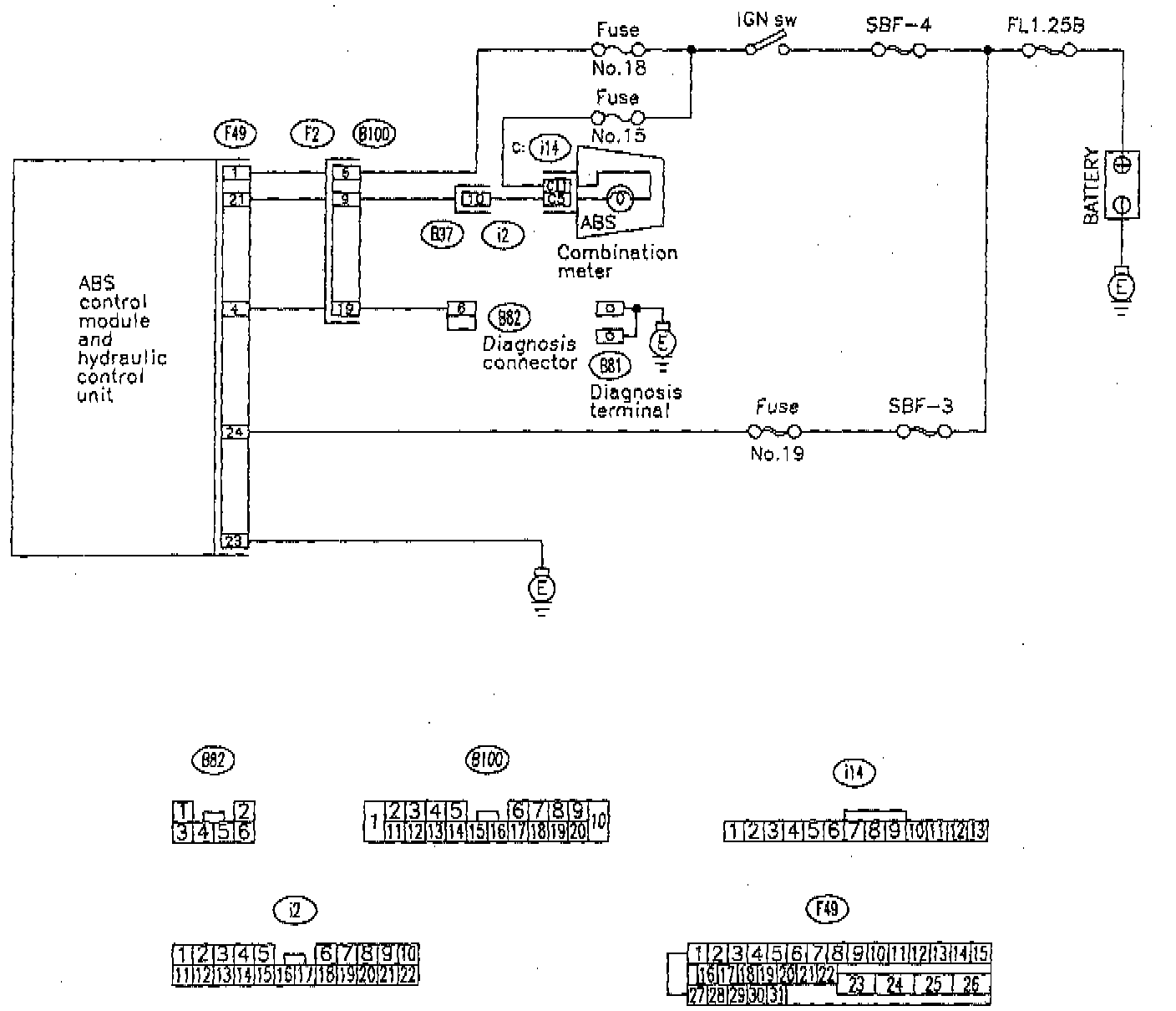

WIRING DIAGRAM:
