Sunroof / Moonroof Motor: Testing and Inspection
SUNROOF MOTOR1. Apply battery voltage between 1-pin connector (Except OUTBACK) or terminal No.1 (OUTBACK) and body ground wire.
2. Make sure that sunroof motor moves when connecting terminals as describe:

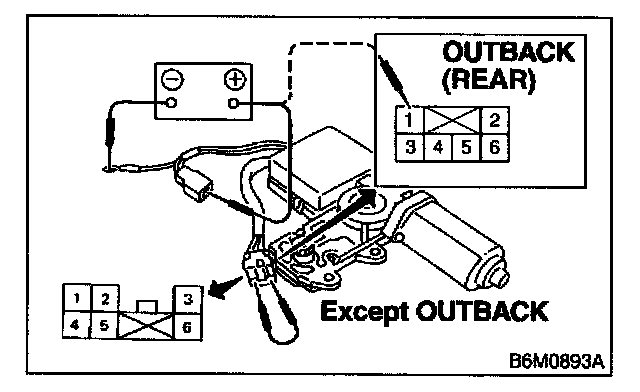

Except OUTBACK
- Connect between terminals No.3 and 4 (OPEN)
- Connect between terminals No.6 and 4 (CLOSE)
- Connect between terminals No.5 and 4 (TILT UP)
- Connect between terminals No.2 and 4 (TILT DOWN)
OUTBACK (Rear)
- Connect between terminals No.2 and 3 (OPEN)
- Connect between terminals No.6 and 3 (CLOSE)

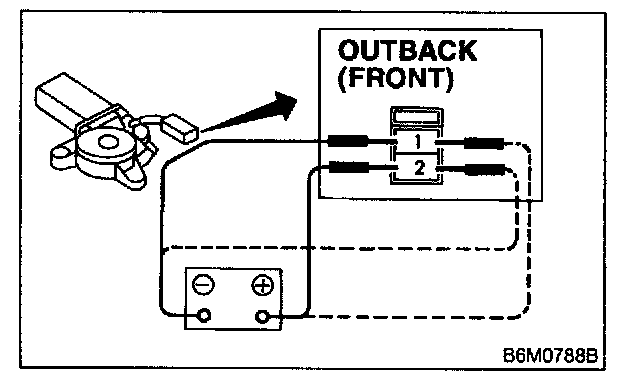

OUTBACK (Front)
- Connect between terminals No.1 and 2 (TILT UP)
- Connect between terminals No.2 and 1 (TILT DOWN)
