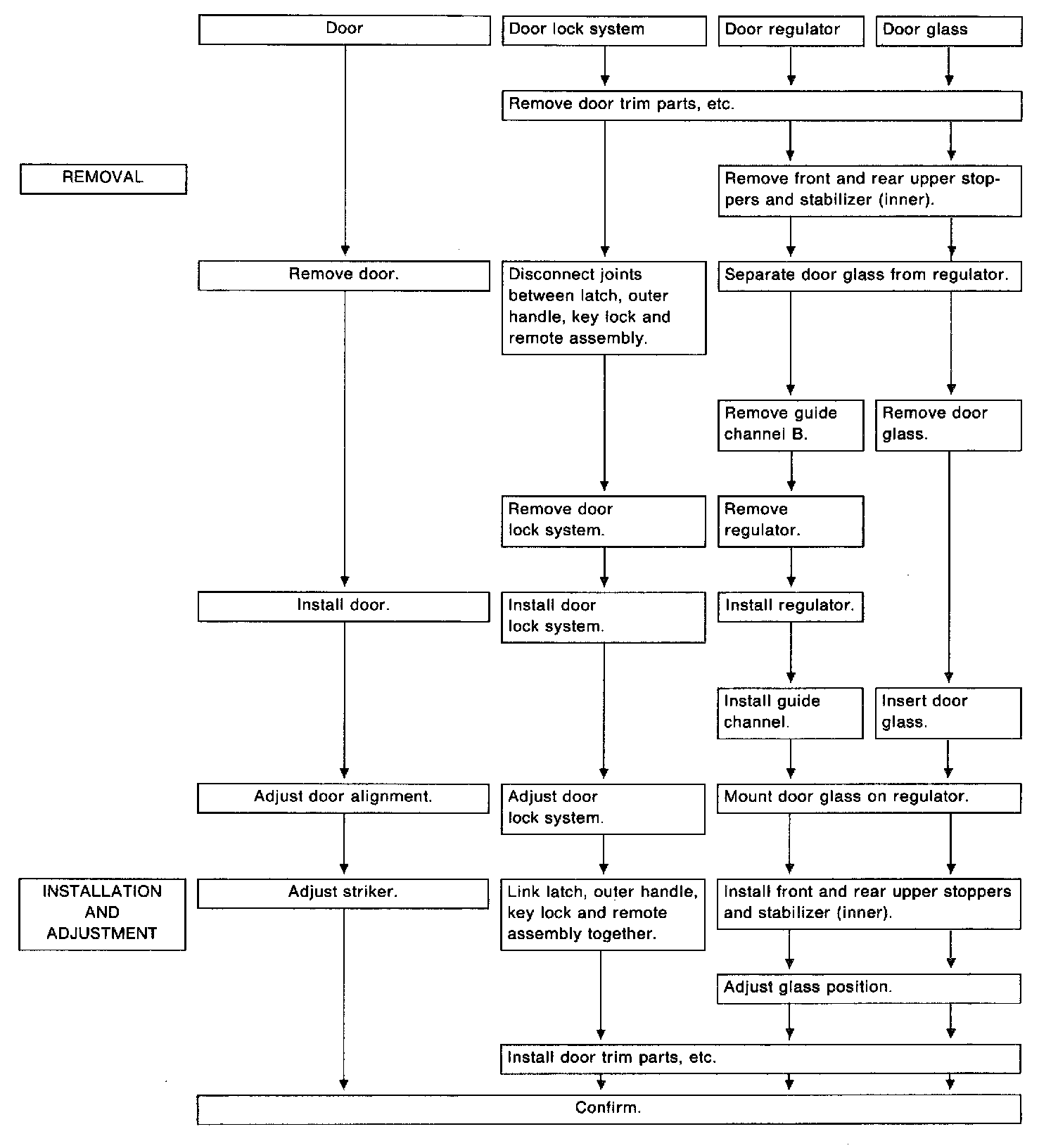

Procedure Chart for Removing and Installing Door and Related Parts
NOTE:
This flow chart shows the main procedures for removing and installing the door and its related parts. For details, refer to the test.
