Home >> Subaru >> 1999 >> Legacy Outback AWD F4-2.5L DOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostics Procedure >> Diagnostics Item 8

Diagnostics Item 8

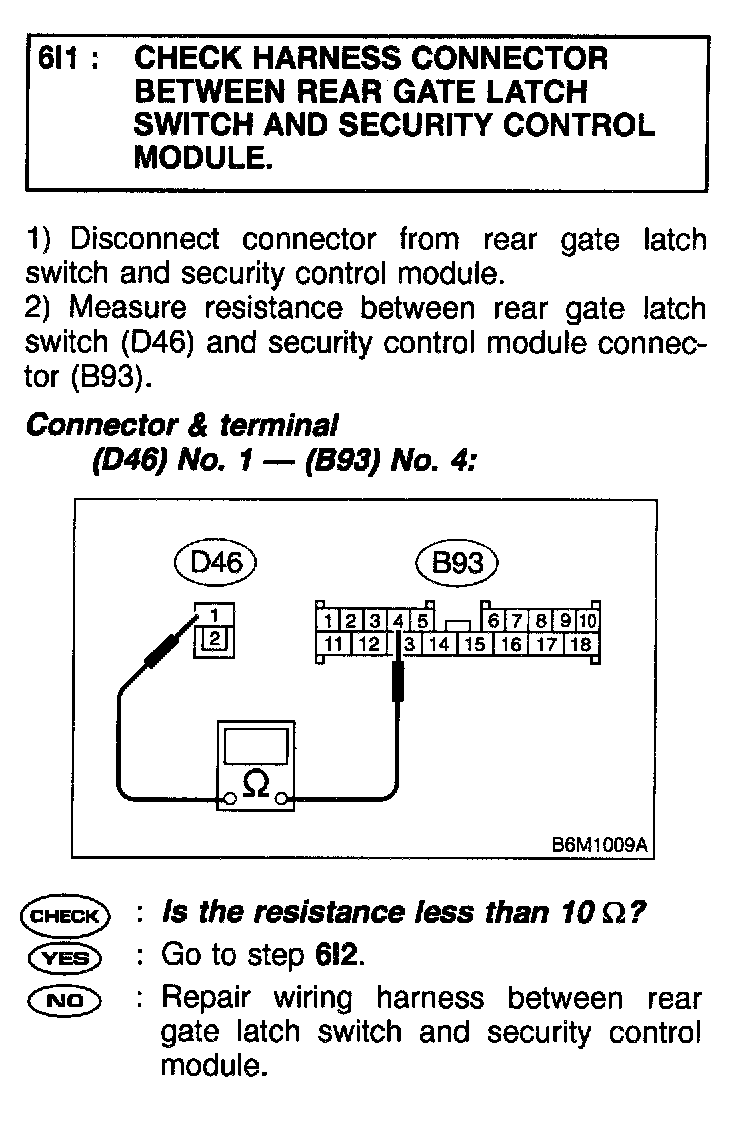

Step 6I1:

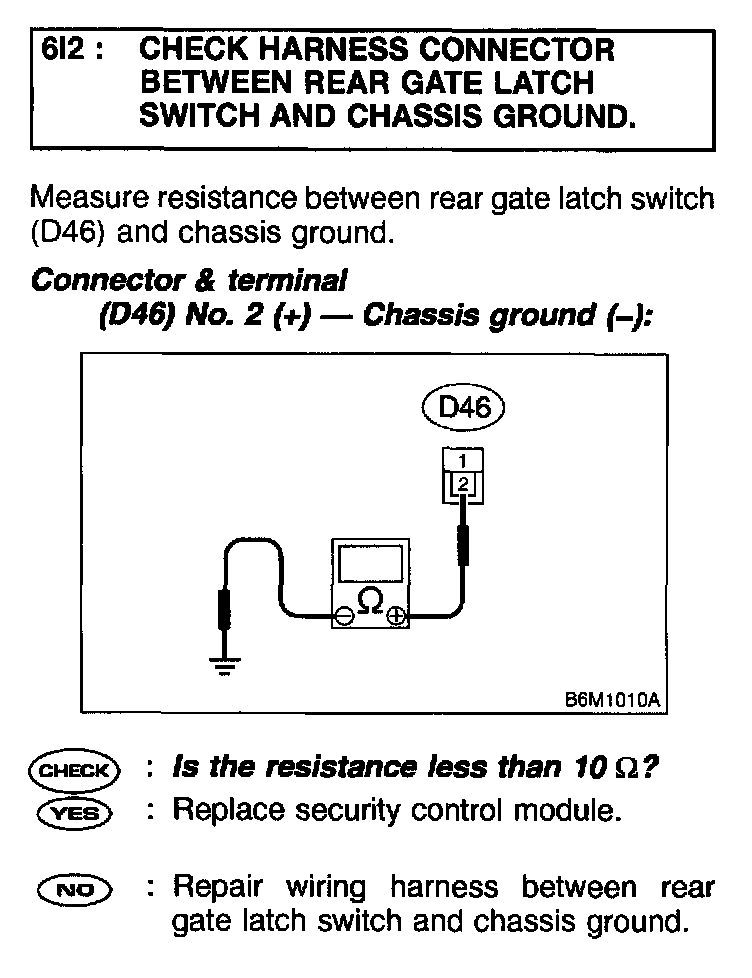

Step 6I2:
