Home >> Subaru >> 1999 >> Legacy Outback AWD F4-2.5L DOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostics Procedure >> Diagnostics Item 6

Diagnostics Item 6

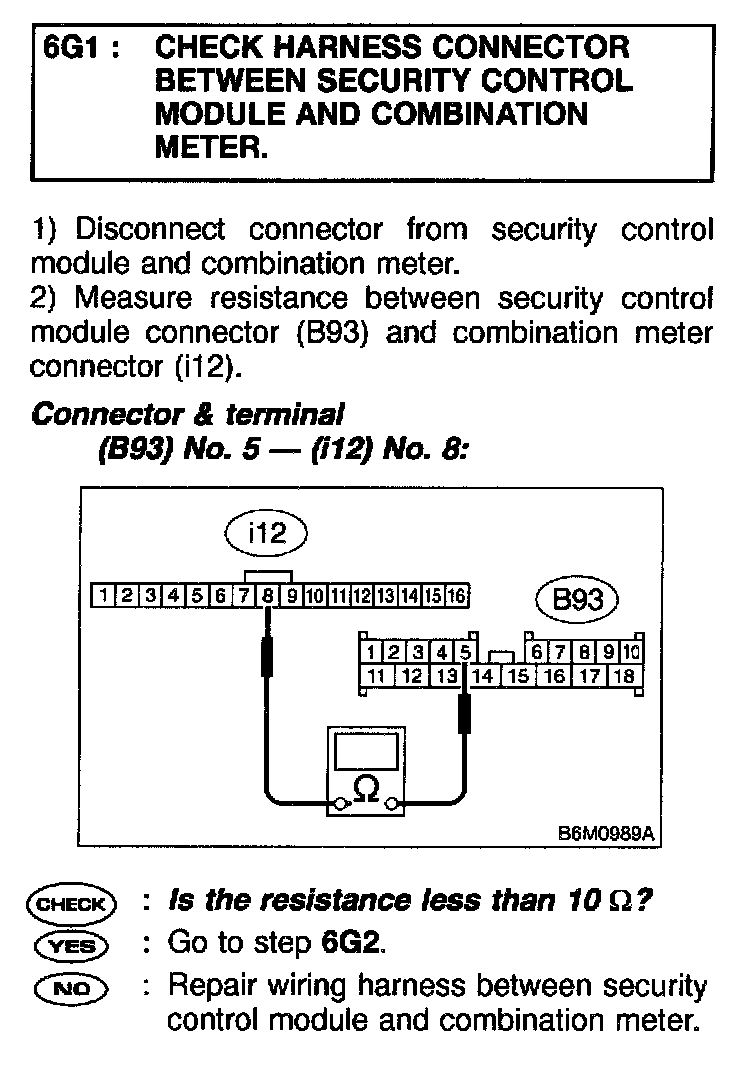

Step 6G1:

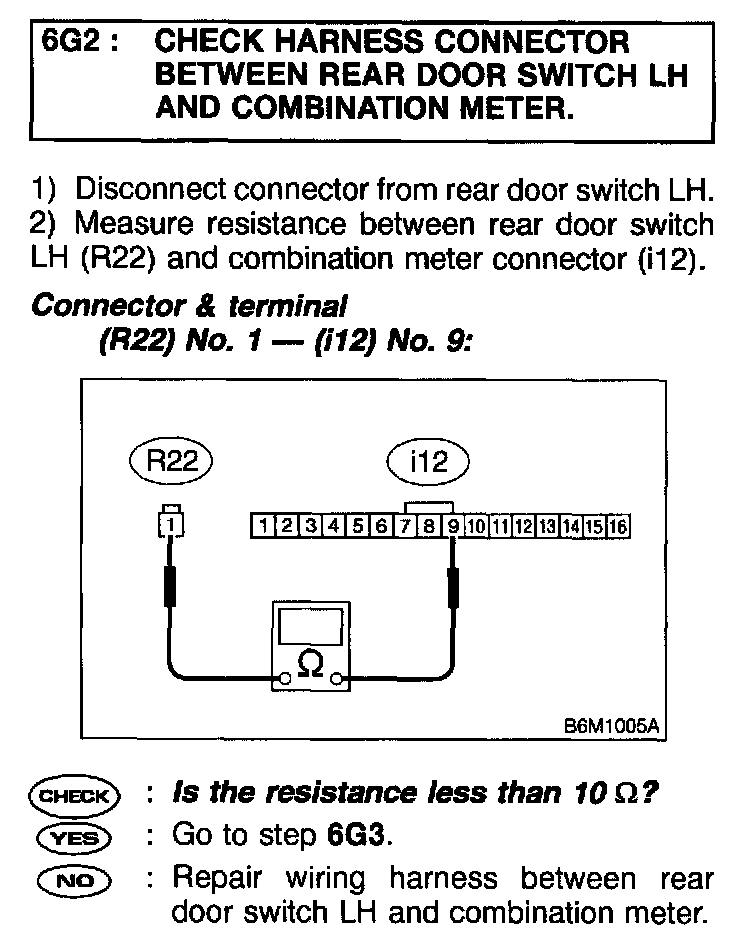

Step 6G2:

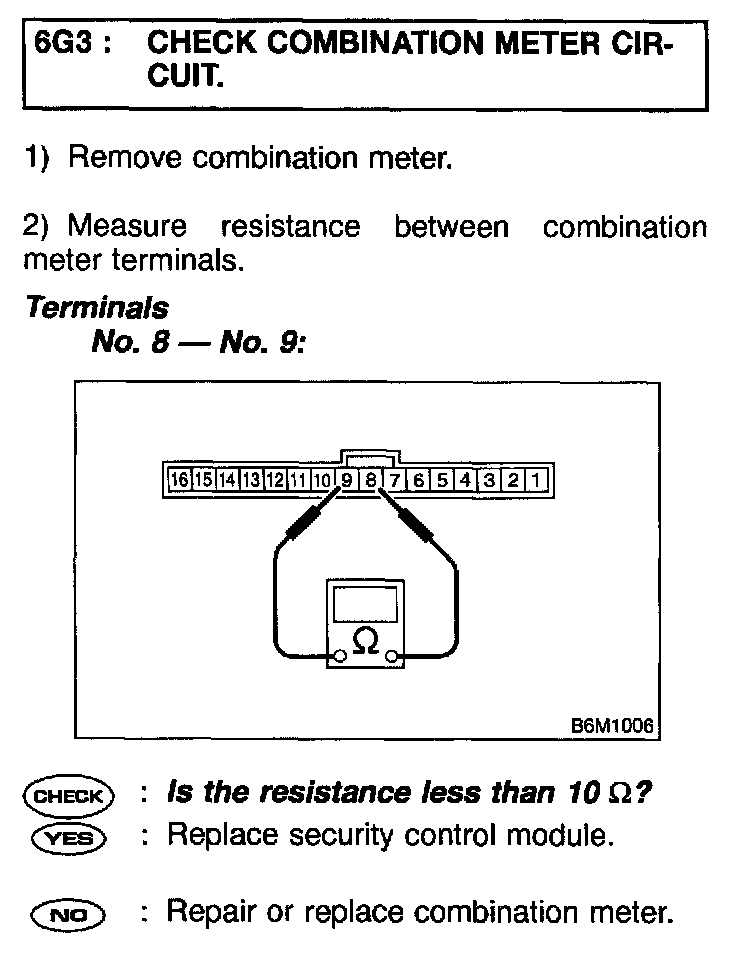

Step 6G3:
