Legacy Outback AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnostics Procedure
>>
Diagnostics Item 4
Diagnostics Item 4

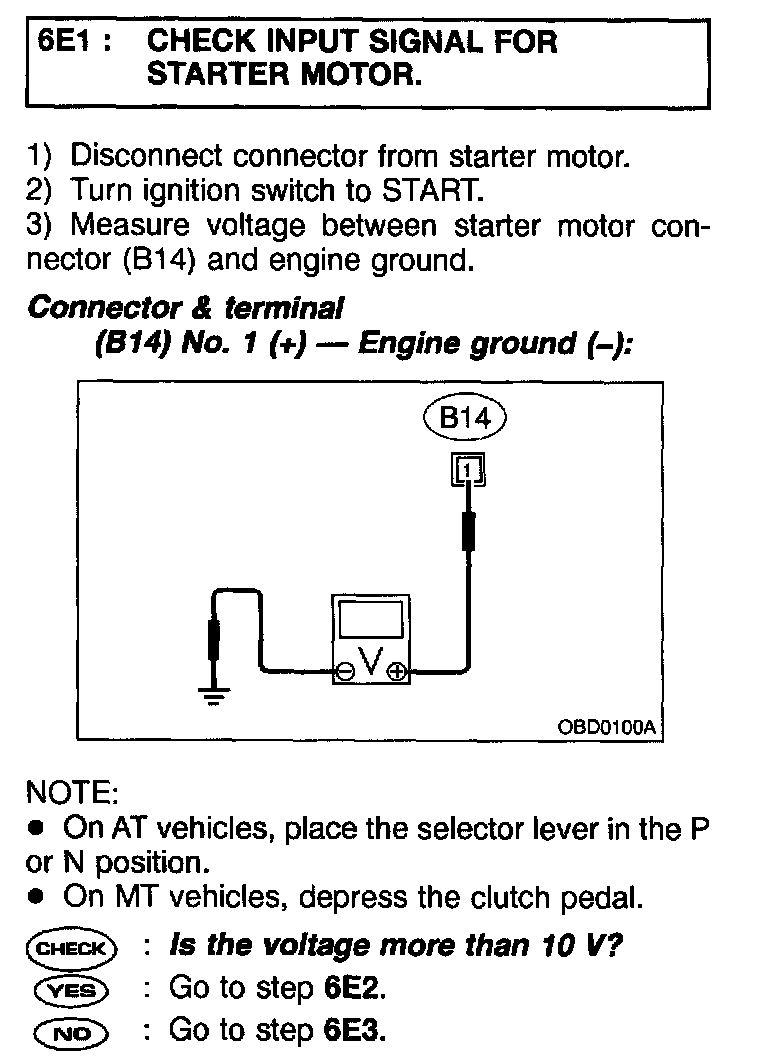

Step 6E1:

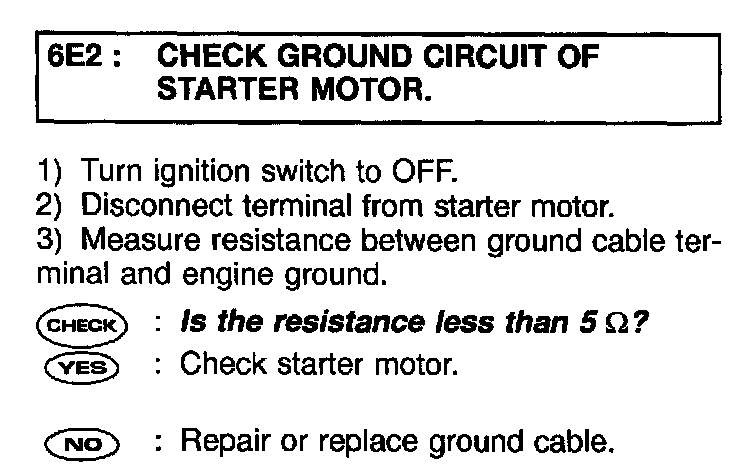

Step 6E2:

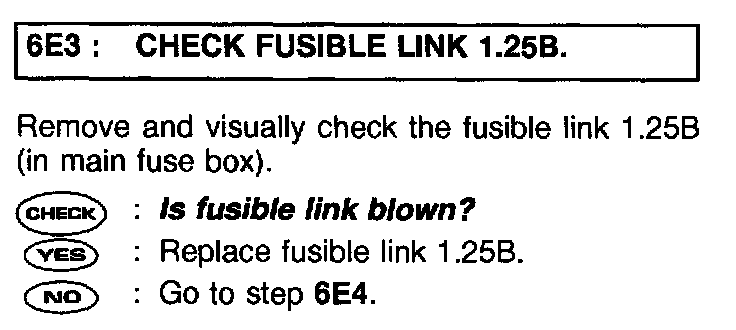

Step 6E3:

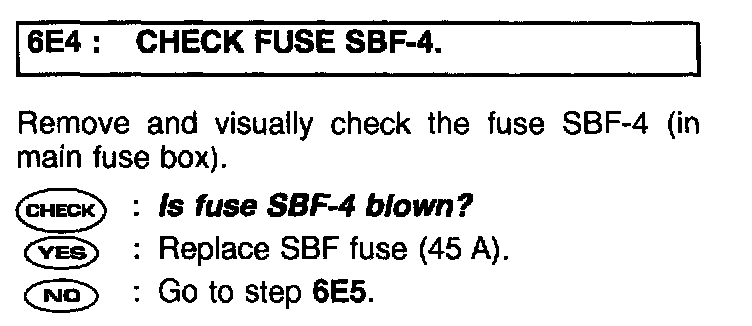

Step 6E4:

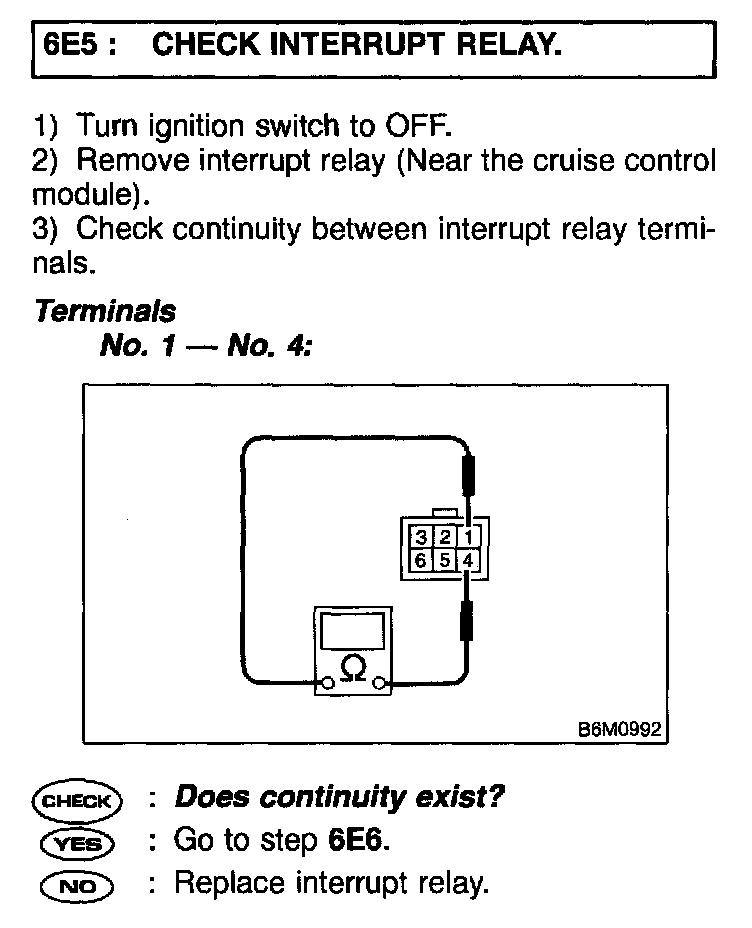

Step 6E5:

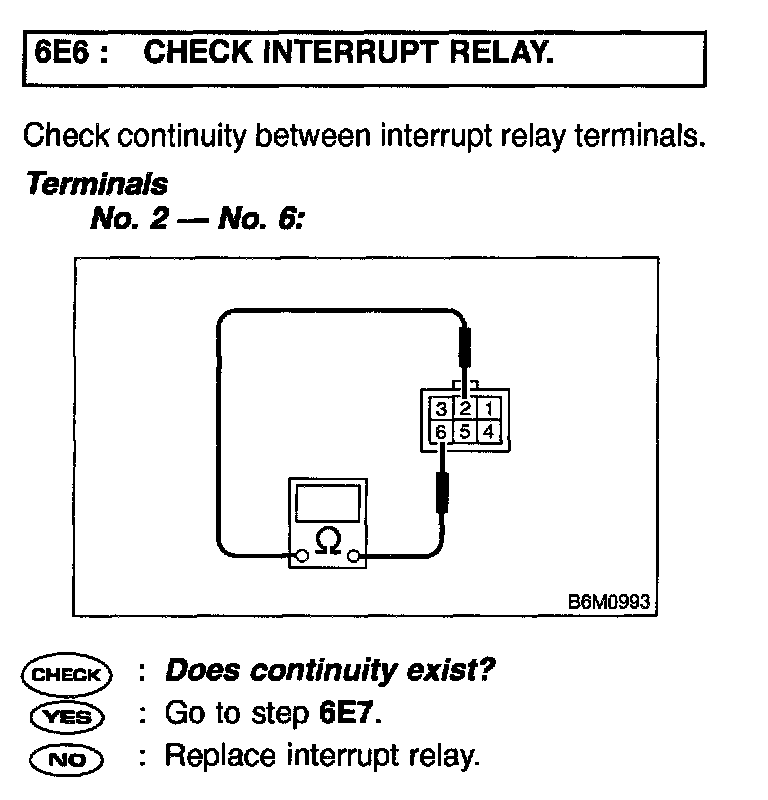

Step 6E6:
Step 6E7:

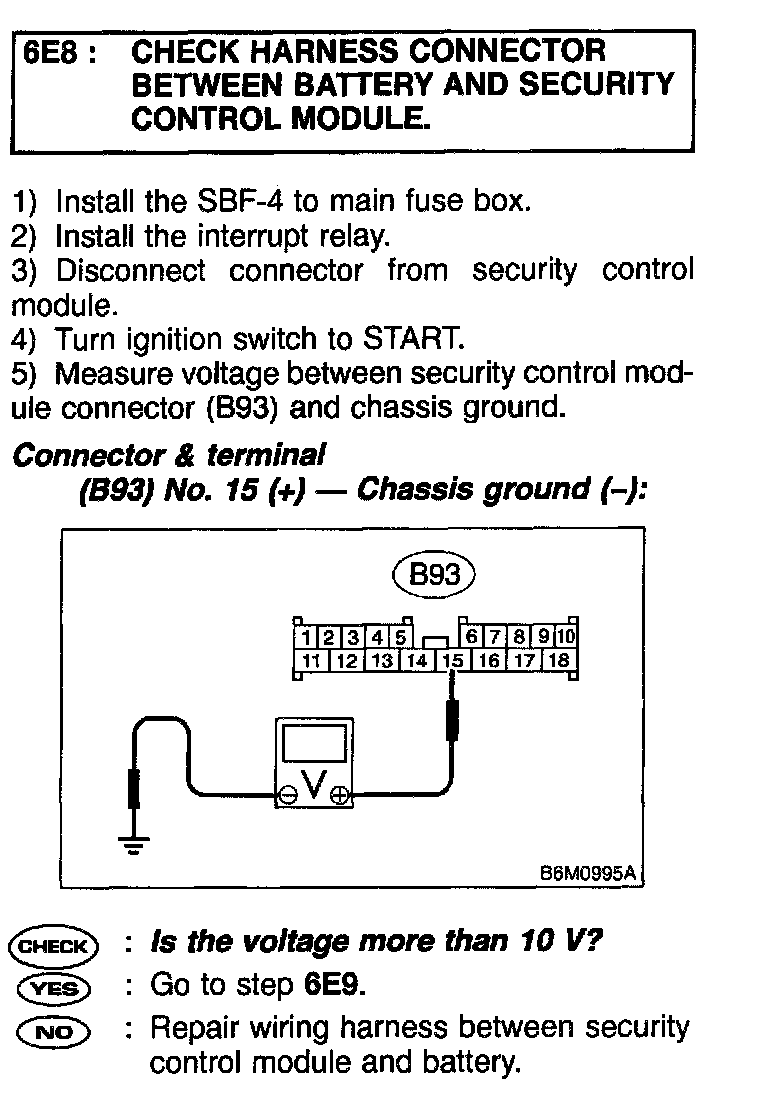

Step 6E8:

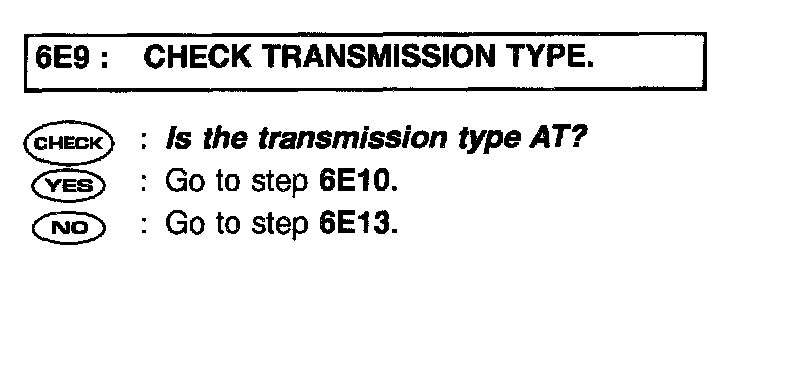

Step 6E9:

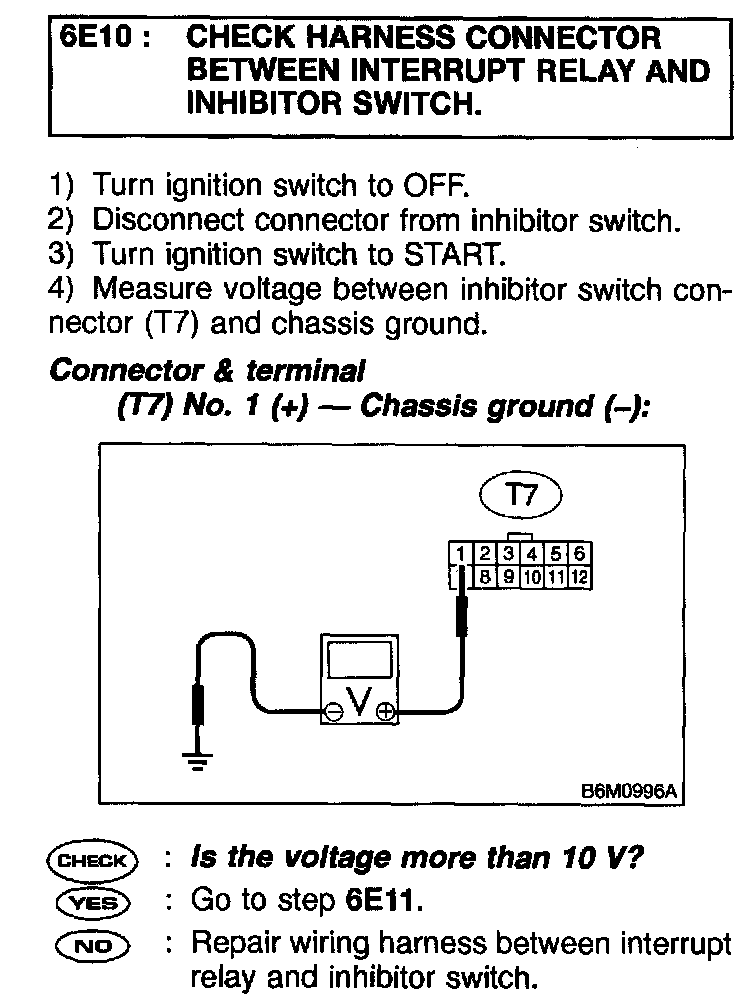

Step 6E10:

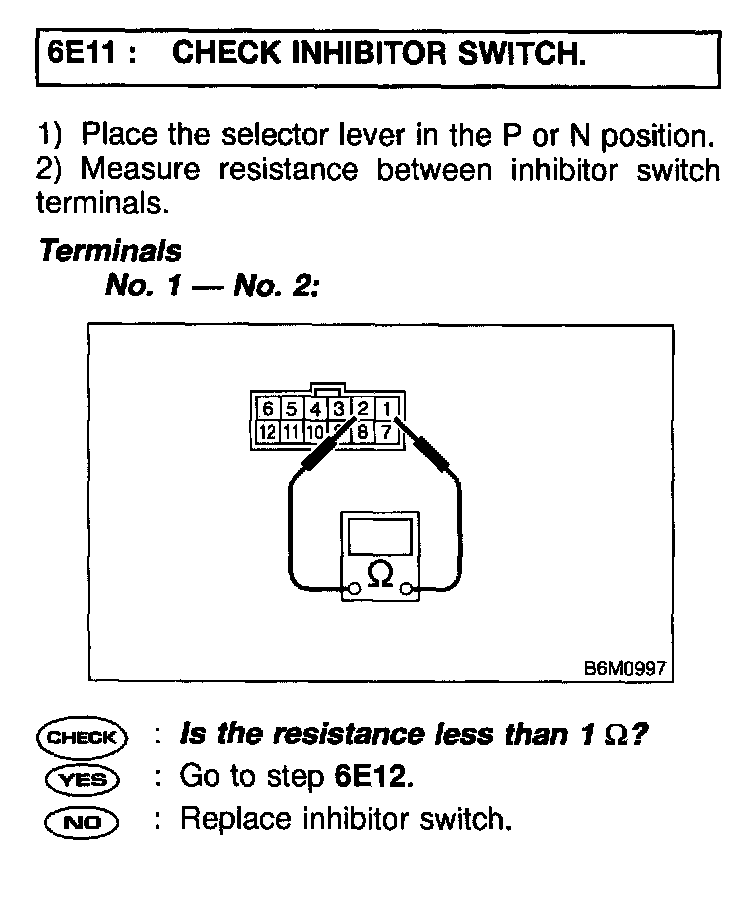

Step 6E11:

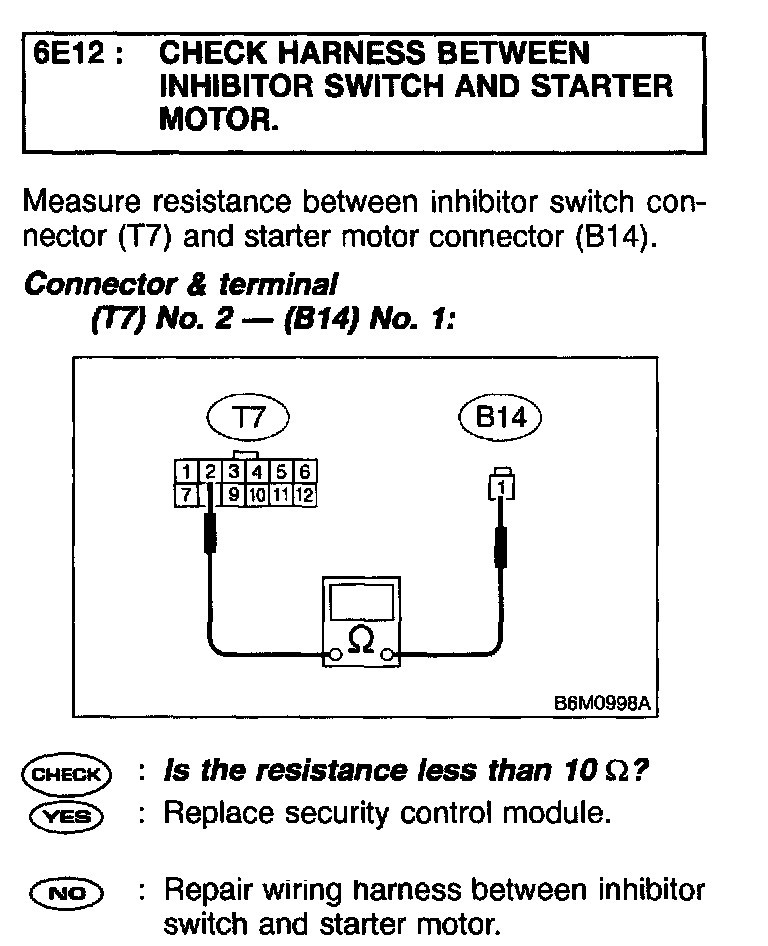

Step 6E12:

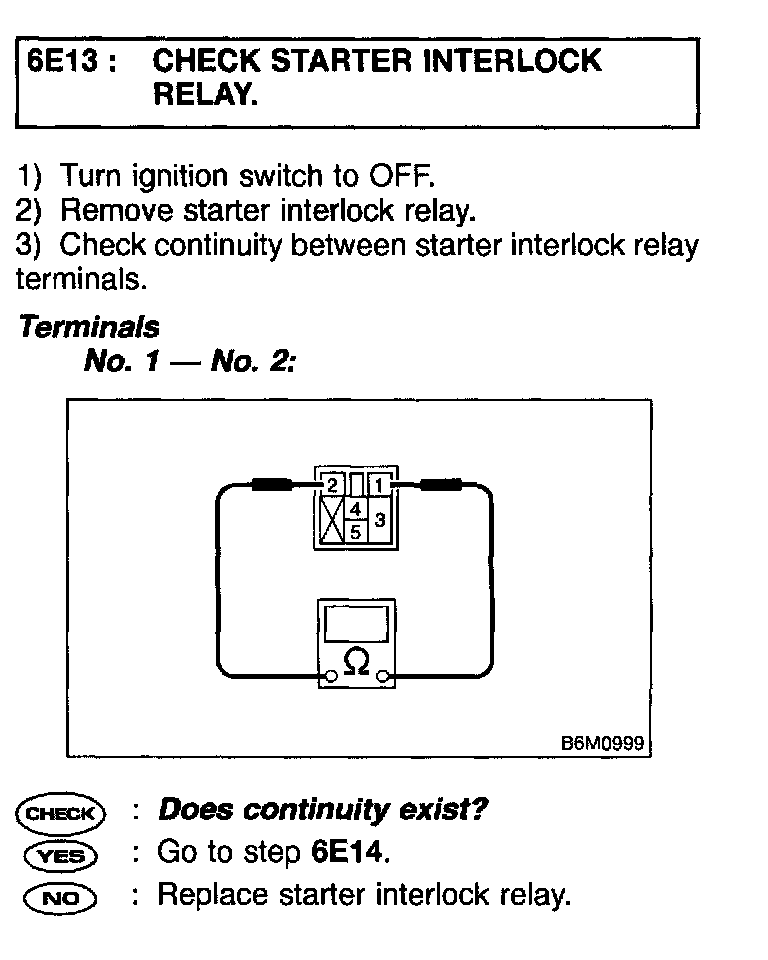

Step 6E13:
Step 6E14:

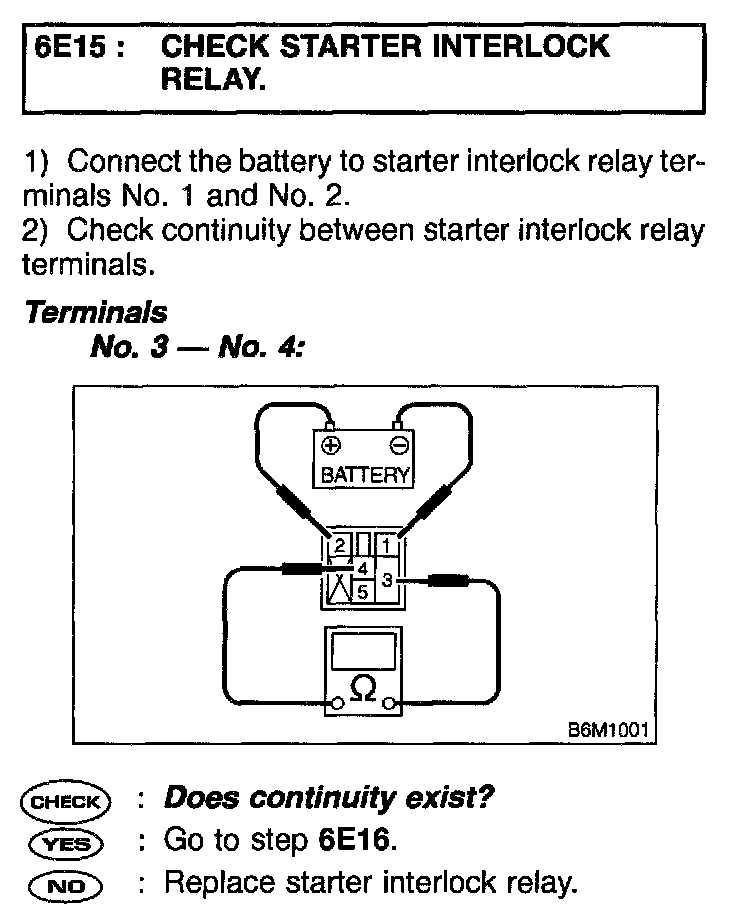

Step 6E15:
Step 6E16:

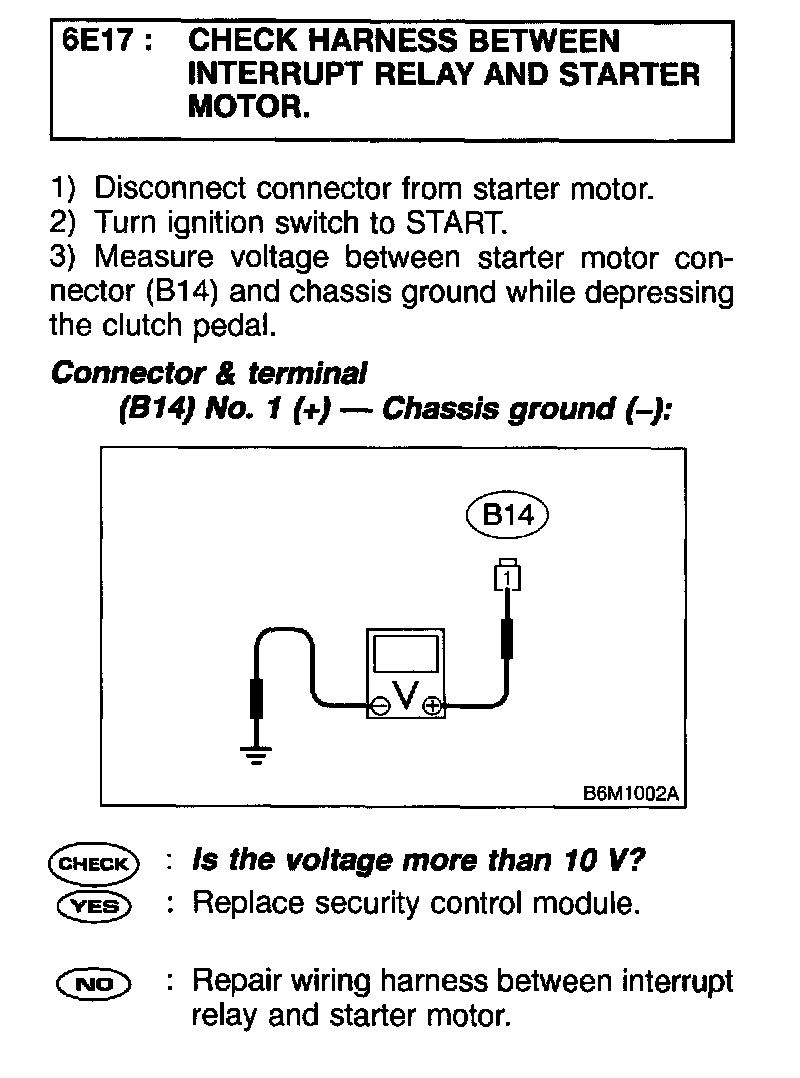

Step 6E17:
