Diagnostics Item 1

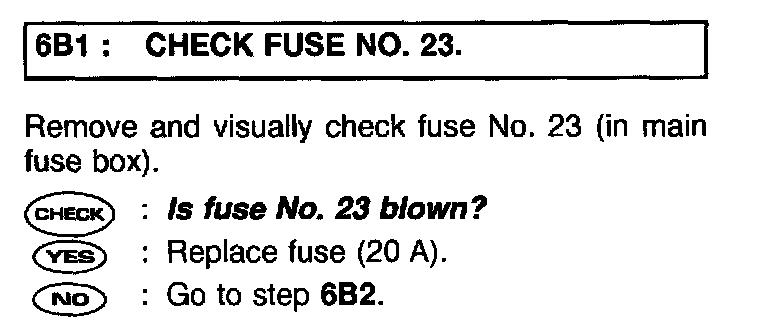

Step 6B1:

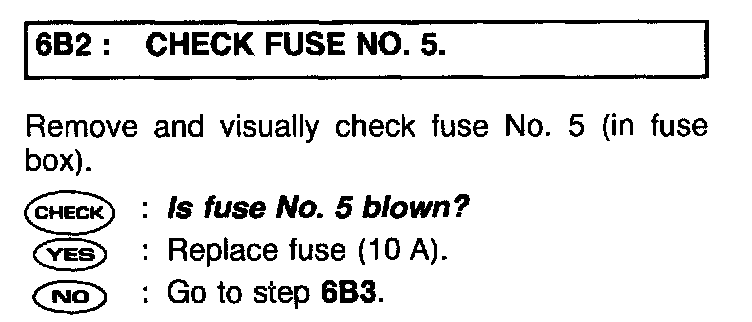

Step 6B2:

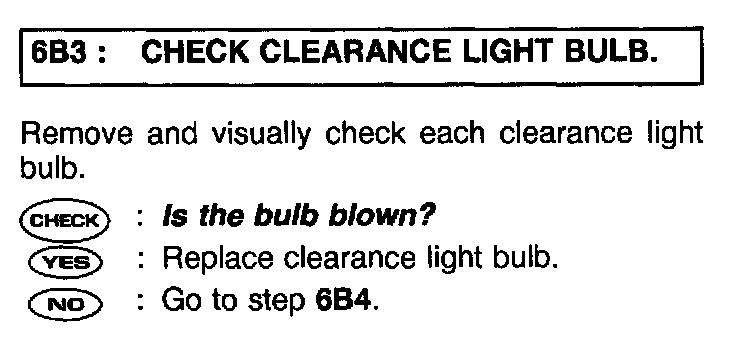

Step 6B3:




Step 6B4:





Step 6B5:

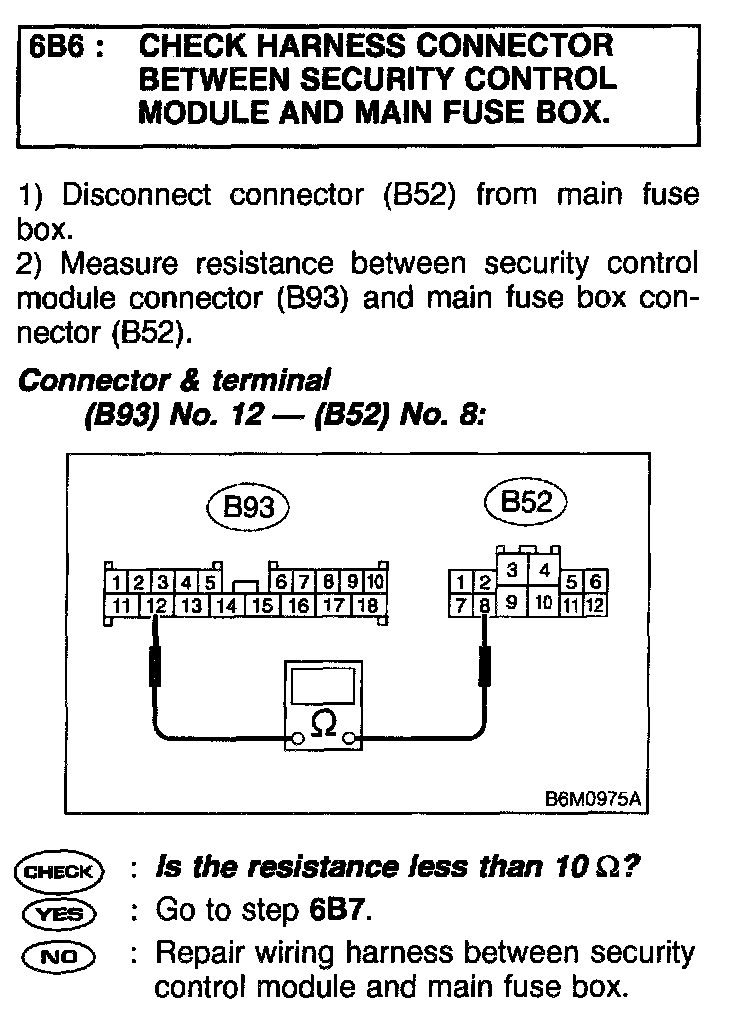

Step 6B6:

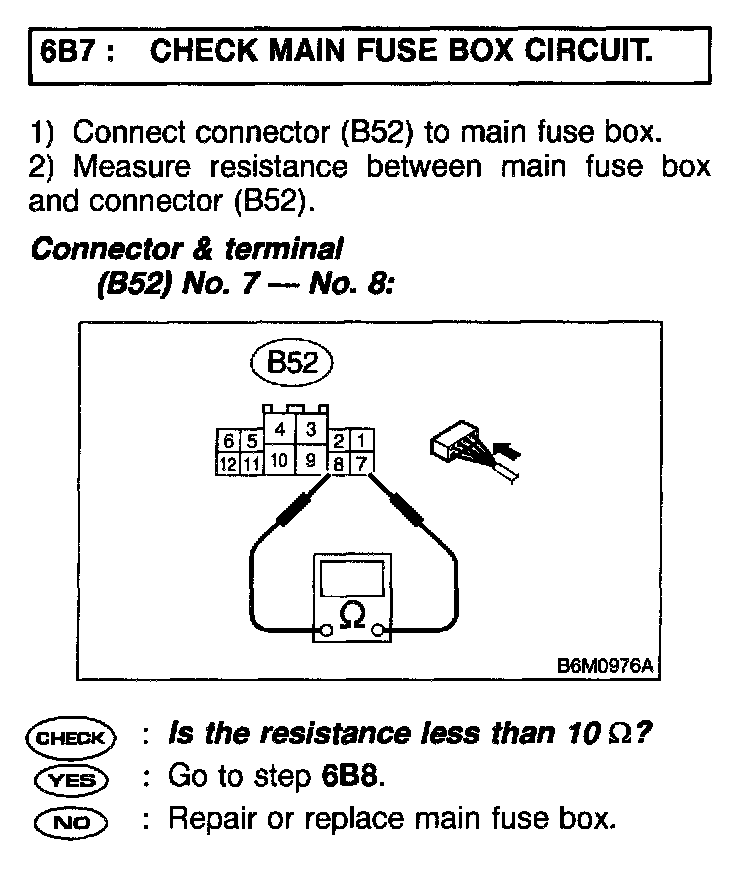

Step 6B7:




Step 6B8:

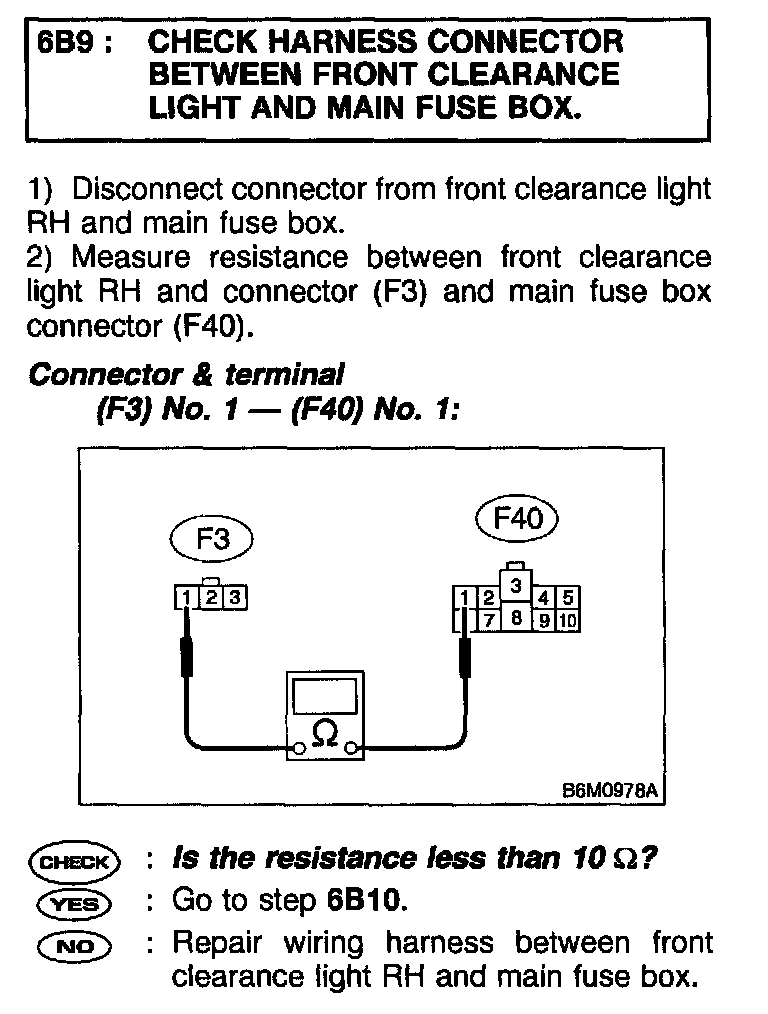

Step 6B9:

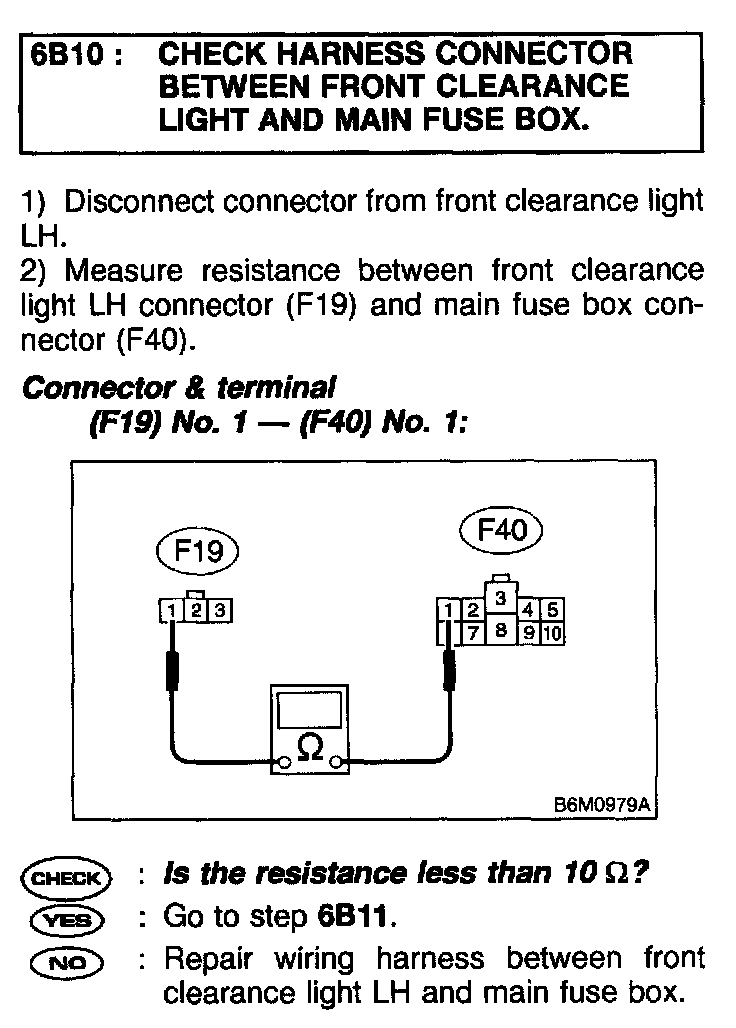

Step 6B10:

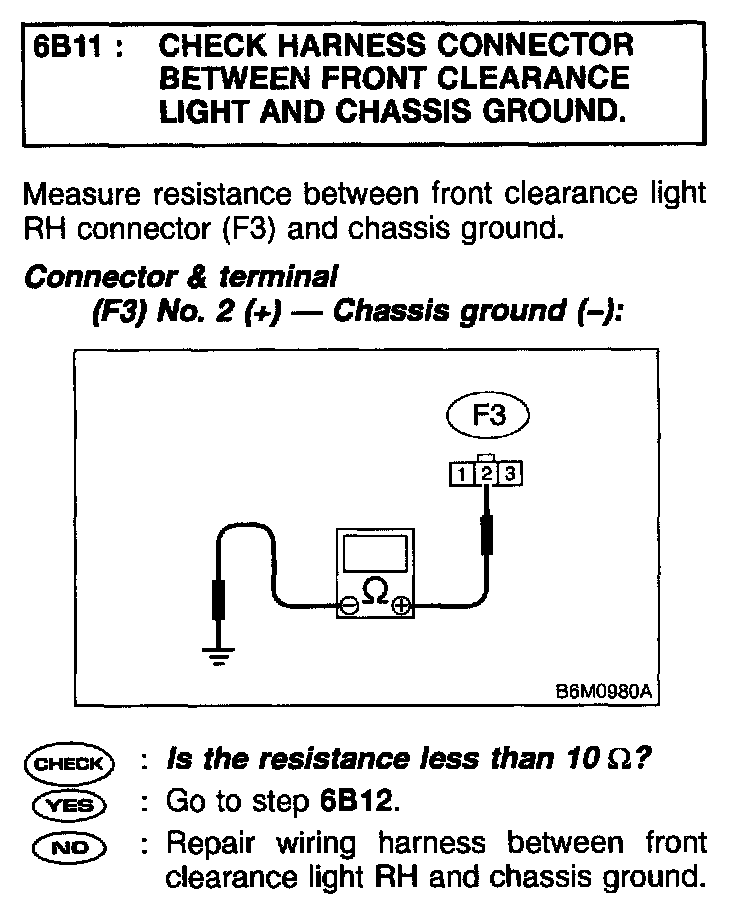

Step 6B11:

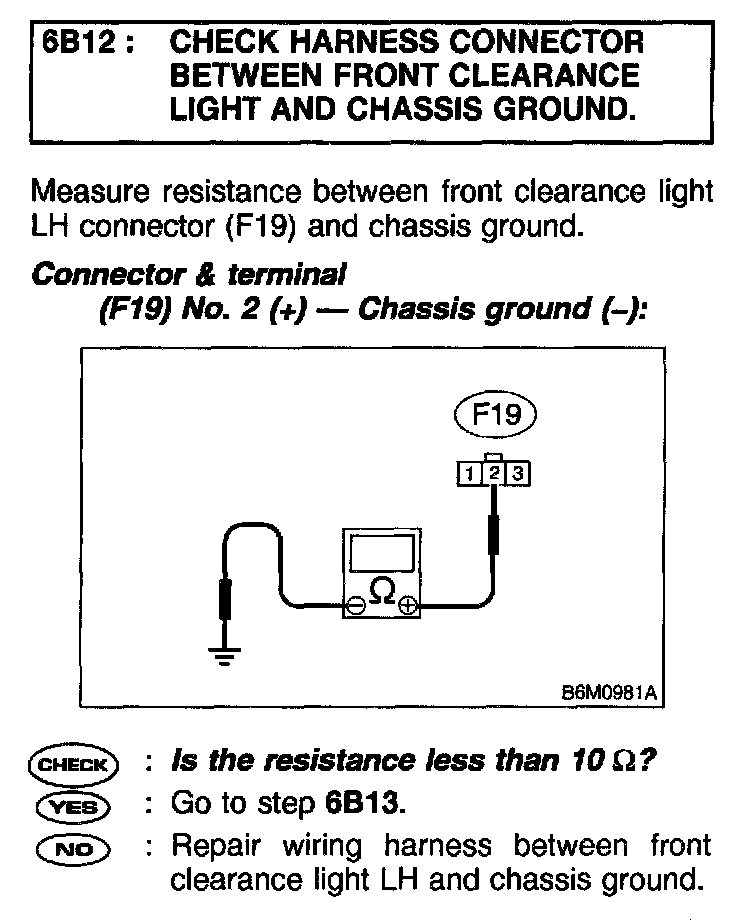

Step 6B12:

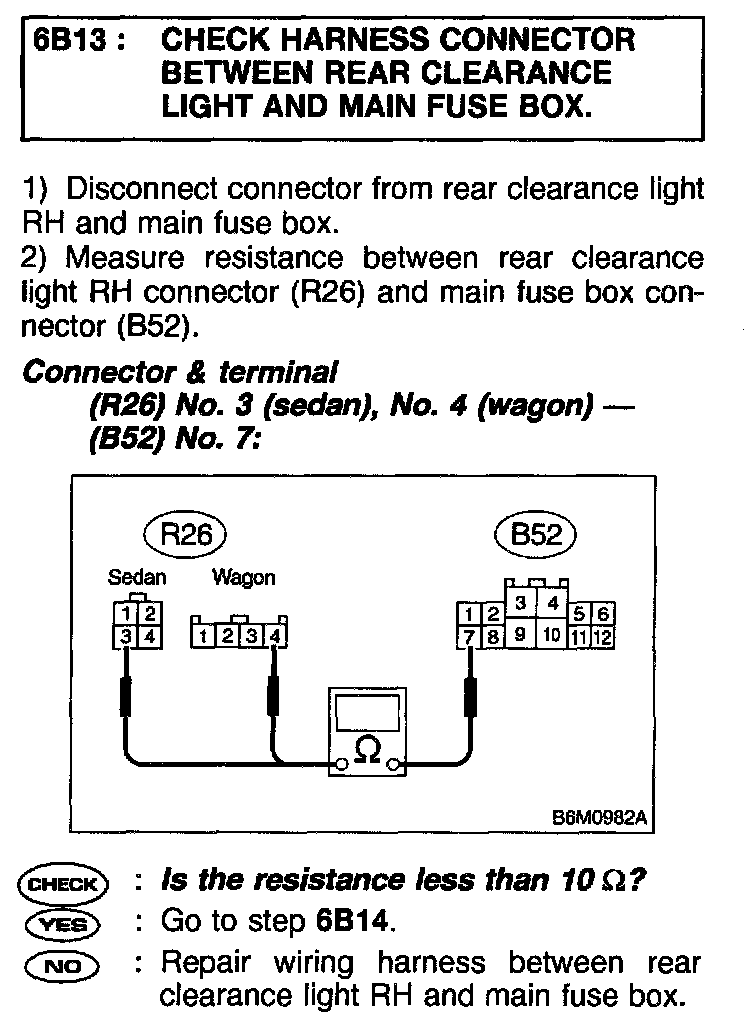

Step 6B13:

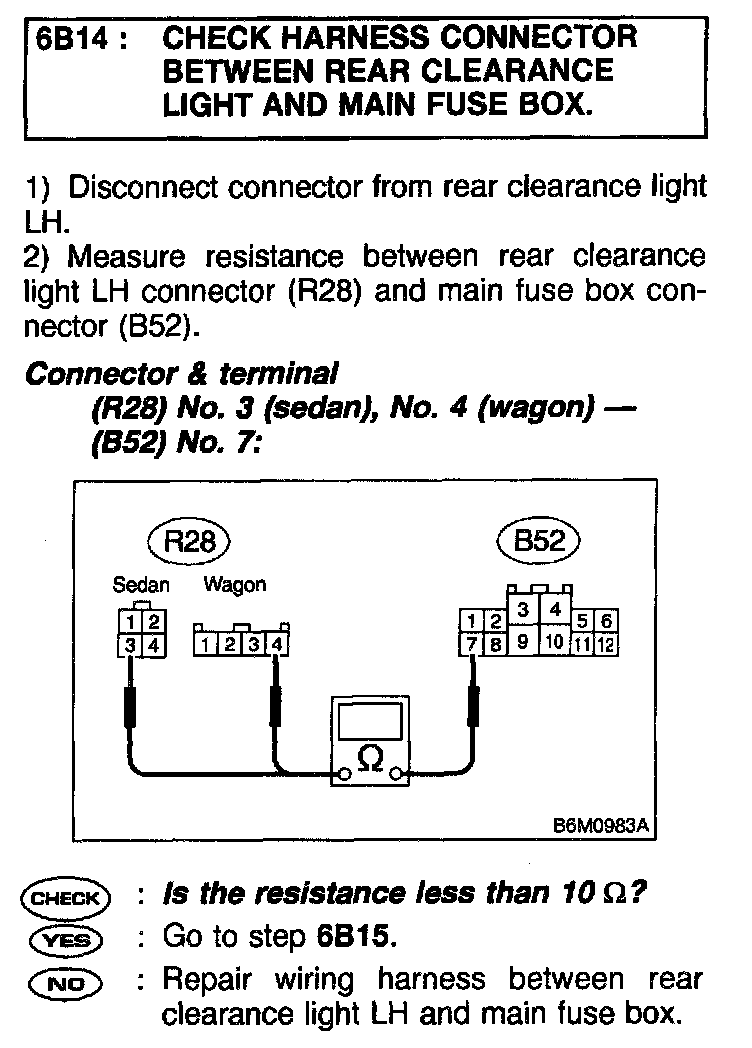

Step 6B14:

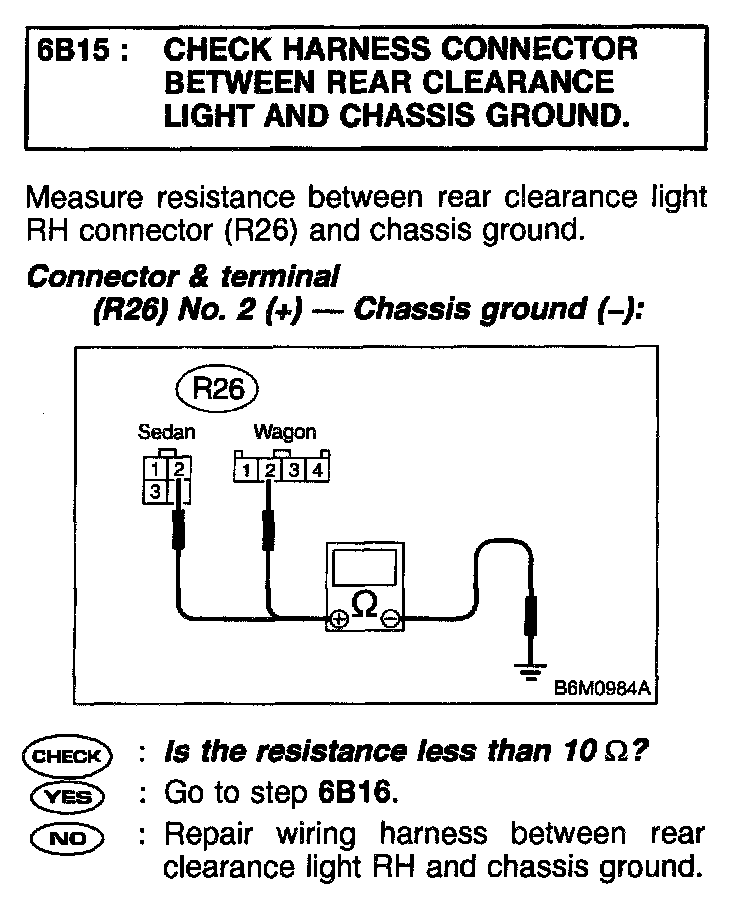

Step 6B15:

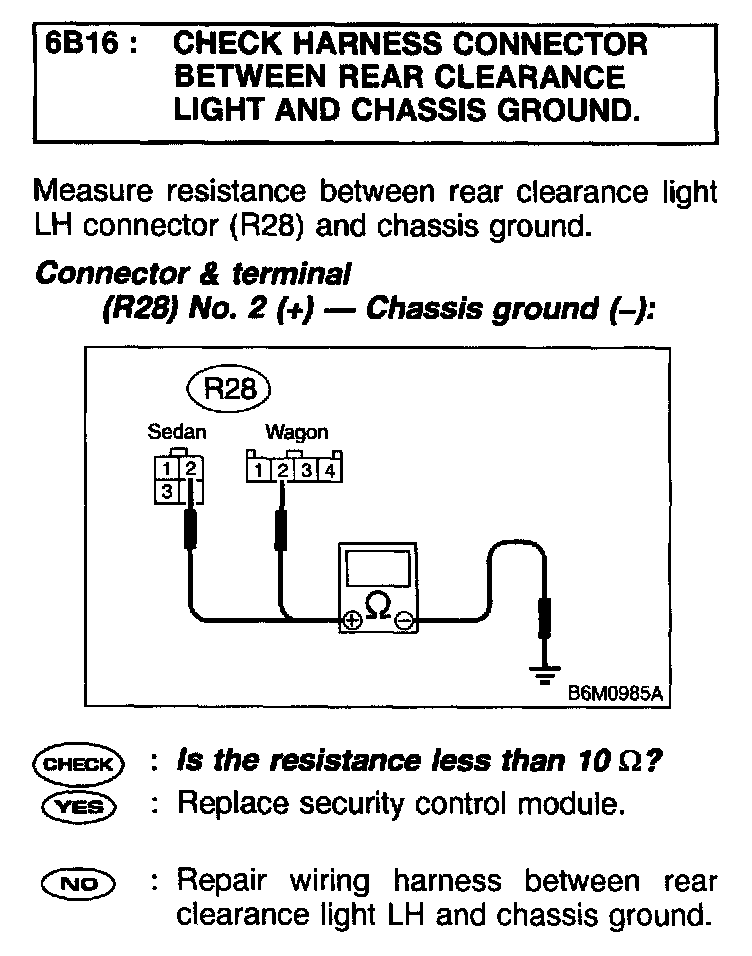

Step 6B16:
