Home >> Subaru >> 1999 >> Legacy Outback AWD F4-2.5L DOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostics Item 5

Diagnostics Item 5

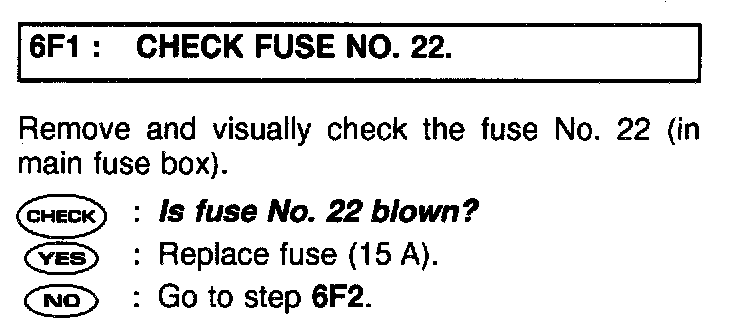

Step 6F1:

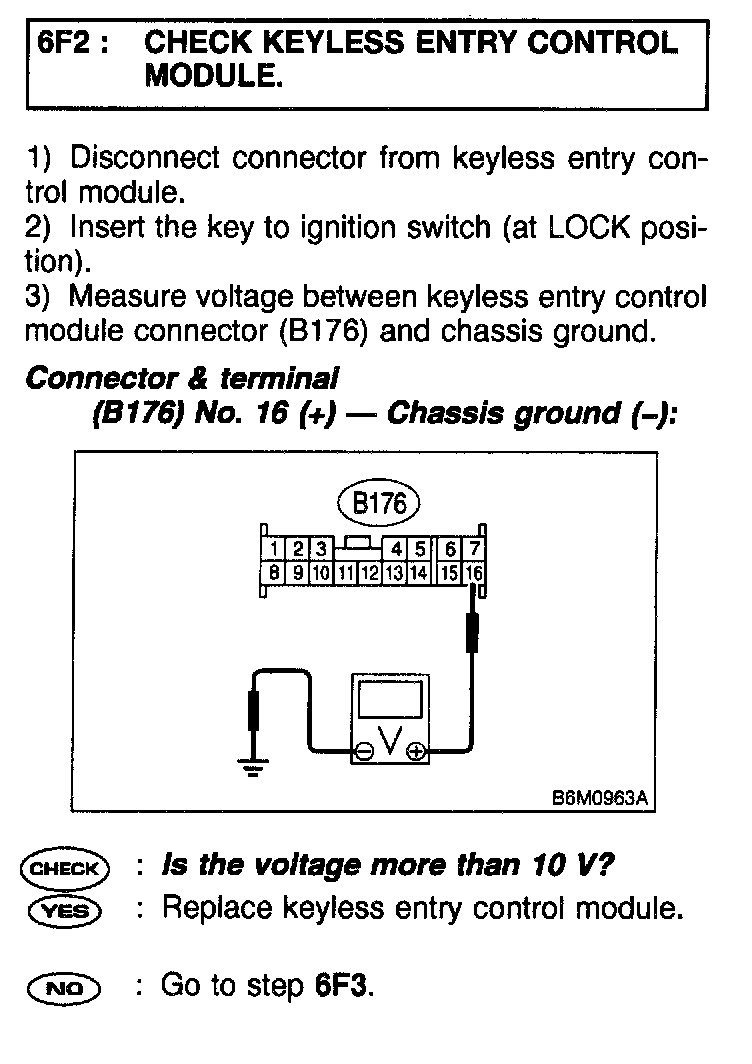

Step 6F2:




Step 6F3:

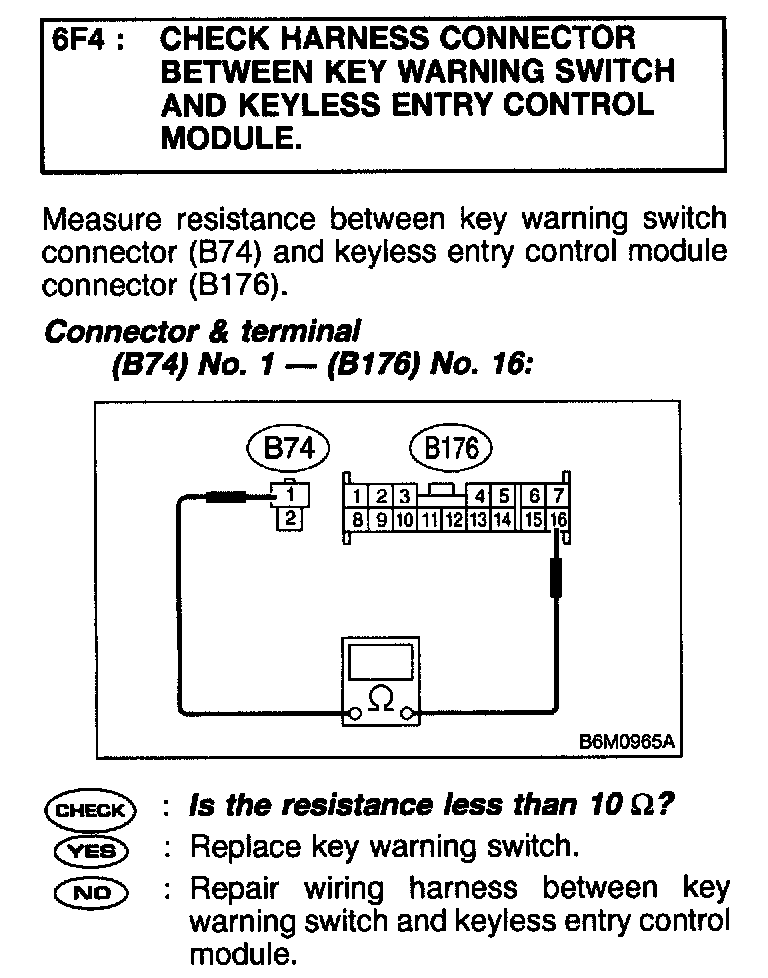

Step 6F4:
