Antenna: Service and Repair

POWER ANTENNA

REMOVAL AND INSTALLATION




1. Remove left side trunk trim (SEDAN), or left side rear lower quarter trim (WAGON).
2. Remove special nut (SEDAN).
3. Remove bolt which secures power antenna.

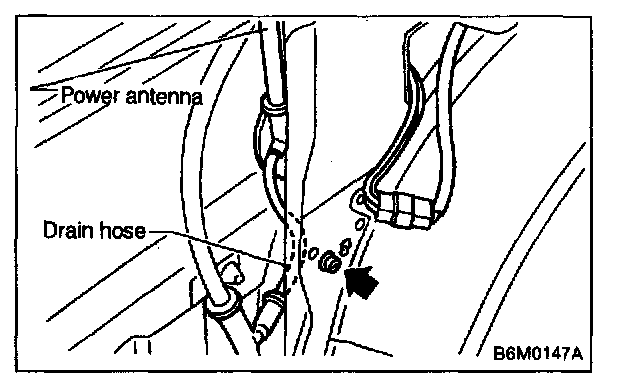

4. Remove power antenna while disconnecting connector and water drain hose.
