P1722

DTC P1722 - AUTOMATIC TRANSMISSION DIAGNOSIS INPUT SIGNAL CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

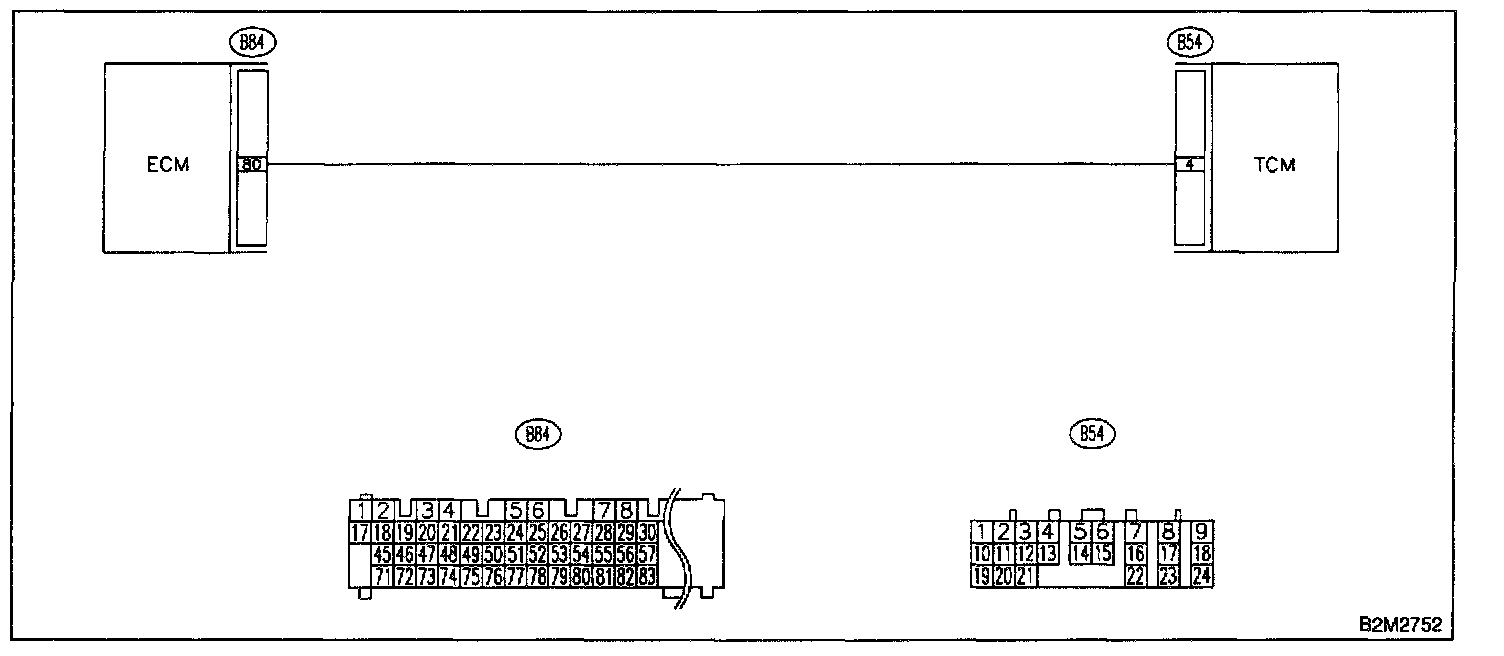

WIRING DIAGRAM

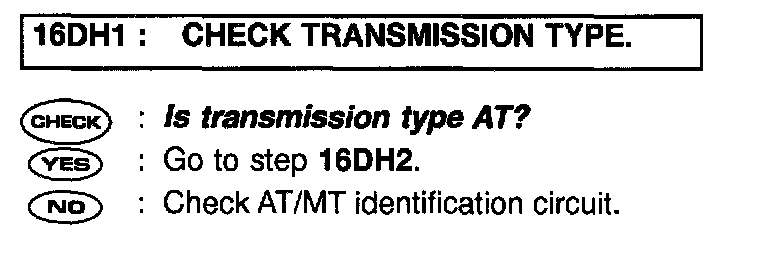

Step 16DH1:

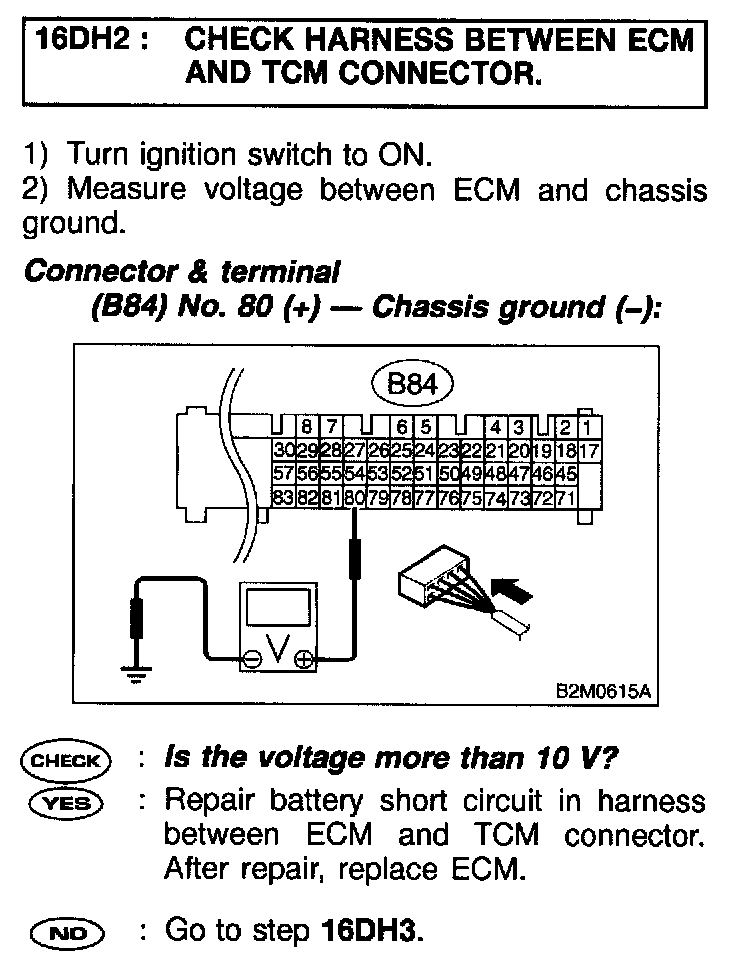

Step 16DH2:

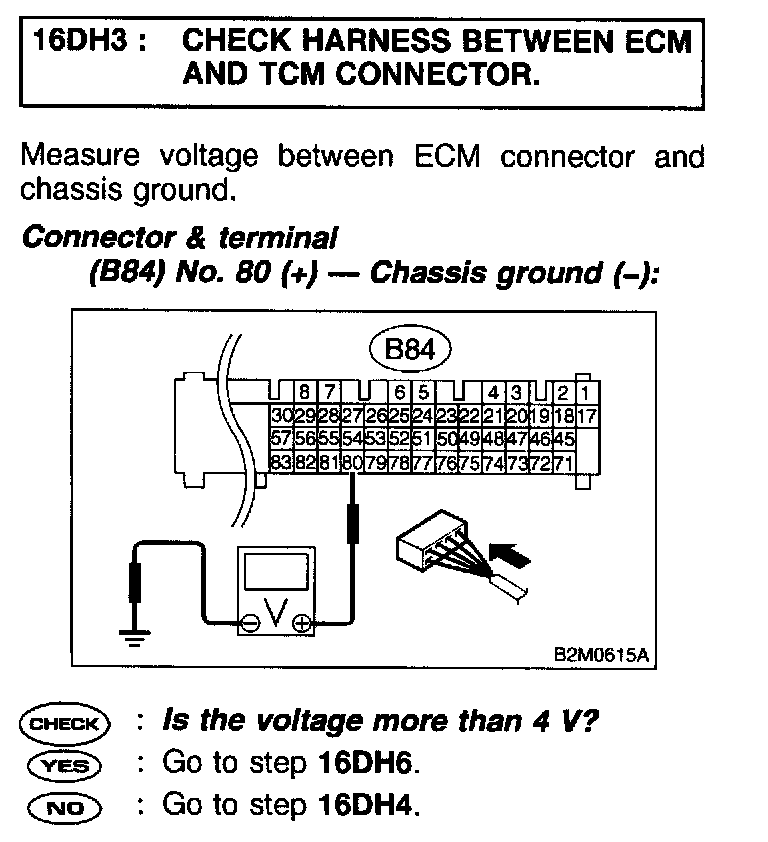

Step 16DH3:

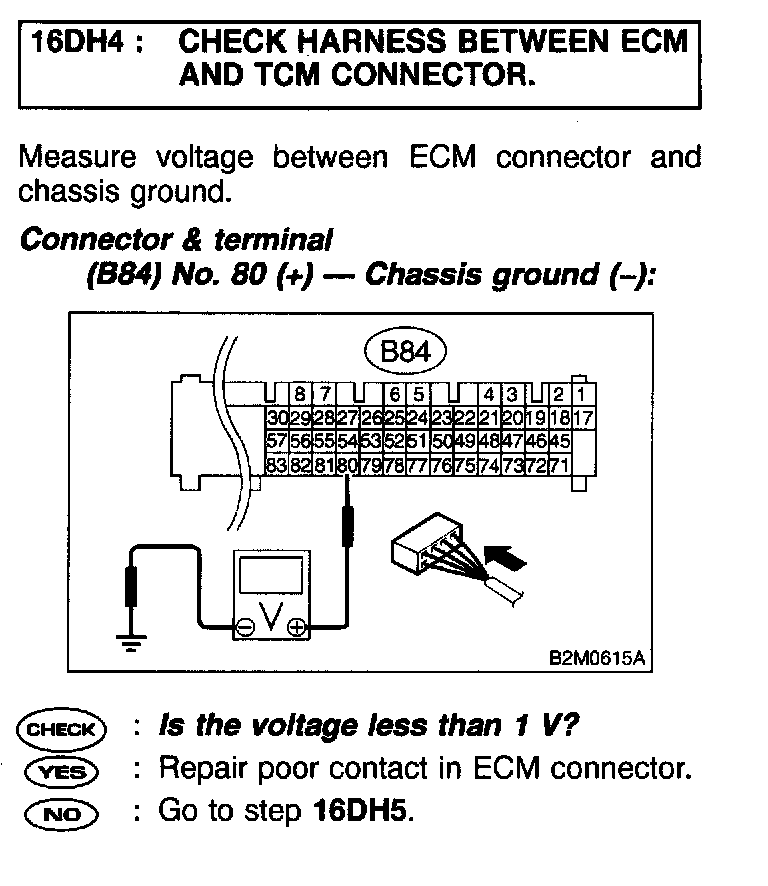

Step 16DH4:

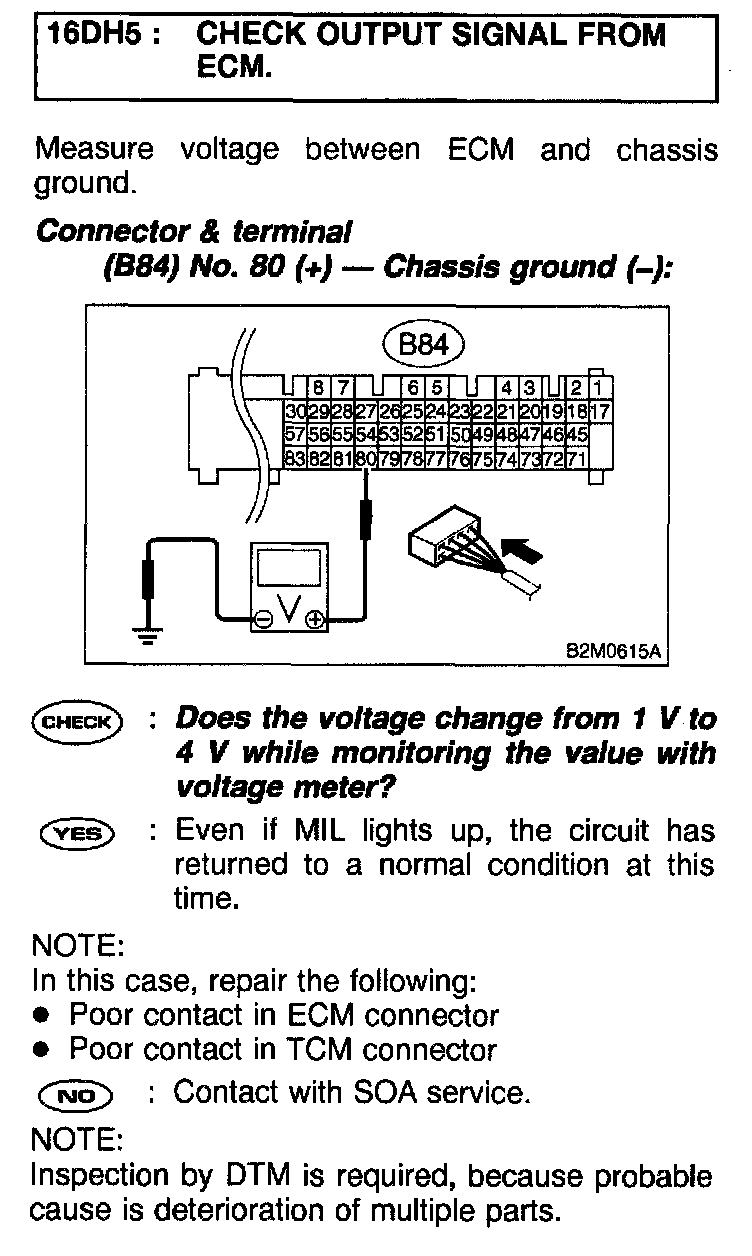

Step 16DH5:

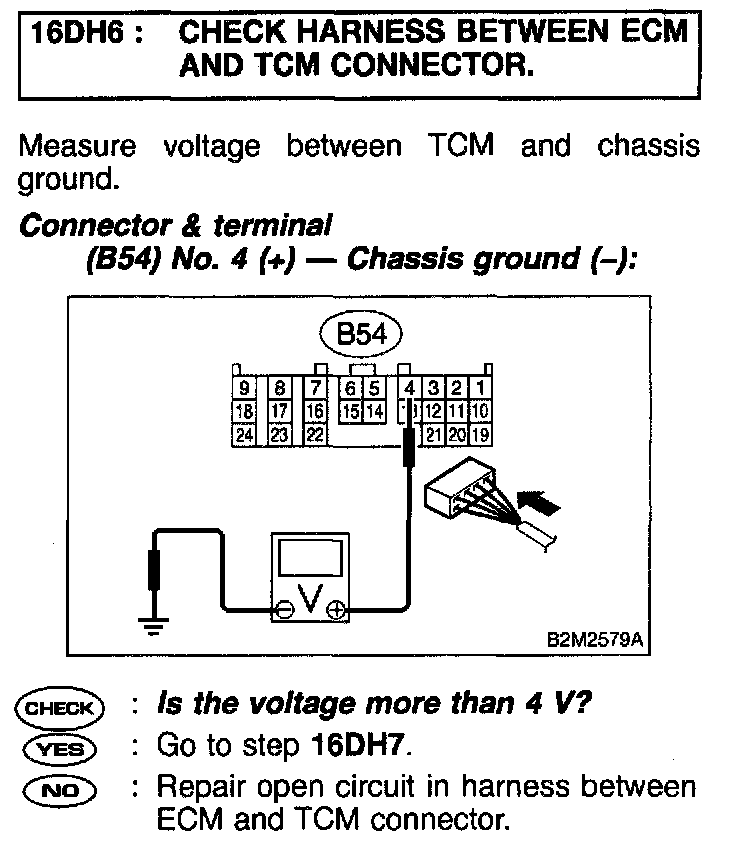

Step 16DH6:

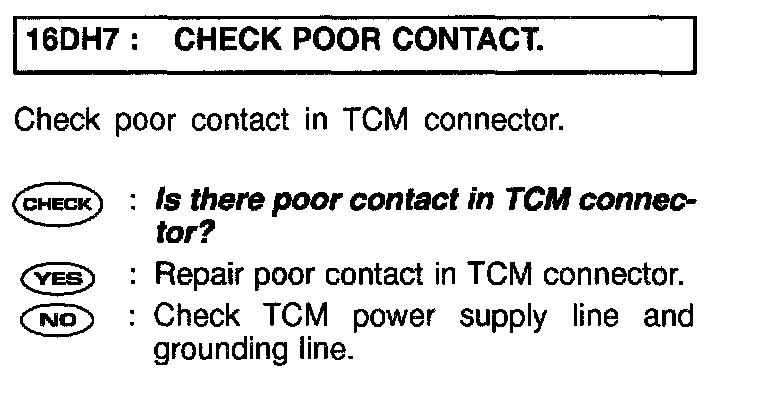

Step 16DH7:

PROCEDURES
