P1703

DTC P1703 - LOW CLUTCH TIMING CONTROL SOLENOID VALVE CIRCUIT MALFUNCTION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

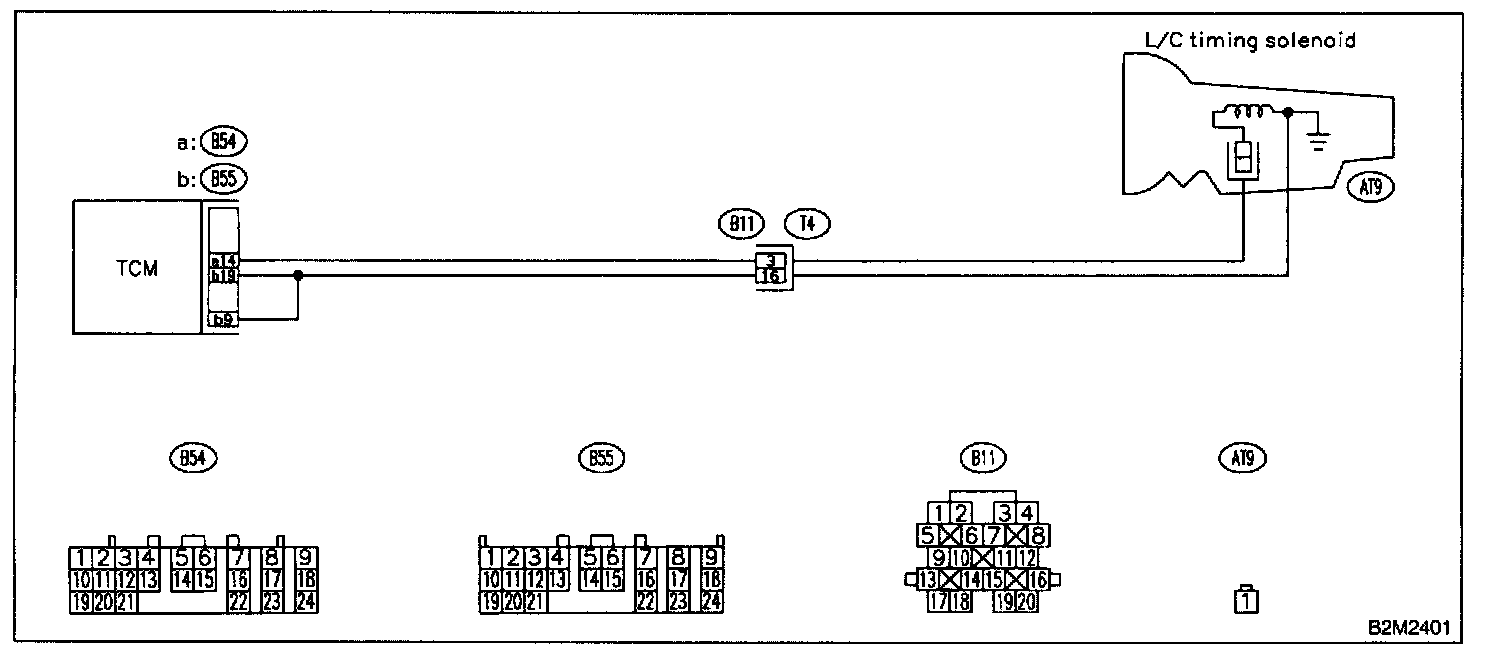

WIRING DIAGRAM

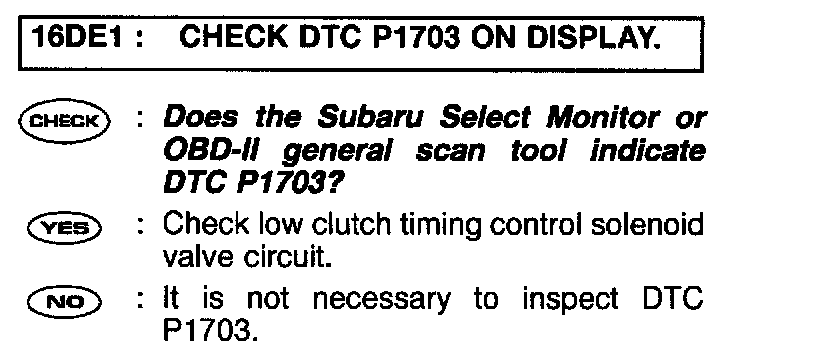

Step 16DE1:

PROCEDURES
