P1701

DTC P1701 - CRUISE CONTROL SET SIGNAL CIRCUIT MALFUNCTION FOR AUTOMATIC TRANSMISSION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

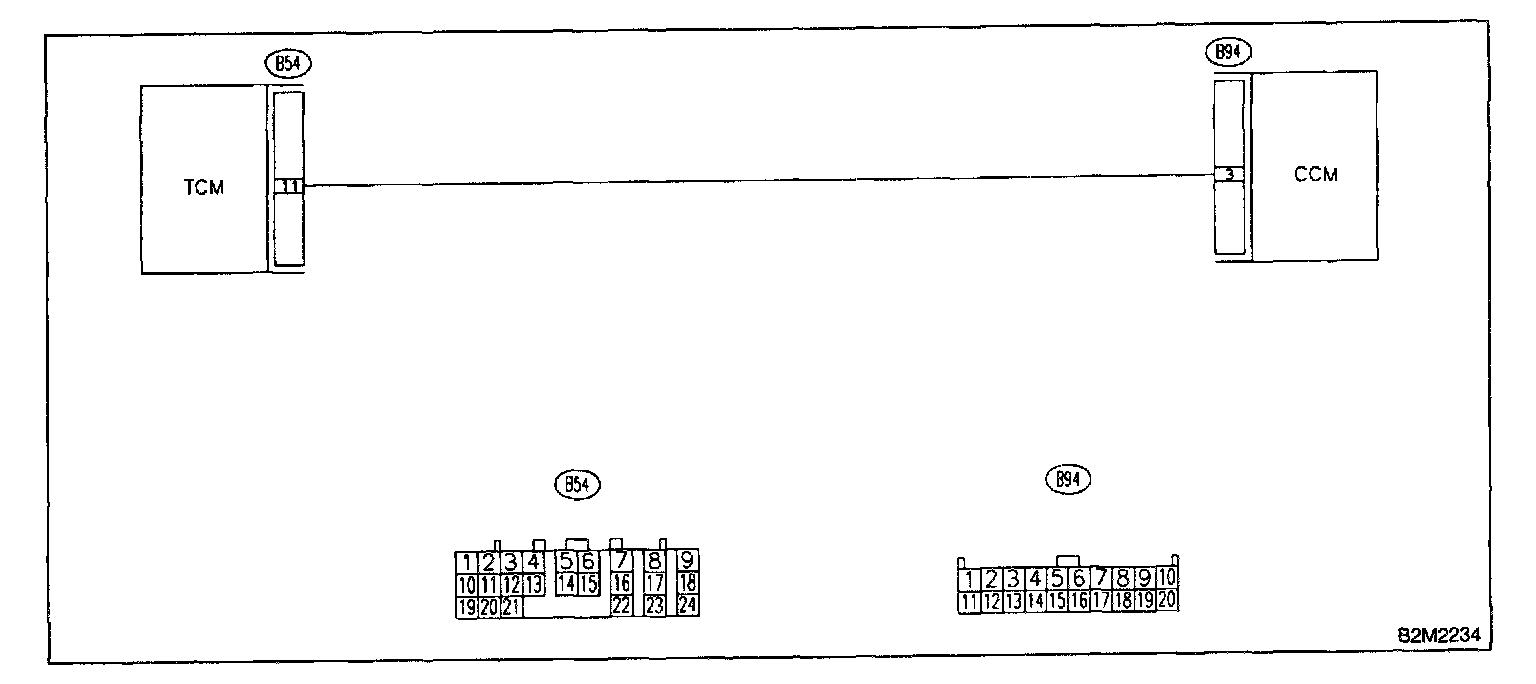

WIRING DIAGRAM

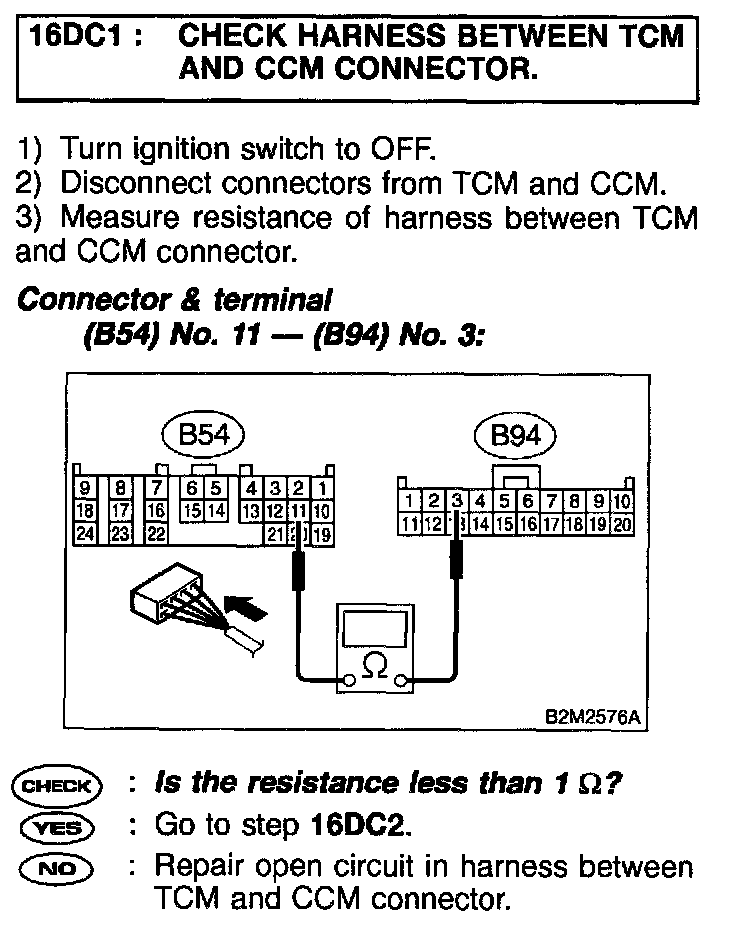

Step 16DC1:

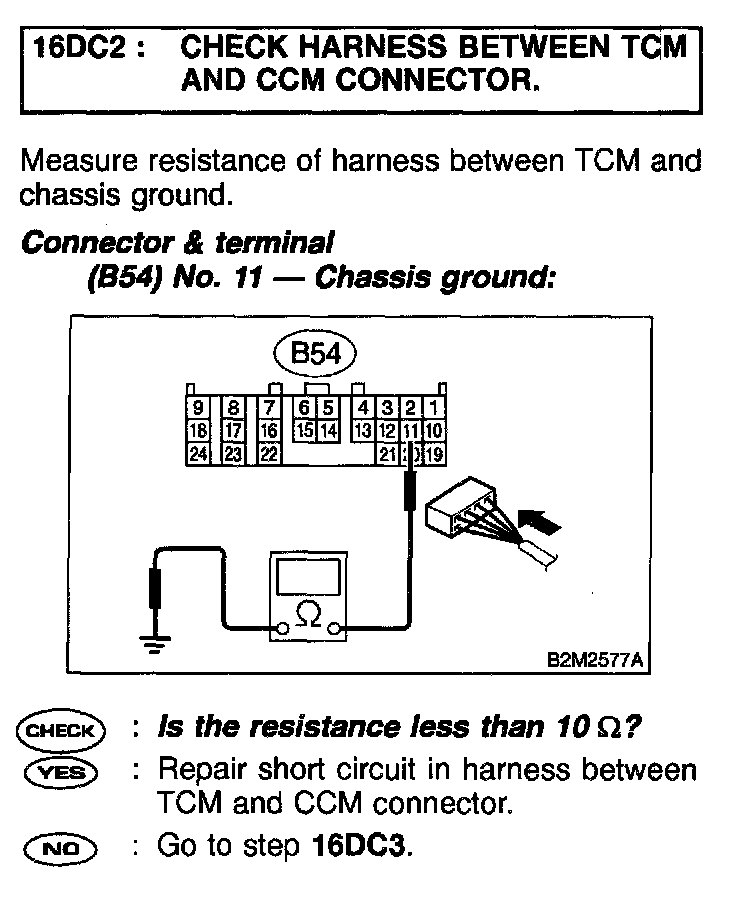

Step 16DC2:

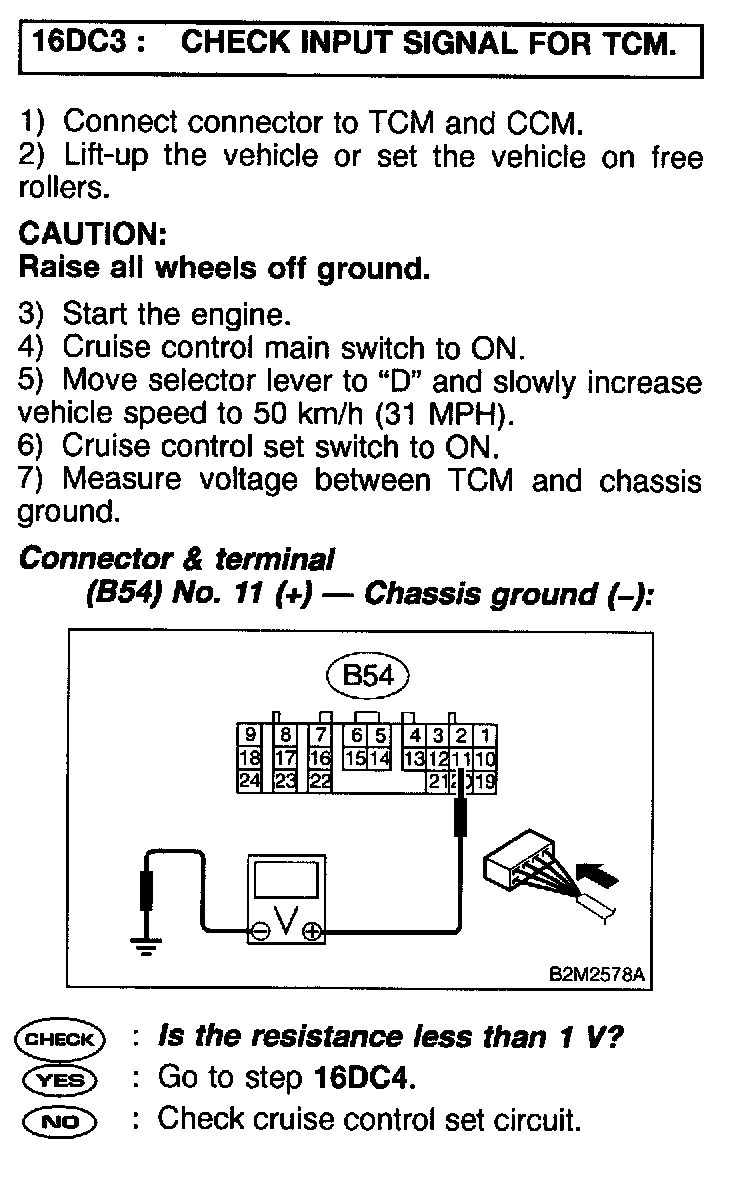

Step 16DC3:

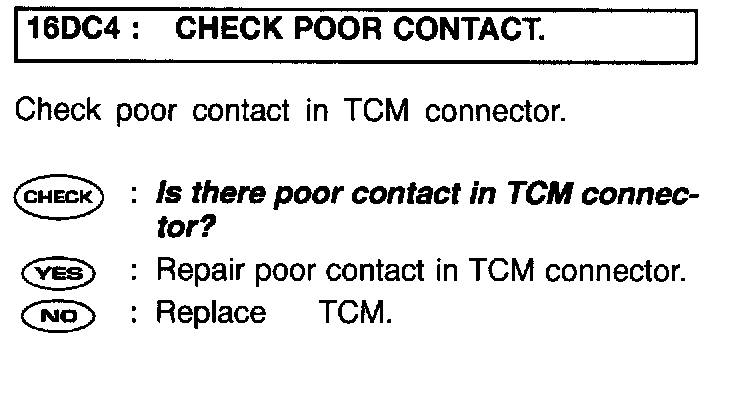

Step 16DC4:

PROCEDURES
