P1540
DTC P1540 - VEHICLE SPEED SENSOR MALFUNCTION 2DTC DETECTING CONDITION:
- Immediately at fault recognition
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

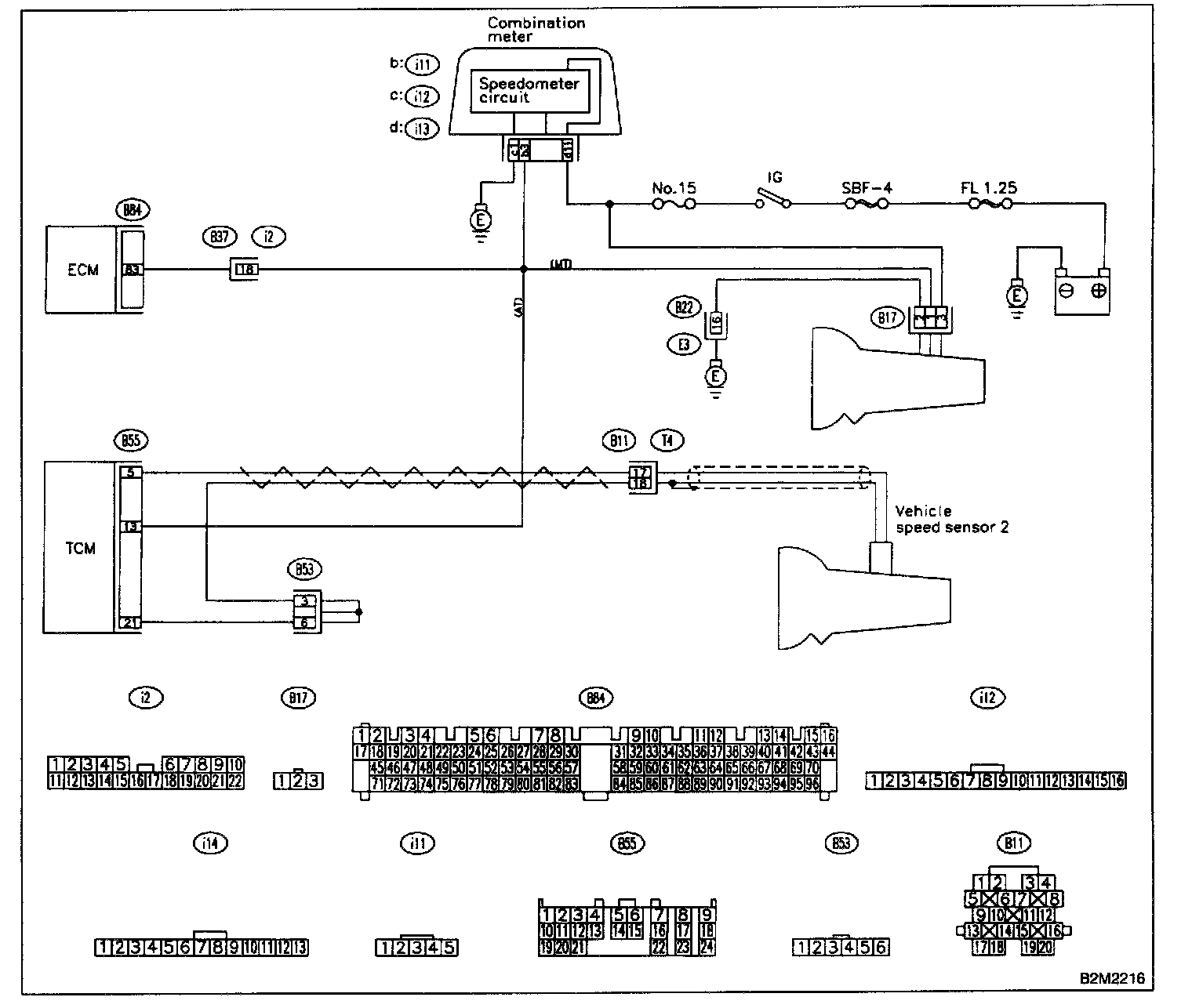

WIRING DIAGRAM

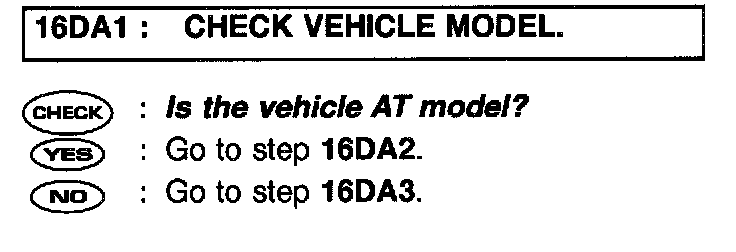

Step 16DA1:

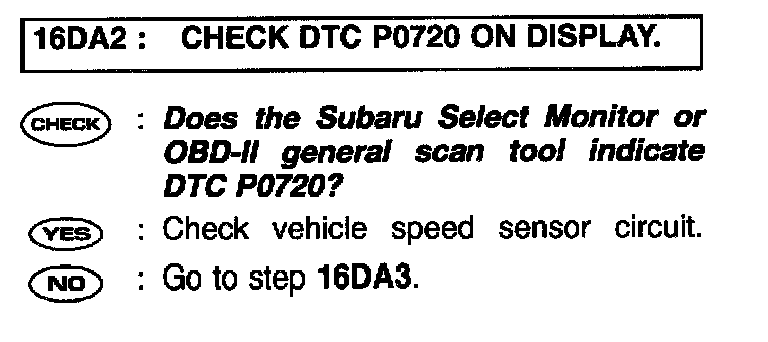

Step 16DA2:

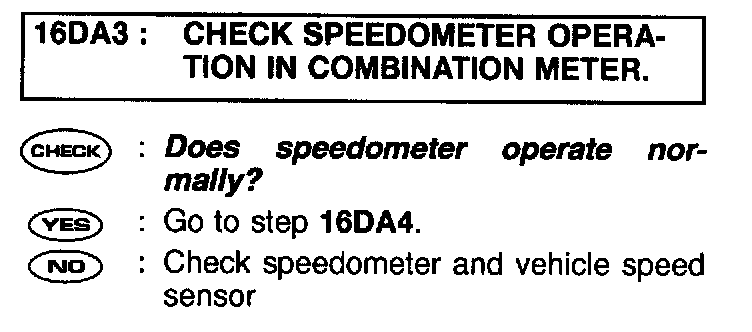

Step 16DA3:

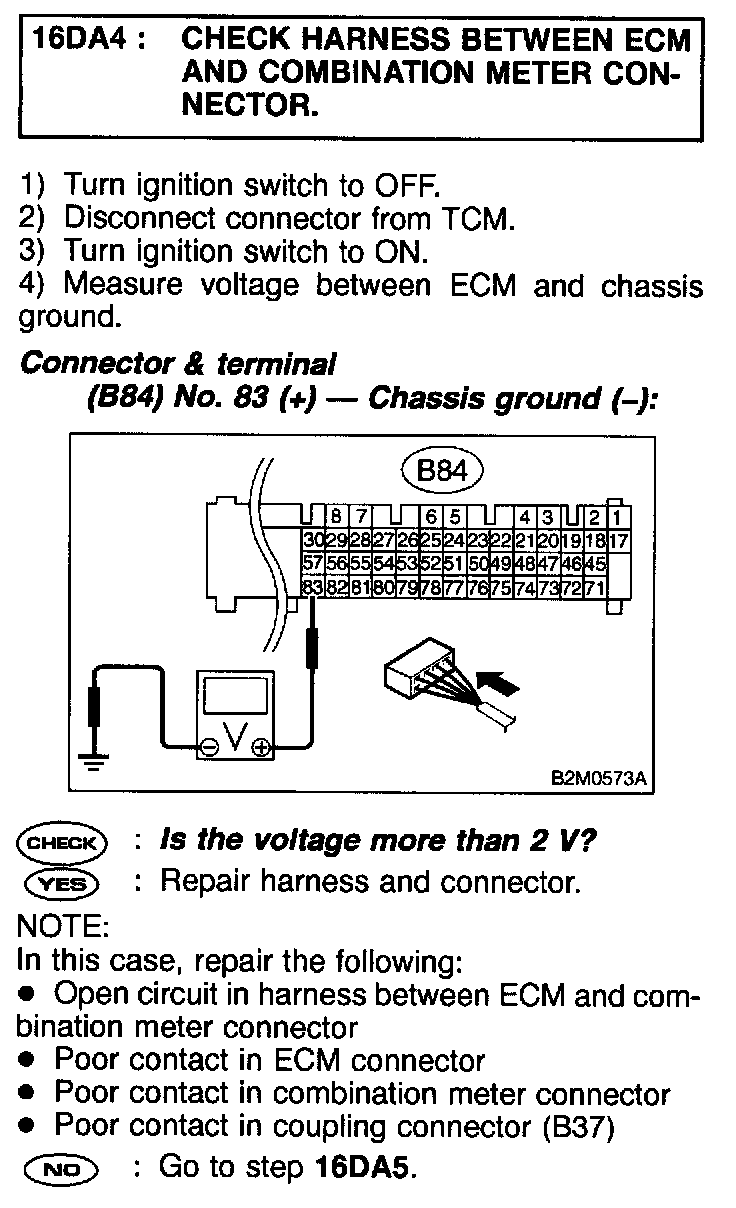

Step 16DA4:

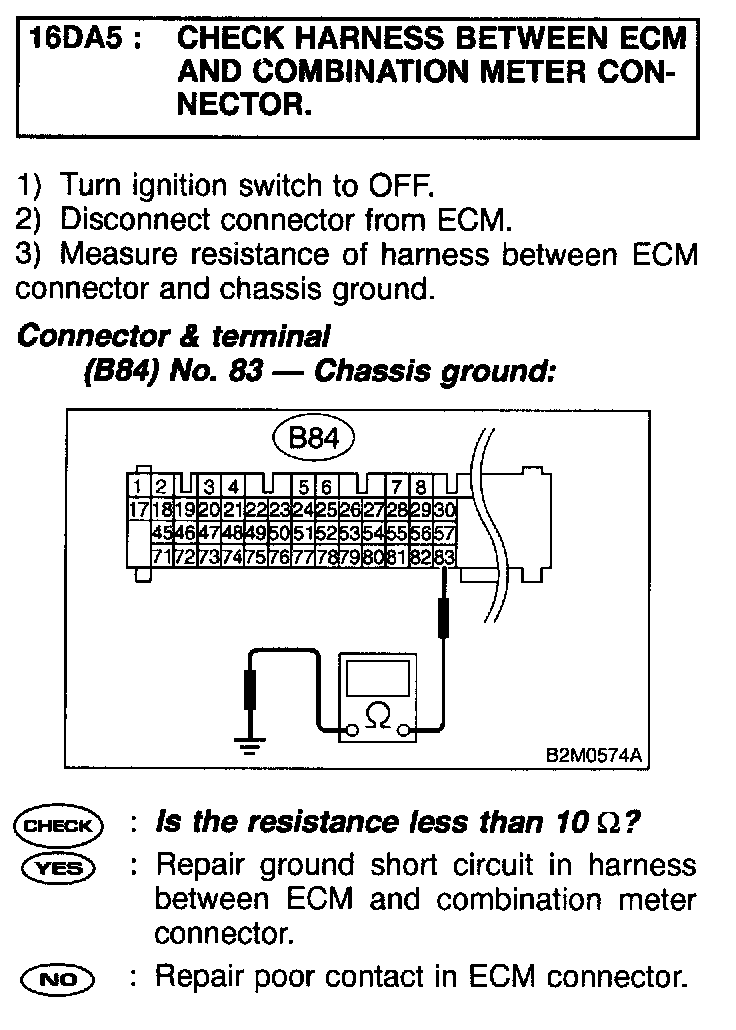

Step 16DA5:
PROCEDURES
