P1440
DTC P1440 - FUEL TANK PRESSURE CONTROL SYSTEM FUNCTION PROBLEM (LOW INPUT)DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

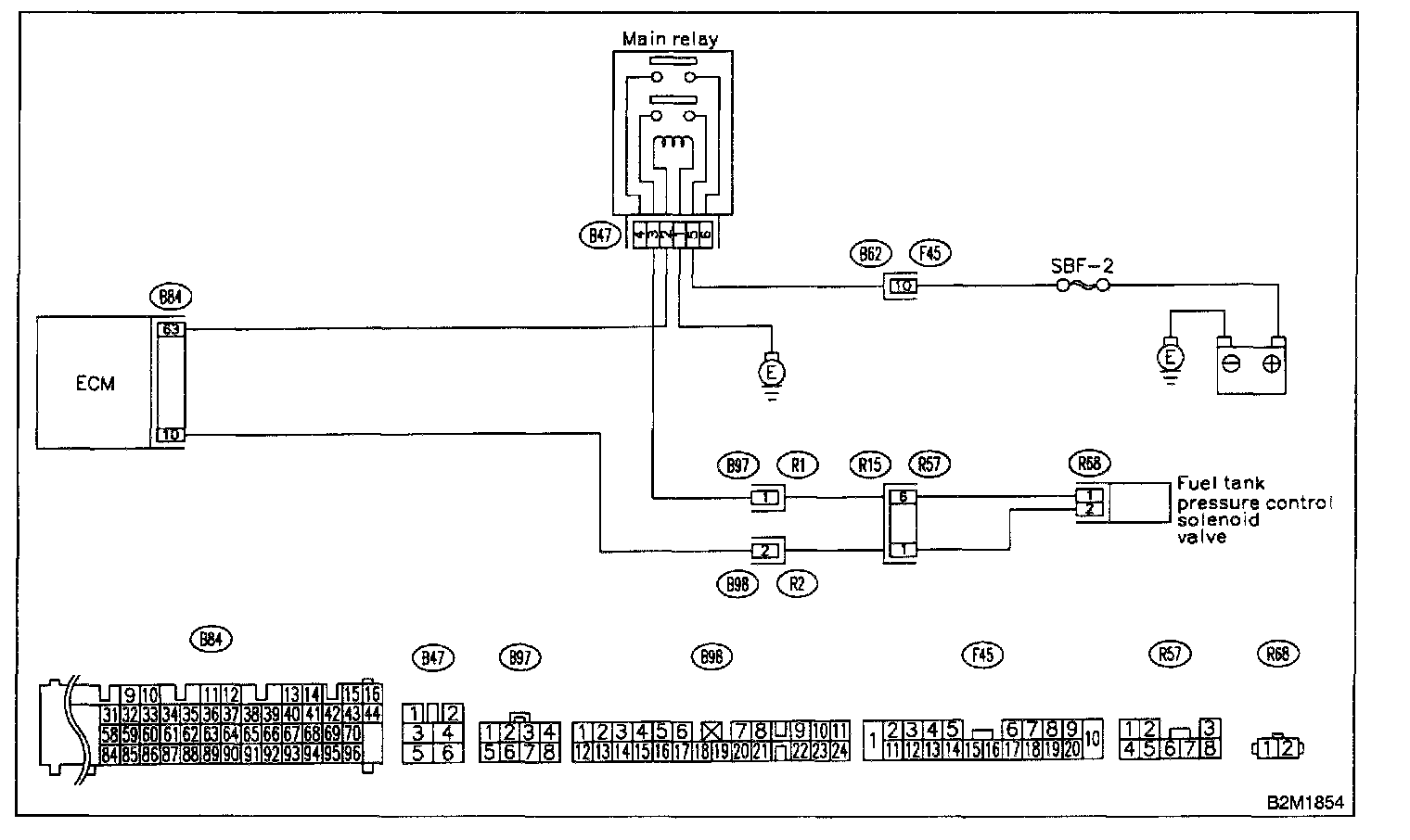

WIRING DIAGRAM

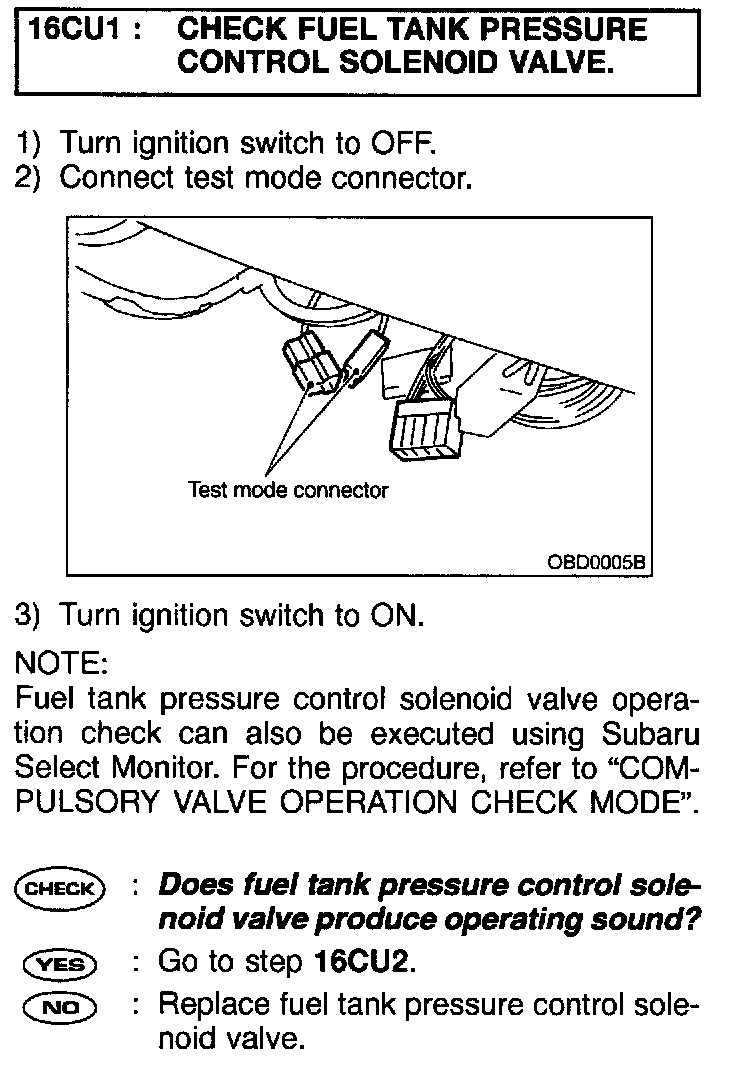

Step 16CU1:

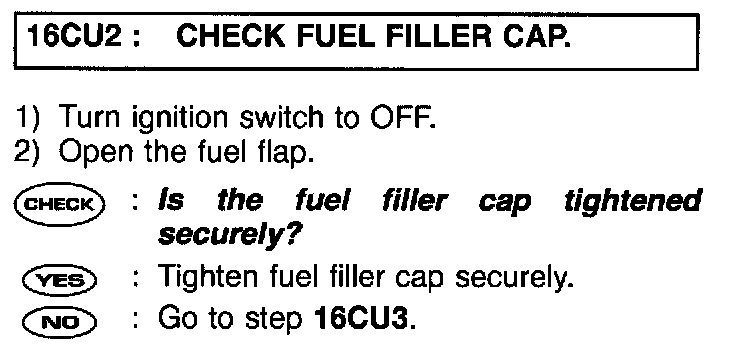

Step 16CU2:

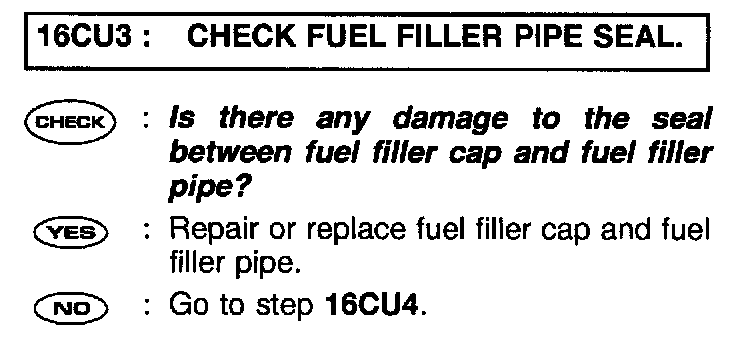

Step 16CU3:

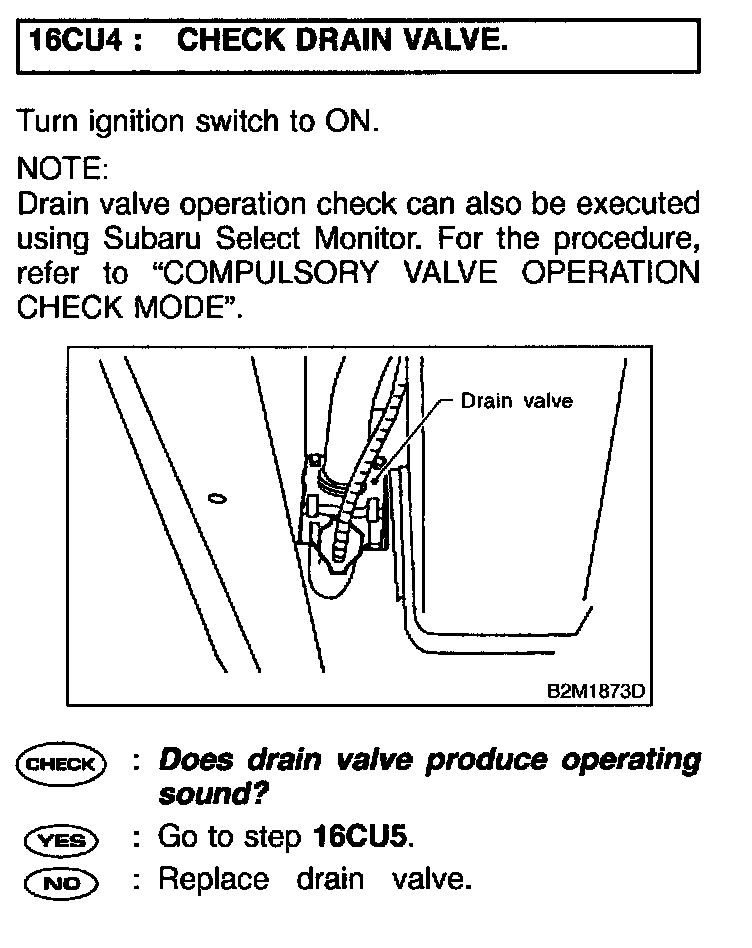

Step 16CU4:

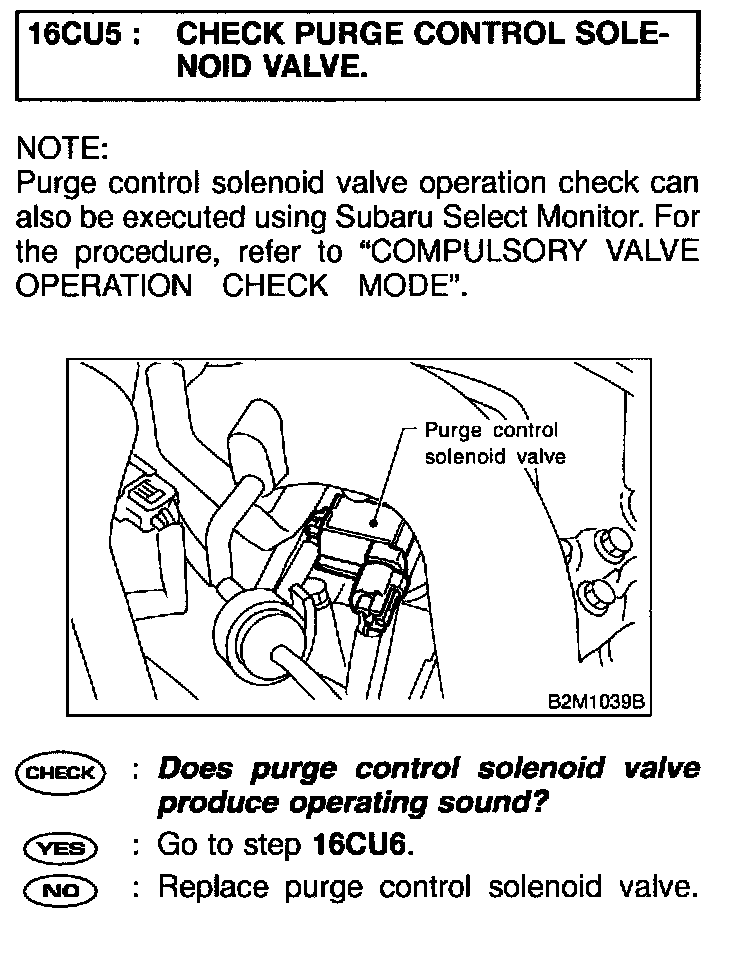

Step 16CU5:

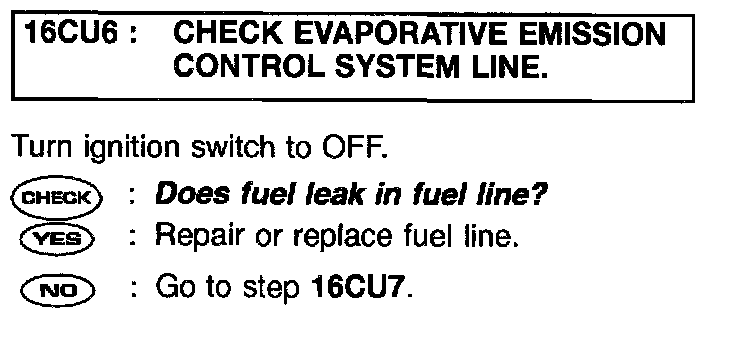

Step 16CU6:

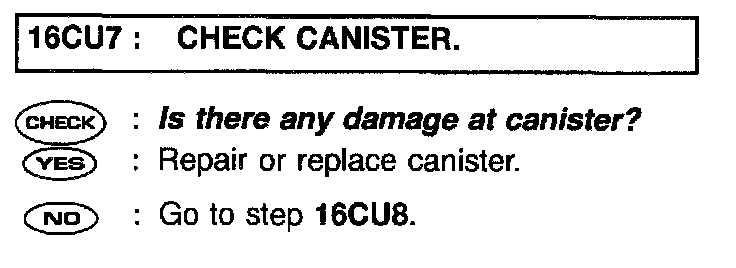

Step 16CU7:

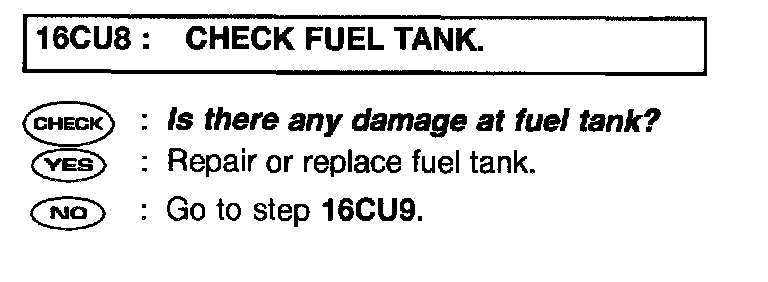

Step 16CU8:
Step 16CU9:
PROCEDURES
