P1120

DTC P1120 - STARTER SWITCH CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Failure of engine to start

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer To How To Clear Diagnostic Trouble Codes.

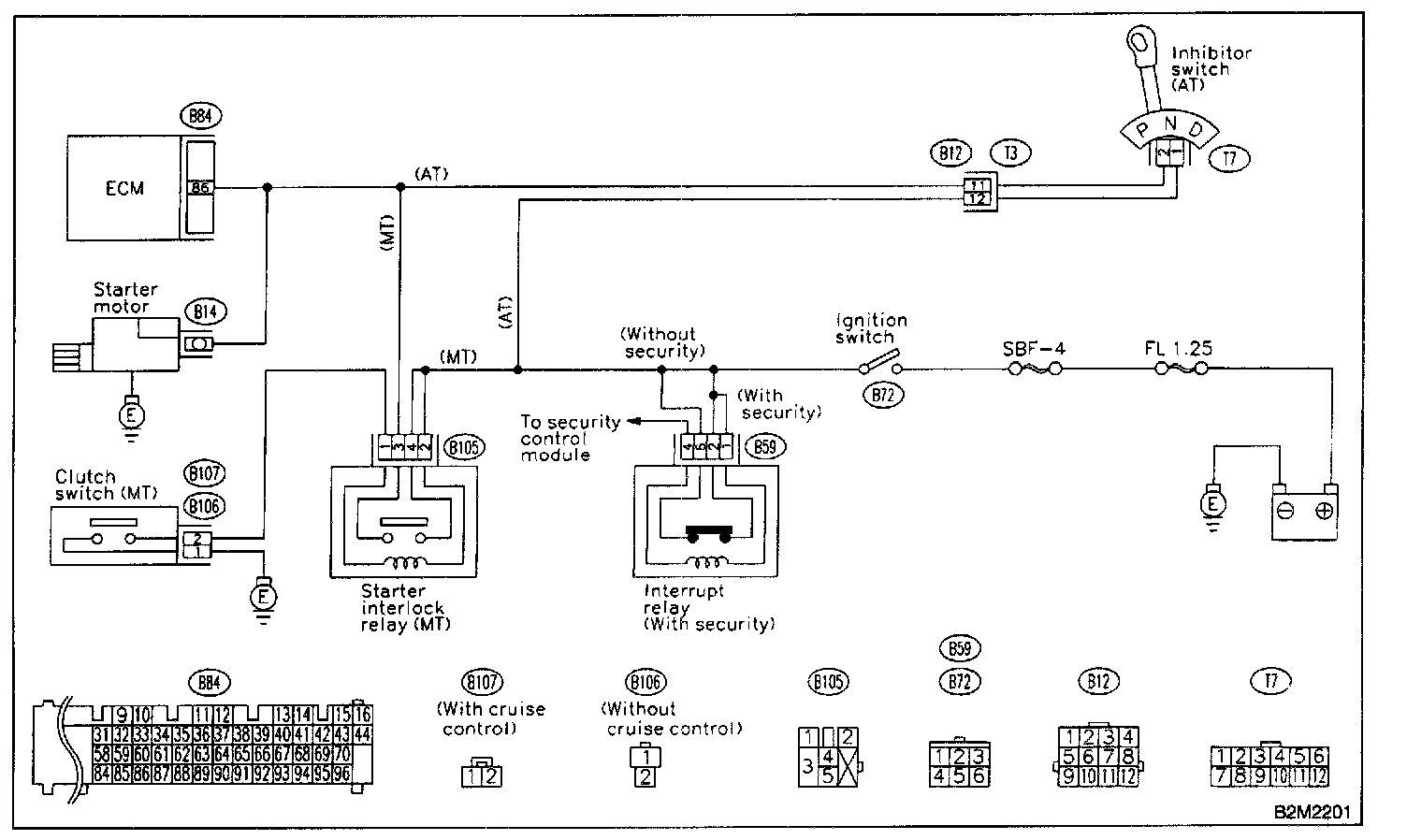

WIRING DIAGRAM

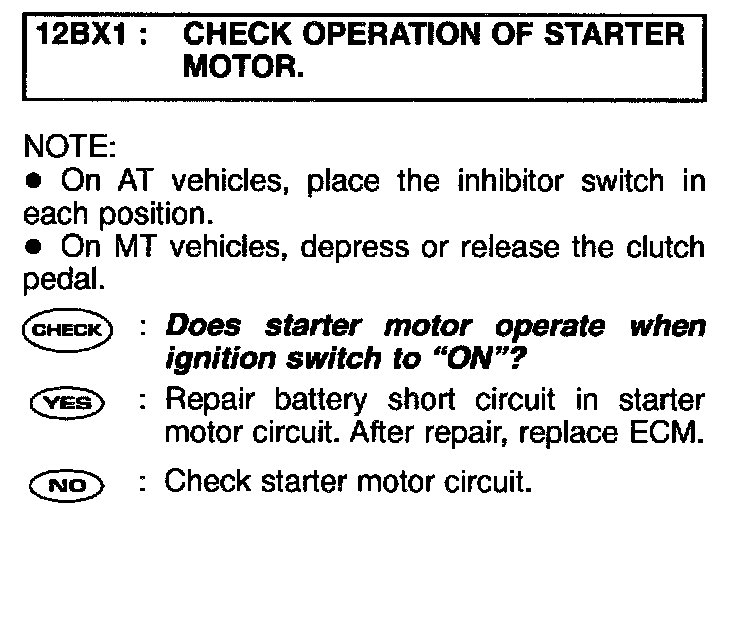

Step 12BX1:

PROCEDURES
