P1116

DTC P1116 - ENGINE TORQUE CONTROL CUT SIGNAL CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

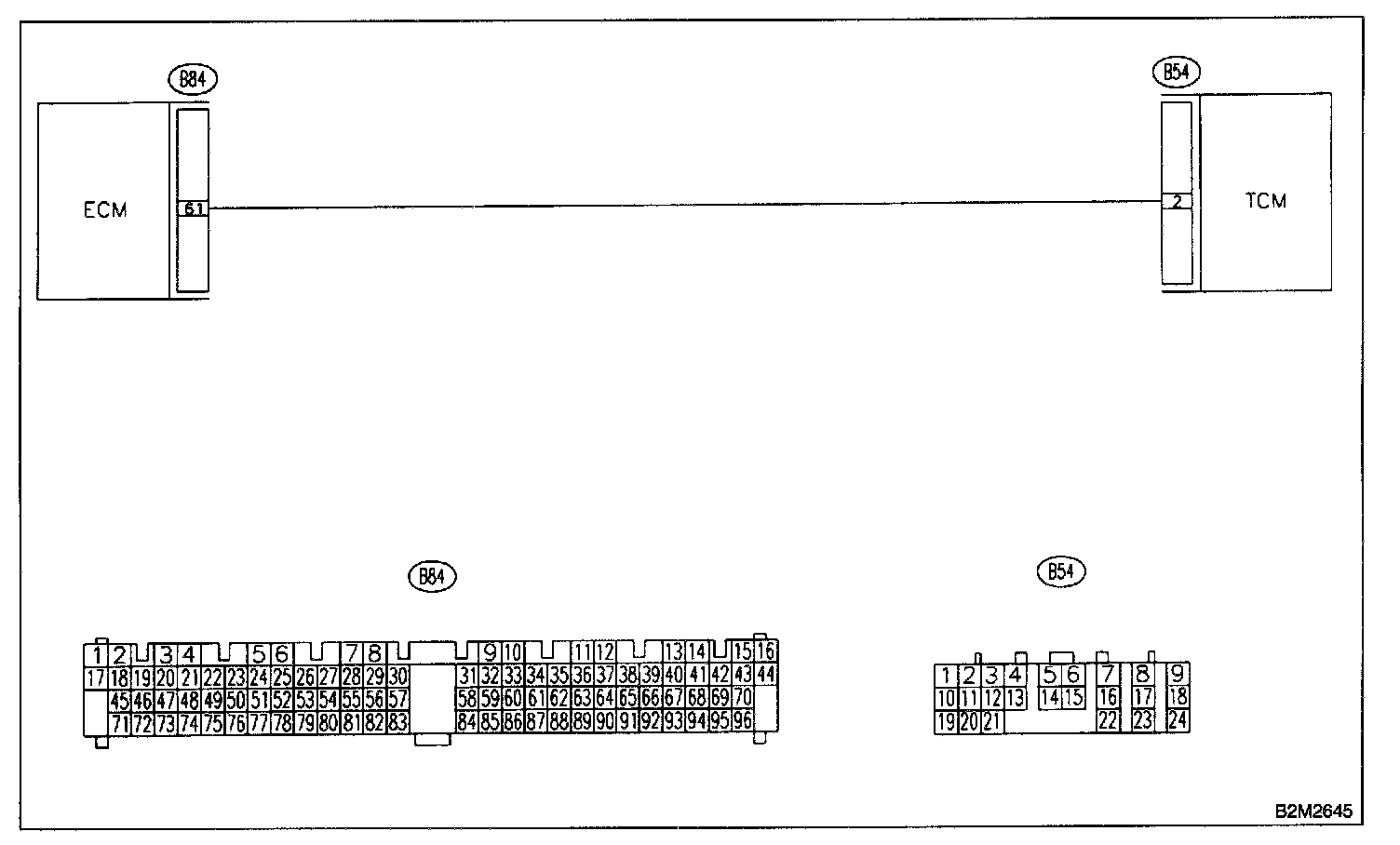

WIRING DIAGRAM

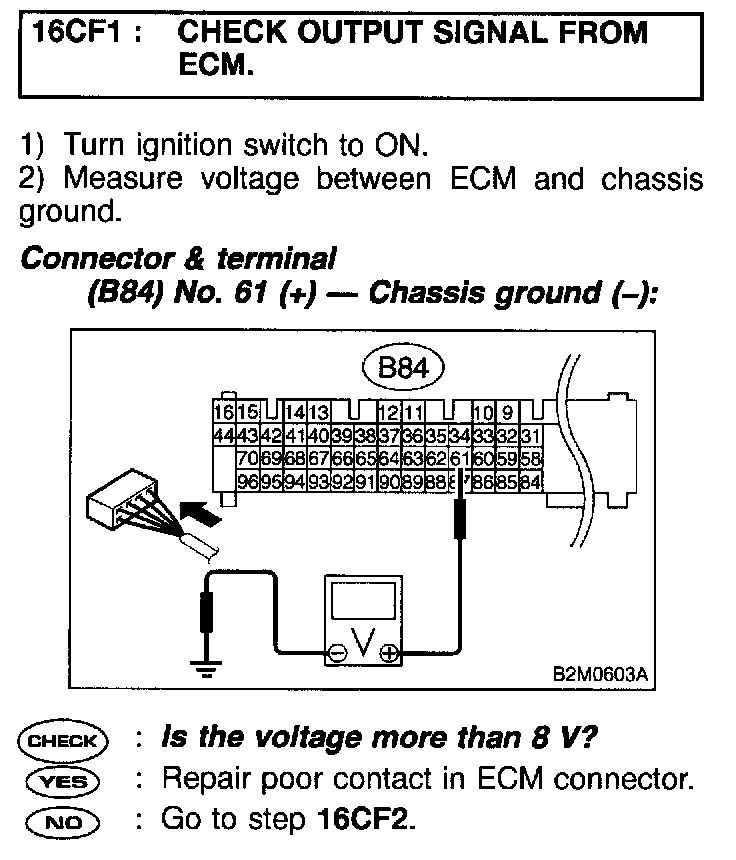

Step 16CF1:

Step 16CF2:

PROCEDURES
