P1106

DTC P1106 - ENGINE TORQUE CONTROL SIGNAL CIRCUIT 2 MALFUNCTION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Excessive shift shock

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

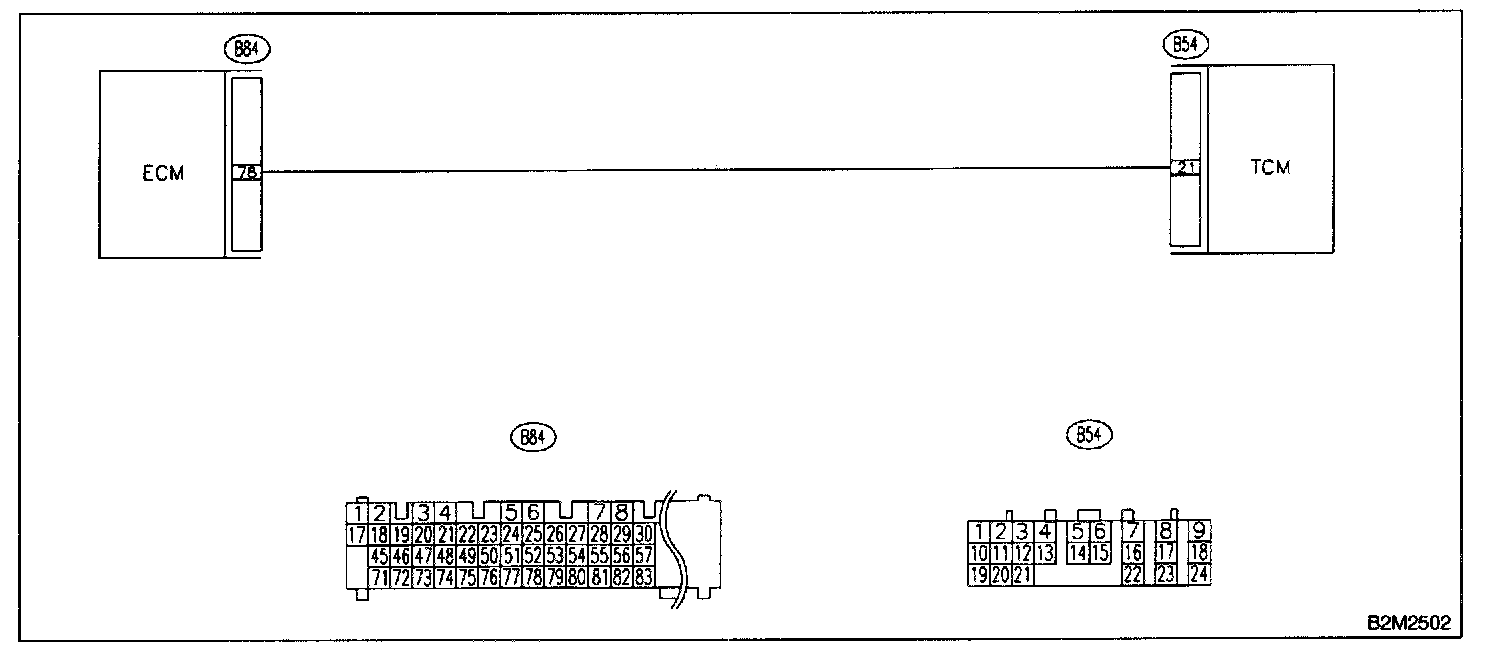

WIRING DIAGRAM

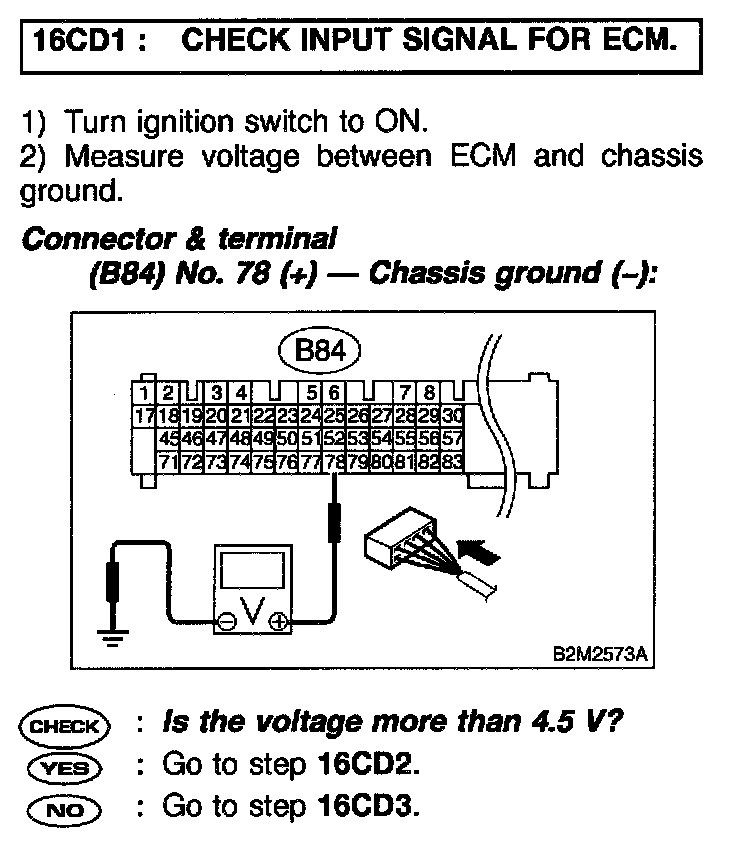

Step 16CD1:

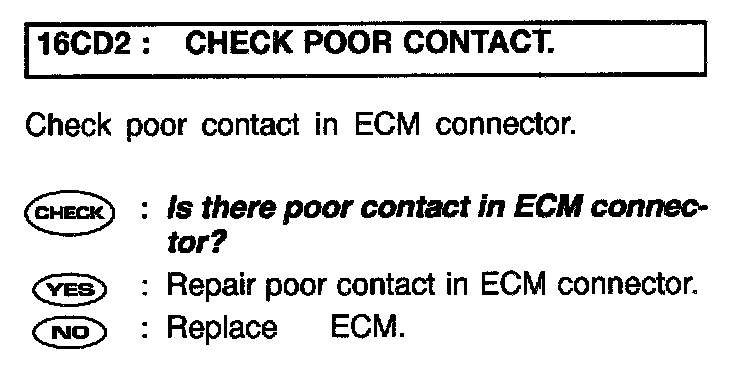

Step 16CD2:

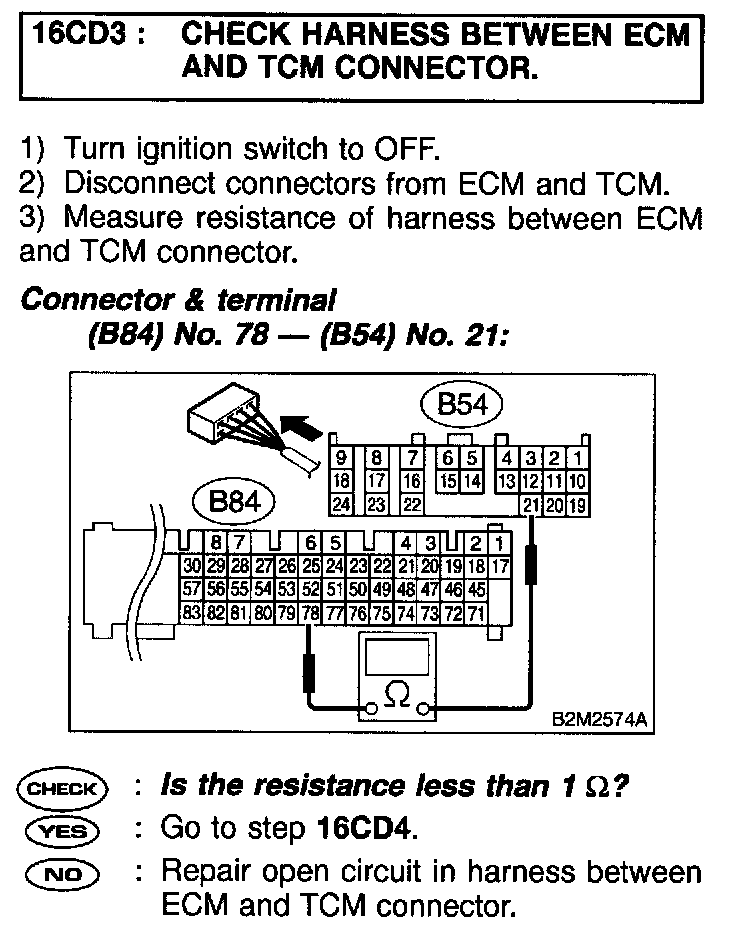

Step 16CD3:

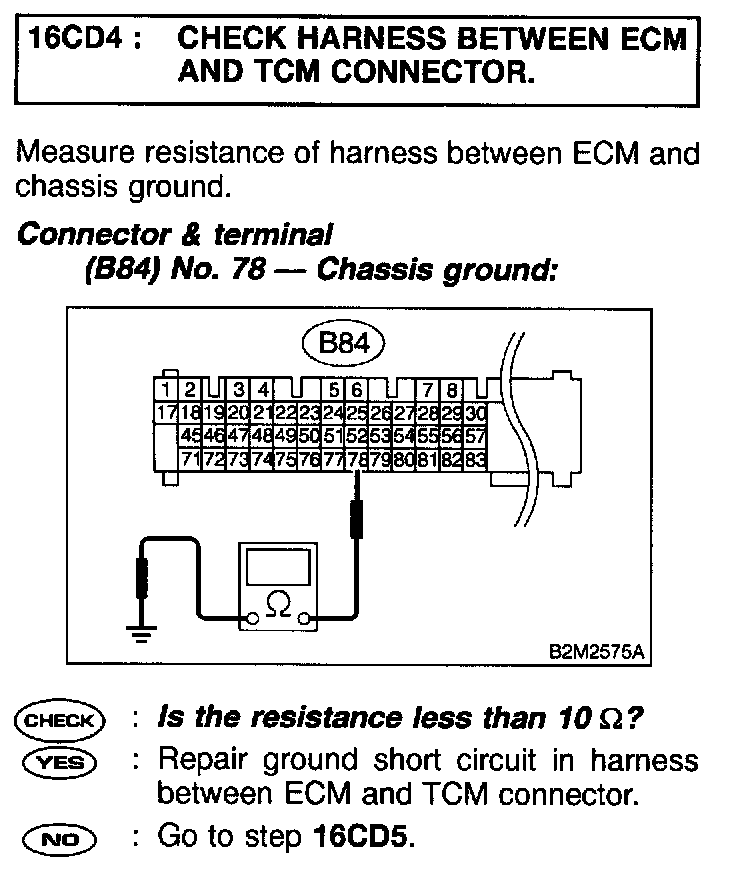

Step 16CD4:

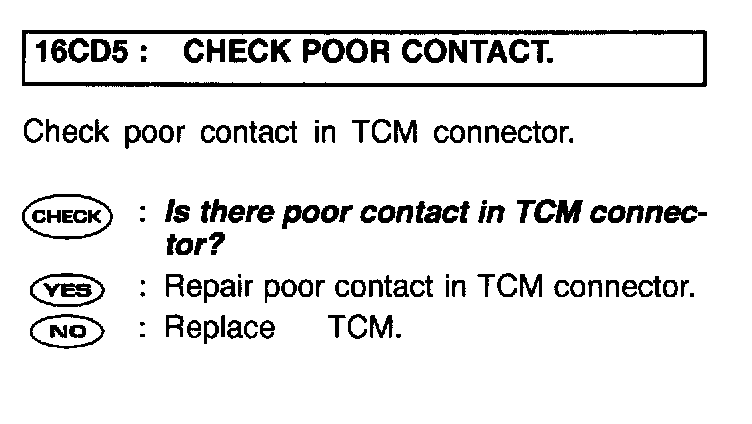

Step 16CD5:

PROCEDURES
