P1103

DTC P1103 - ENGINE TORQUE CONTROL SIGNAL CIRCUIT 1 MALFUNCTION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Excessive shift shock

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

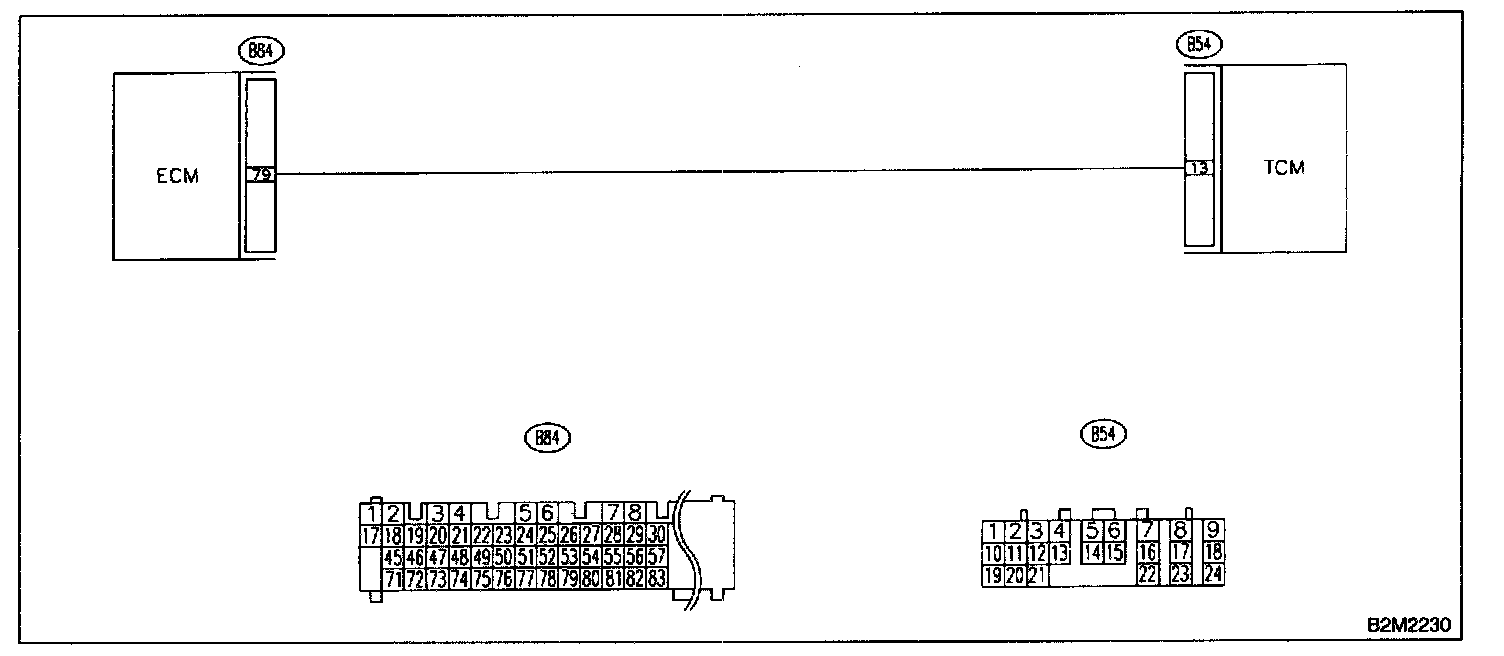

WIRING DIAGRAM

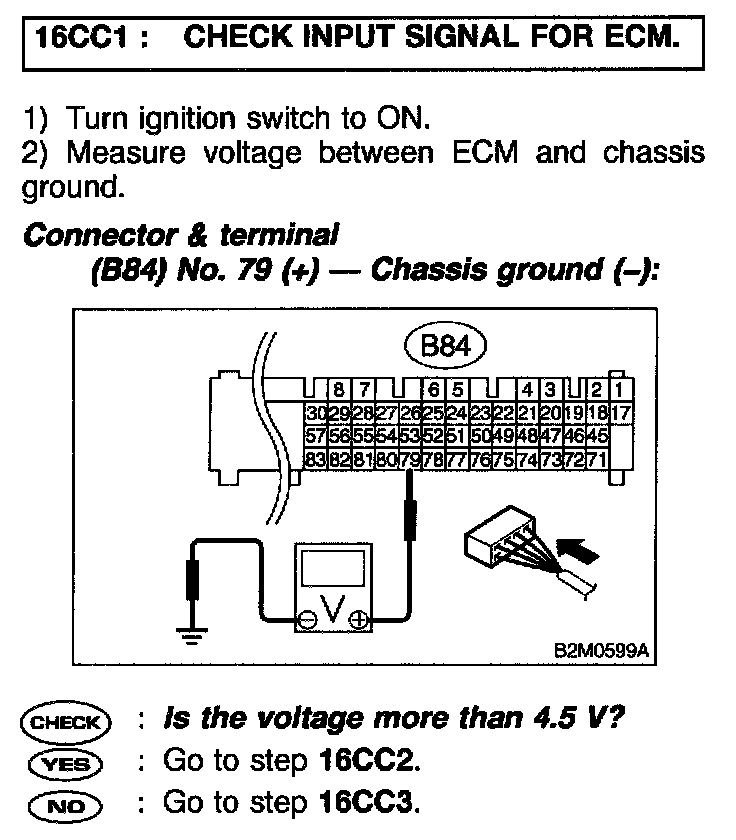

Step 16CC1:

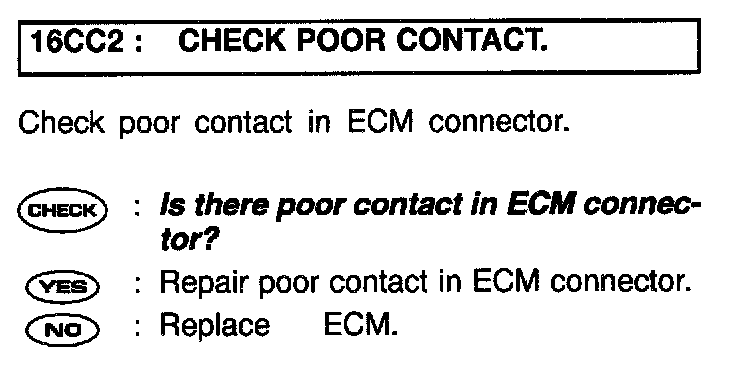

Step 16CC2:

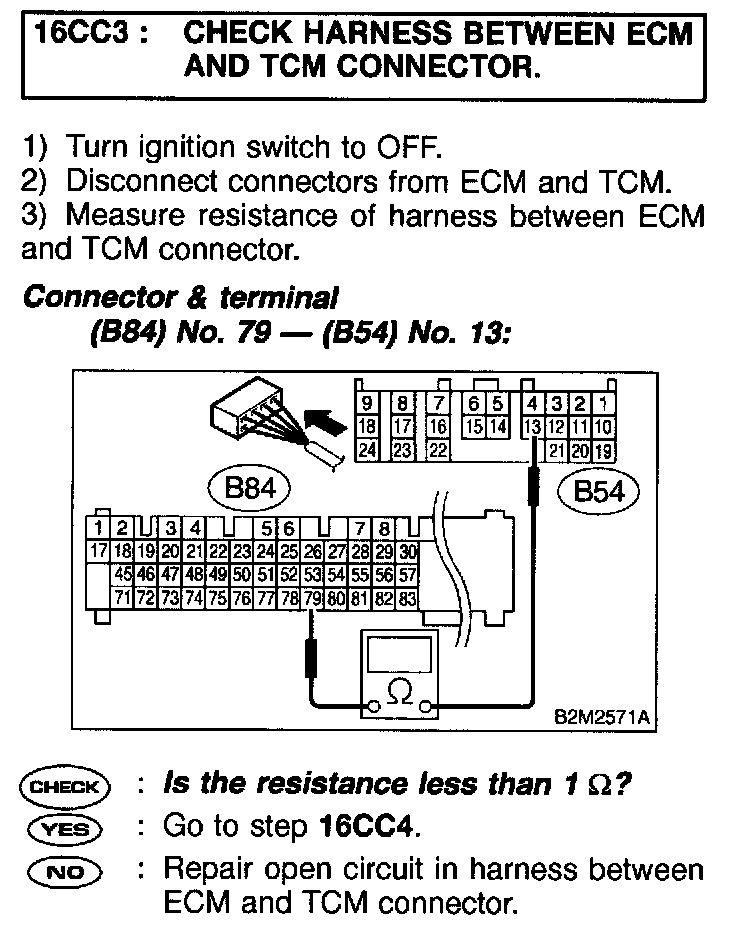

Step 16CC3:

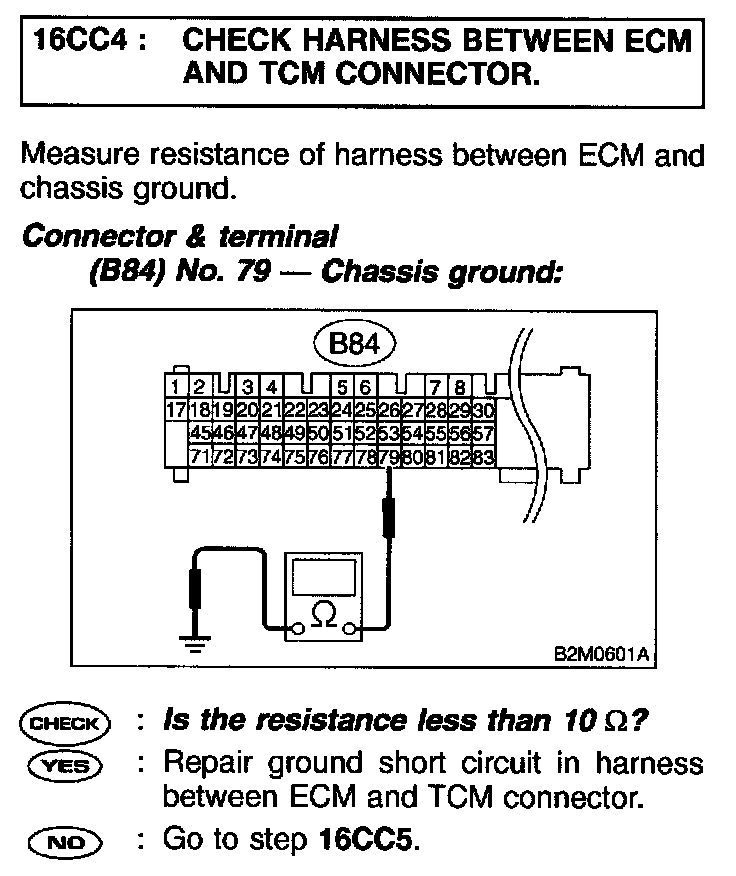

Step 16CC4:

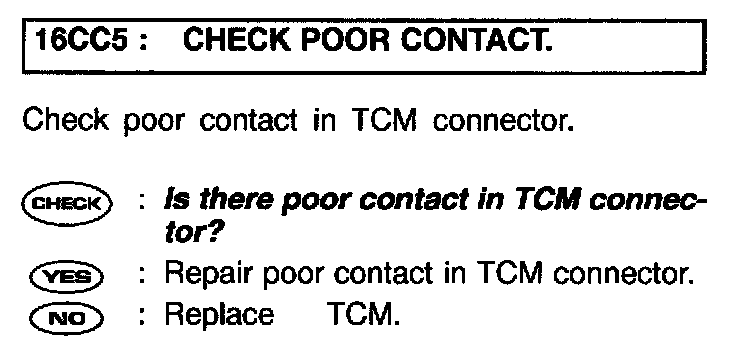

Step 16CC5:

PROCEDURES
