P1102

DTC P1102 - PRESSURE SOURCES SWITCHING SOLENOID VALVE CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Erroneous idling
- Failure of engine to start

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

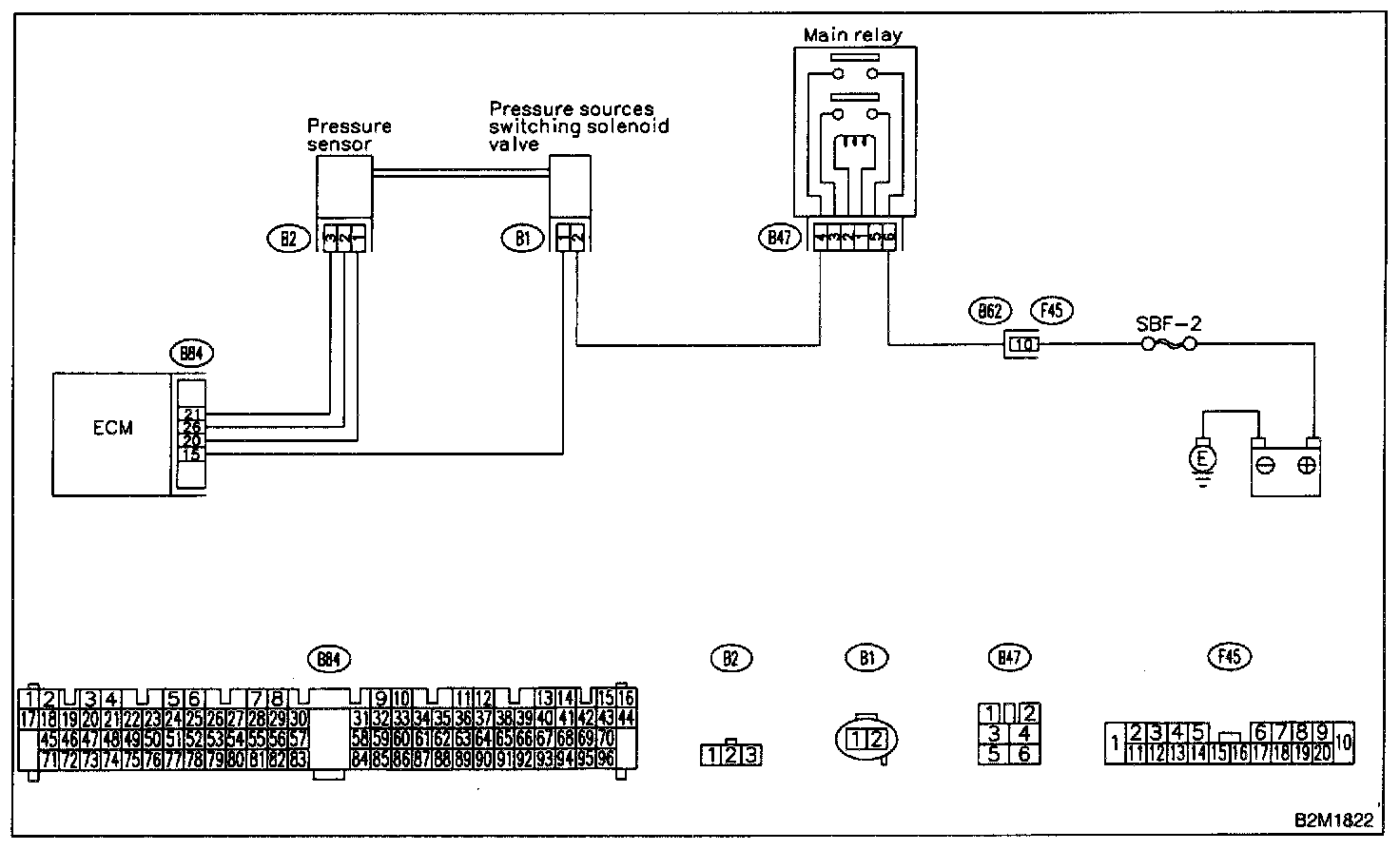

WIRING DIAGRAM

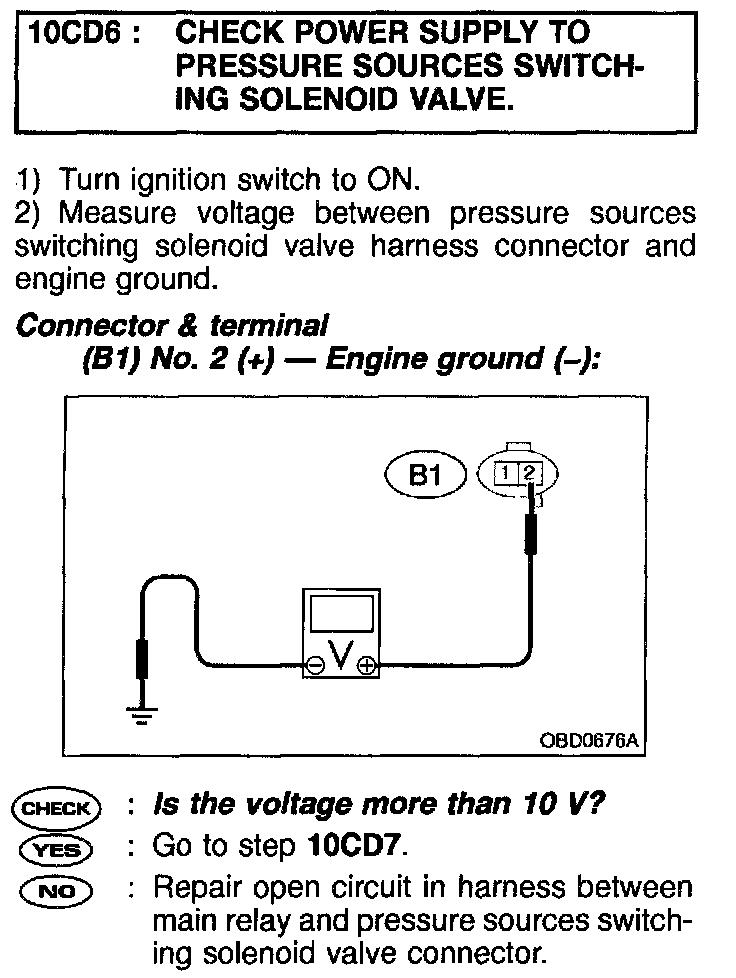

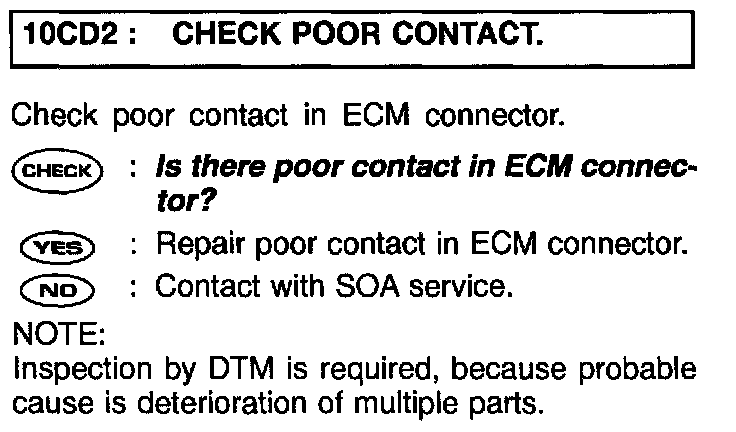

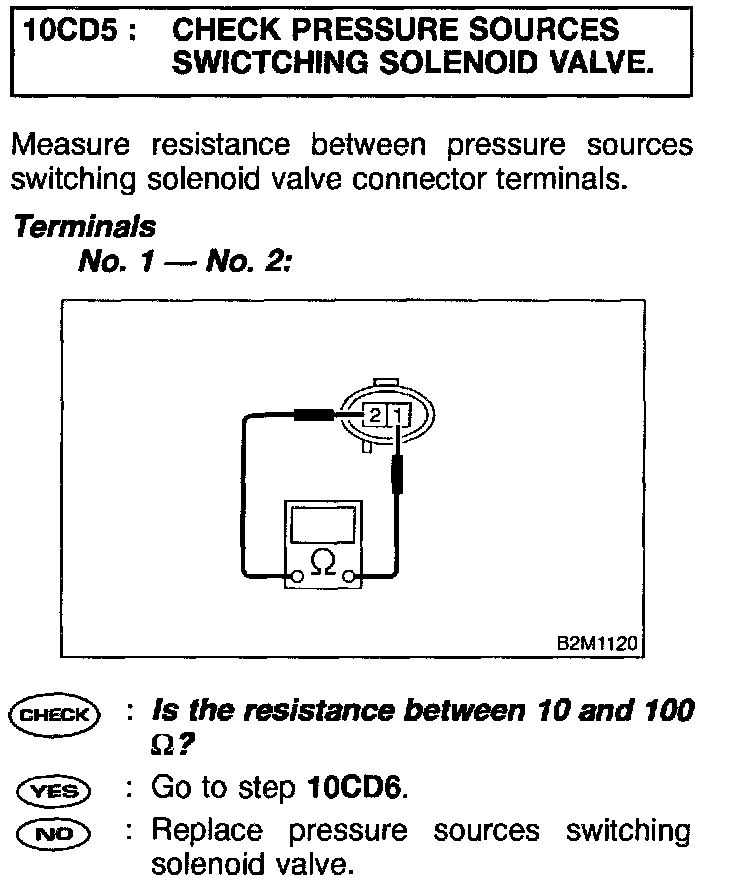

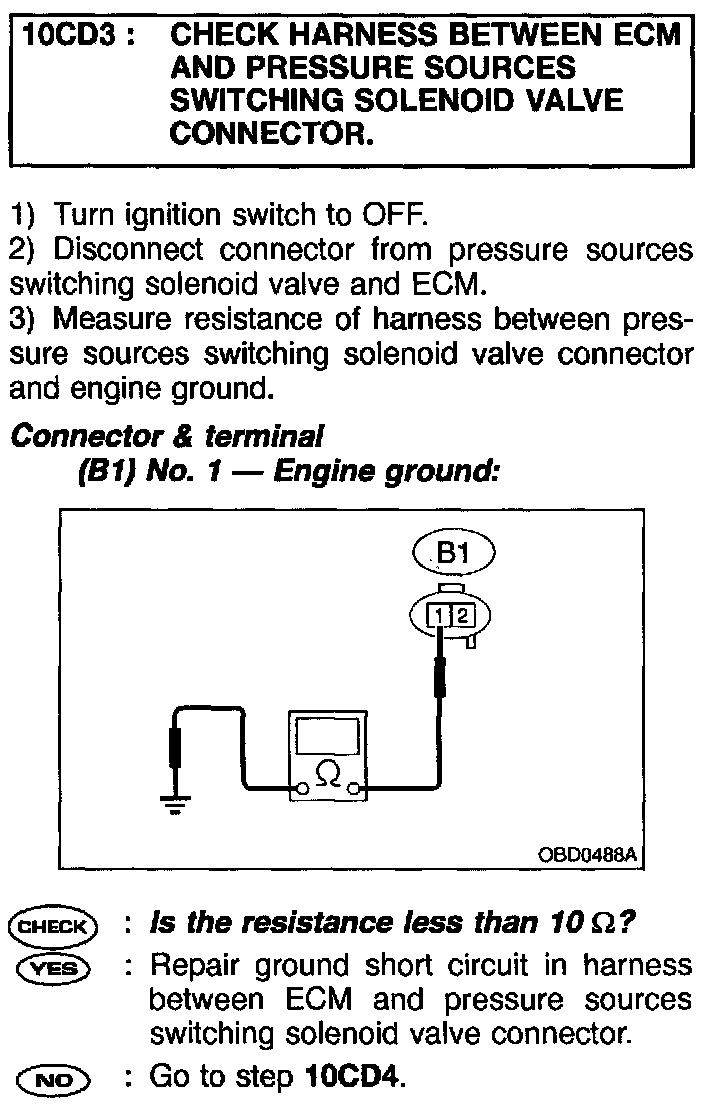

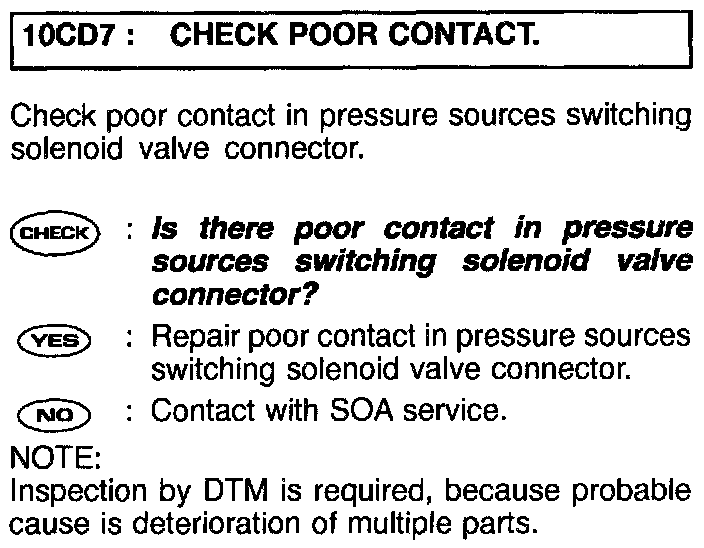

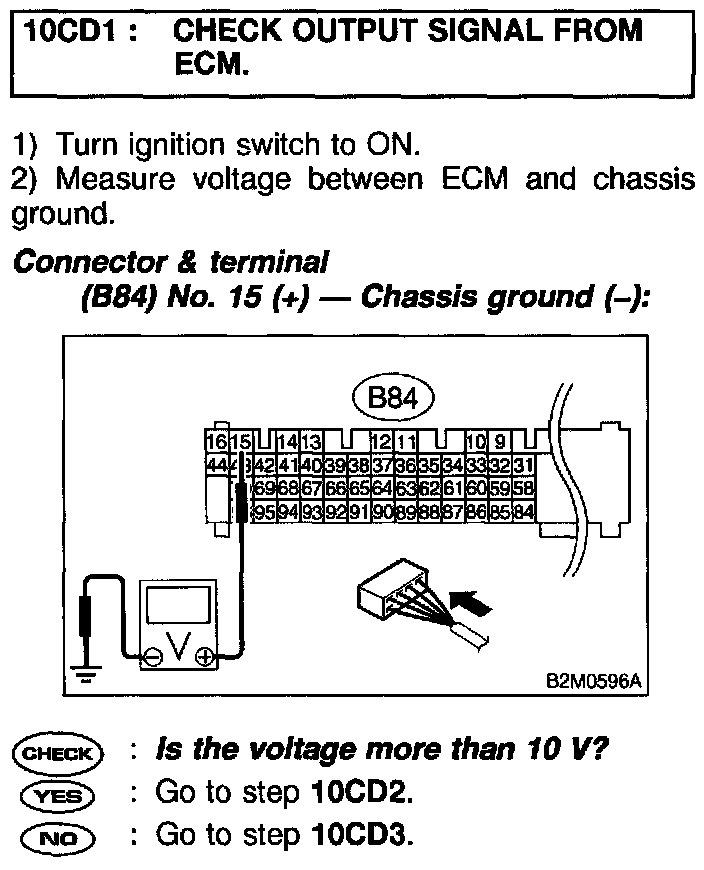

PROCEDURES
