Automatic Transaxle

DTC P1101 - NEUTRAL POSITION SWITCH CIRCUIT HIGH INPUT [AT VEHICLES]

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Erroneous idling

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

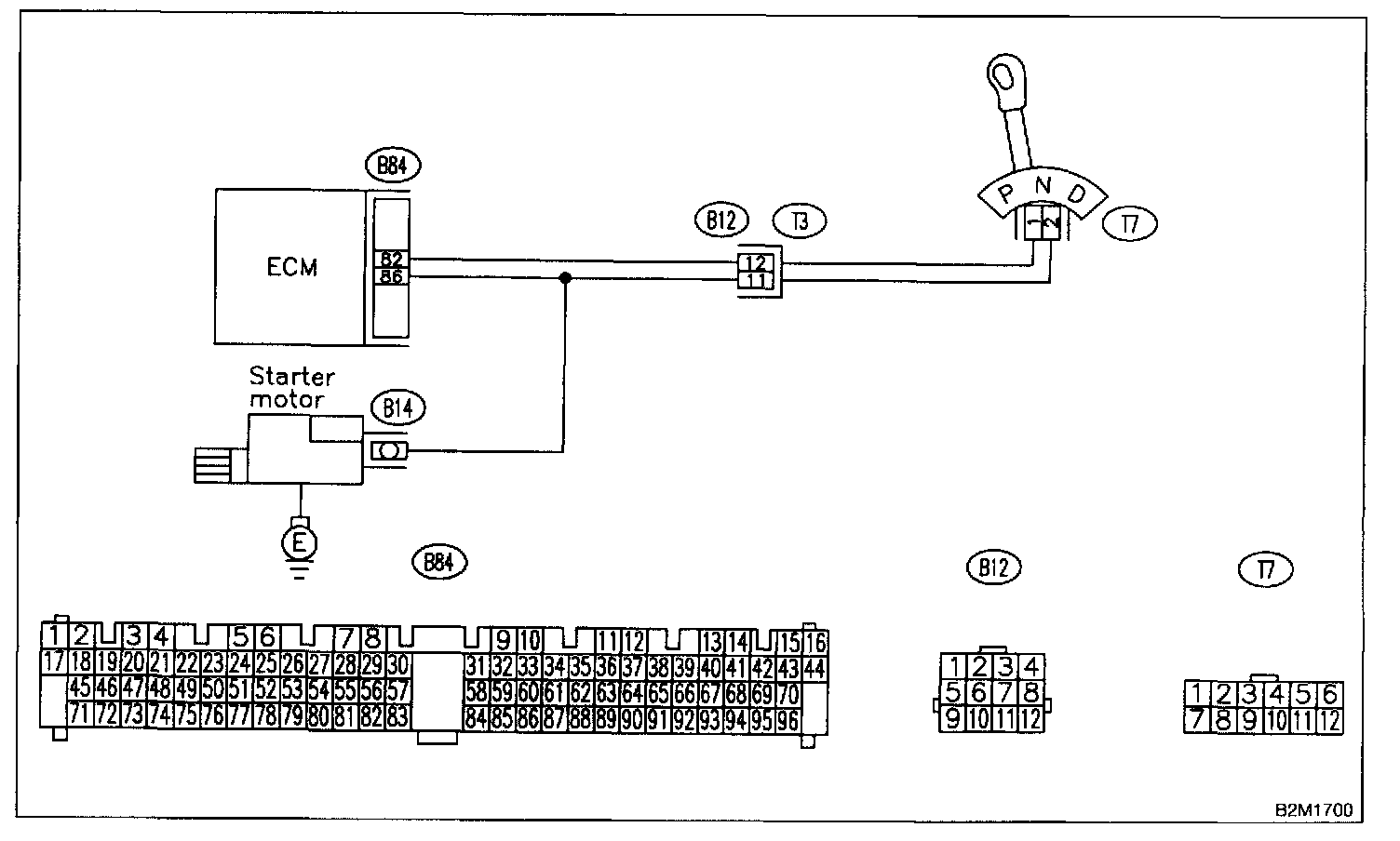

WIRING DIAGRAM

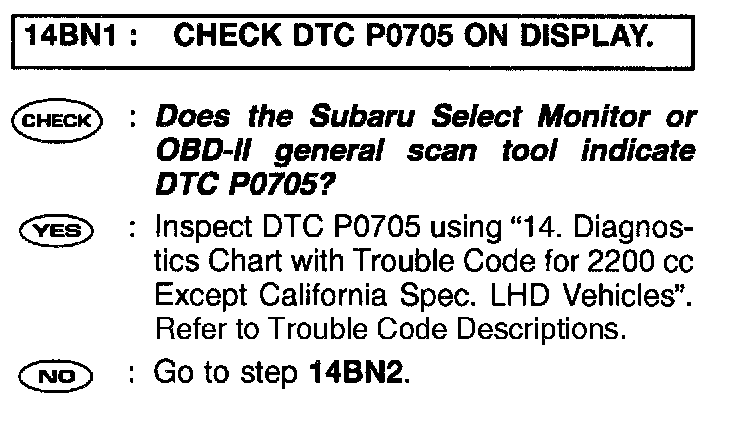

Step 14BN1:

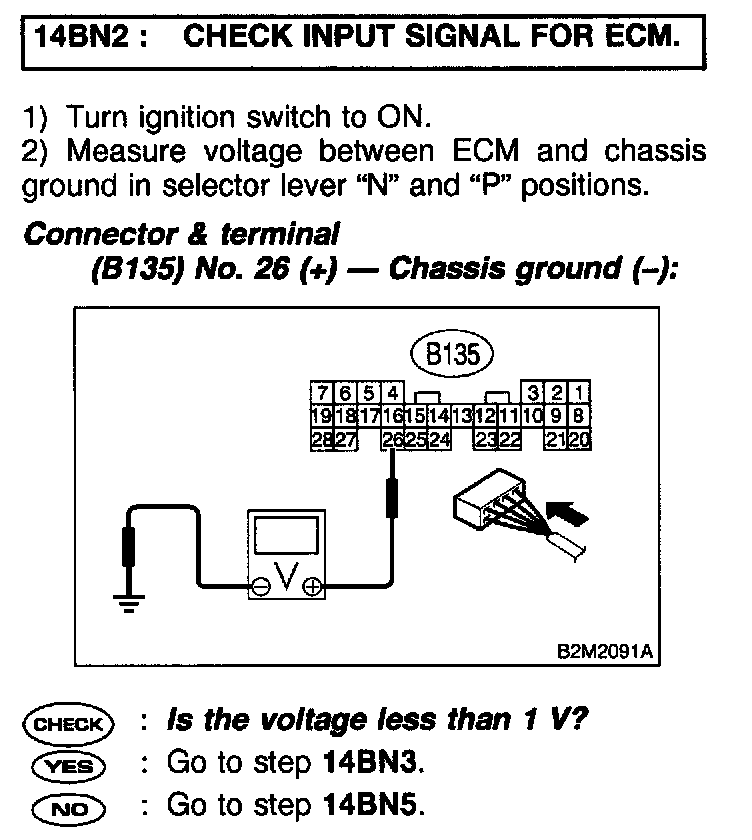

Step 14BN2:

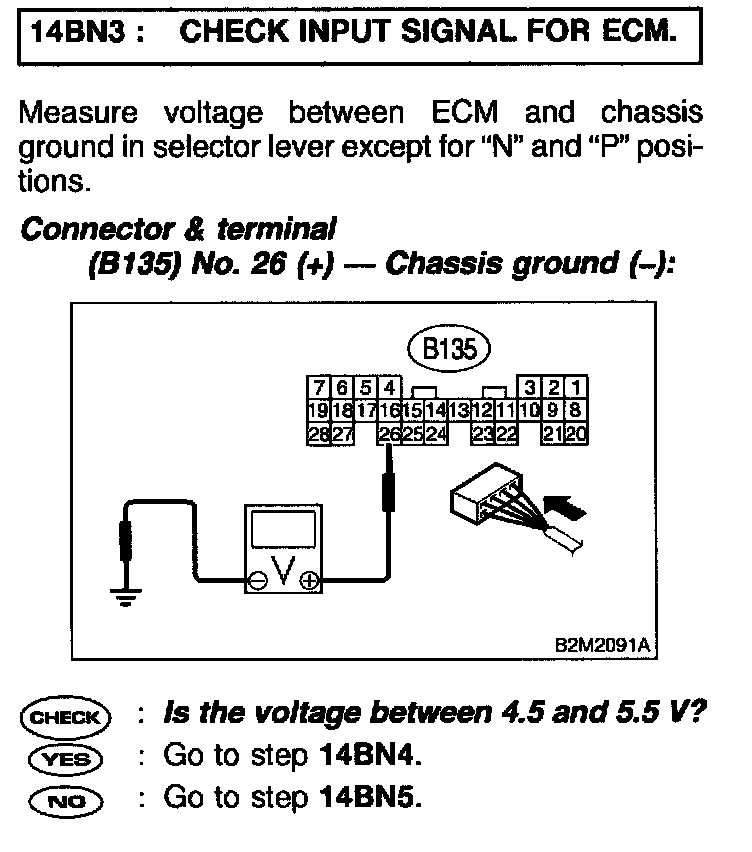

Step 14BN3:

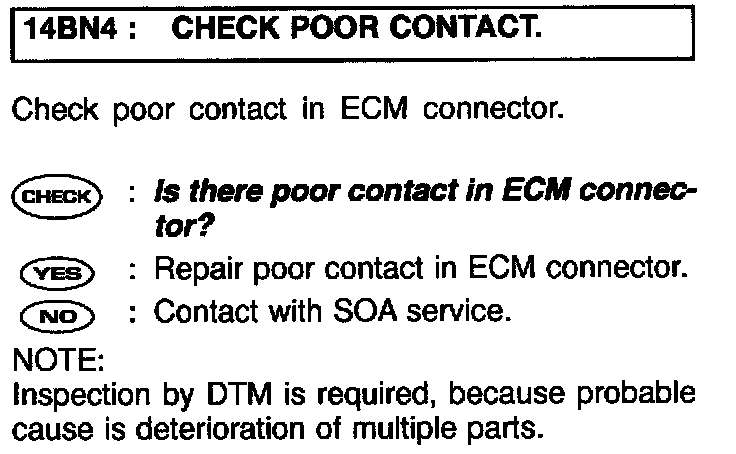

Step 14BN4:

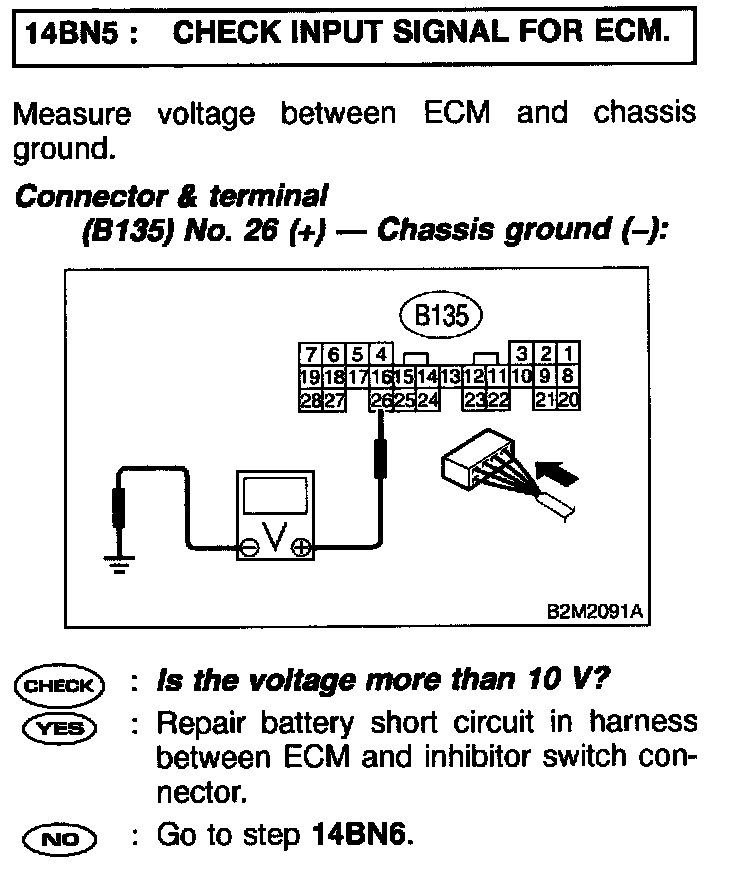

Step 14BN5:

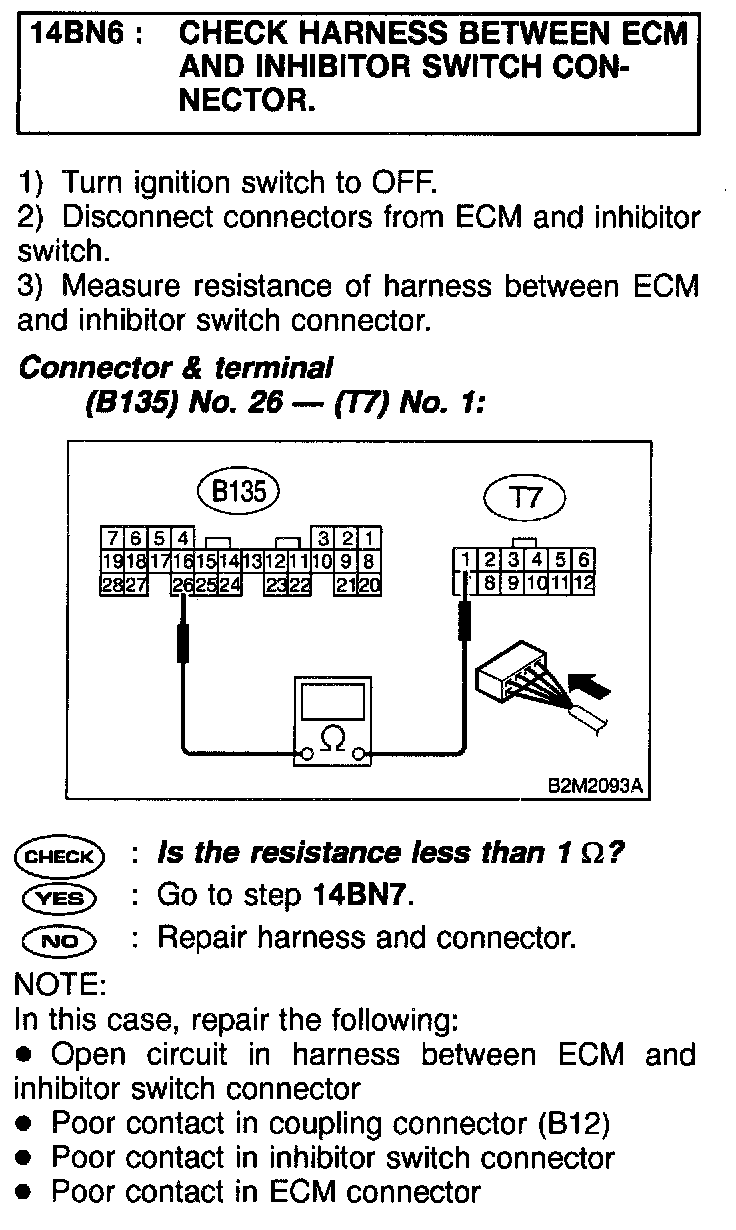

Step 14BN6:

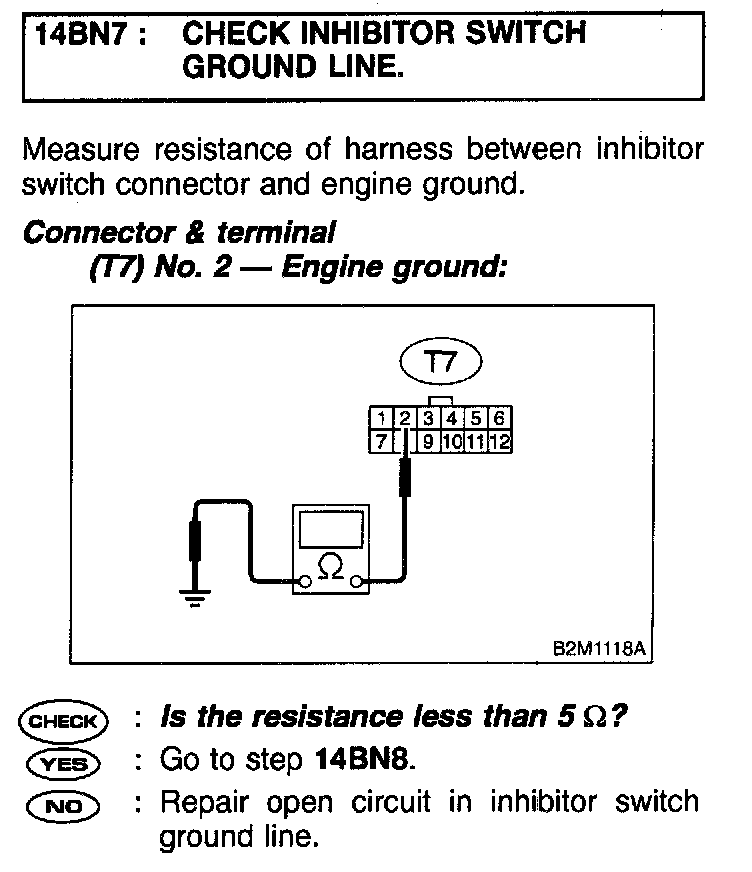

Step 14BN7:

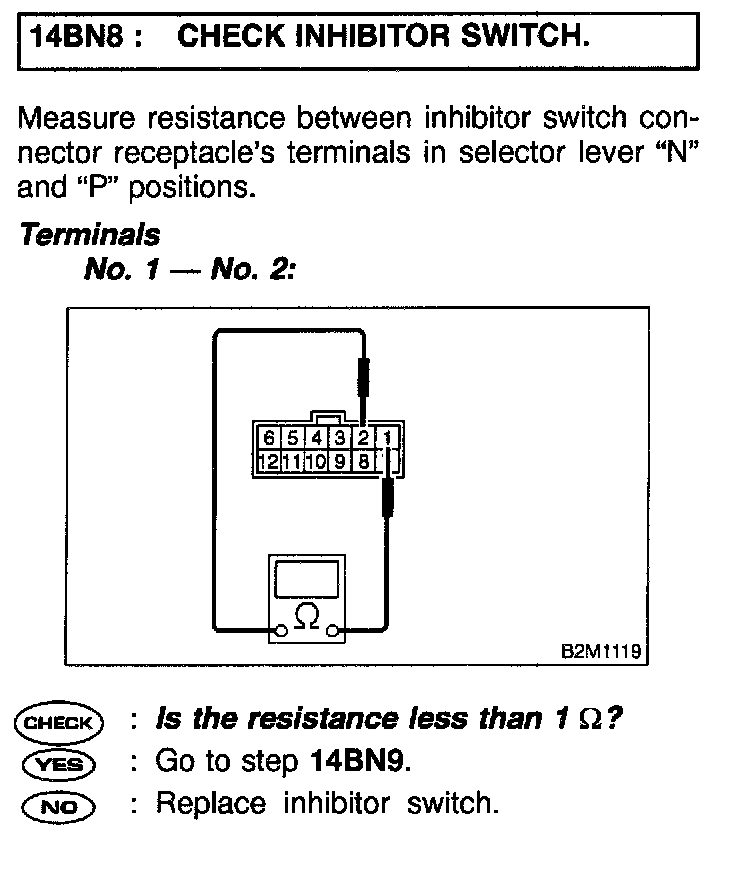

Step 14BN8:

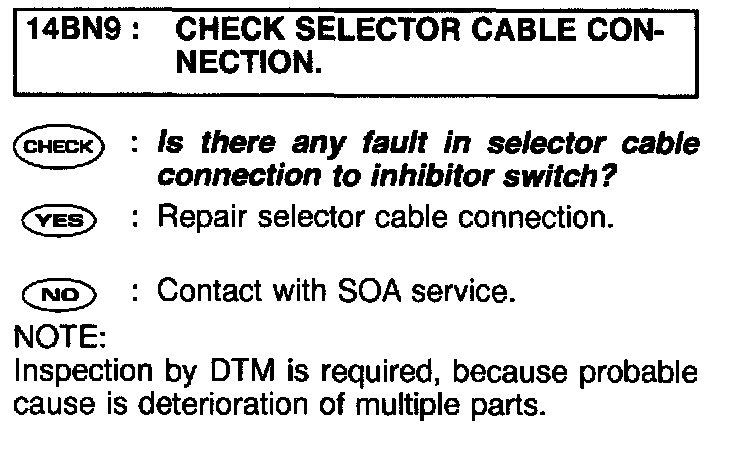

Step 14BN9:

PROCEDURES
