P0758

DTC P0758 - SHIFT SOLENOID B (SHIFT SOLENOID 2) ELECTRICAL

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- No shift

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

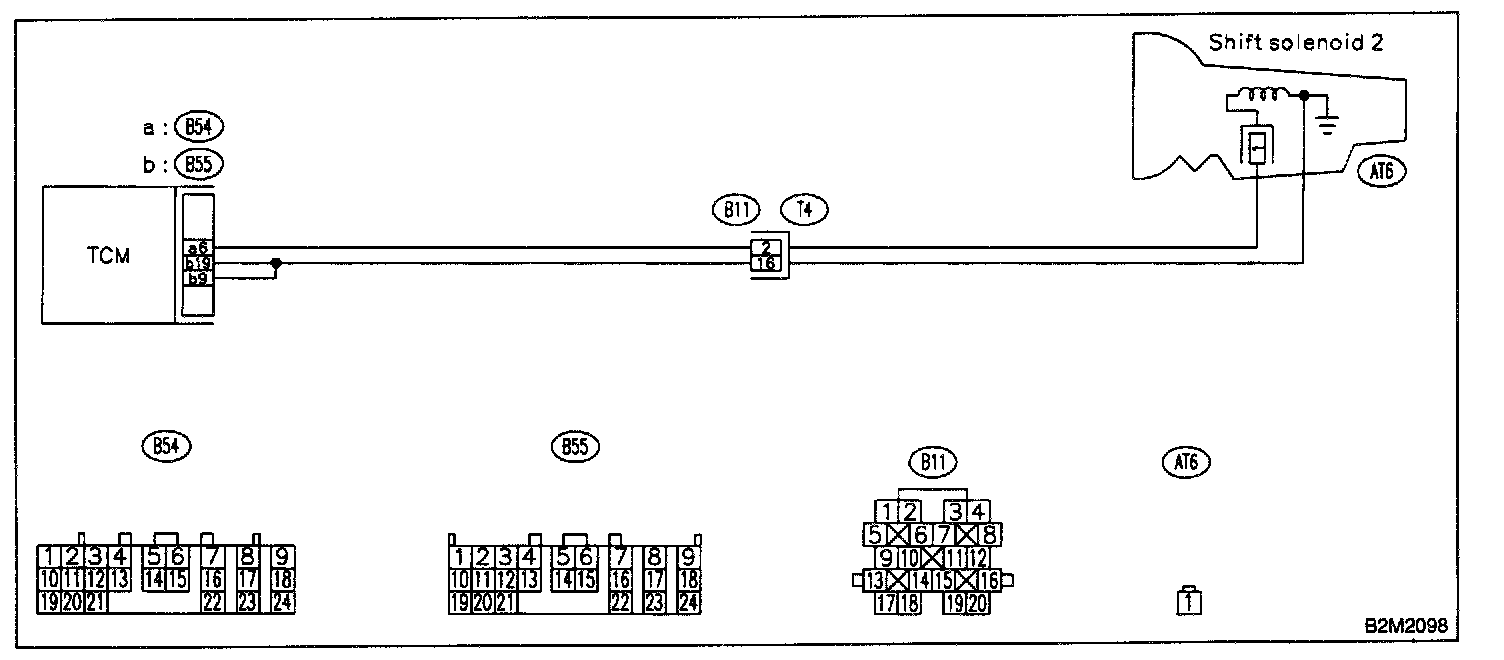

WIRING DIAGRAM

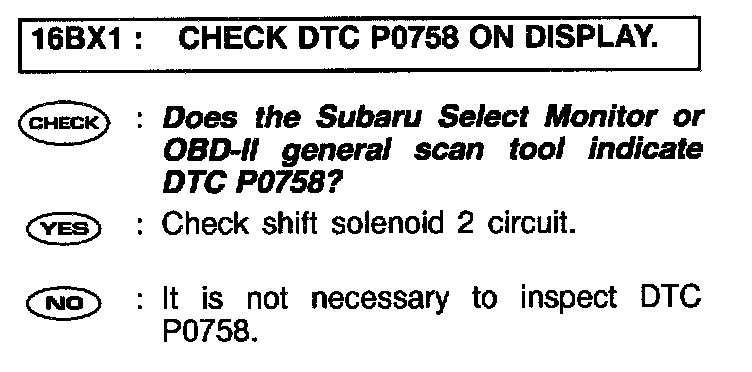

Step 16BX1:

PROCEDURES
