P0753

DTC P0753 - SHIFT SOLENOID A (SHIFT SOLENOID 1) ELECTRICAL

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- No shift

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

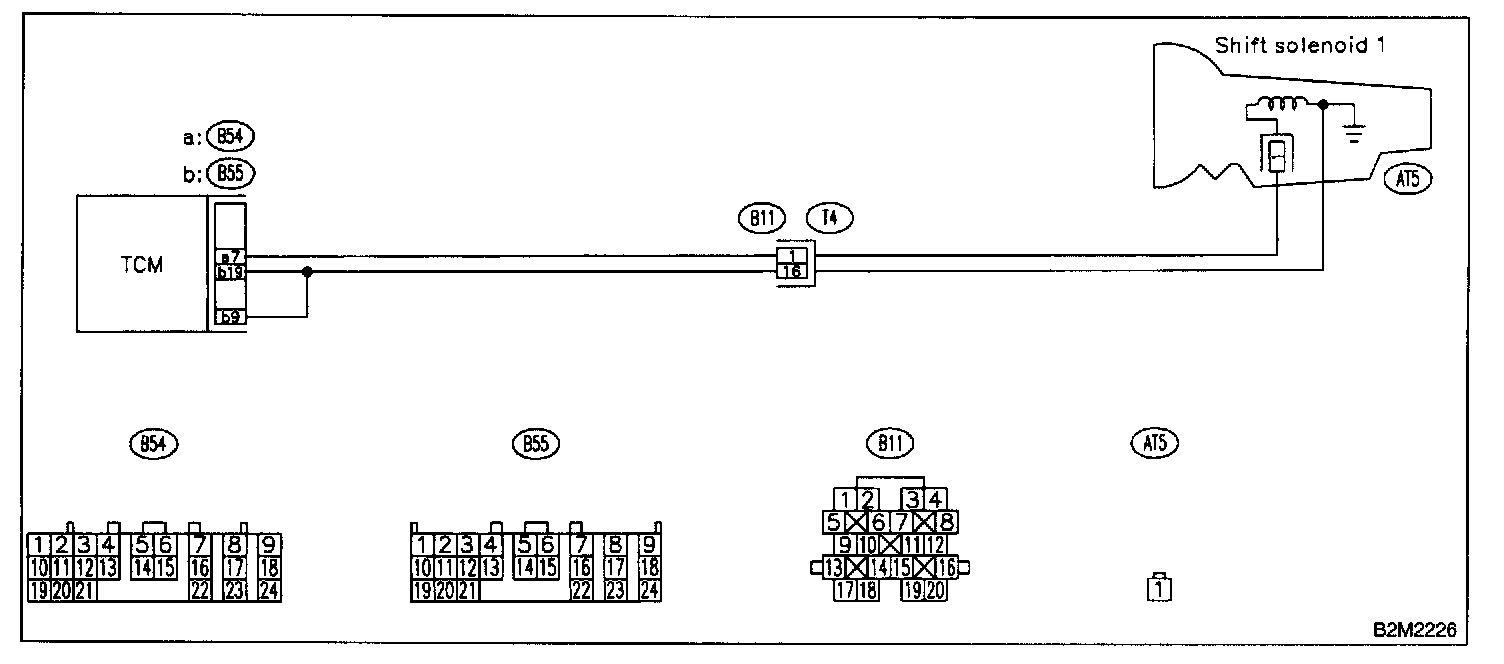

WIRING DIAGRAM

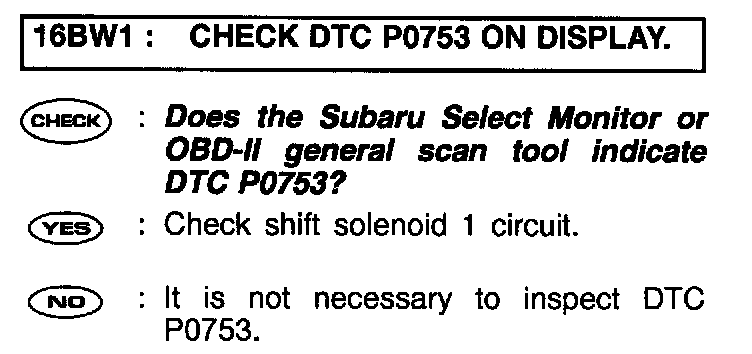

Step 16BW1:

PROCEDURES
