P0748

DTC P0748 - PRESSURE CONTROL SOLENOID (DUTY SOLENOID A) ELECTRICAL

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Excessive shift shock

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

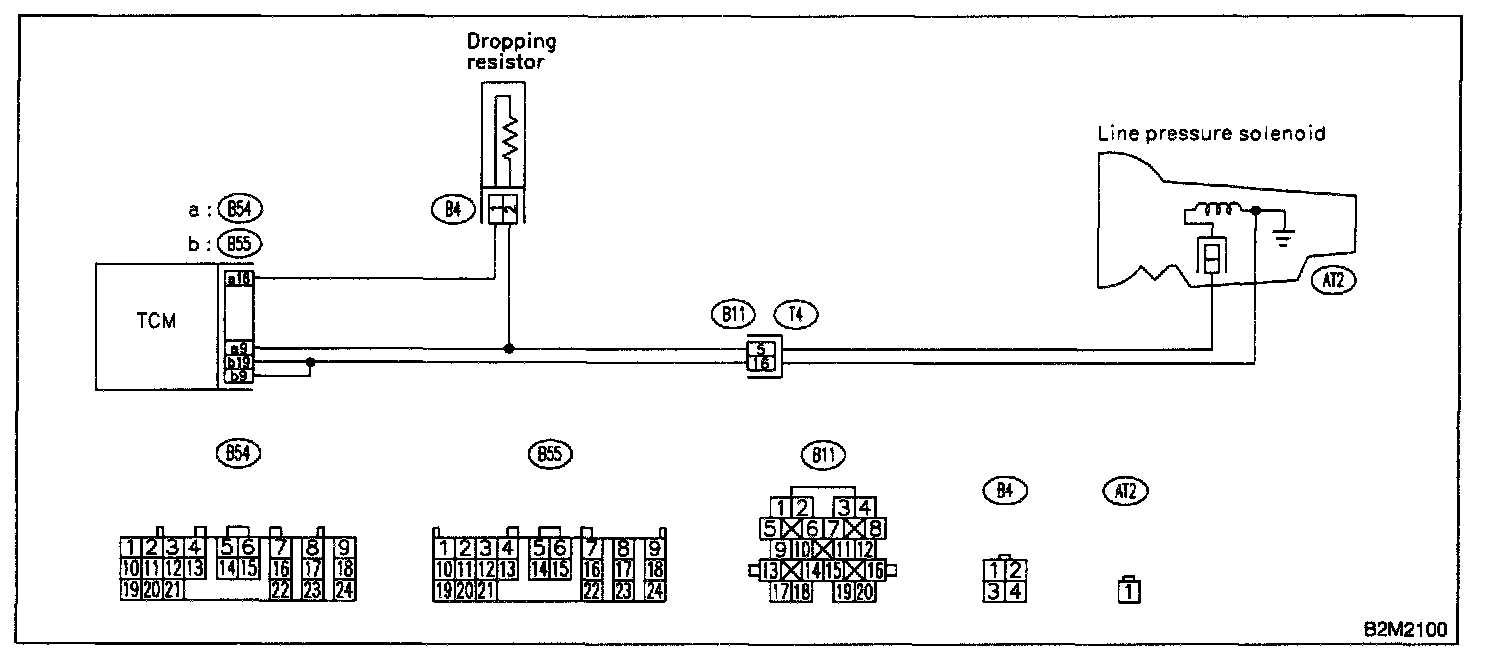

WIRING DIAGRAM

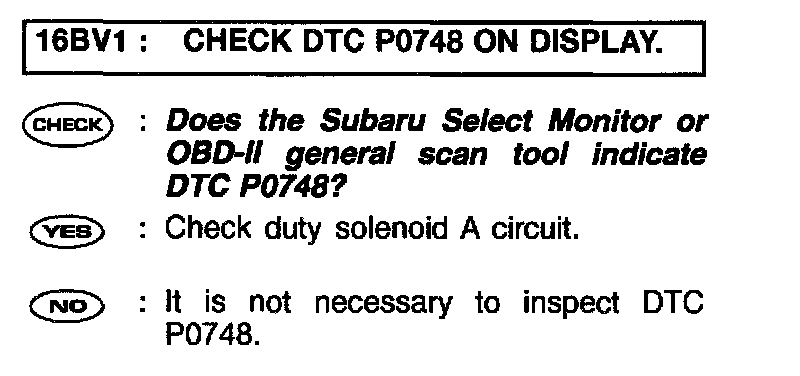

Step 16BV1:

PROCEDURES
