P0743

DTC P0743 - TORQUE CONVERTER CLUTCH SYSTEM (DUTY SOLENOID B) ELECTRICAL

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- No lock-up (after engine warm-up)

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

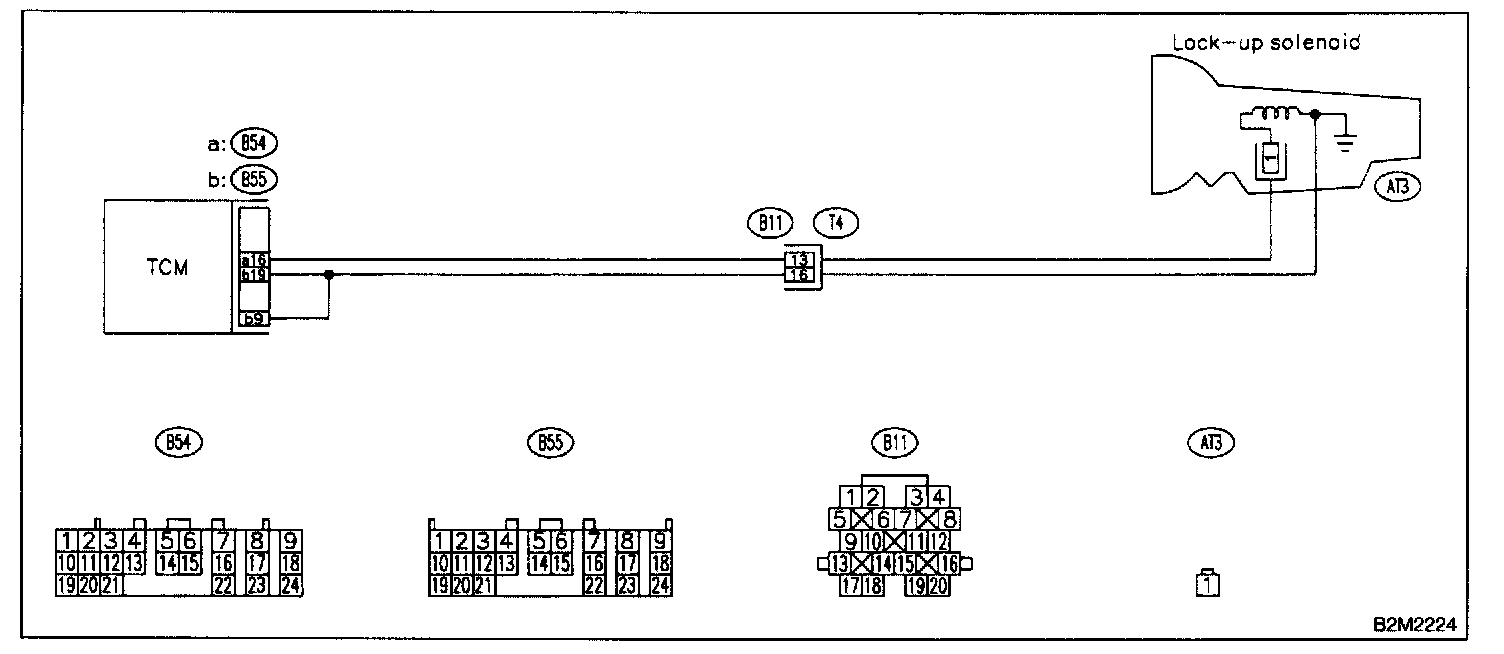

WIRING DIAGRAM

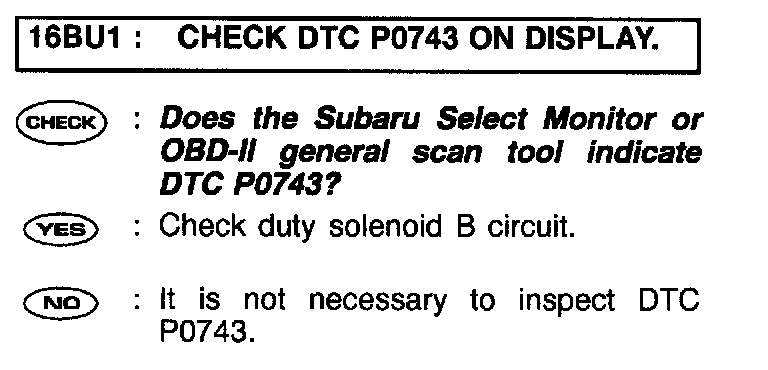

Step 16BU1:

PROCEDURES
