P0740

DTC P0740 - TORQUE CONVERTER CLUTCH SYSTEM MALFUNCTION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- No lock-up (after engine warm-up)
- No shift or excessive tight corner "braking"

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

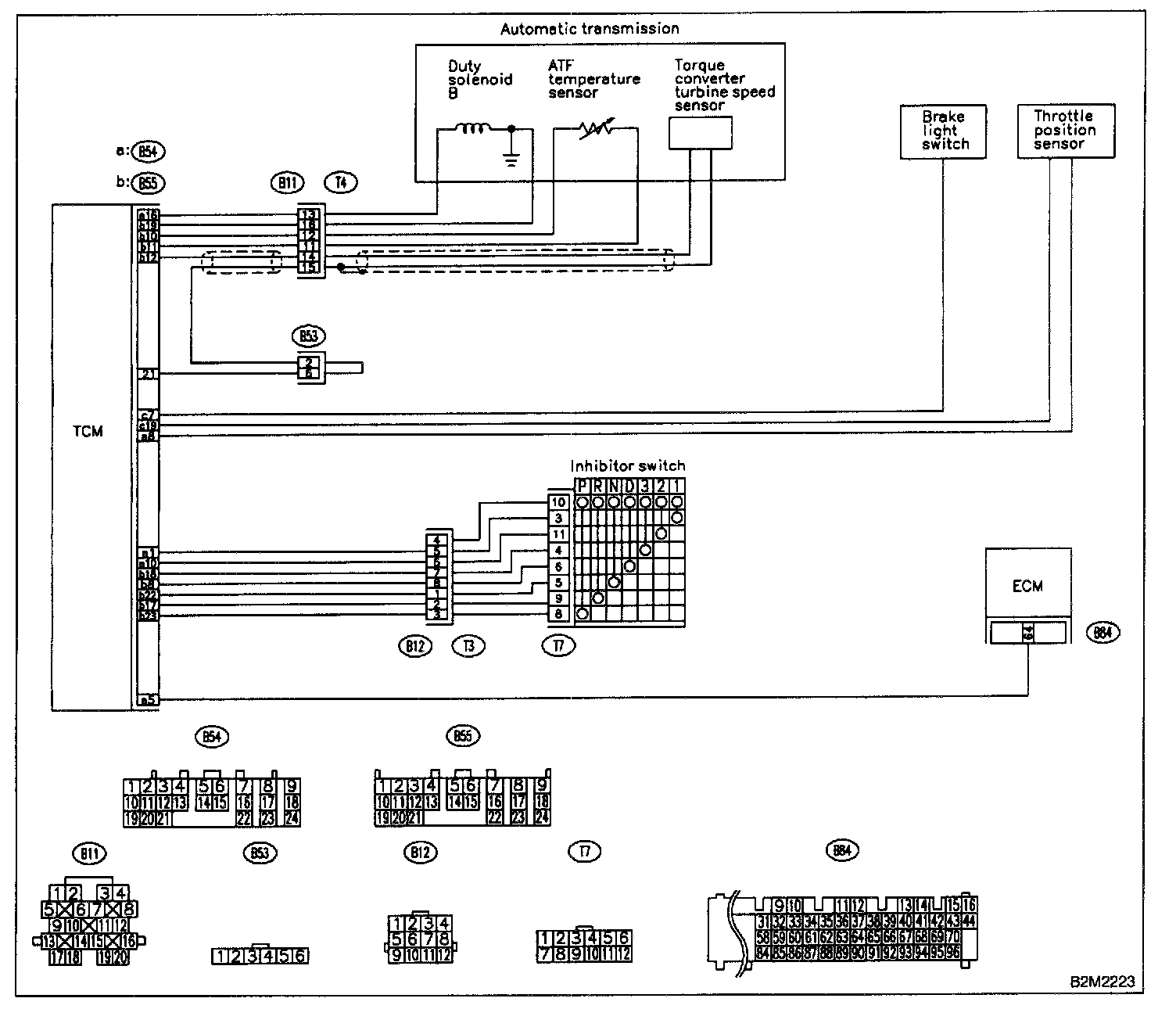

WIRING DIAGRAM

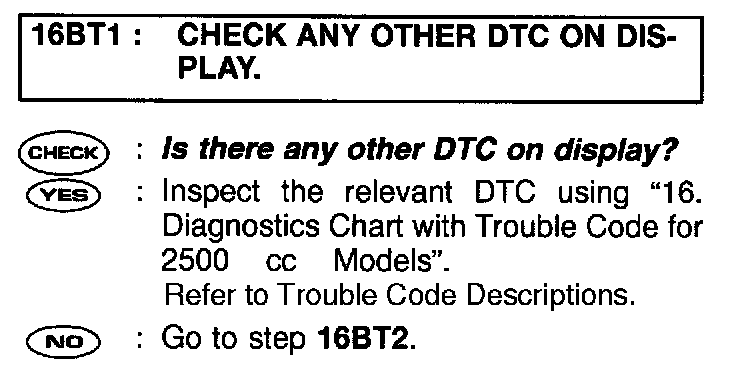

Step 16BT1:

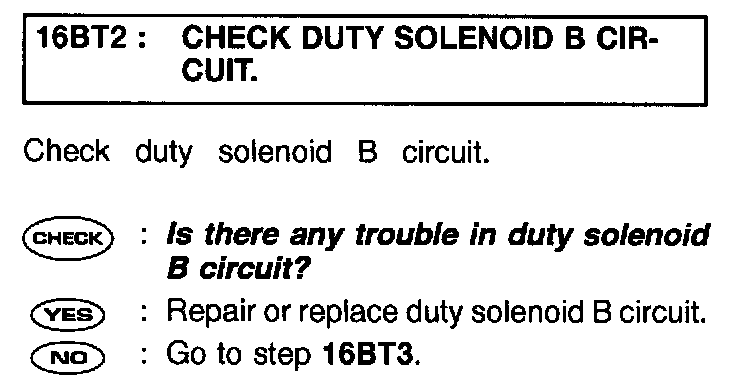

Step 16BT2:

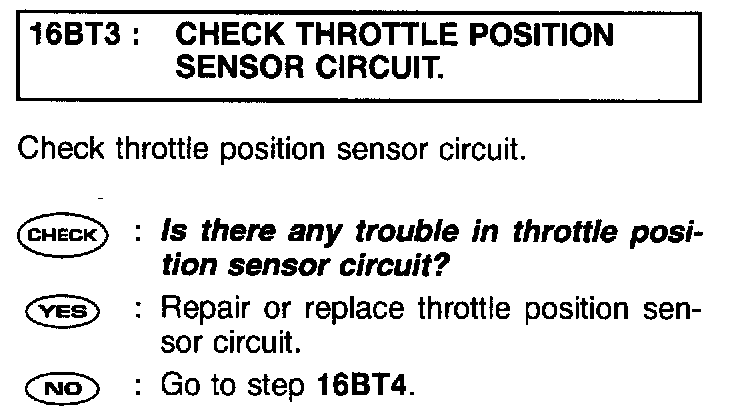

Step 16BT3:

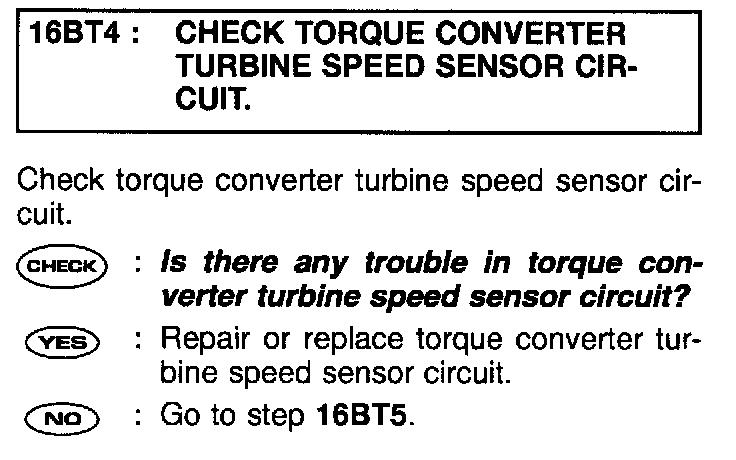

Step 16BT4:

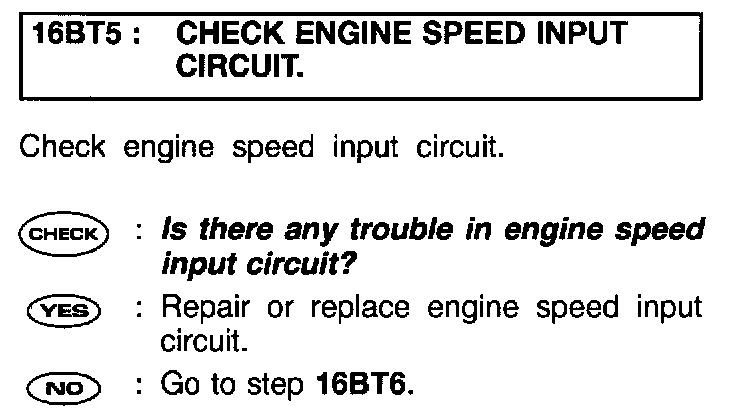

Step 16BT5:

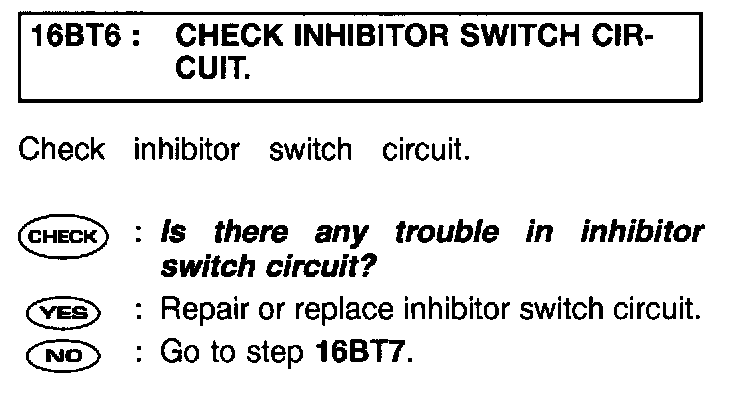

Step 16BT6:

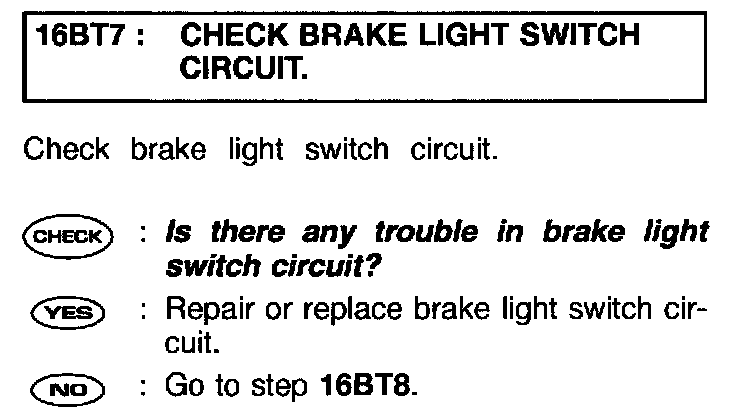

Step 16BT7:

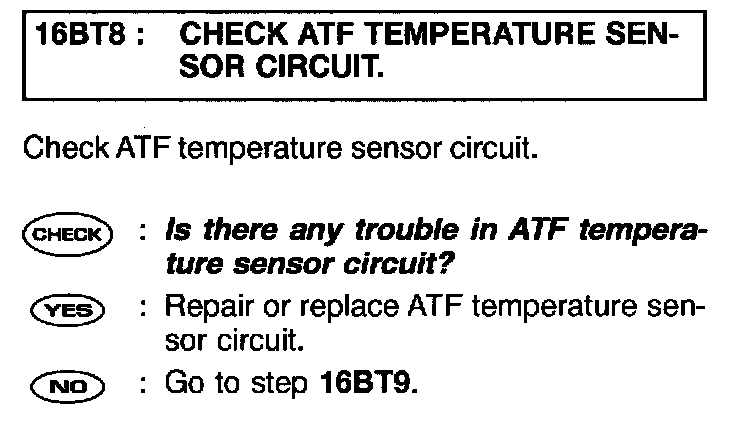

Step 16BT8:

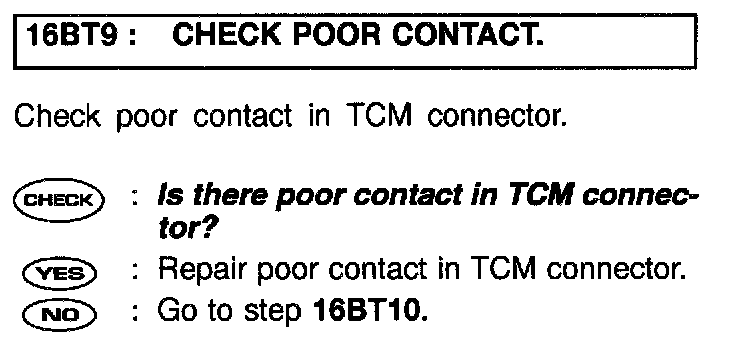

Step 16BT9:

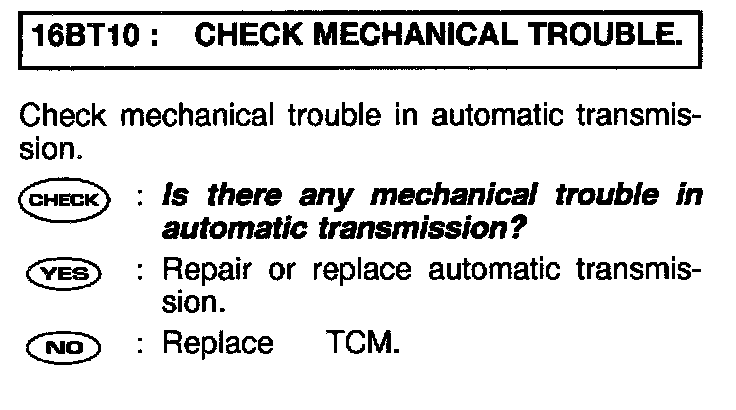

Step 16BT10:

PROCEDURES
