P0734

DTC P0734 - GEAR 4 INCORRECT RATIO

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Shift point too high or too low; engine brake not effected in "3" range; excessive shift shock; excessive tight corner "braking"

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

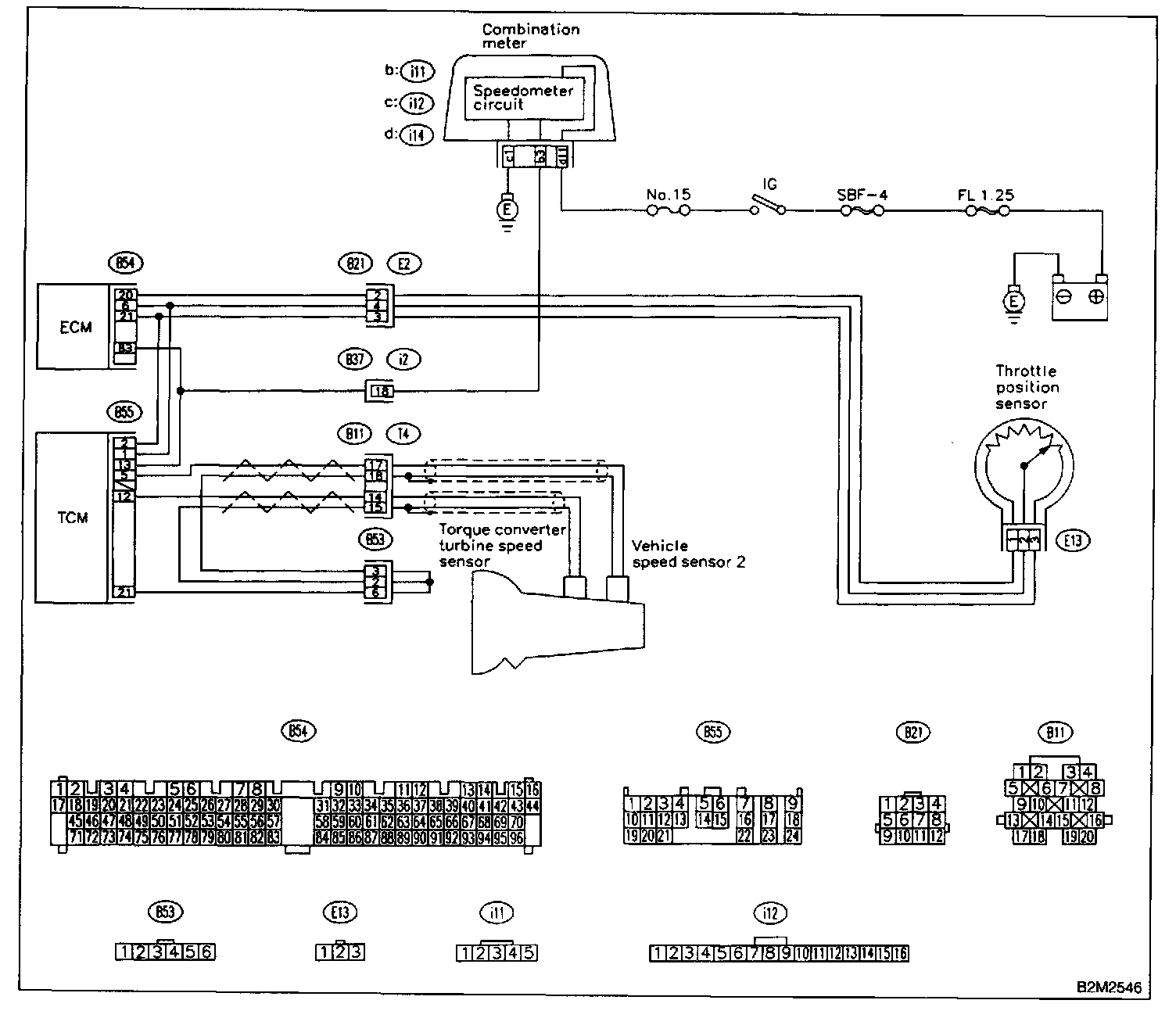

WIRING DIAGRAM

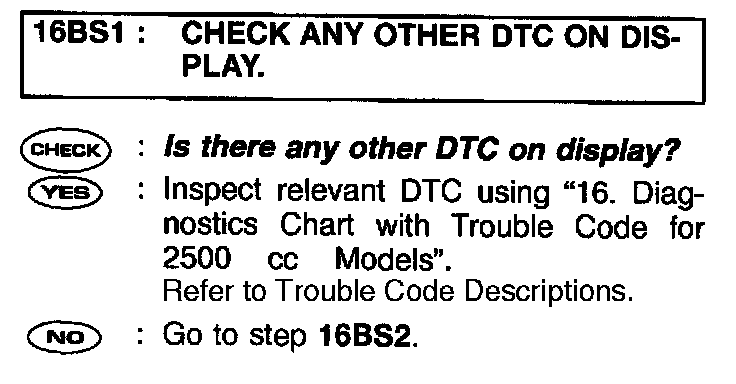

Step 16BS1:

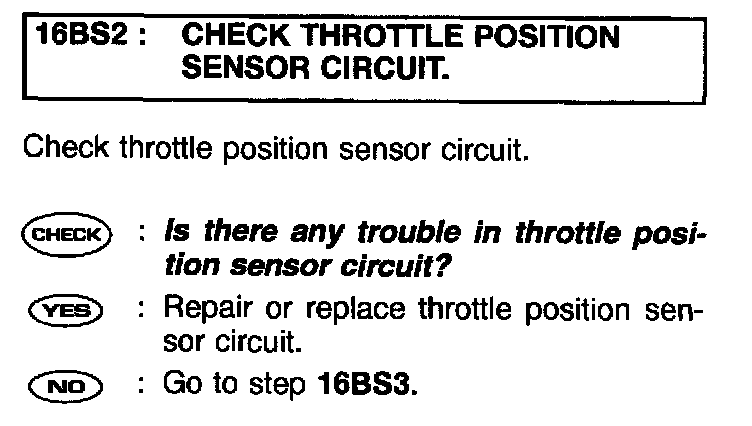

Step 16BS2:

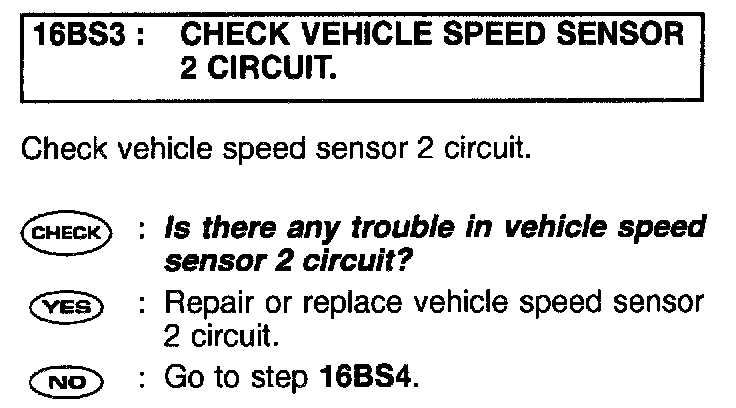

Step 16BS3:

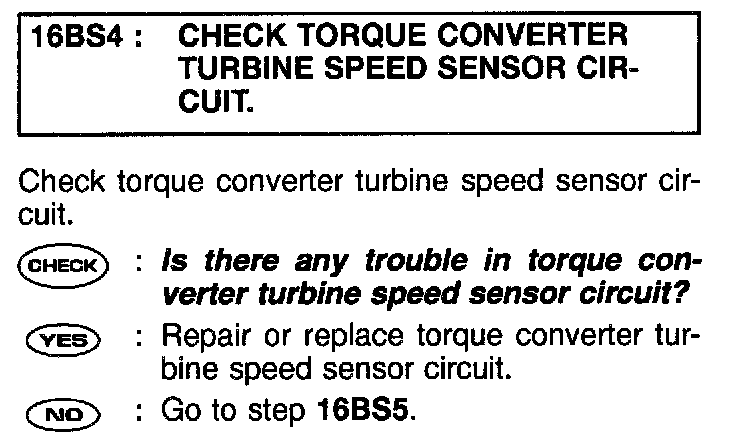

Step 16BS4:

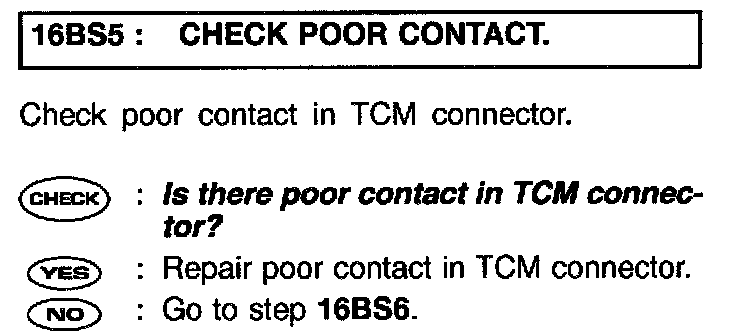

Step 16BS5:

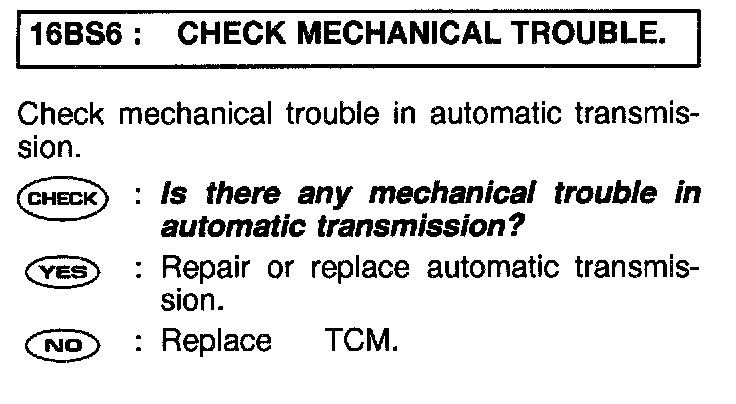

Step 16BS6:

PROCEDURES
