P0725

DTC P0725 - ENGINE SPEED INPUT CIRCUIT MALFUNCTION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- No lock-up (after engine warm-up)
- AT diagnostic indicator light (AT OIL TEMP indicator light) remains on when vehicle speed is "0".

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

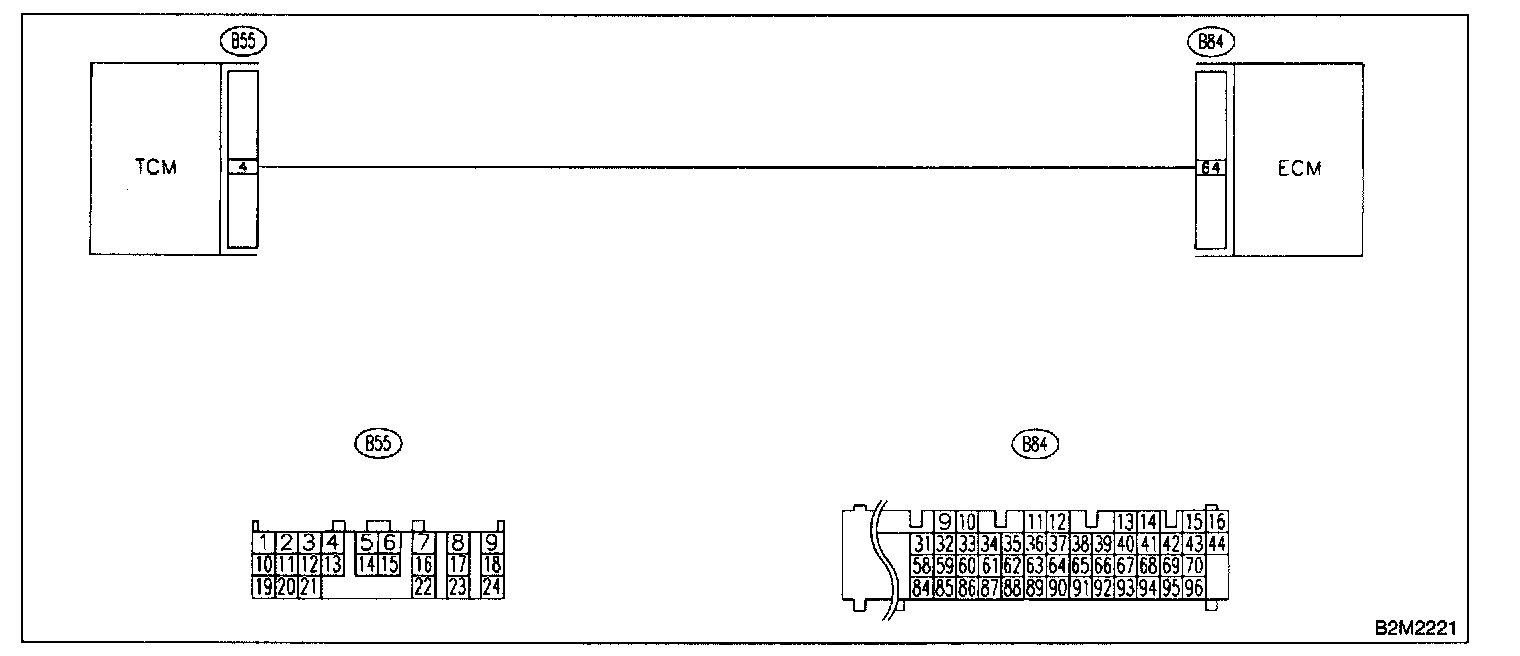

WIRING DIAGRAM

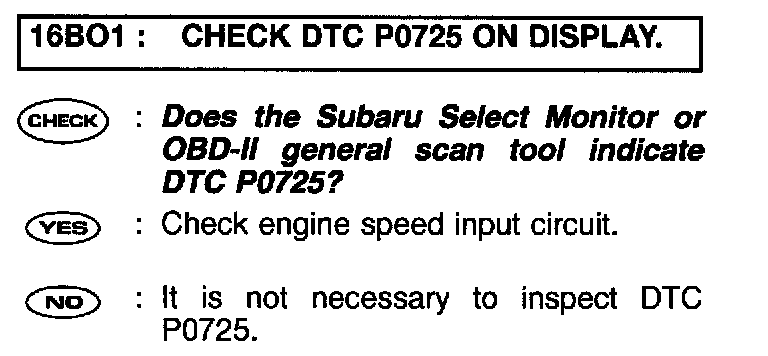

Step 16BO1:

PROCEDURES
