P0703
DTC P0703 - BRAKE SWITCH INPUT MALFUNCTIONDTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

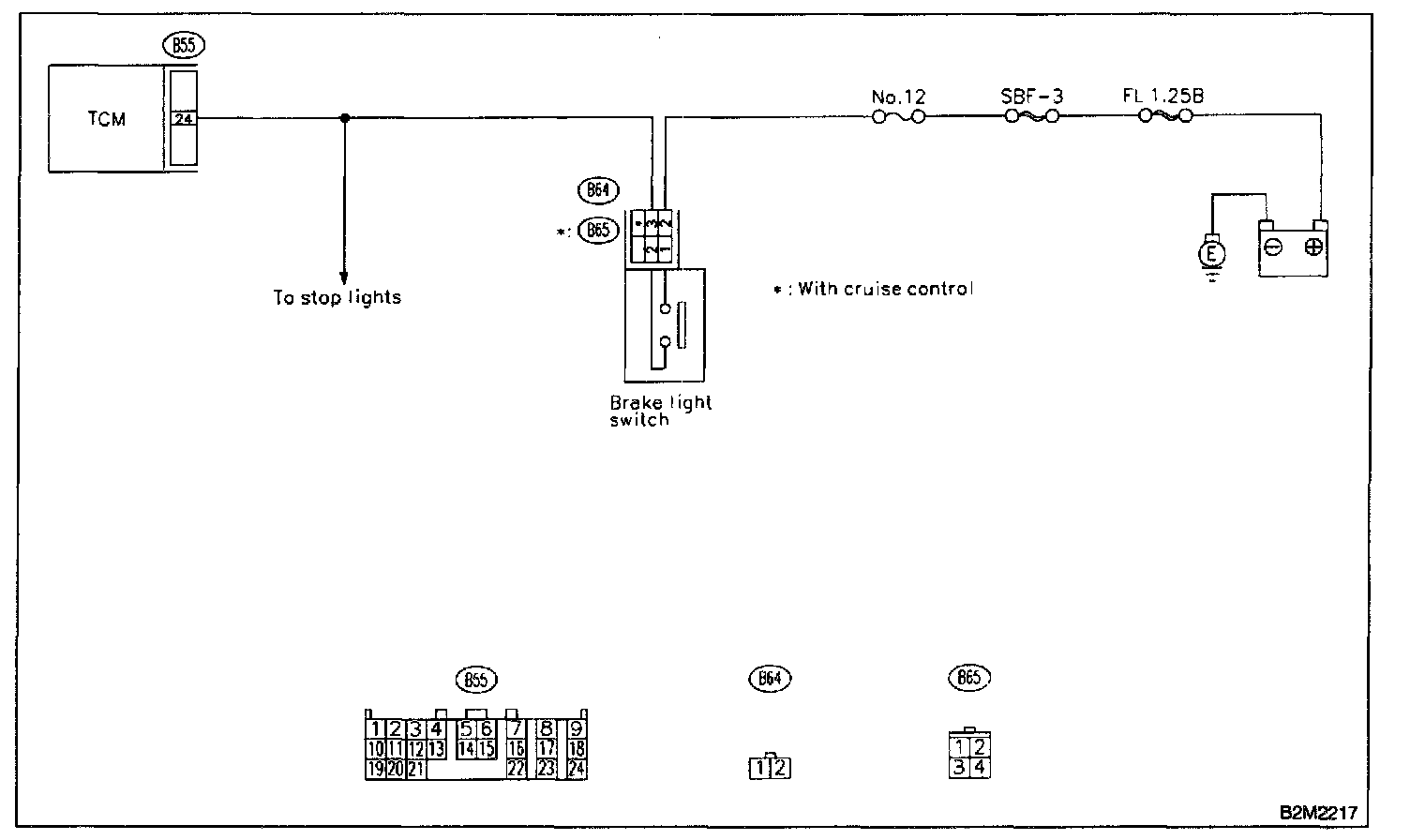

WIRING DIAGRAM

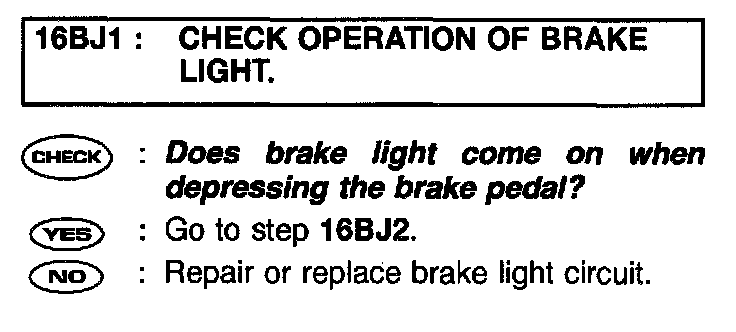

Step 16BJ1:

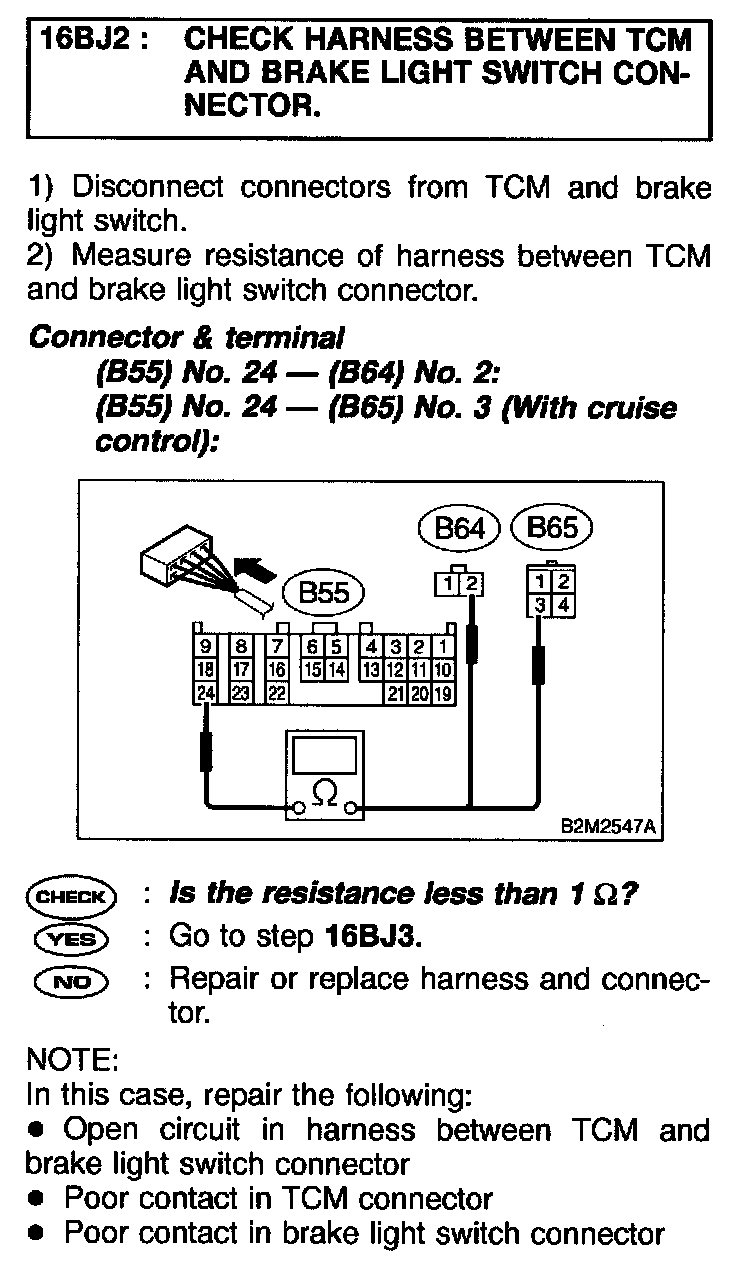

Step 16BJ2:

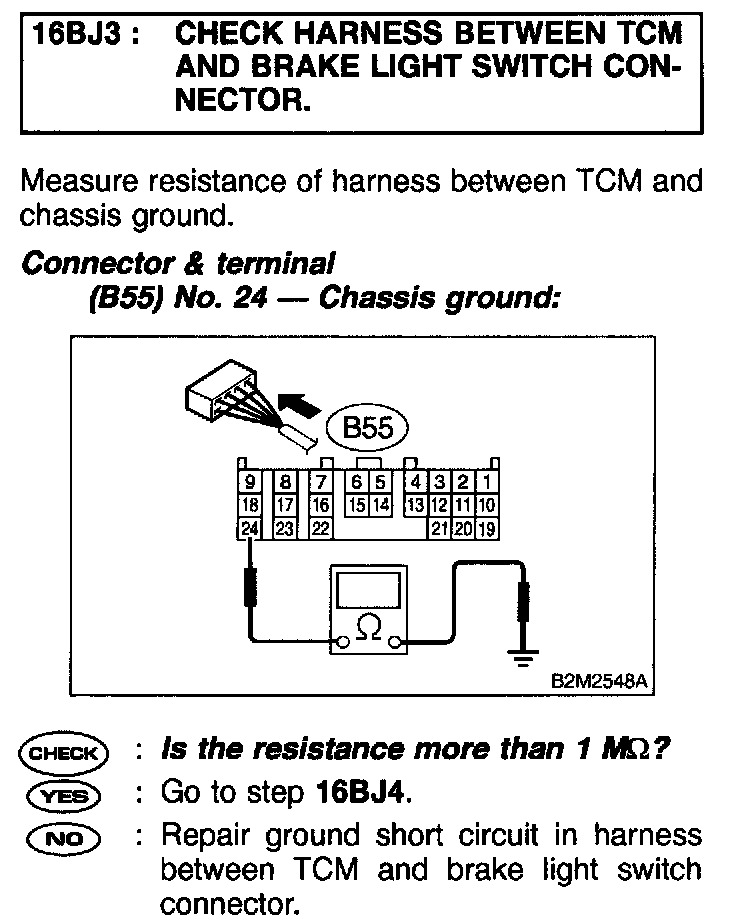

Step 16BJ3:
Step 16BJ4:

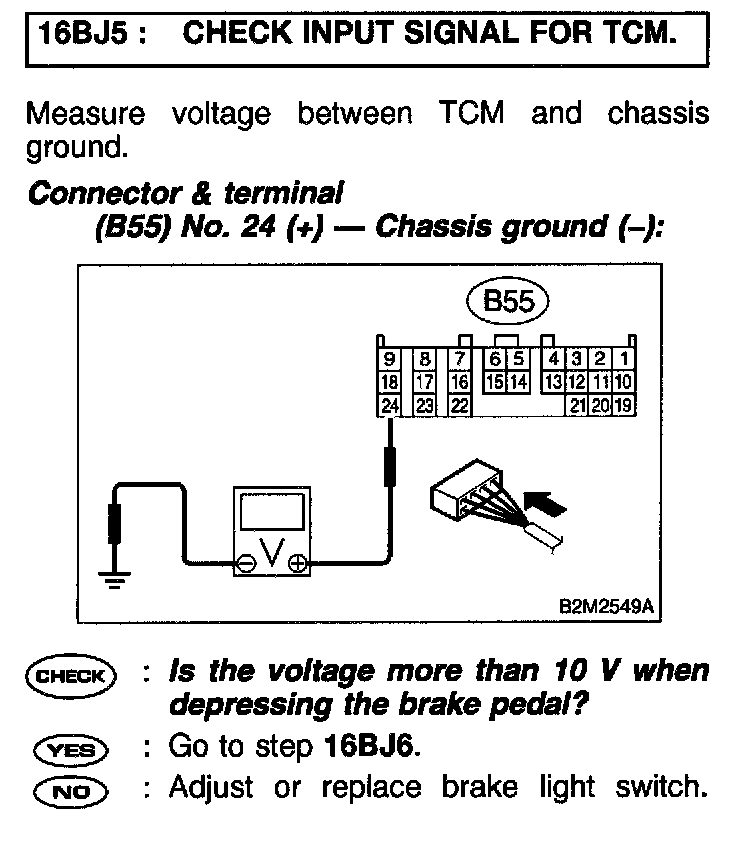

Step 16BJ5:

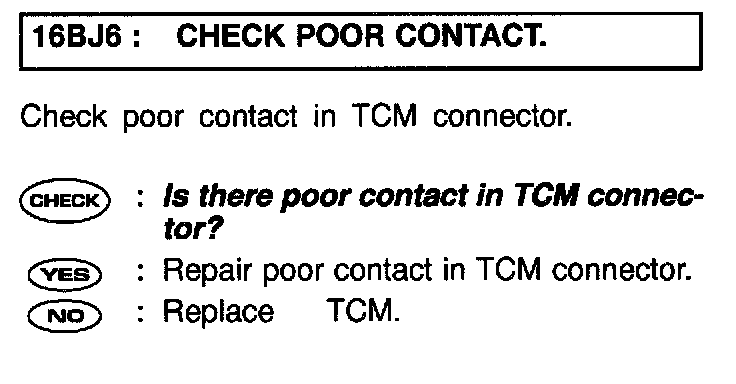

Step 16BJ6:
PROCEDURES
