P0440

DTC P0440 - EVAPORATIVE EMISSION CONTROL SYSTEM MALFUNCTION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Gasoline smell

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

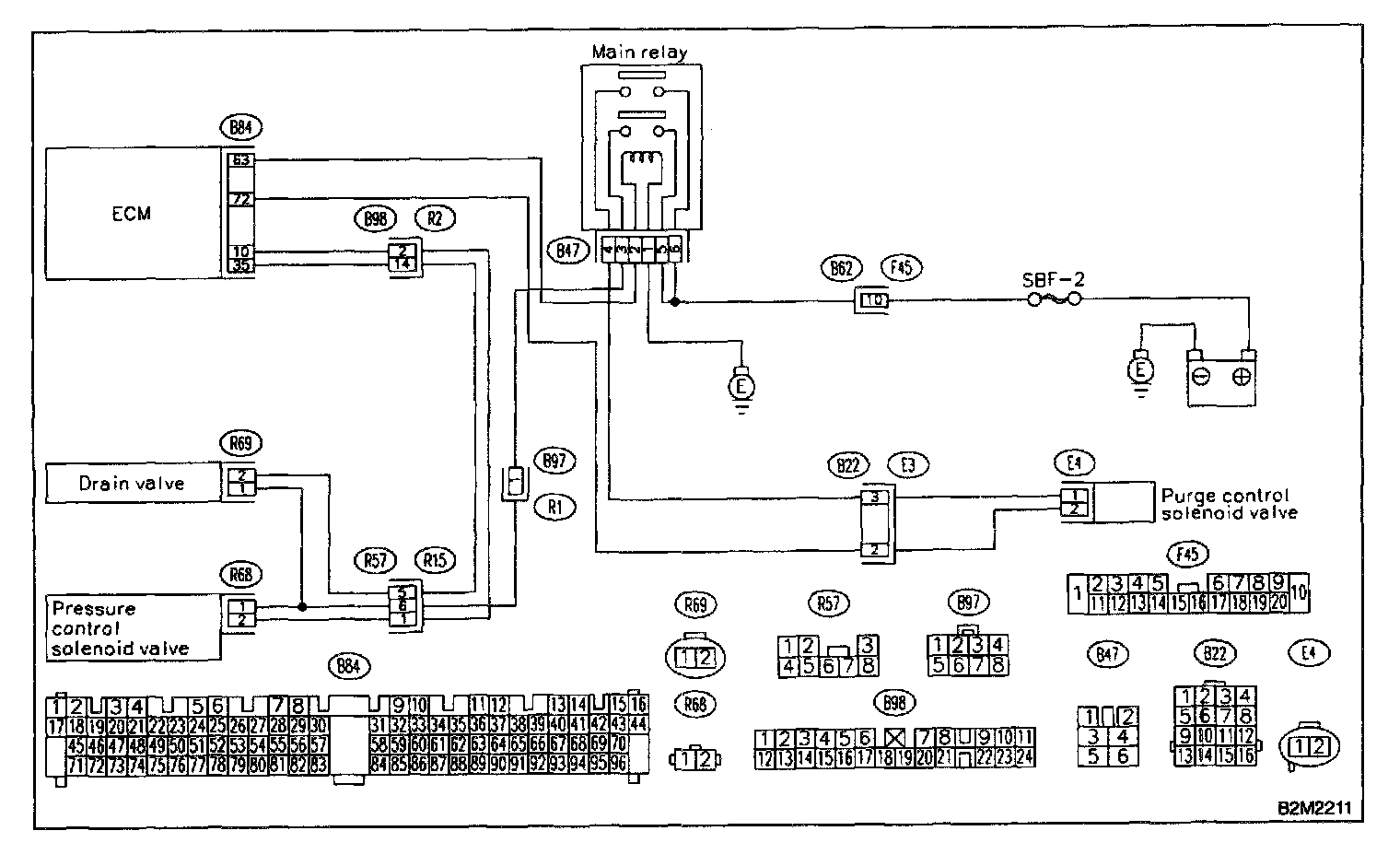

WIRING DIAGRAM

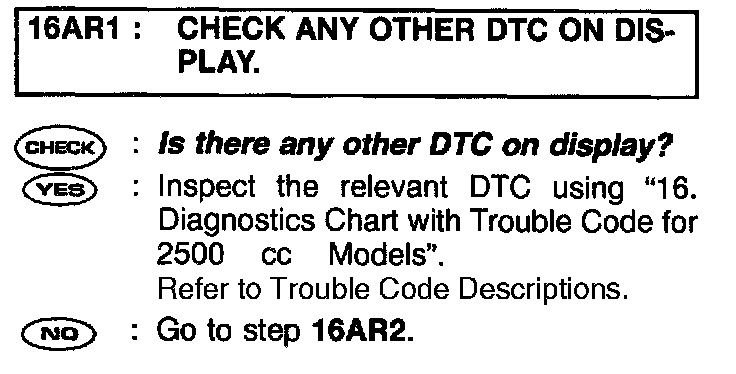

Step 16AR1:

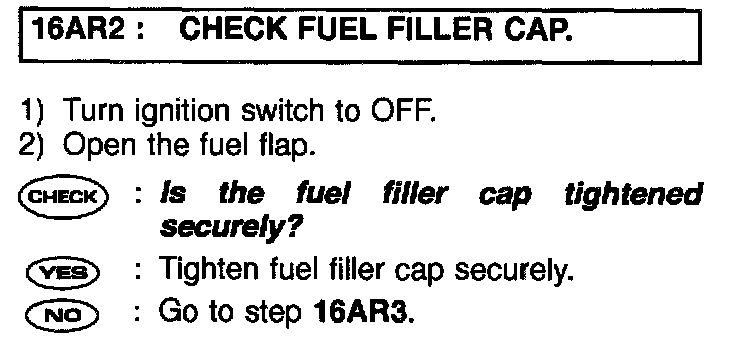

Step 16AR2:

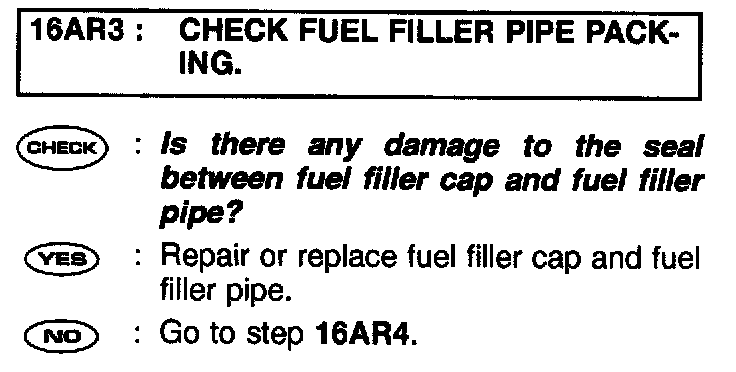

Step 16AR3:

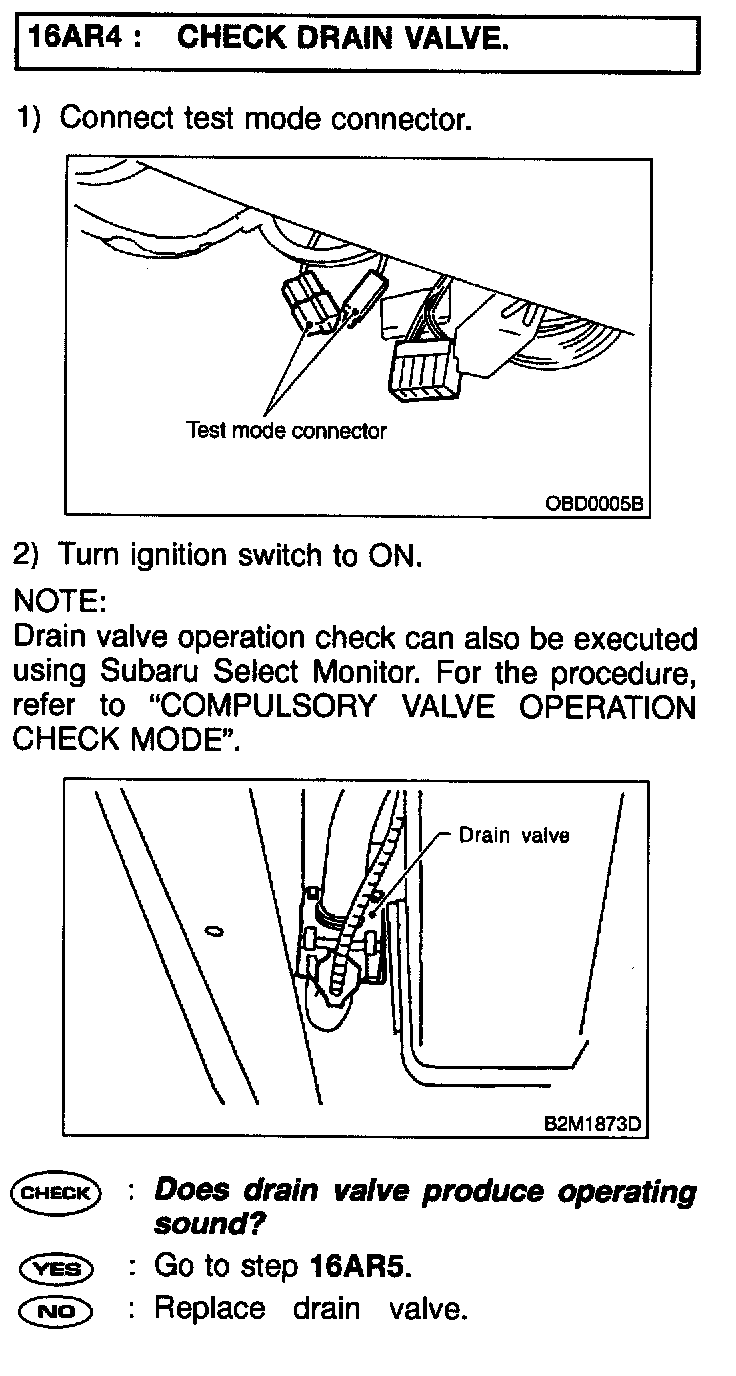

Step 16AR4:

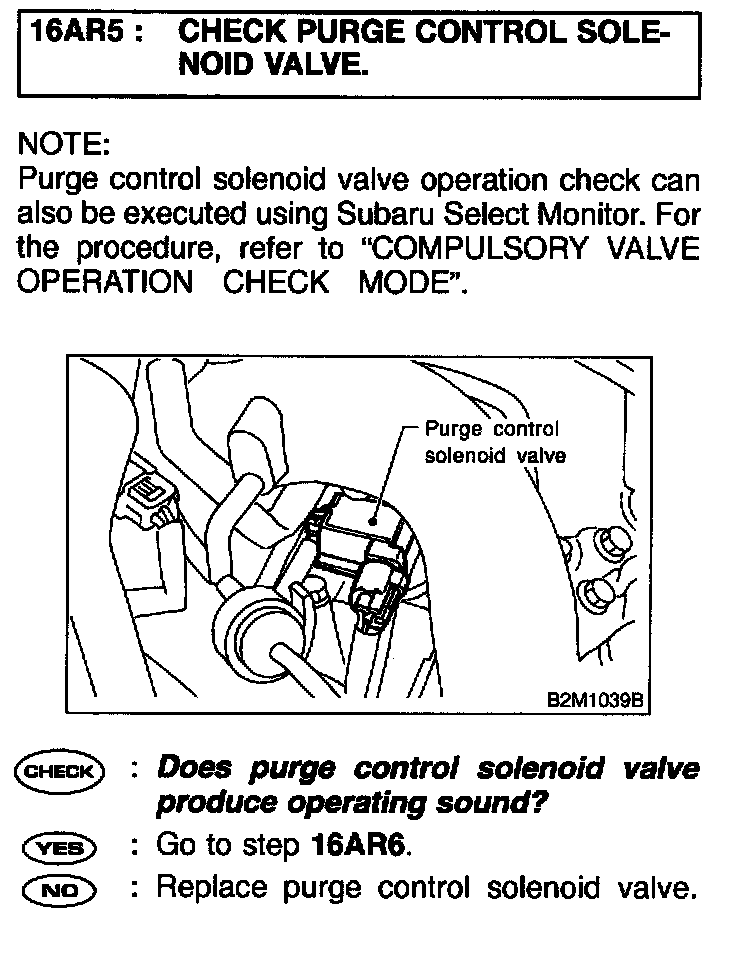

Step 16AR5:

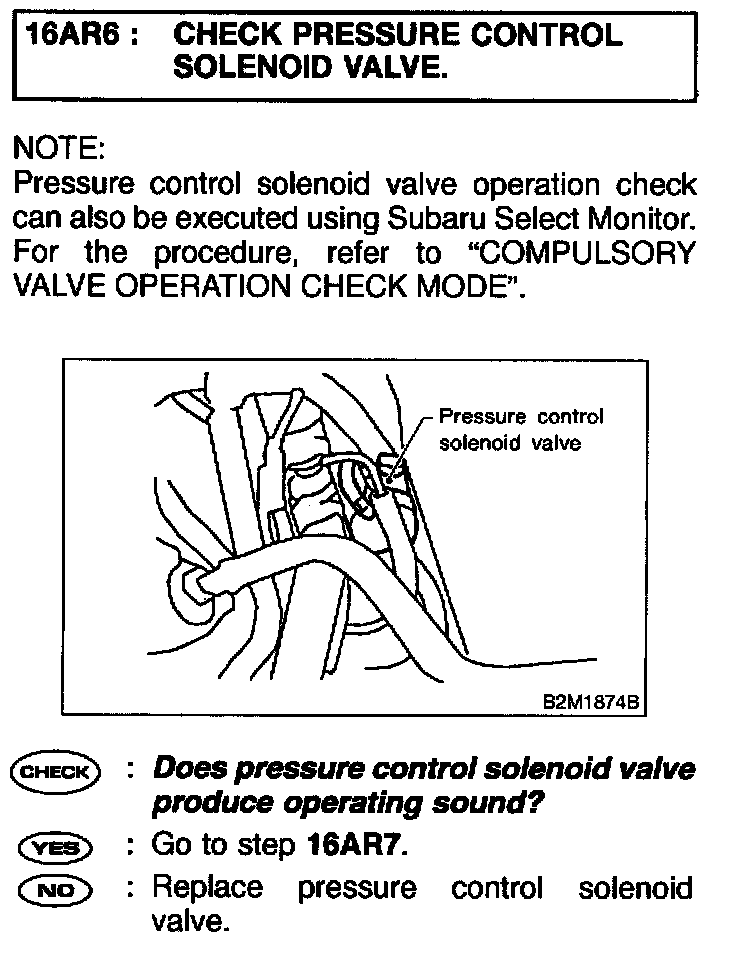

Step 16AR6:

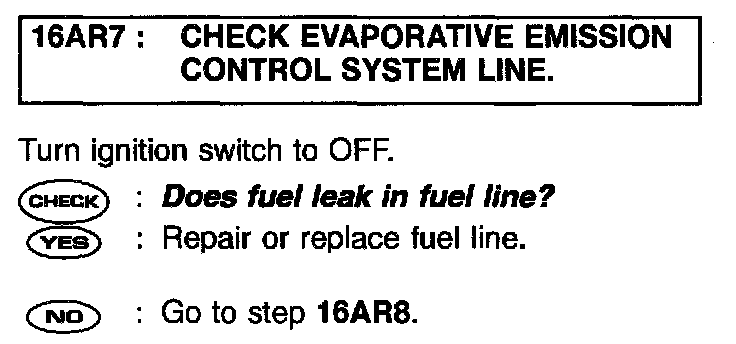

Step 16AR7:

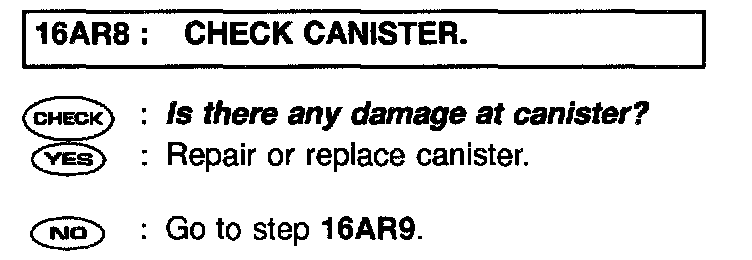

Step 16AR8:

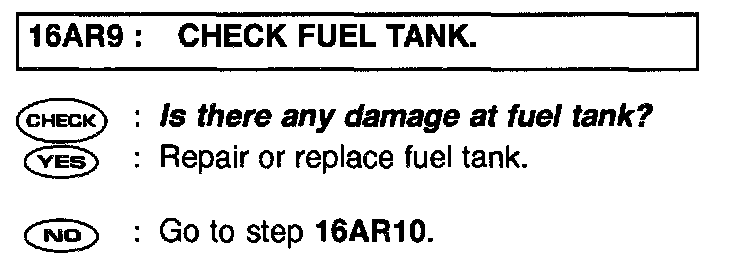

Step 16AR9:

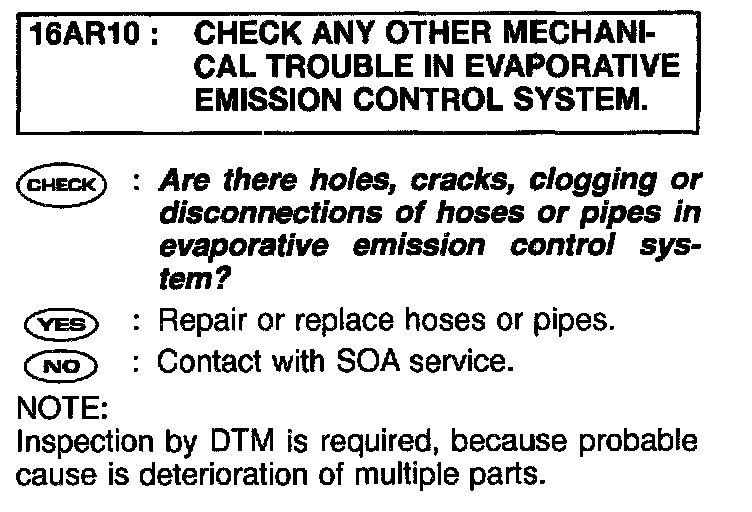

Step 16AR10:

PROCEDURES
