P0400

DTC P0400: EXHAUST GAS RECIRCULATION FLOW MALFUNCTION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Poor driving performance on low engine speed

CAUTION: Before confirmation of actual driving pattern, conduct CLEAR MEMORY and INSPECTION MODES.

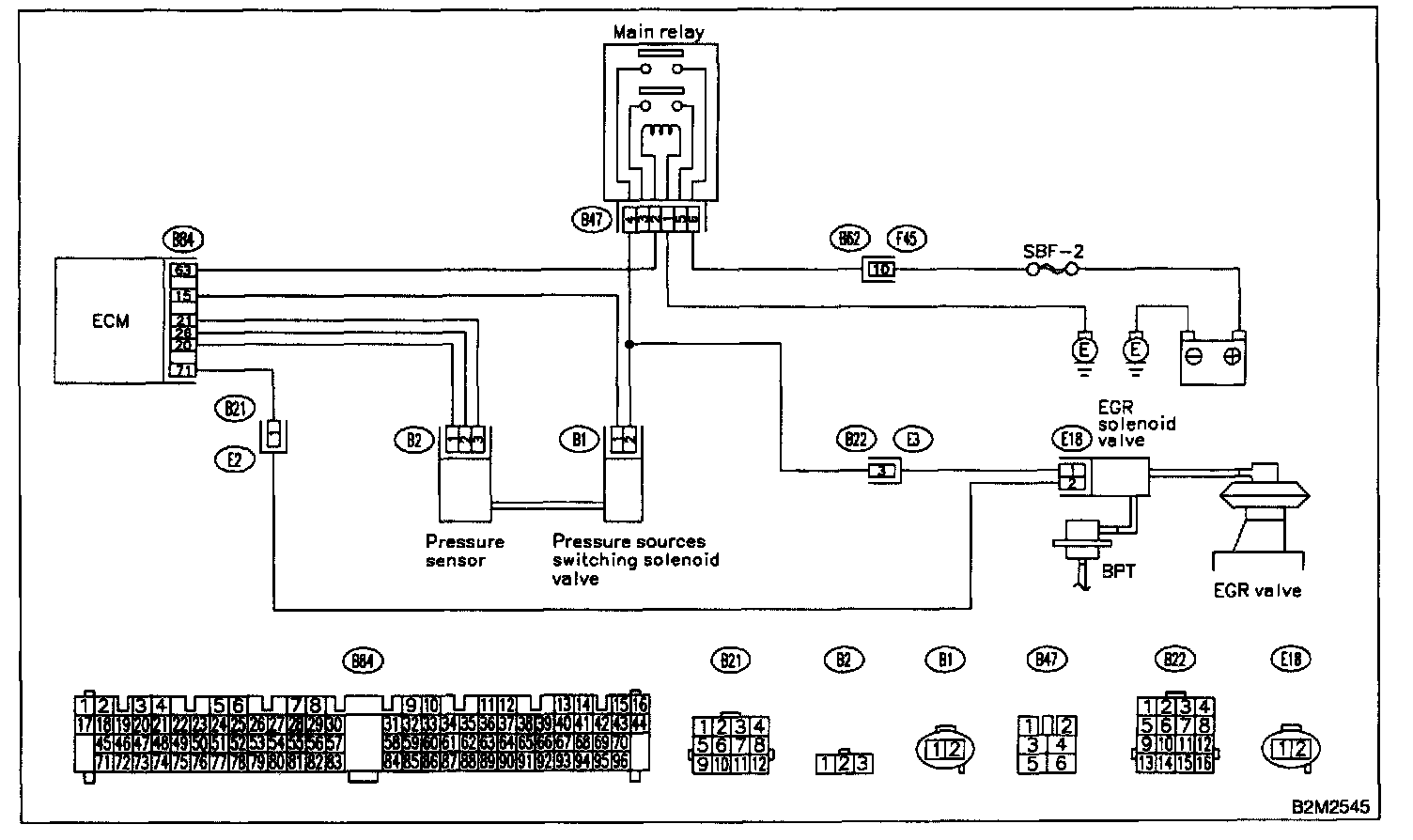

WIRING DIAGRAM

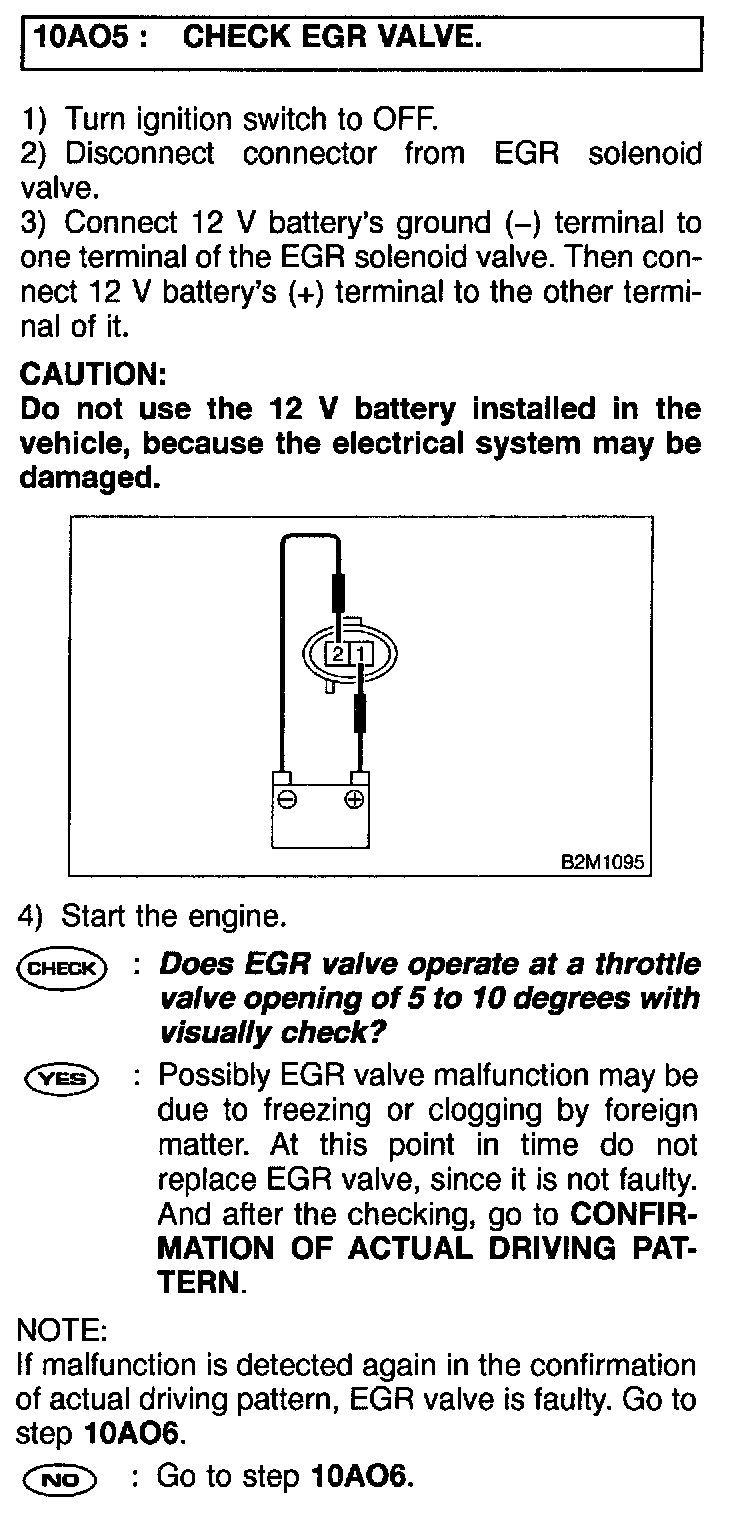

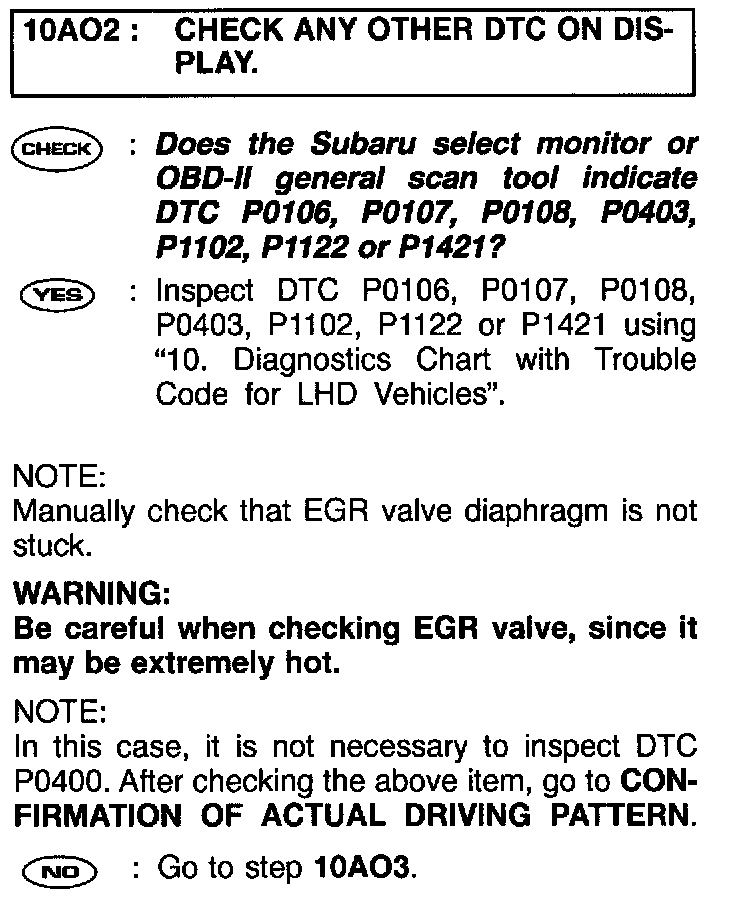

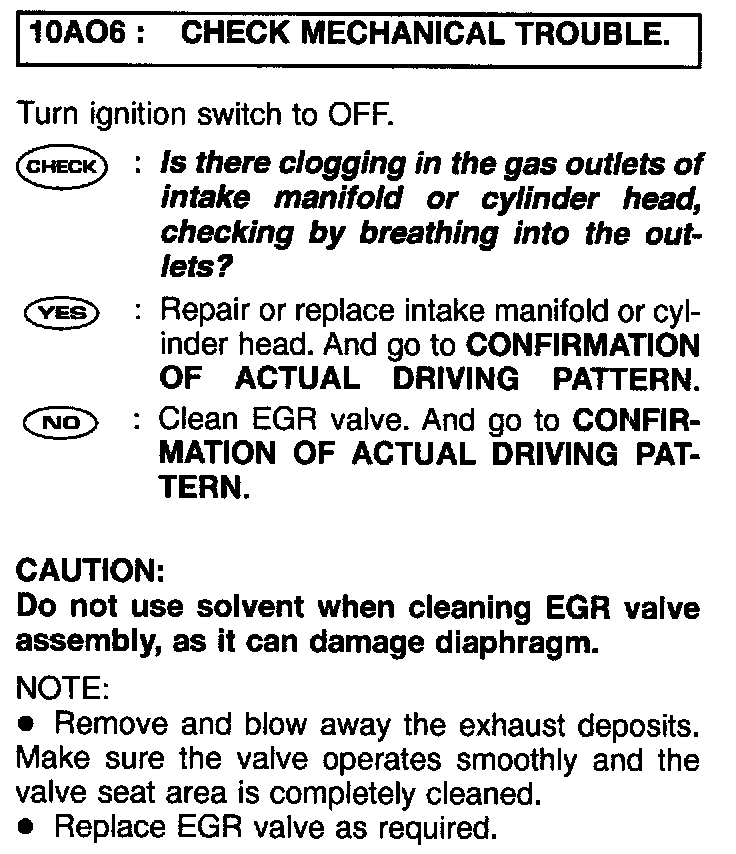

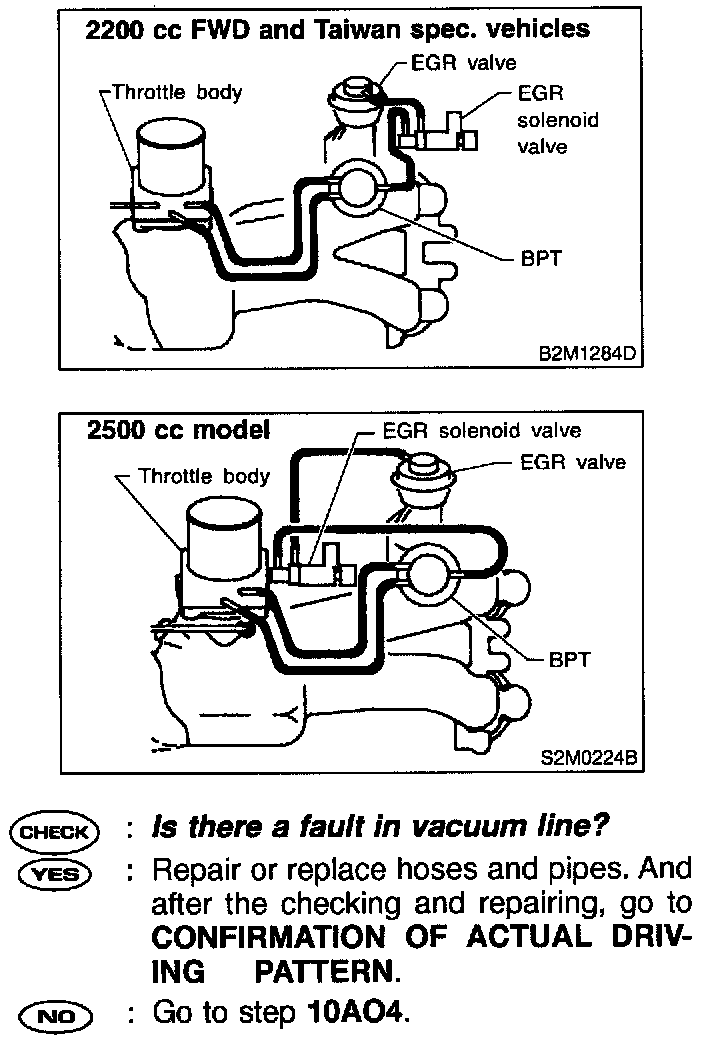

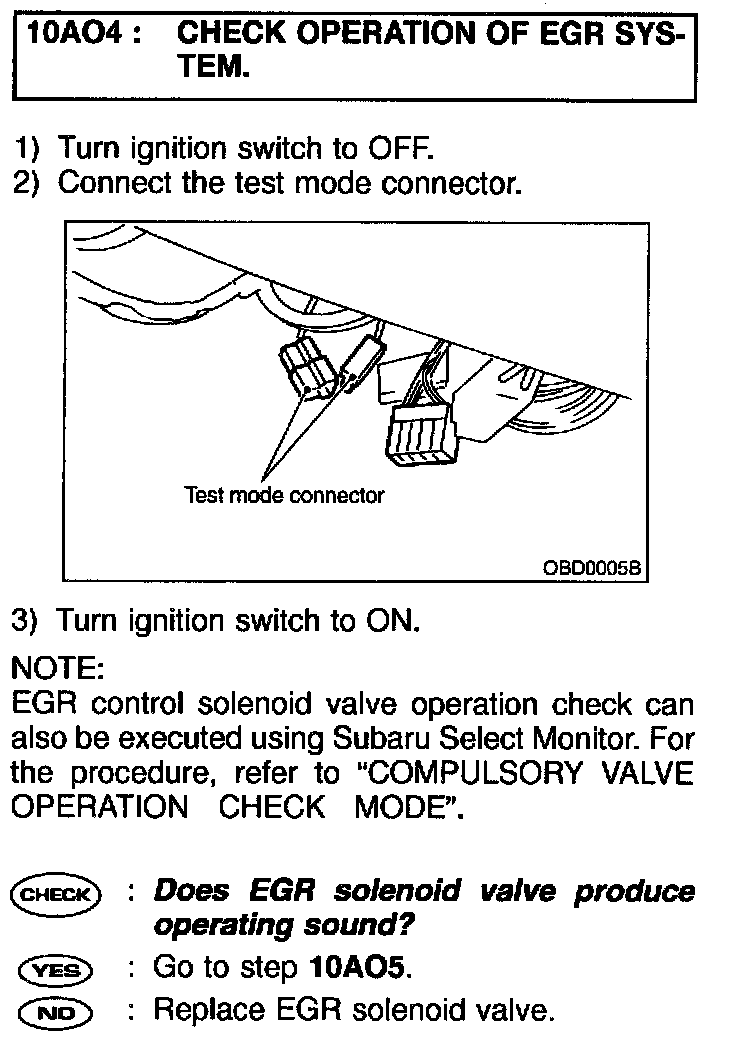

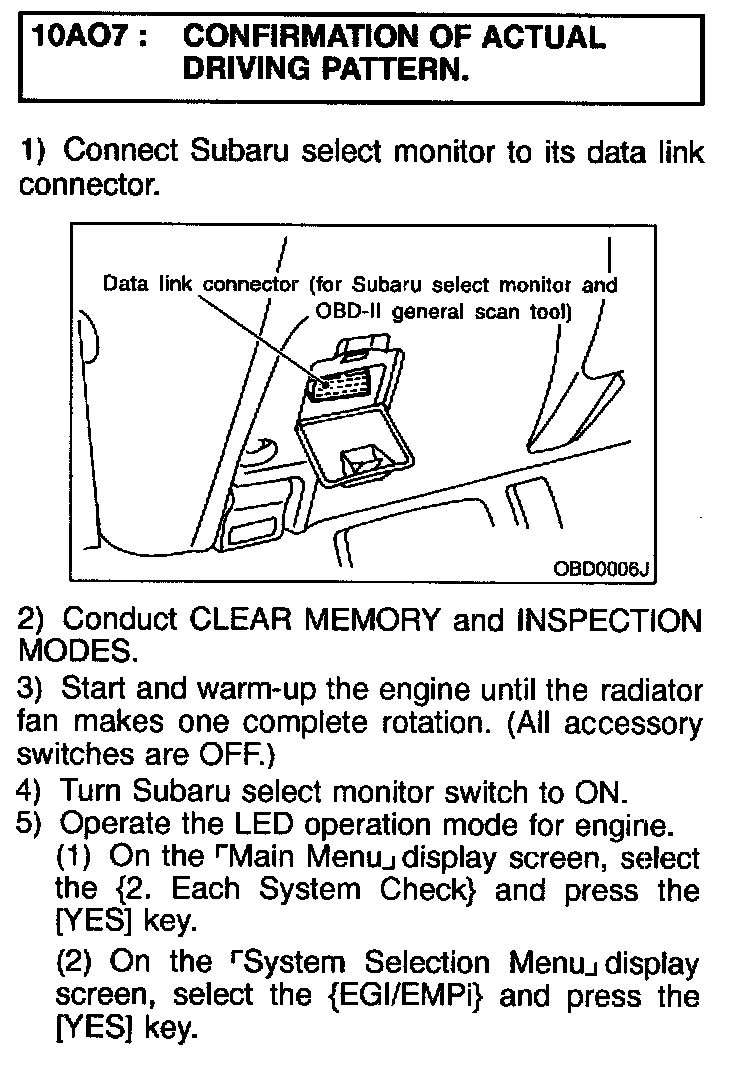

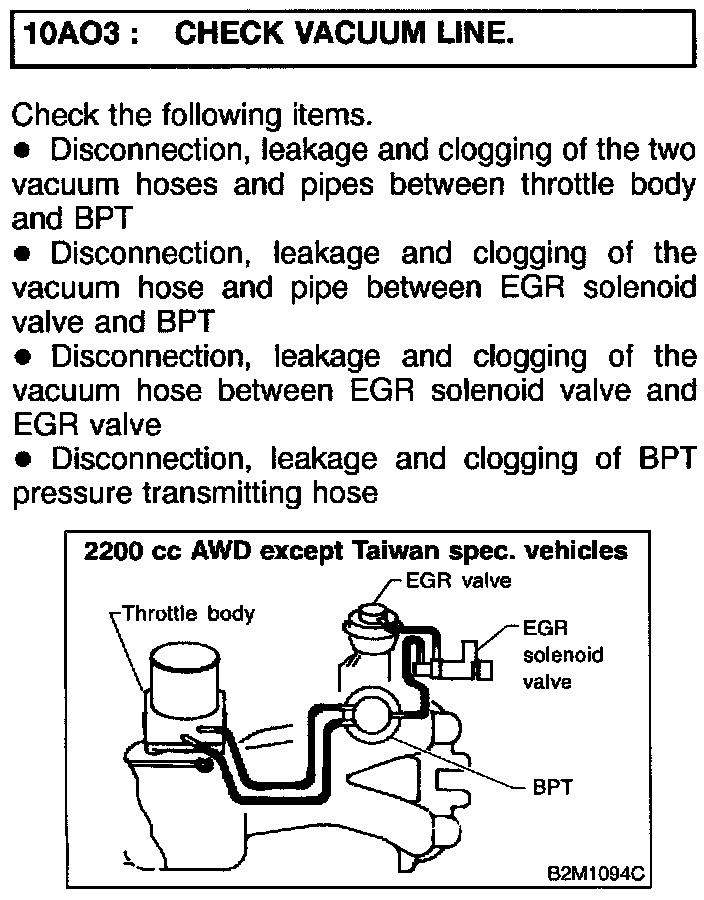

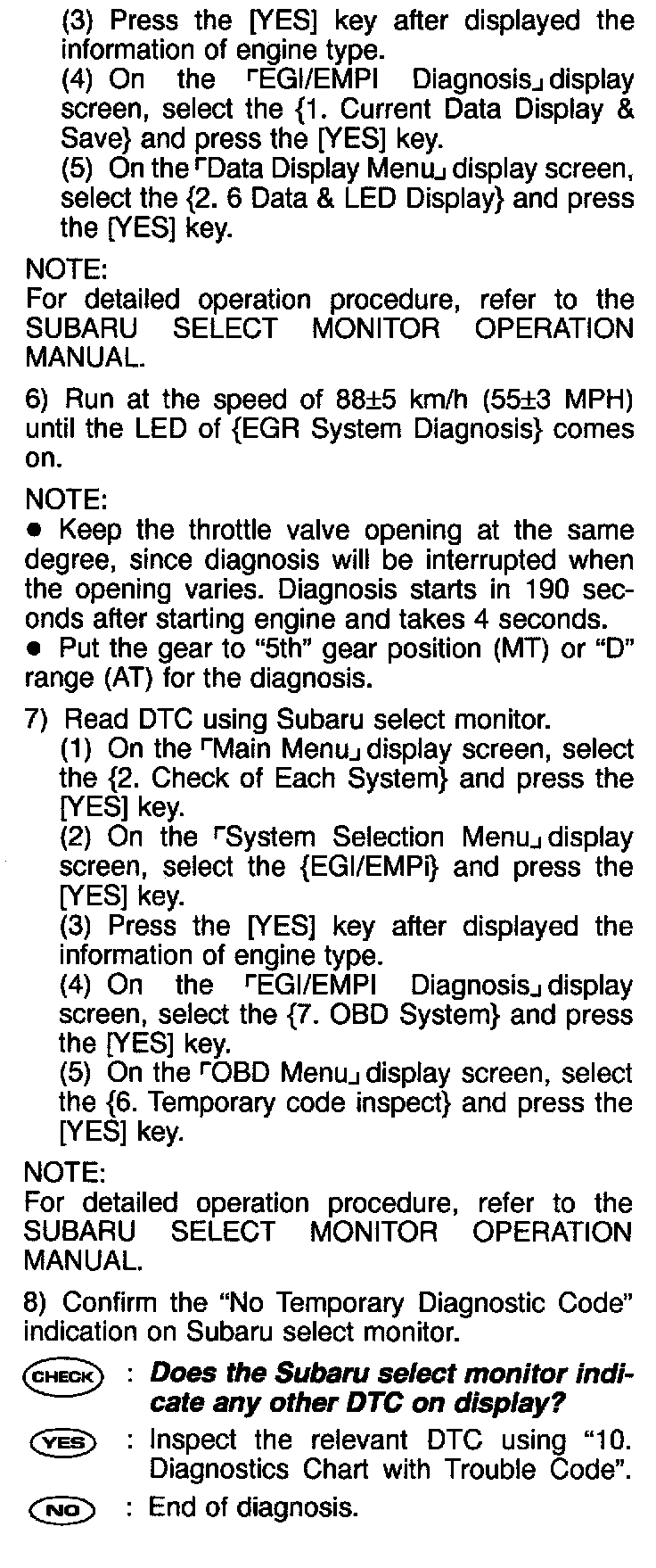

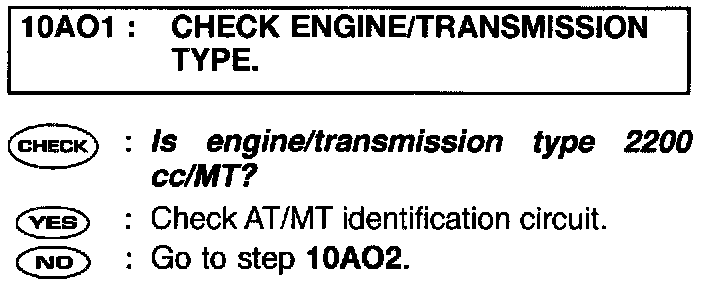

PROCEDURES
