P0325

DTC P0325 - KNOCK SENSOR CIRCUIT MALFUNCTION

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Poor driving performance
- Knocking occurs.

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer To How To Clear Diagnostic Trouble Codes.

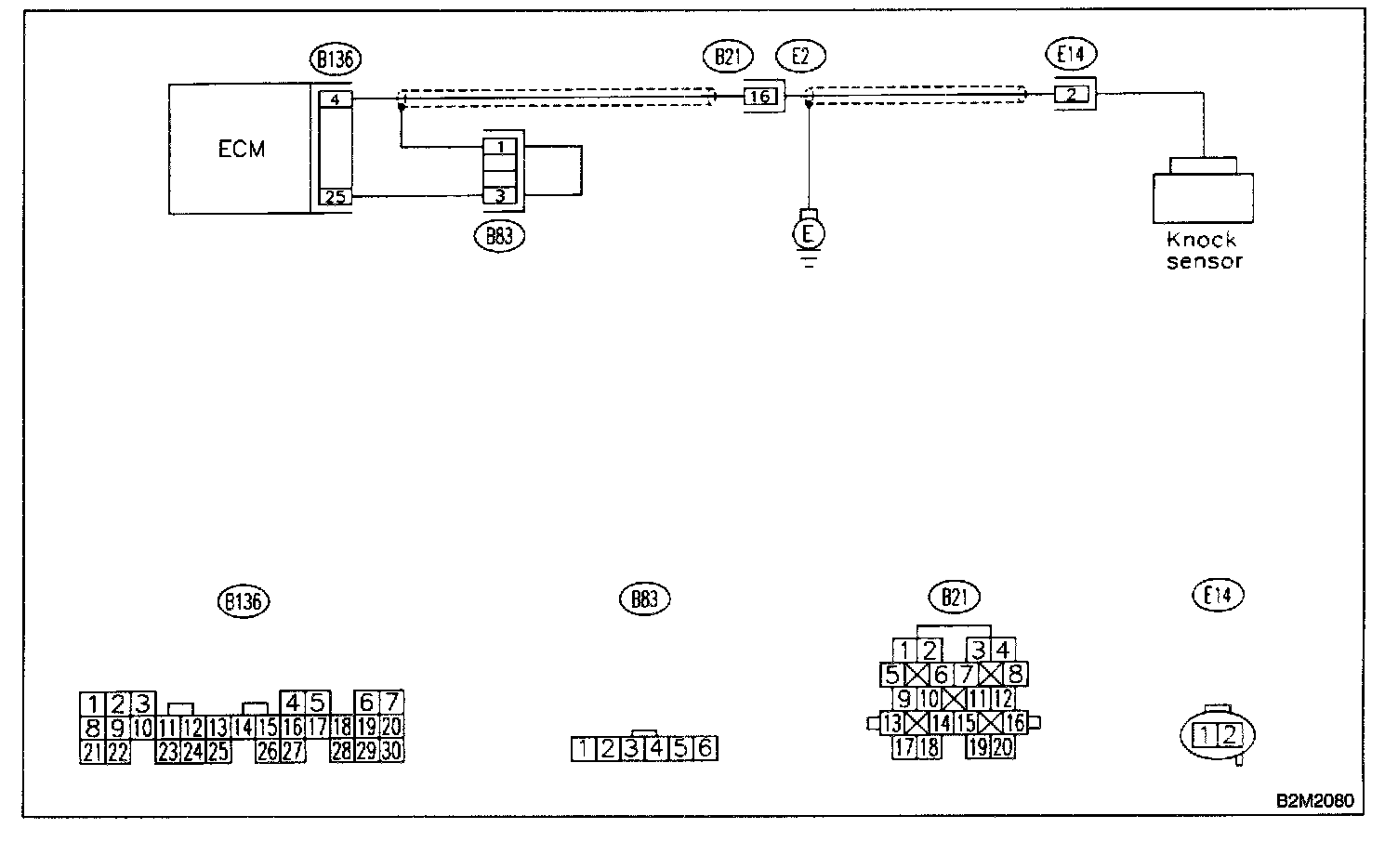

WIRING DIAGRAM

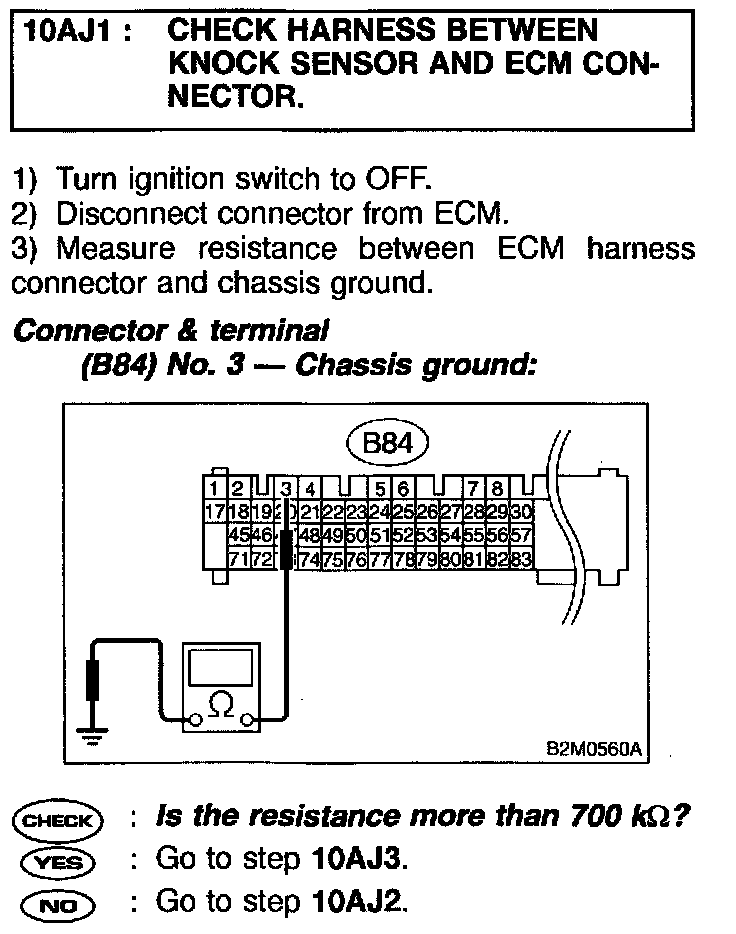

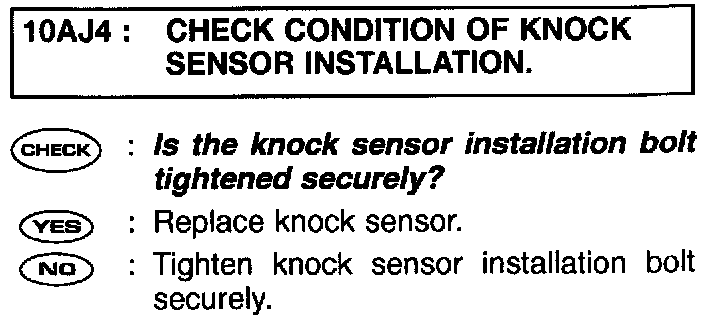

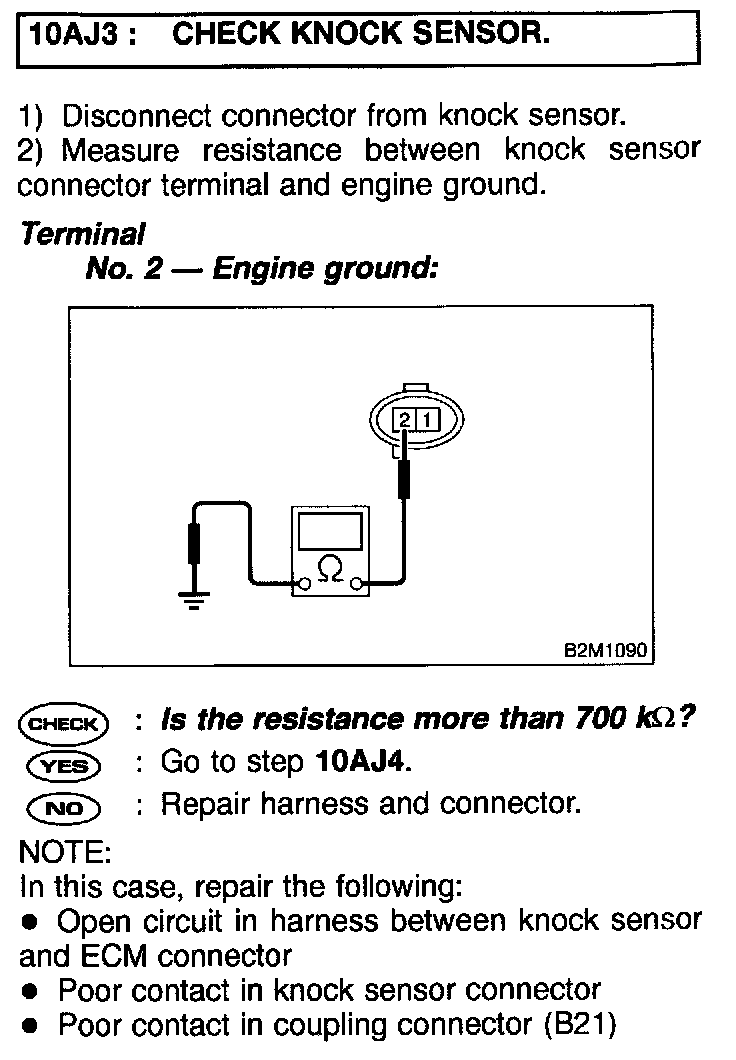

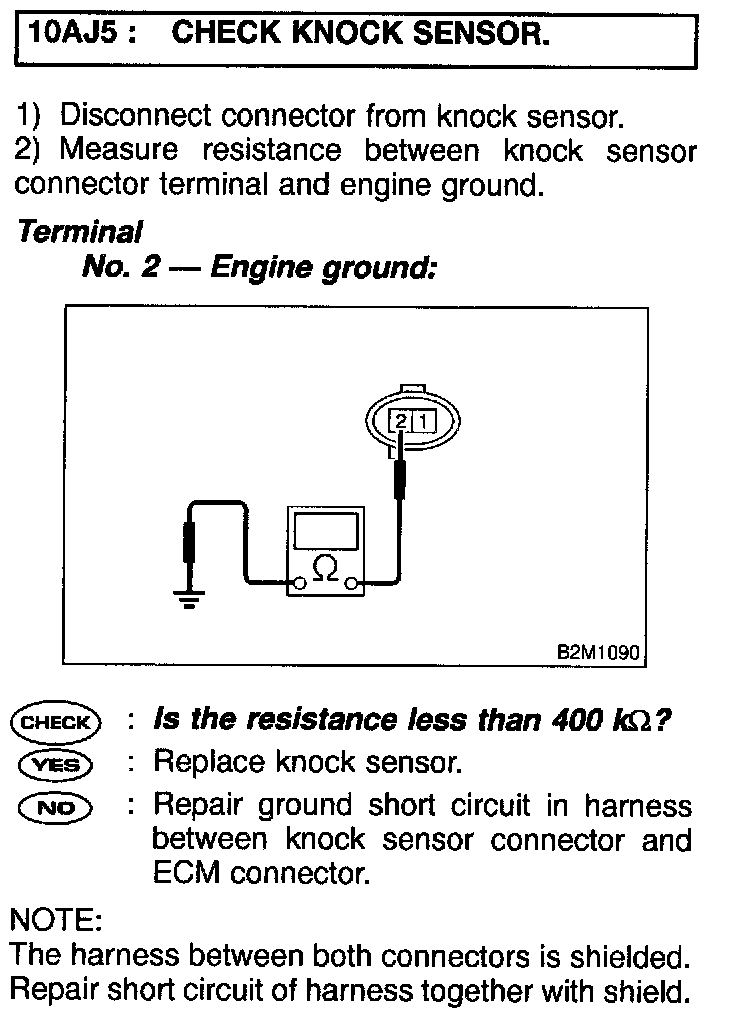

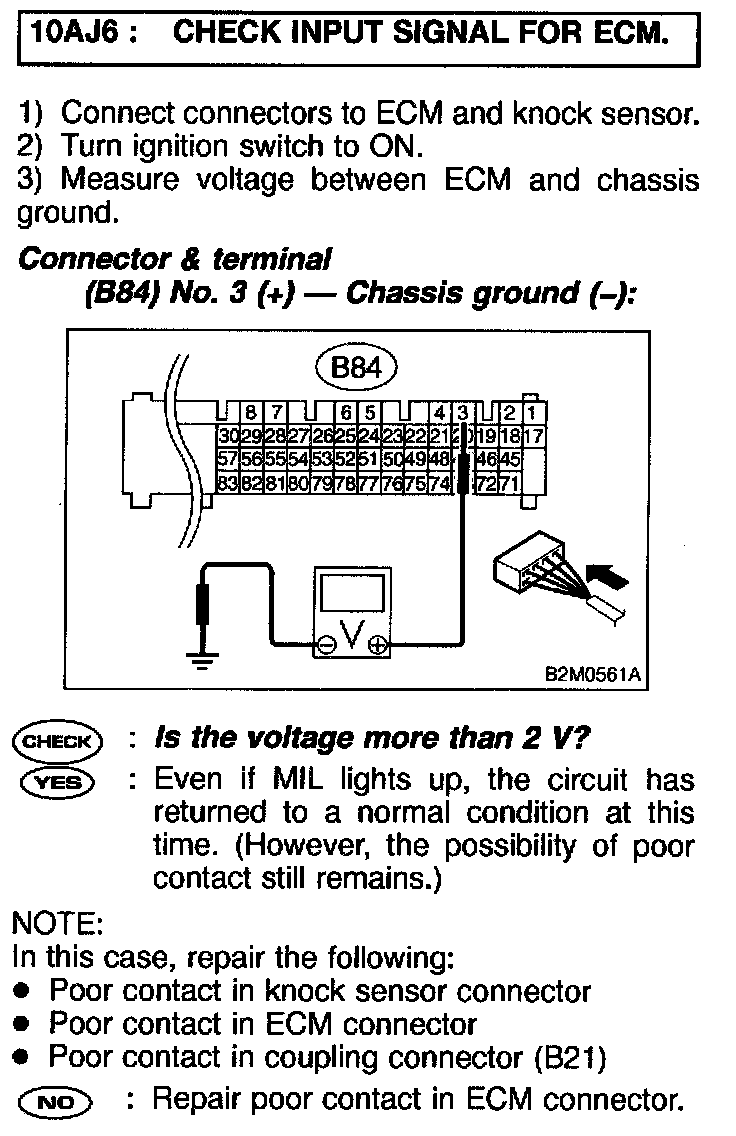

PROCEDURES
