P0303

DTC P0303 - CYLINDER 3 MISFIRE DETECTED

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
- Immediately at fault recognition (A misfire which could damage catalyst occurs.)

TROUBLE SYMPTOM:
- Engine stalls.
- Erroneous idling
- Rough driving

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

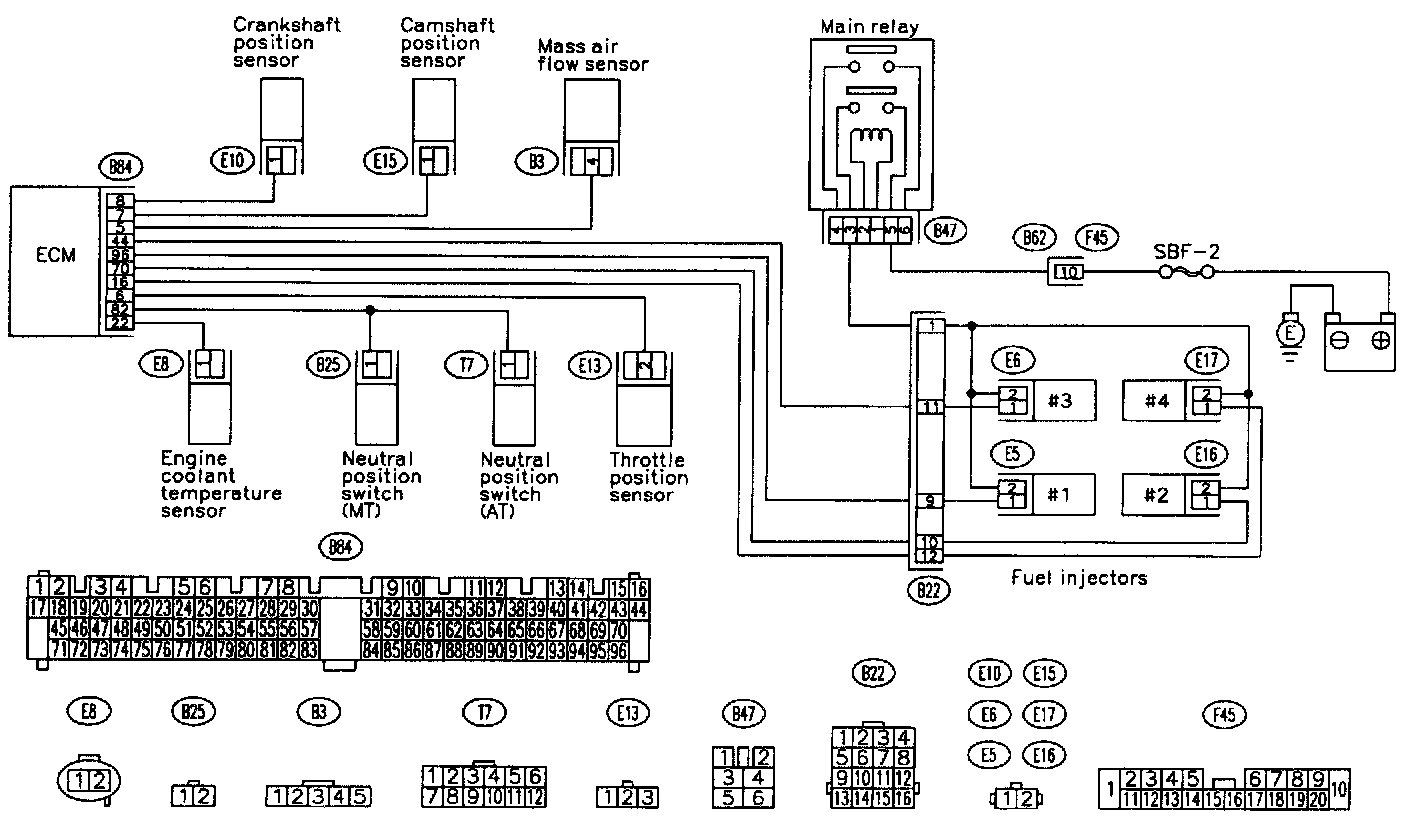

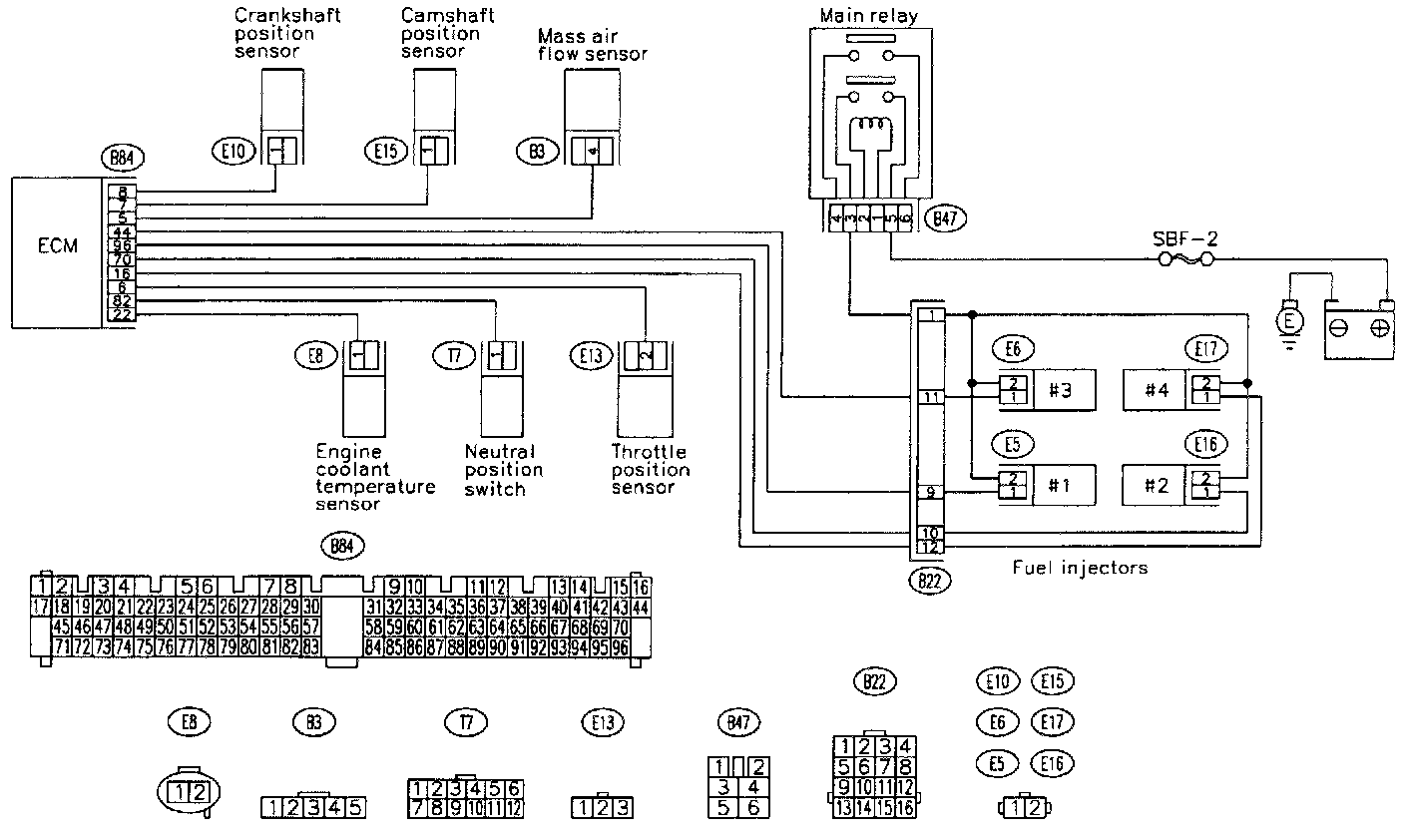

WIRING DIAGRAM (LHD)





WIRING DIAGRAM (RHD)

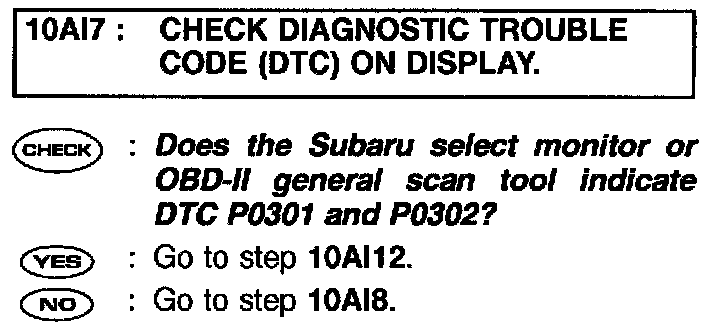

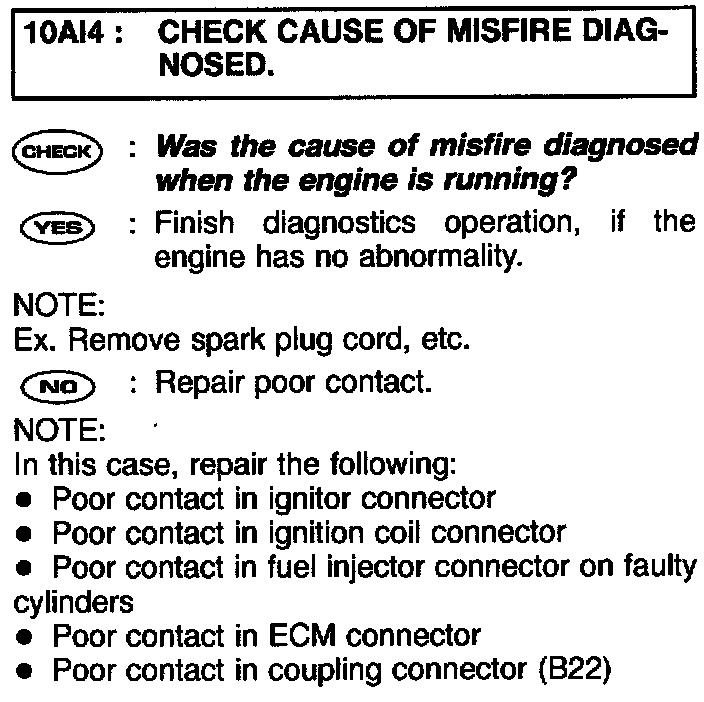

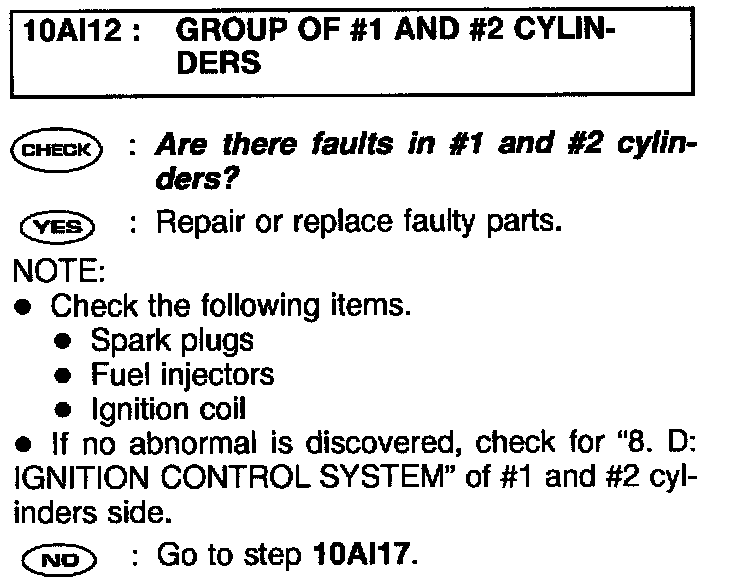

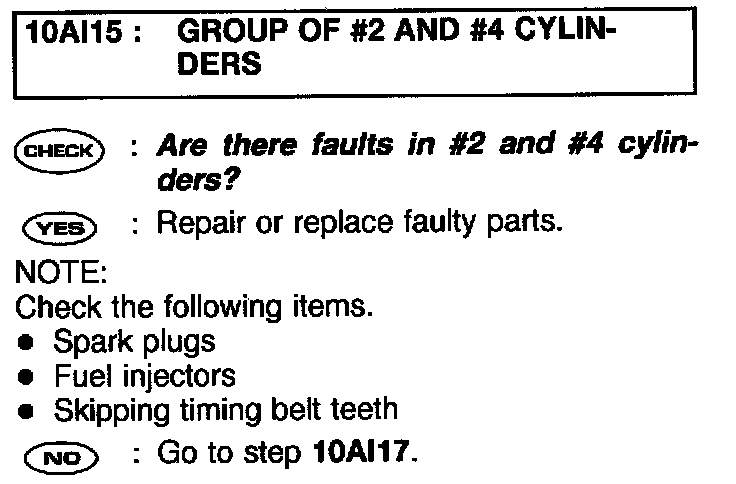

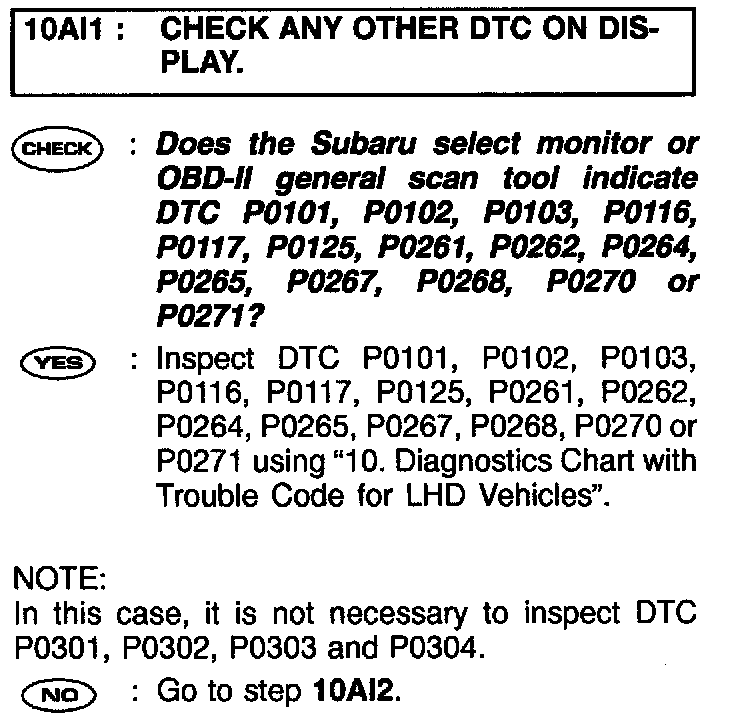

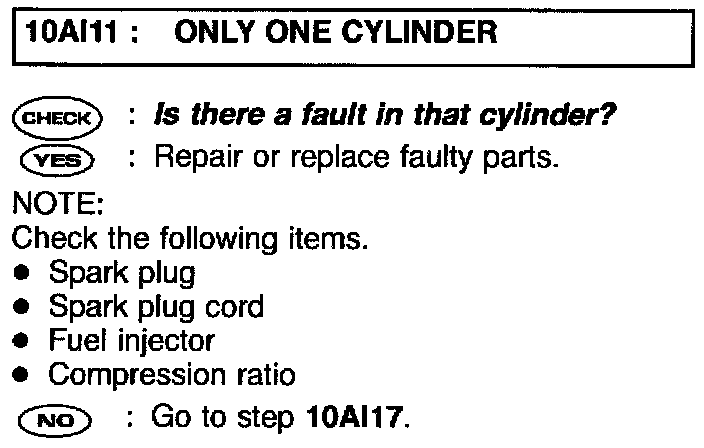

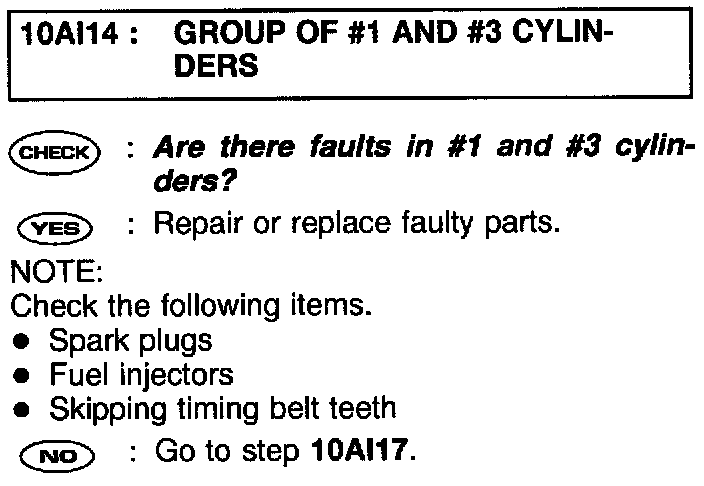

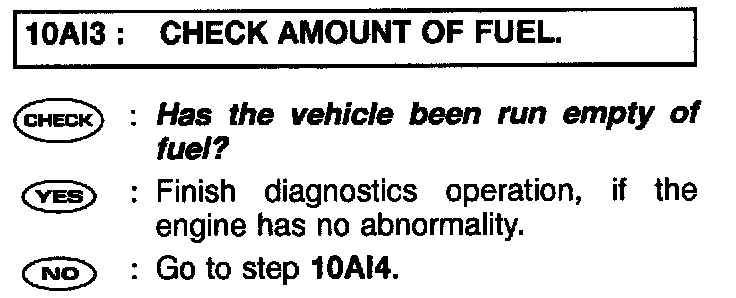

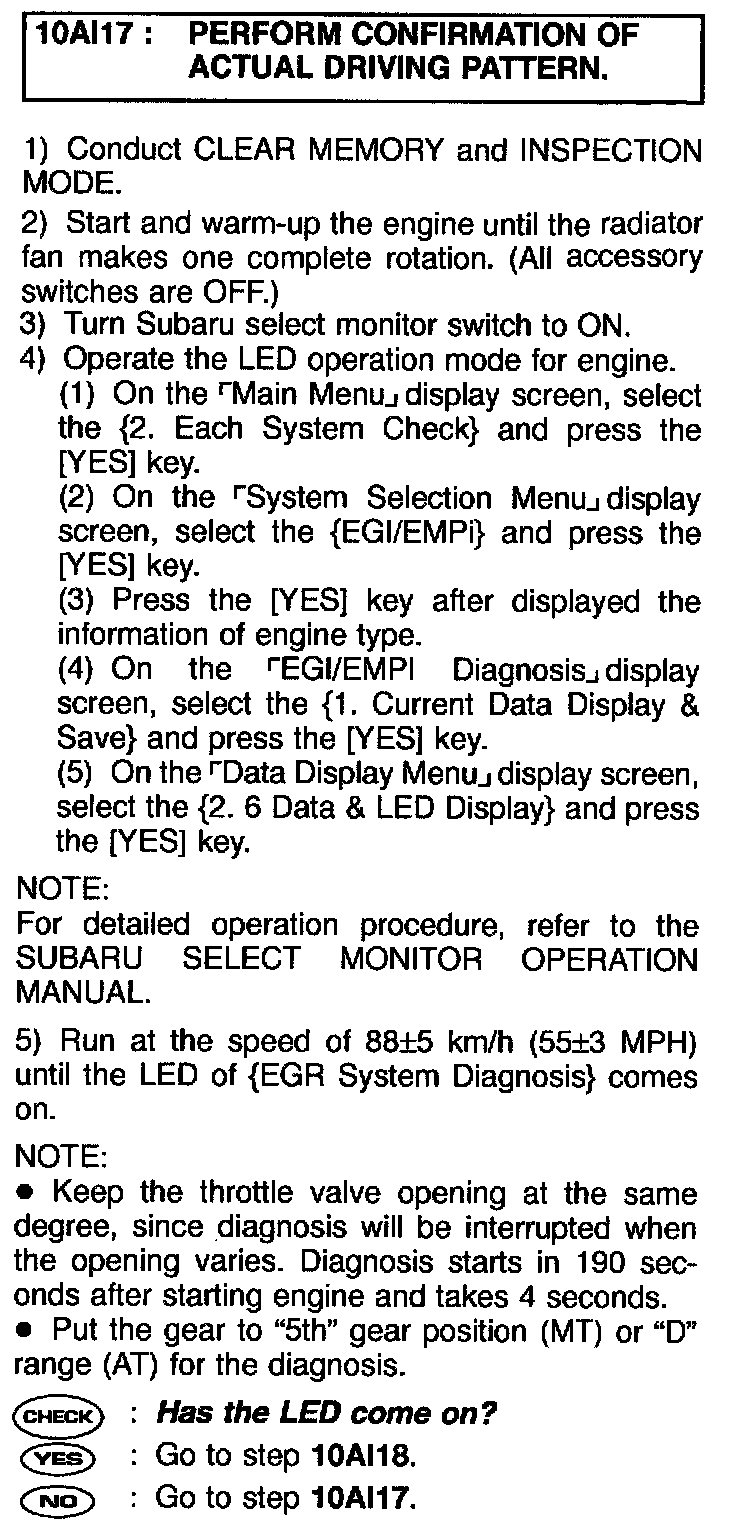

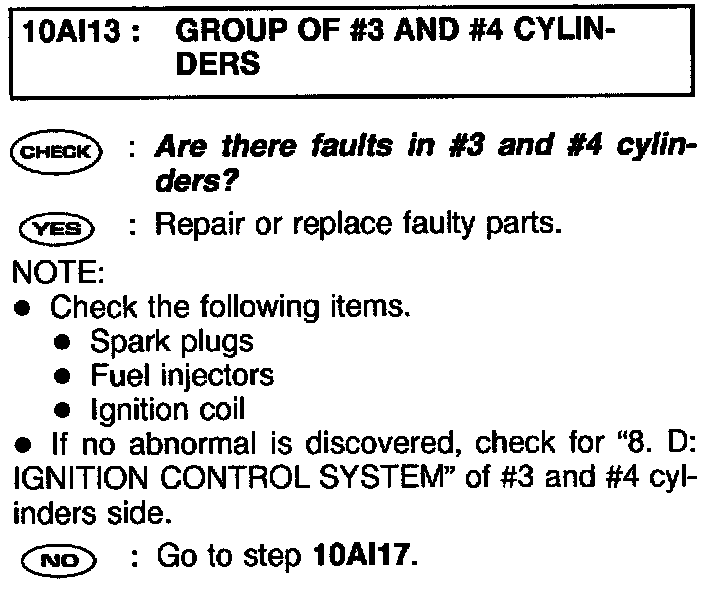

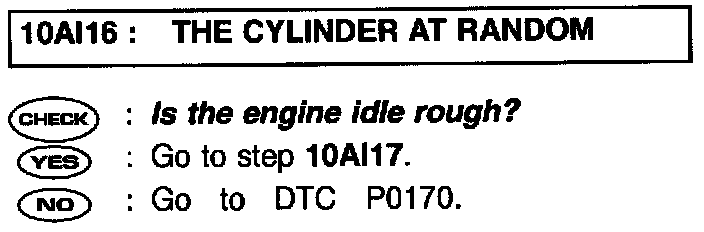

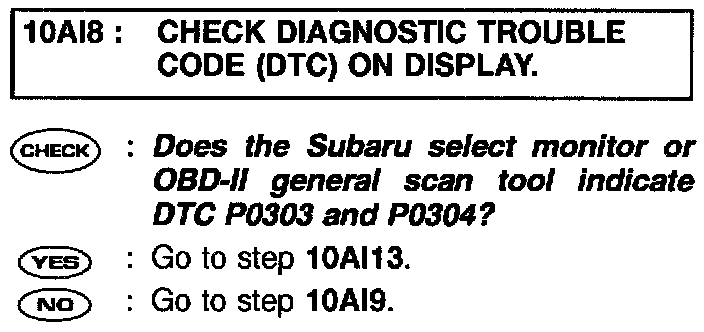

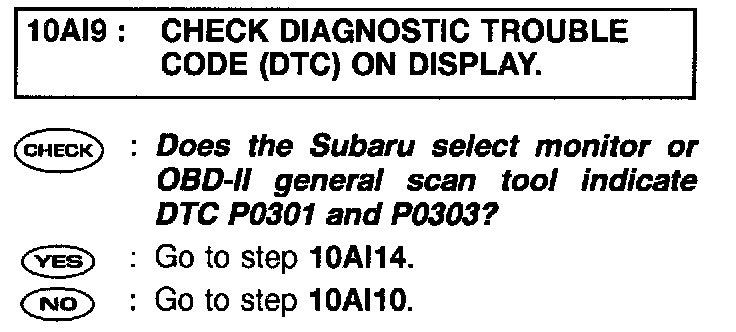

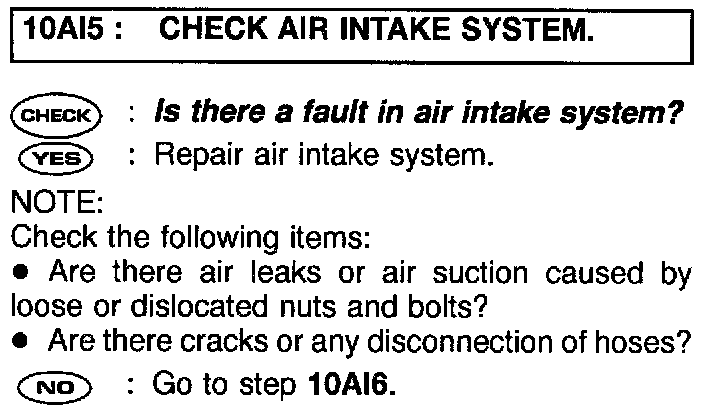

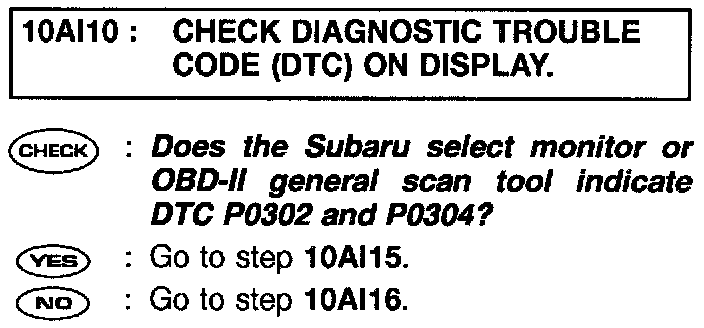

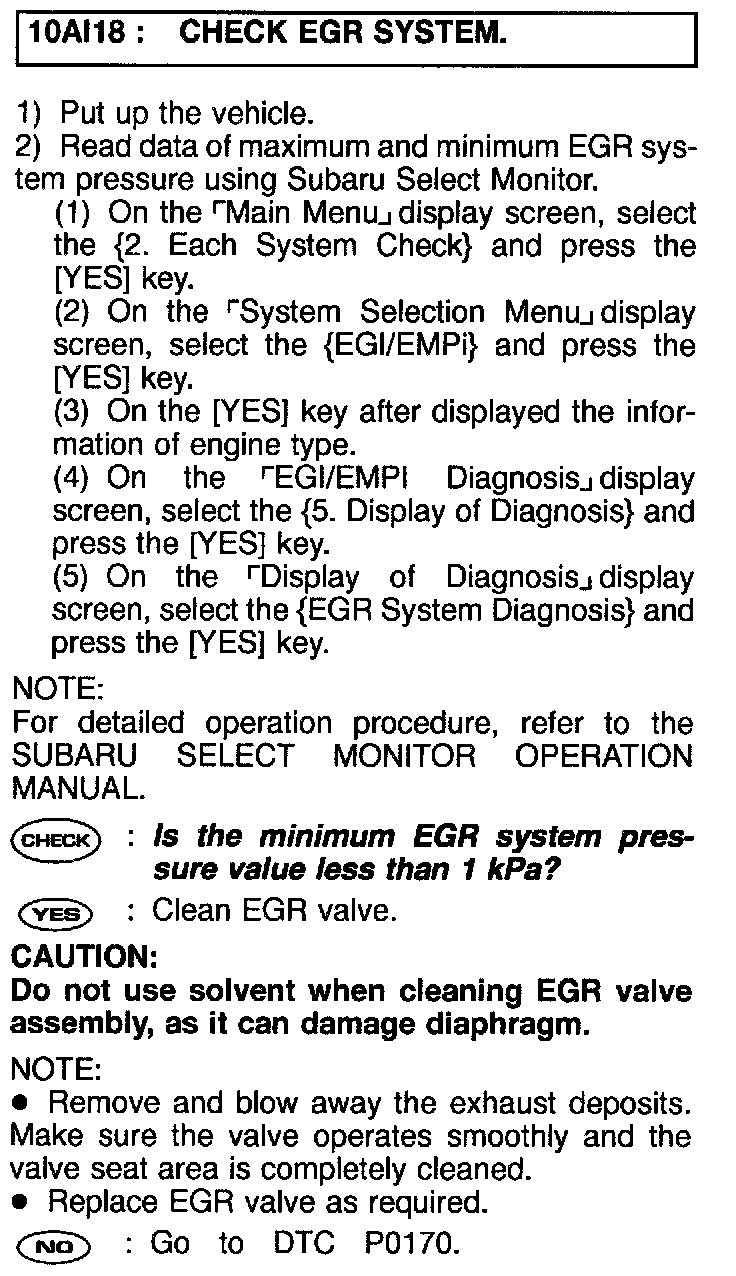

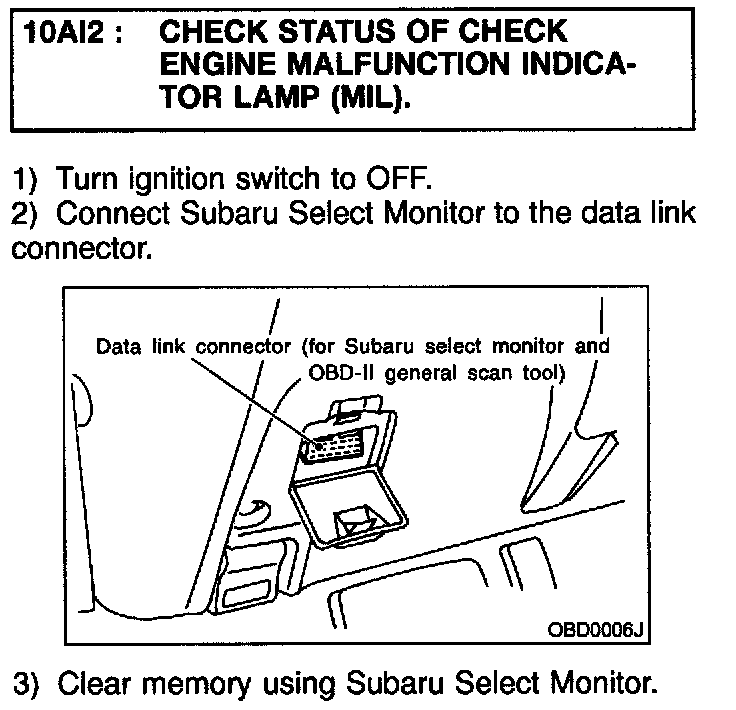

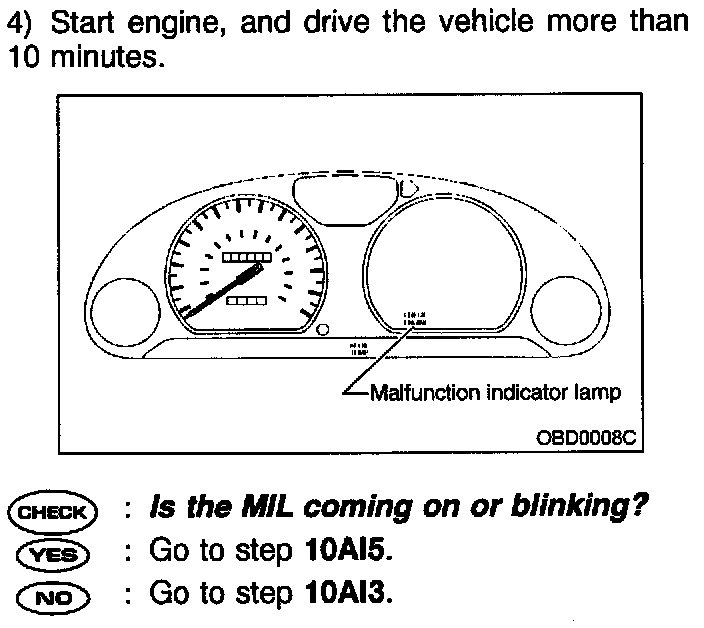

PROCEDURES
