P0116

DTC P0116 - ENGINE COOLANT TEMPERATURE SENSOR CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Hard to start
- Erroneous idling
- Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer To How To Clear Diagnostic Trouble Codes.

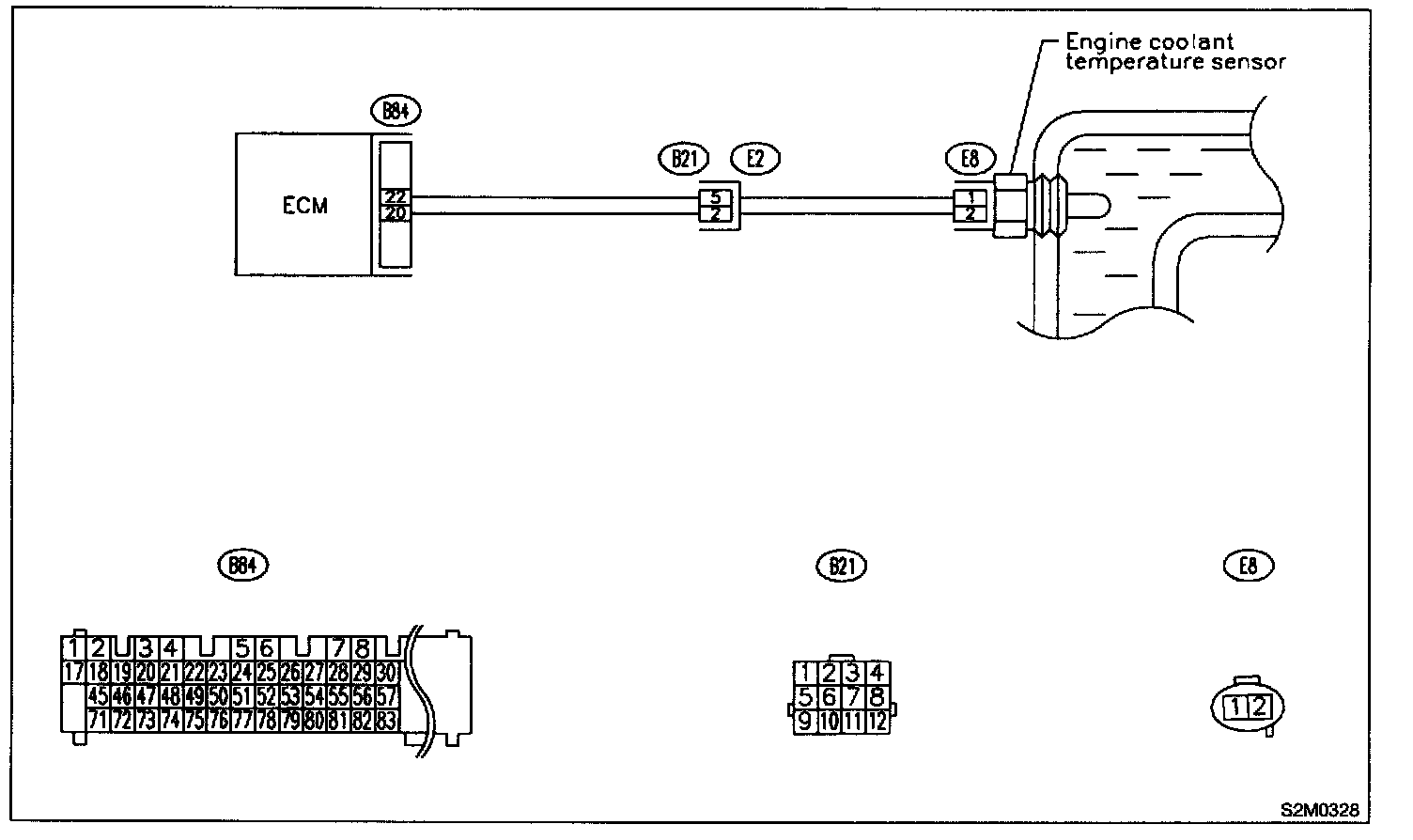

WIRING DIAGRAM

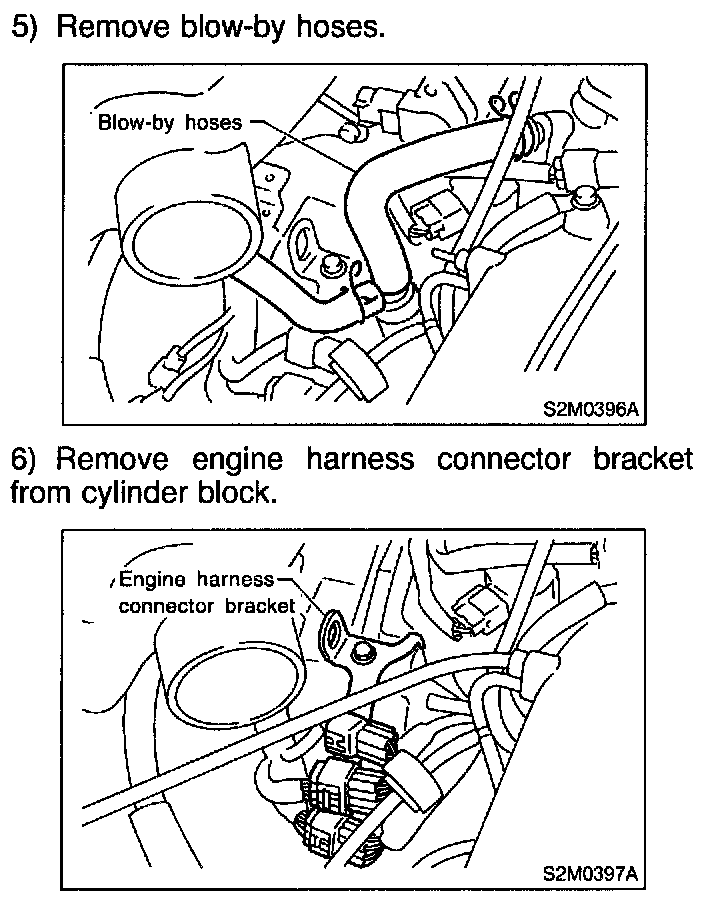

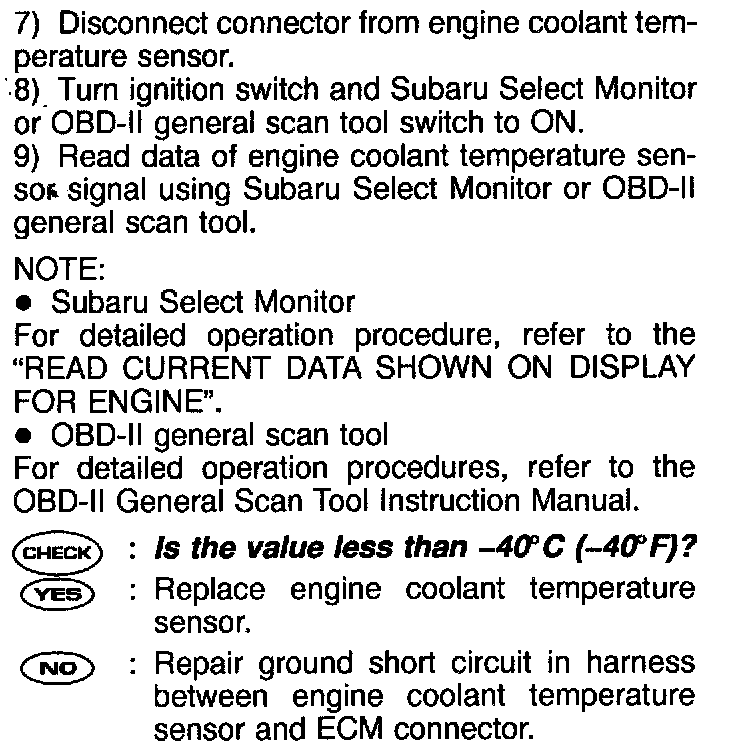

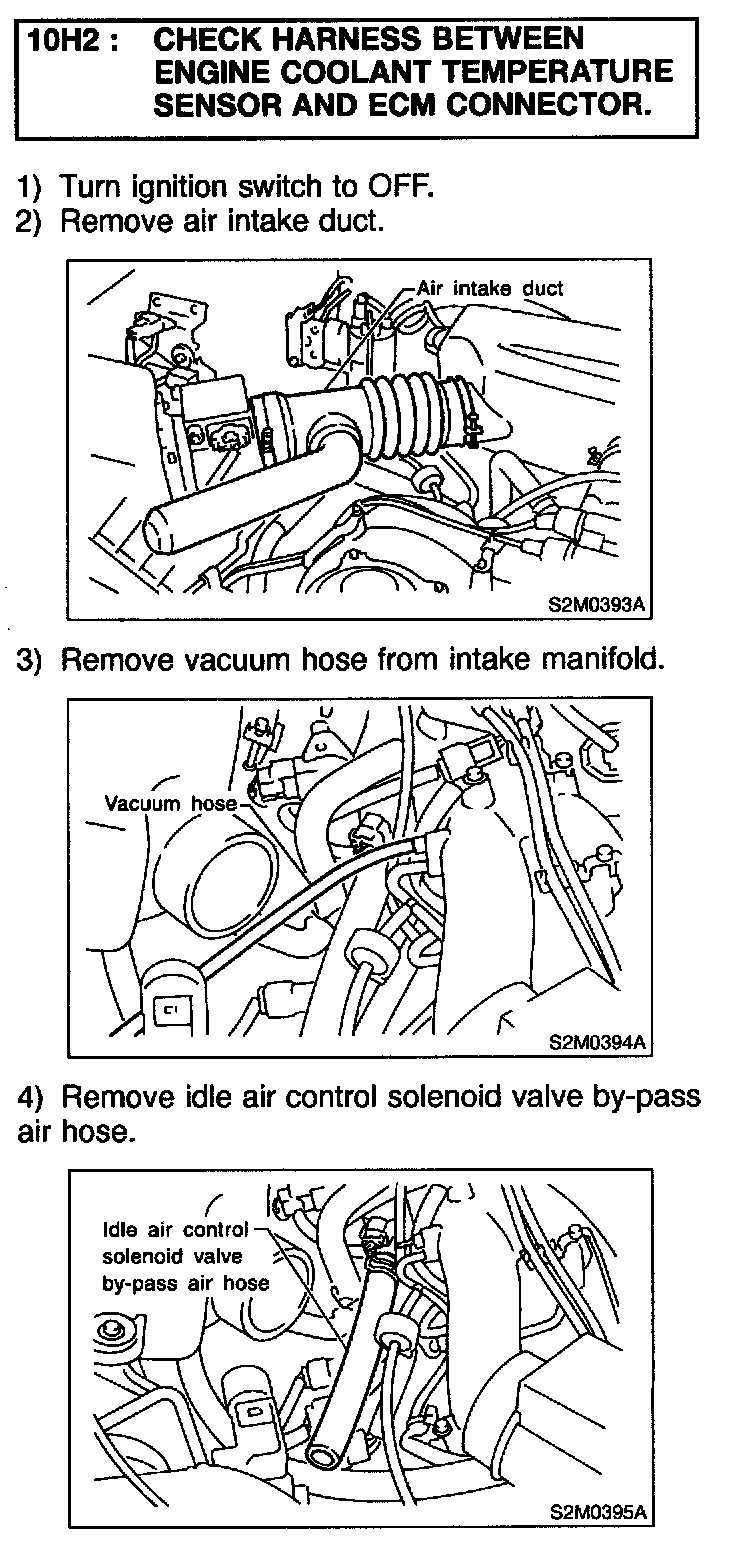

PROCEDURES
