P0106
DTC P0106 - PRESSURE SENSOR CIRCUIT RANGE / PERFORMANCE PROBLEMDTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

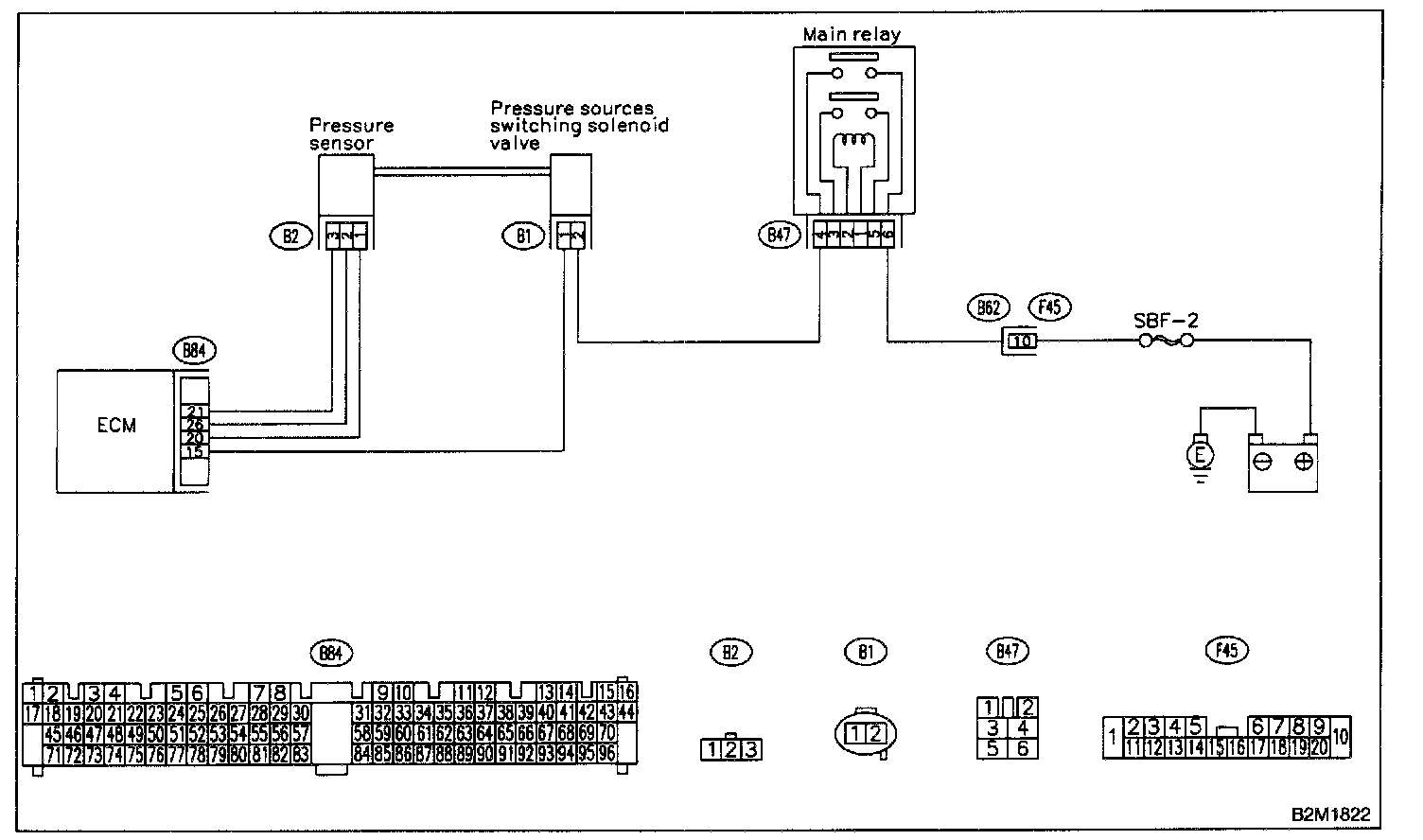

WIRING DIAGRAM

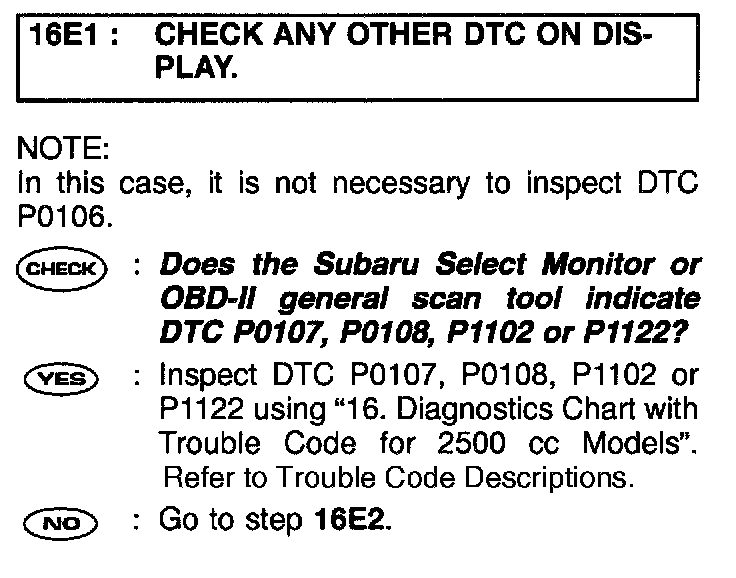

Step 16E1:

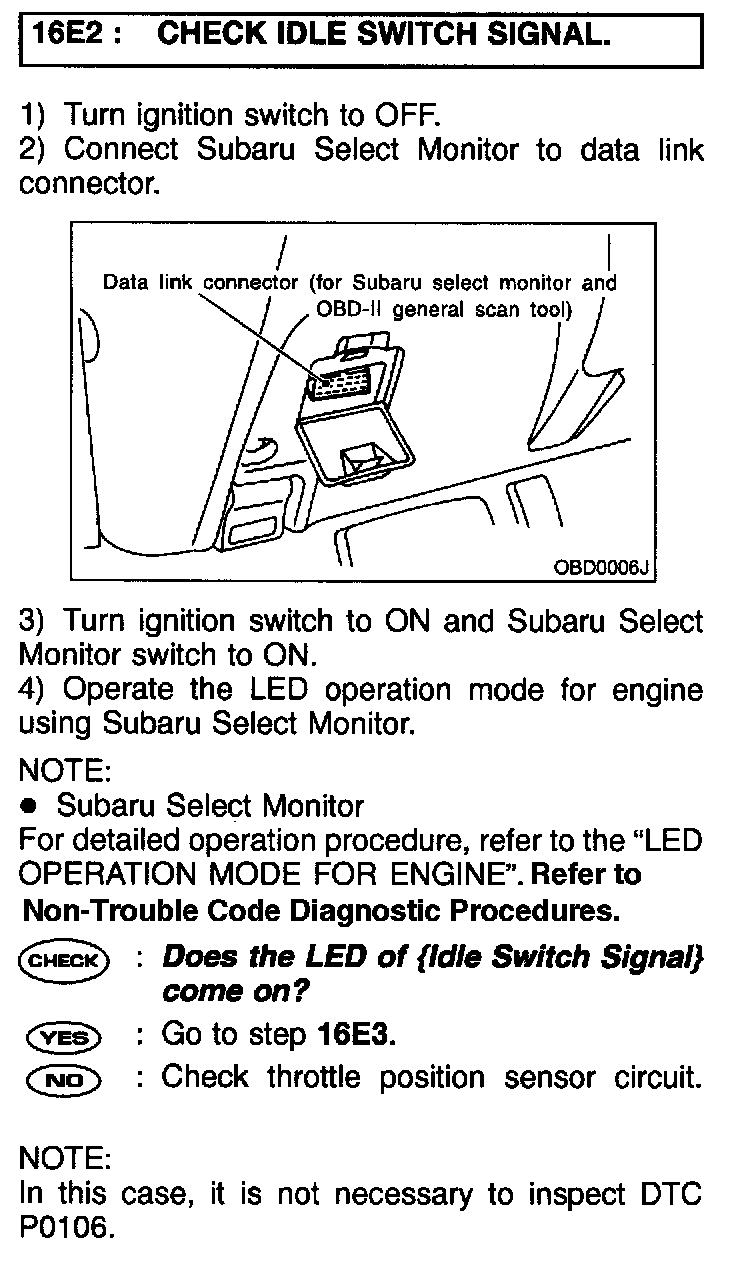

Step 16E2:

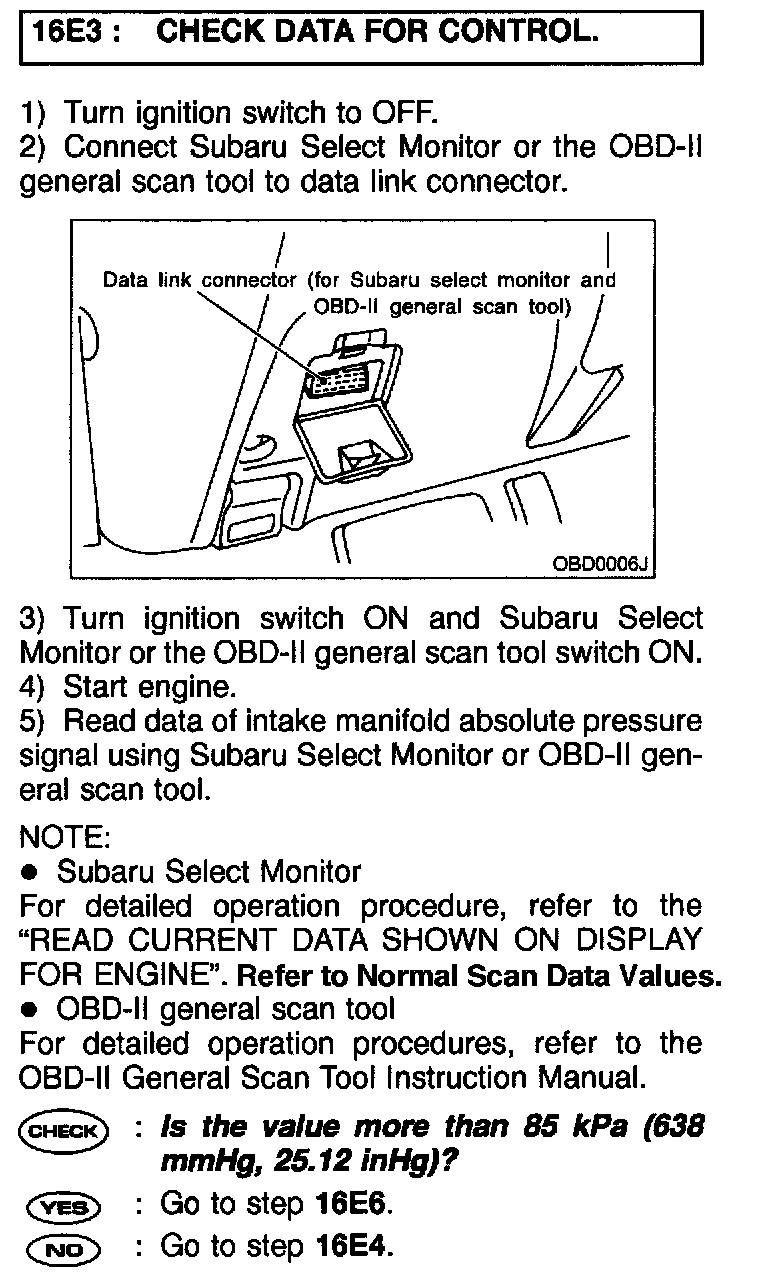

Step 16E3:

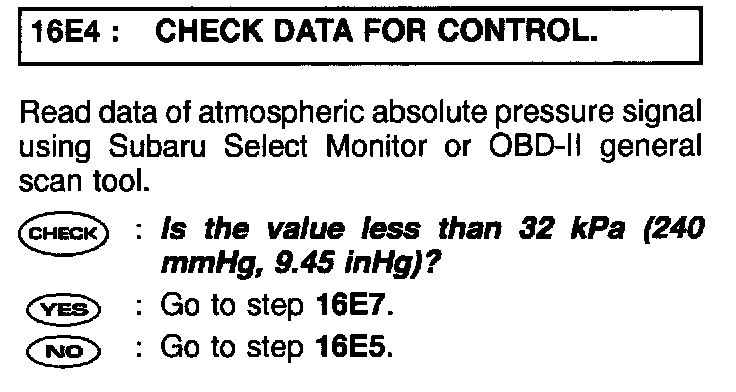

Step 16E4:

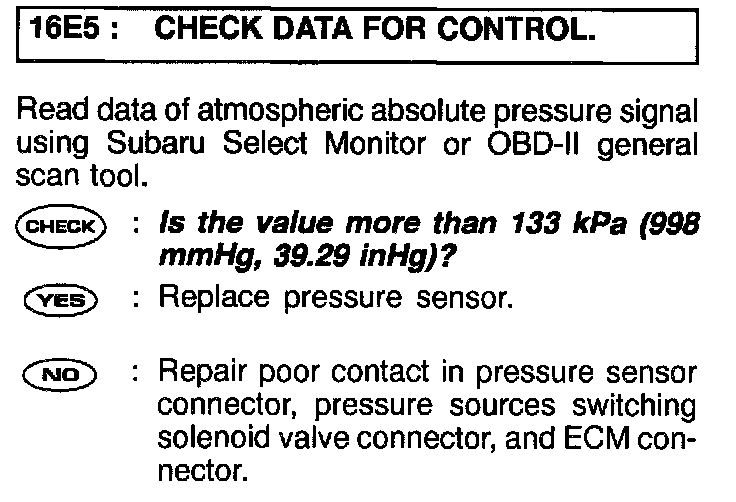

Step 16E5:

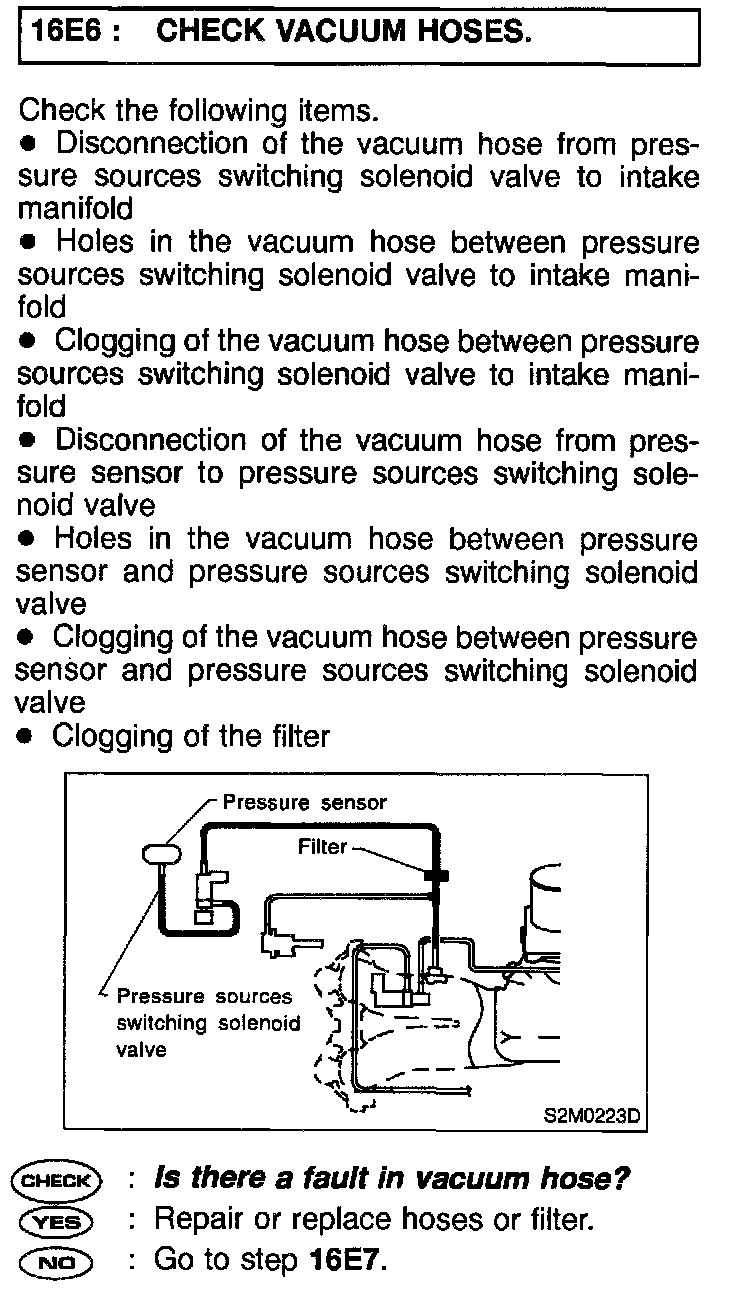

Step 16E6:

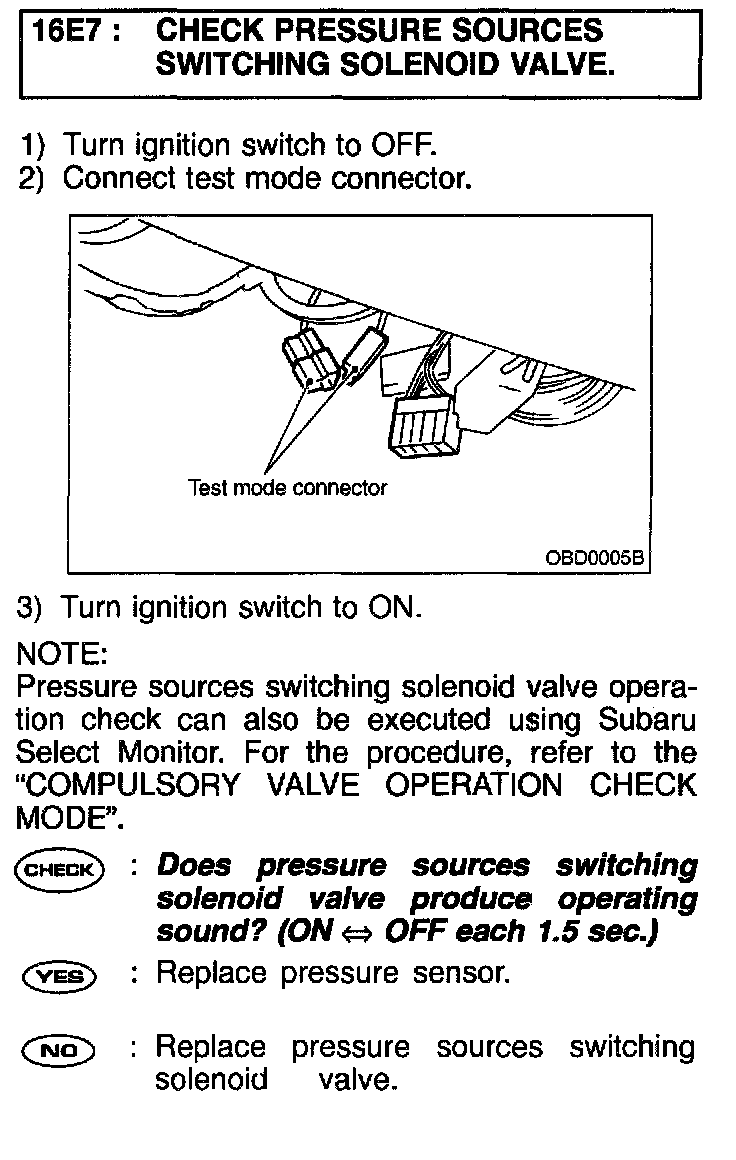

Step 16E7:
PROCEDURES
