P0103

DTC P0103 - MASS AIR FLOW SENSOR CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Erroneous idling
- Engine stalls.
- Poor driving performance
- After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer To How To Clear Diagnostic Trouble Codes.

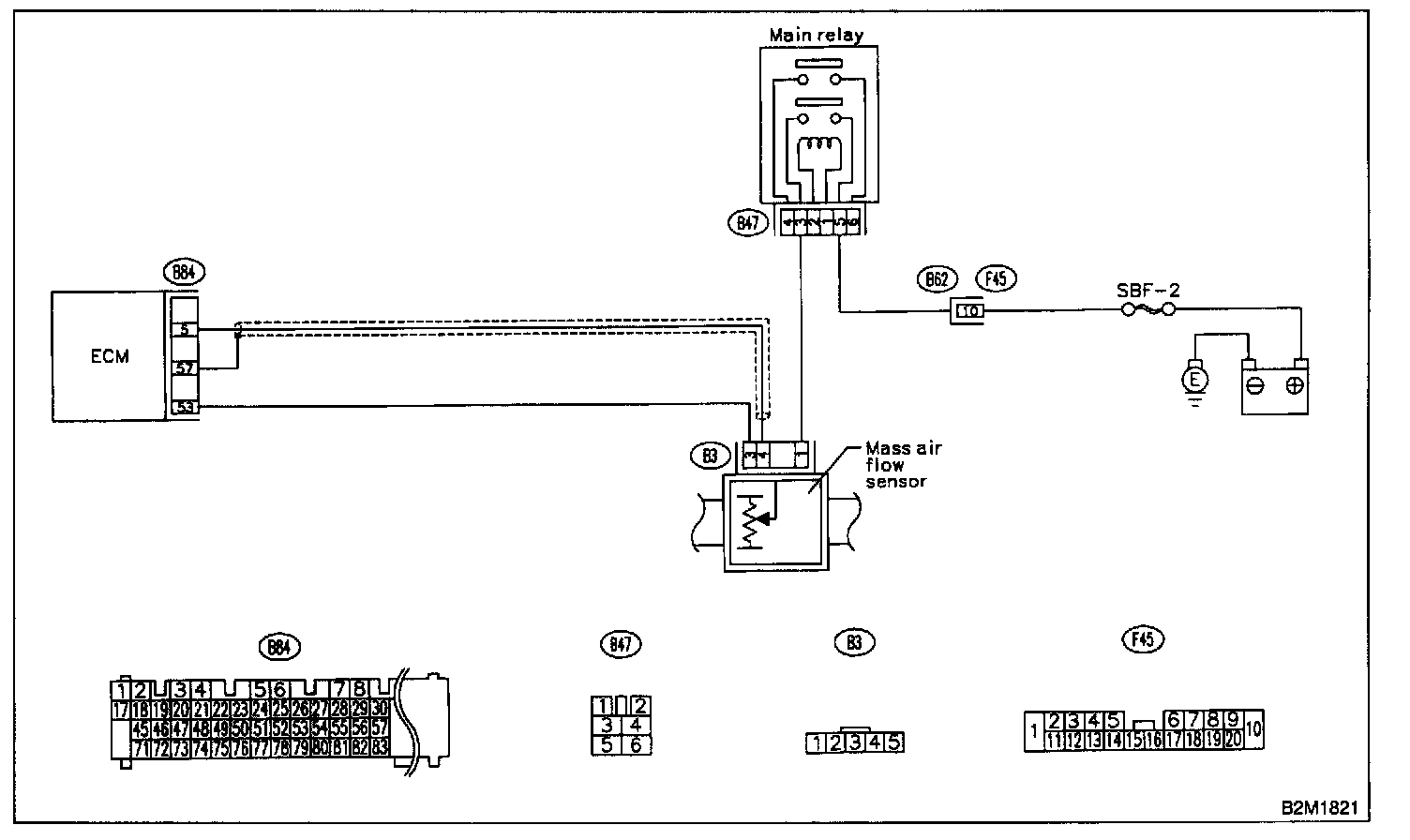

WIRING DIAGRAM

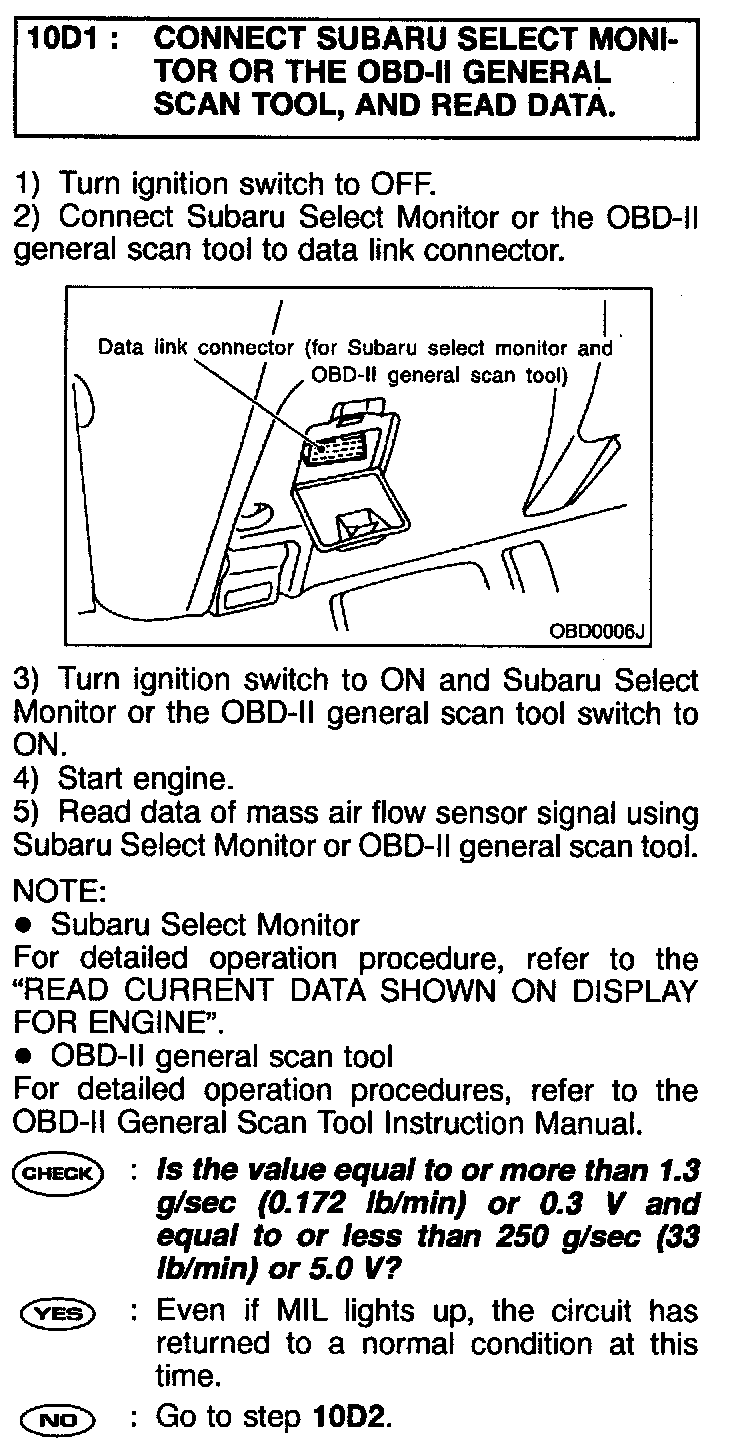

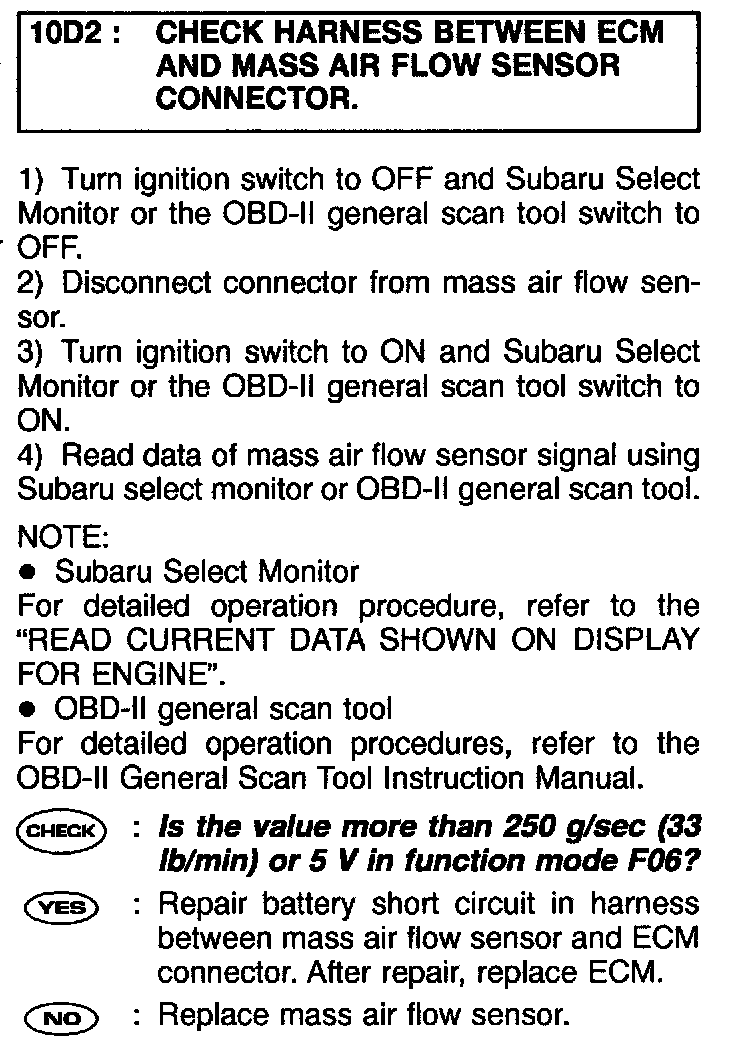

PROCEDURES
