DTC 93

TROUBLE CODE 93-VEHICLE SPEED SENSOR 1 (REAR)














DIAGNOSIS: Input signal circuit of TCM is open or shorted.

TROUBLE SYMPTOM: No lock-up or excessive tight corner "braking".

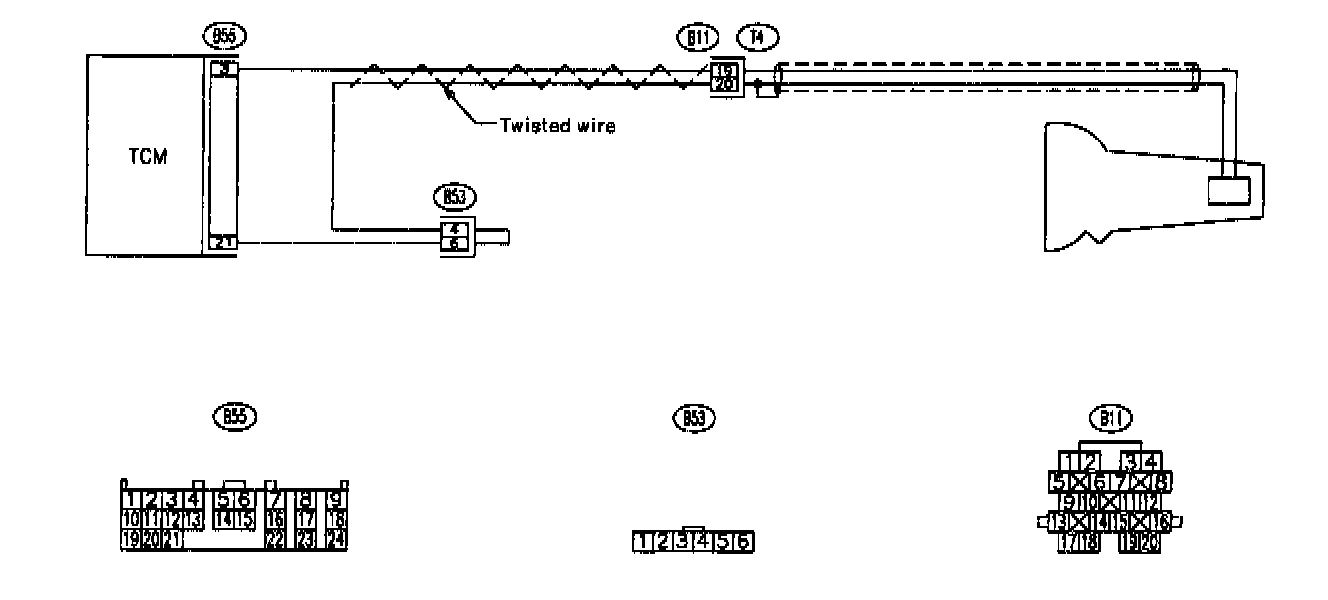

WIRING DIAGRAM:
