DTC 76

TROUBLE CODE 76-DUTY SOLENOID D























DIAGNOSIS: Output signal circuit of duty solenoid D is open or shorted.

TROUBLE SYMPTOM: Excessive shift shock.

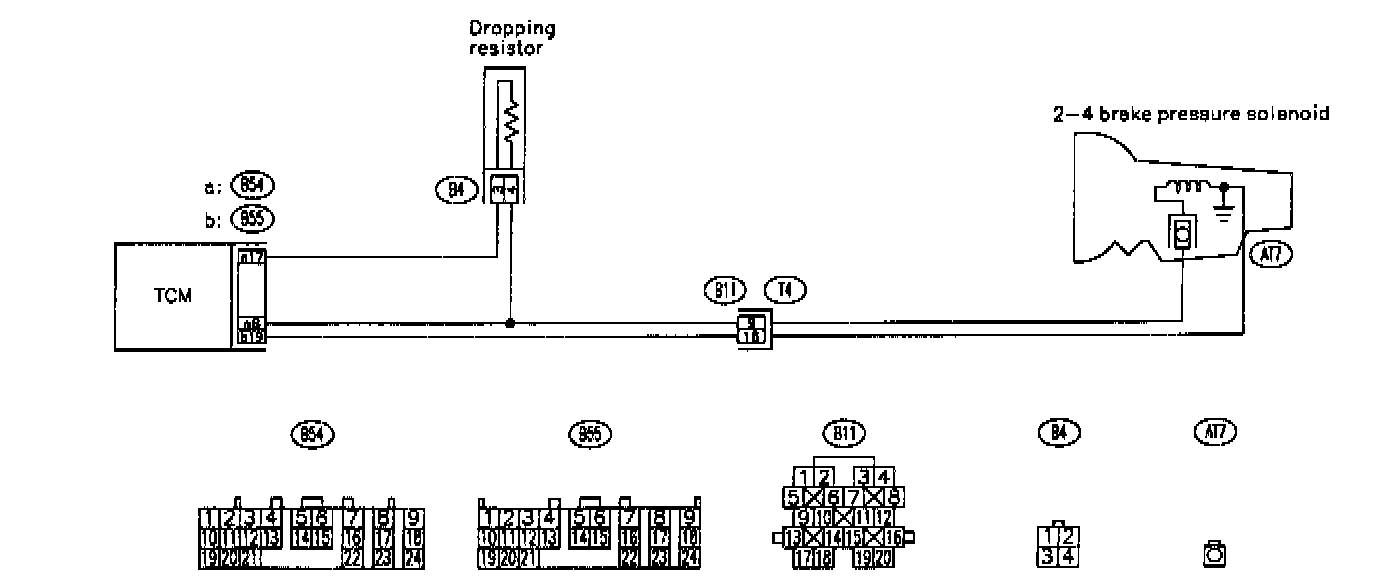

WIRING DIAGRAM:
