DTC 72

TROUBLE CODE 72-SHIFT SOLENOID 2-














DIAGNOSIS: Output signal circuit of shift solenoid 2 is open or shorted.

TROUBLE SYMPTOM: Does not shift.

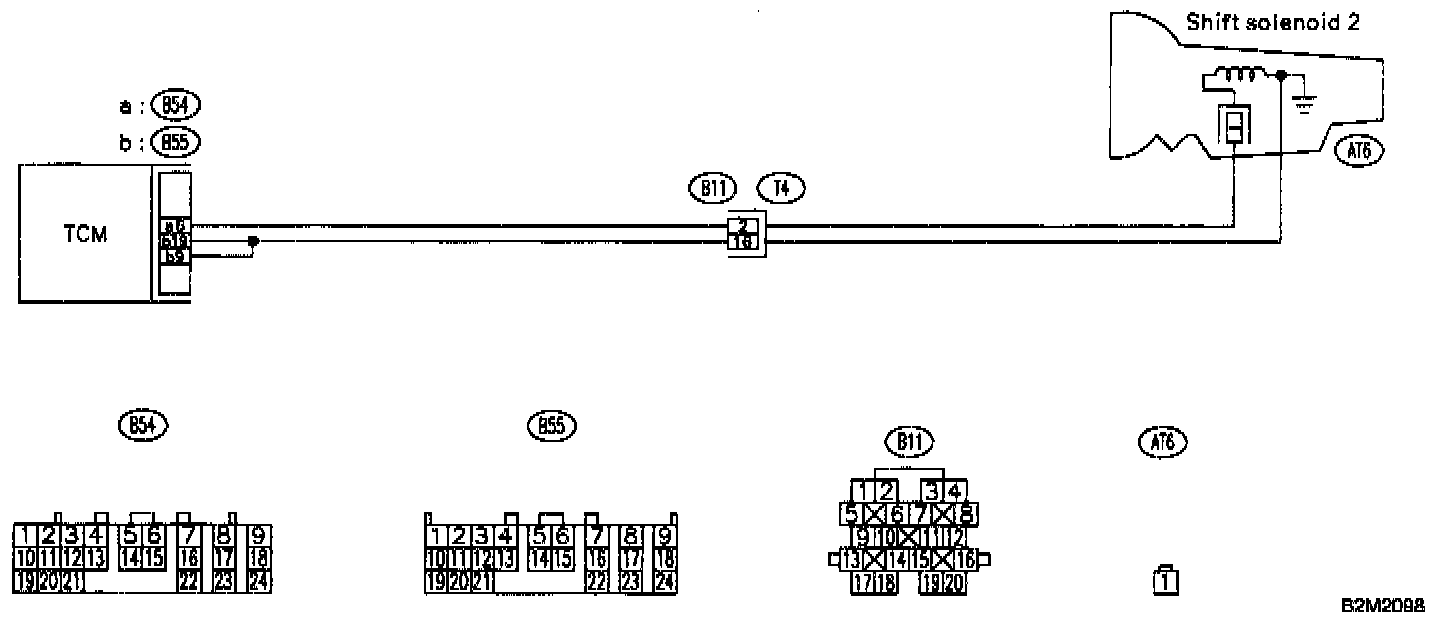

WIRING DIAGRAM:
