Legacy Outback AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 56
>>
Open or Short Circuit In G Sensor Circuit
Open or Short Circuit In G Sensor Circuit
DIAGNOSIS:
Faulty G sensor output voltage
TROUBLE SYMPTOM:
ABS does not operate.

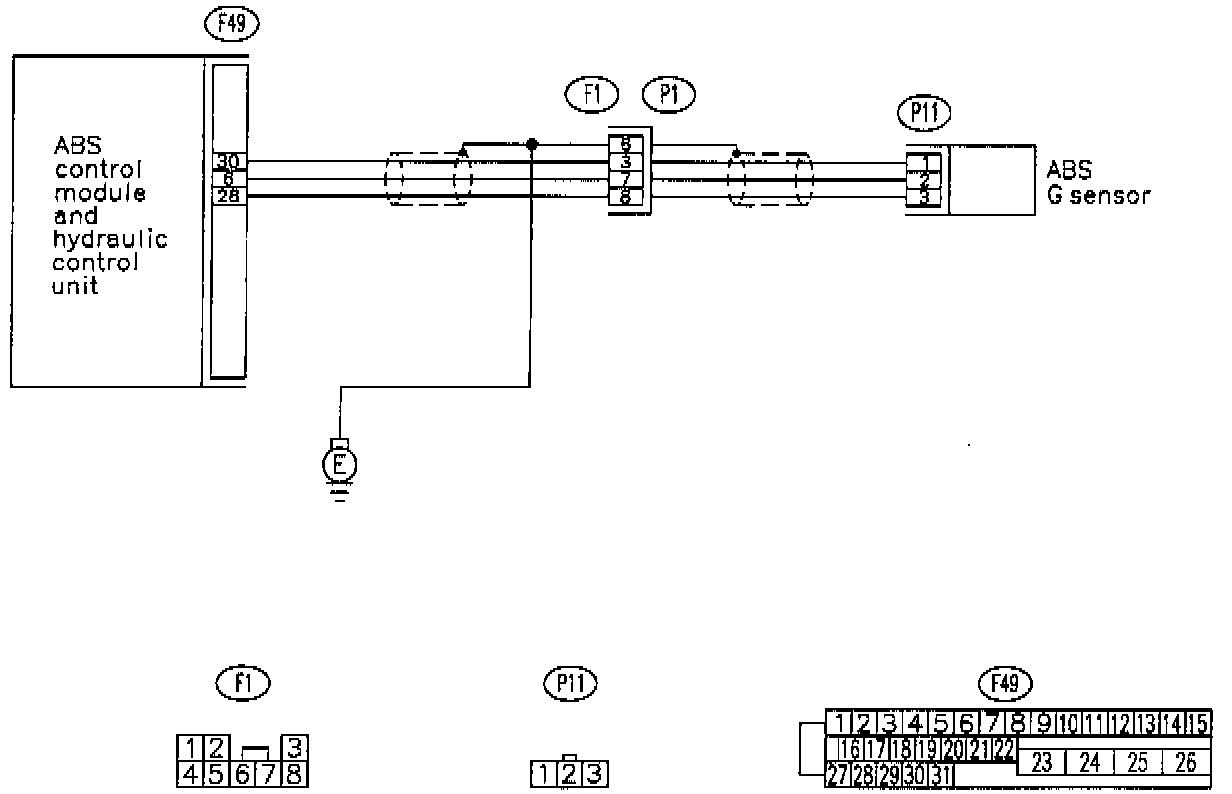

WIRING DIAGRAM:
