Detection of G Sensor Stick

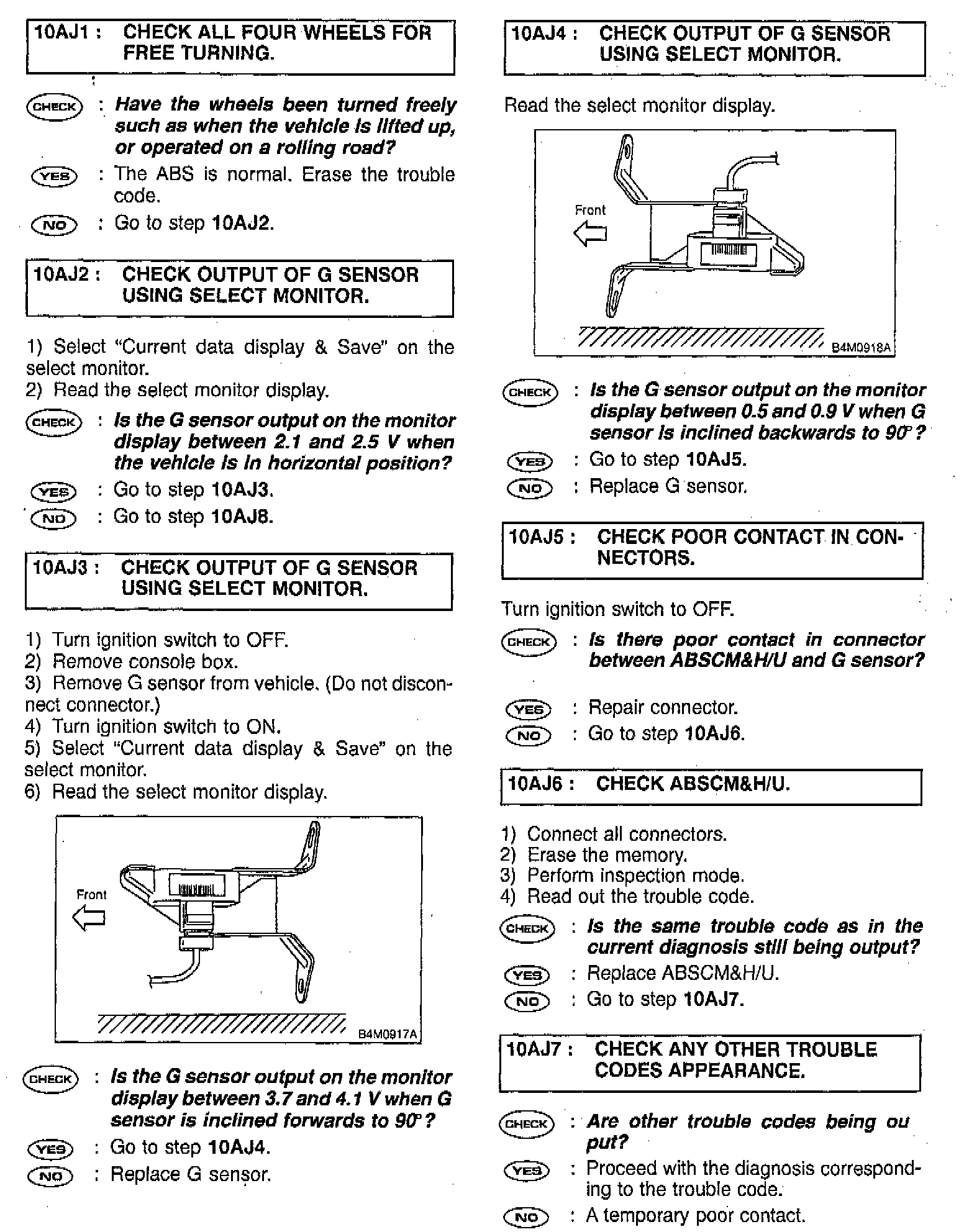

Part 1 Of 2:

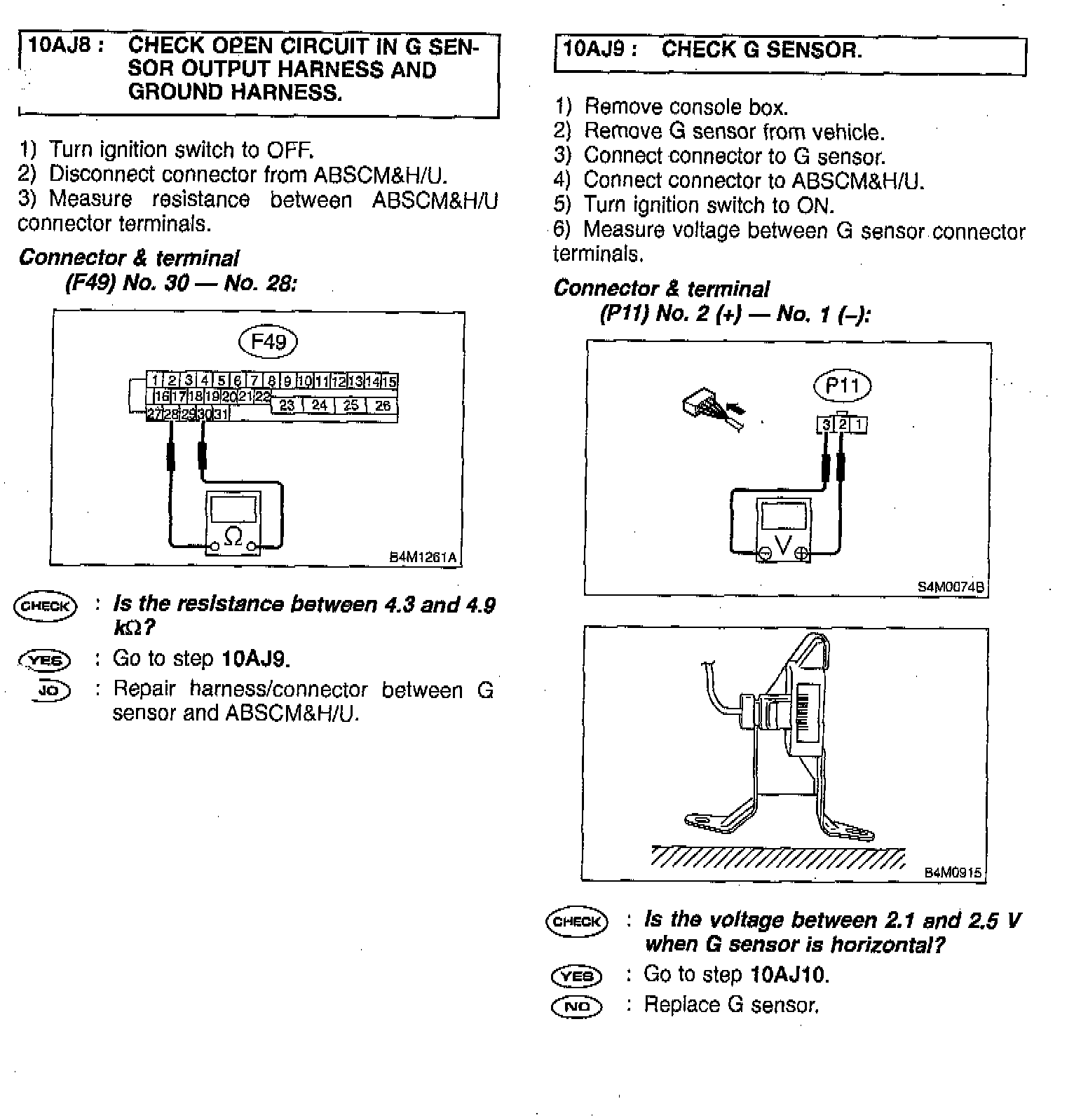

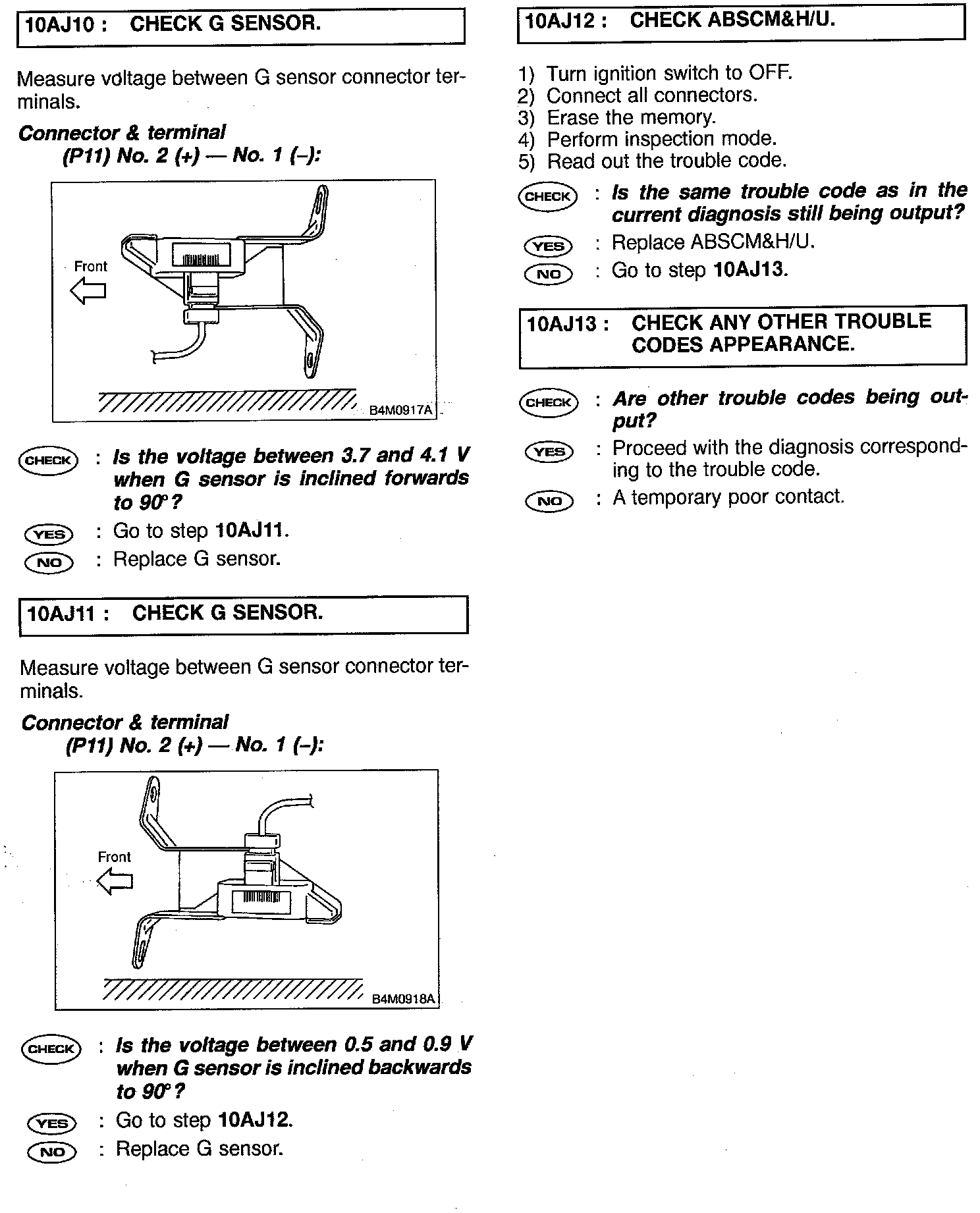

Part 2 Of 2:








DIAGNOSIS:
Faulty G sensor output voltage

TROUBLE SYMPTOM:
ABS does not operate.

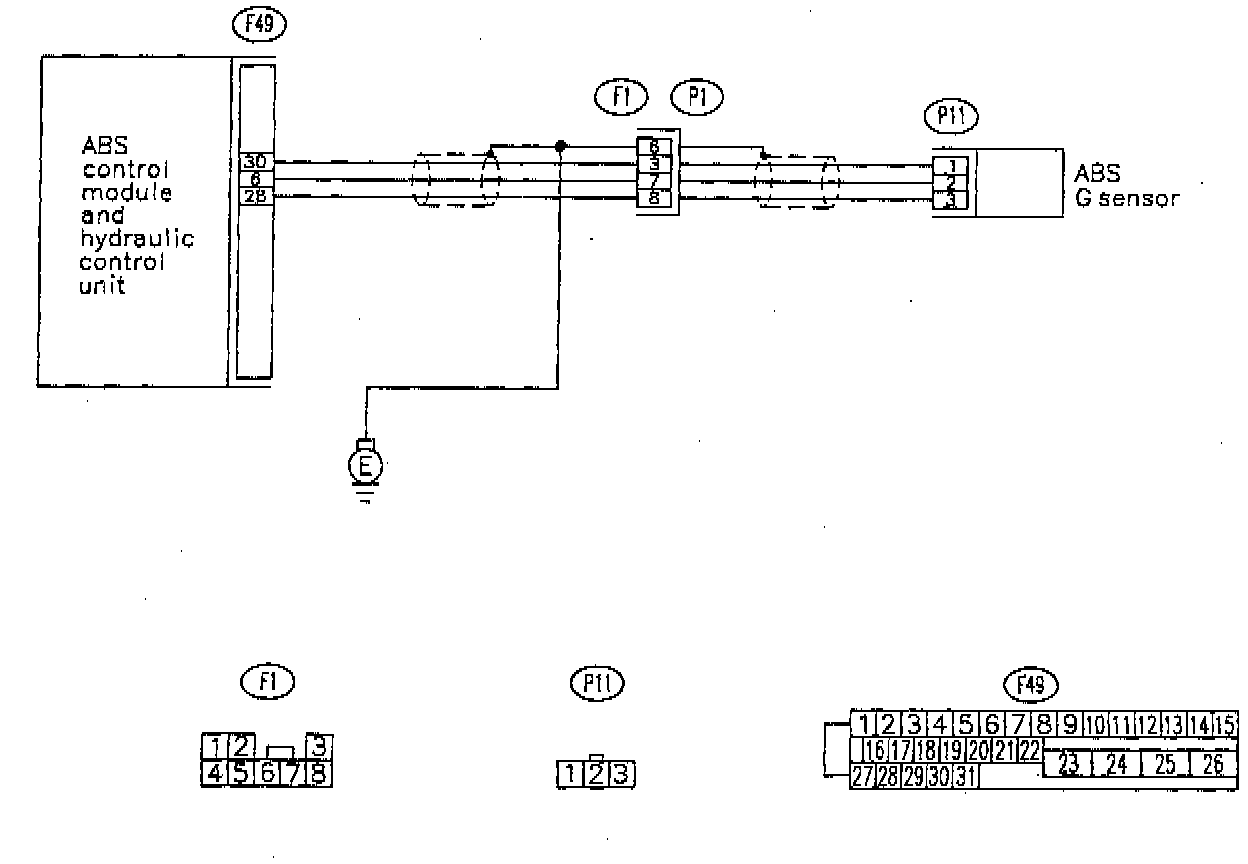

WIRING DIAGRAM:
