Abnormal G Sensor High - Output

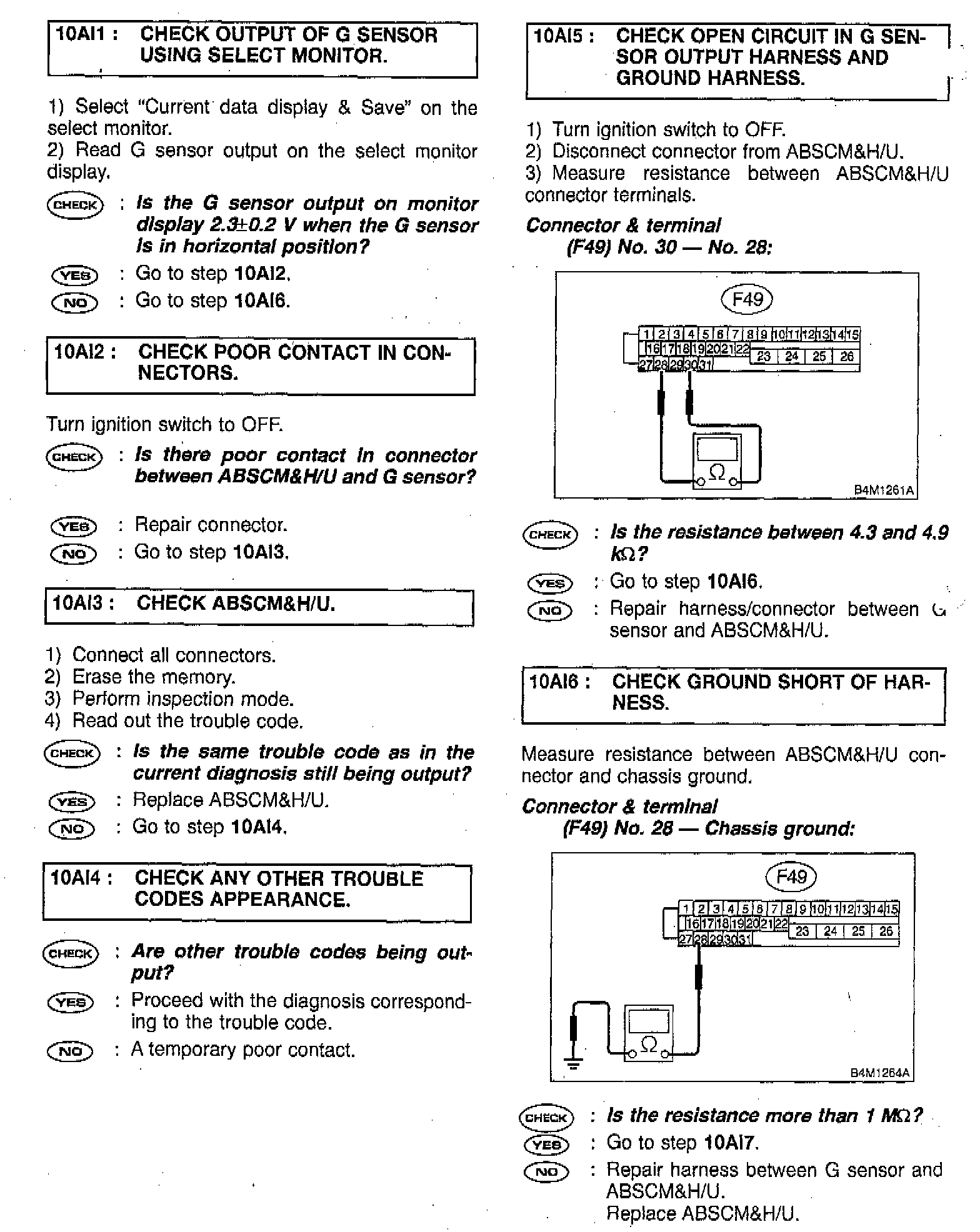

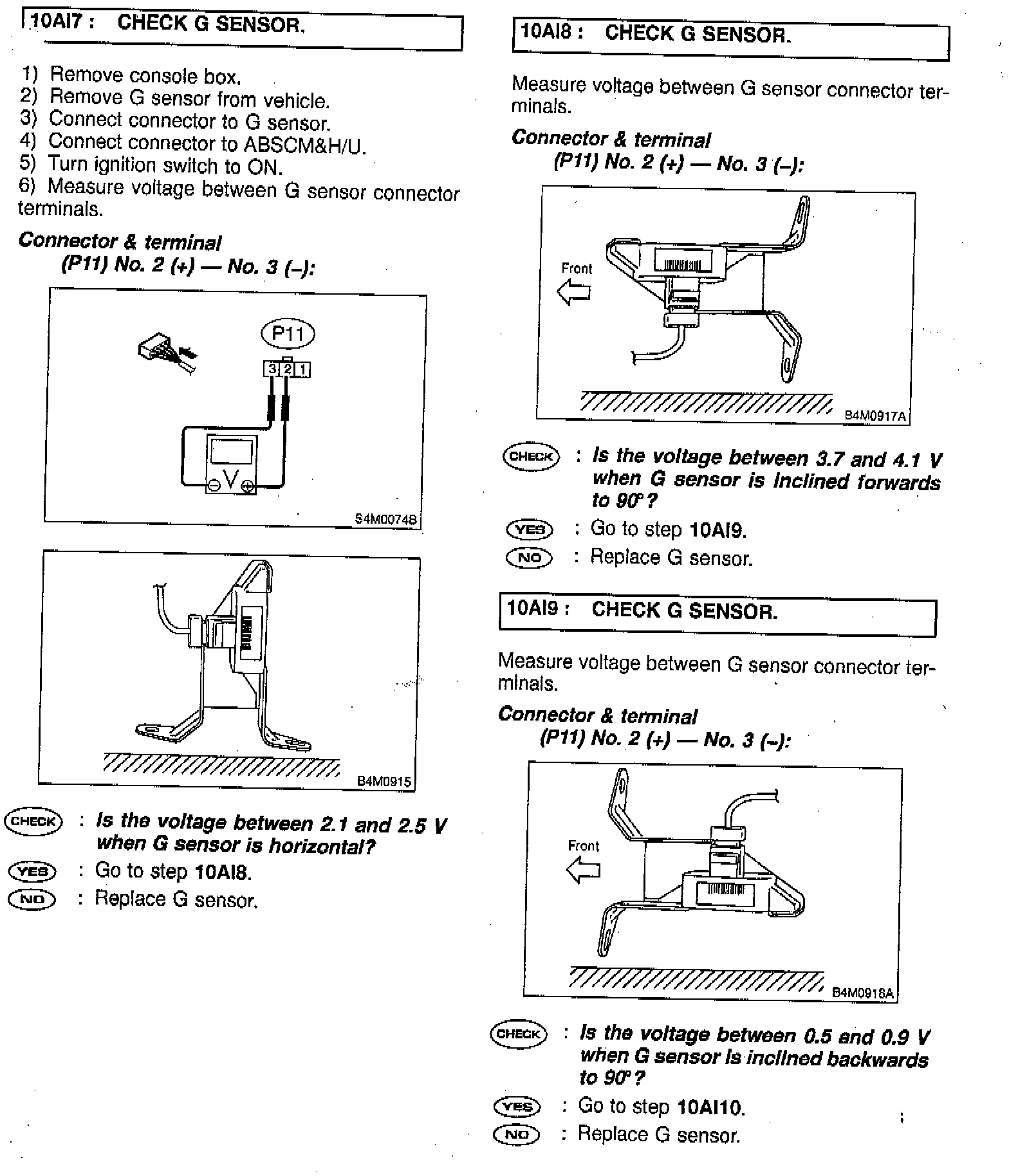

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:






DIAGNOSIS:
Faulty G sensor output voltage

TROUBLE SYMPTOM:
ABS does not operate.

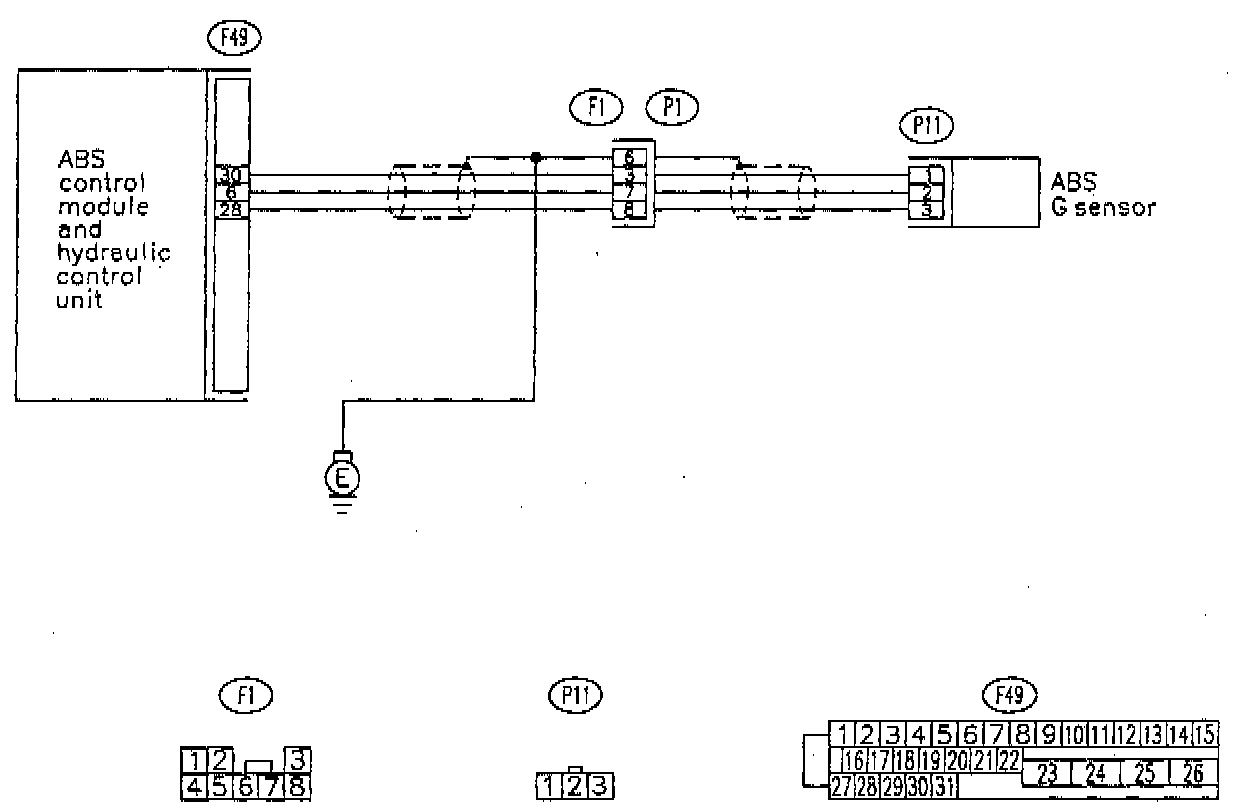

WIRING DIAGRAM
