ABS Trouble Code Charts For Warning Light Codes

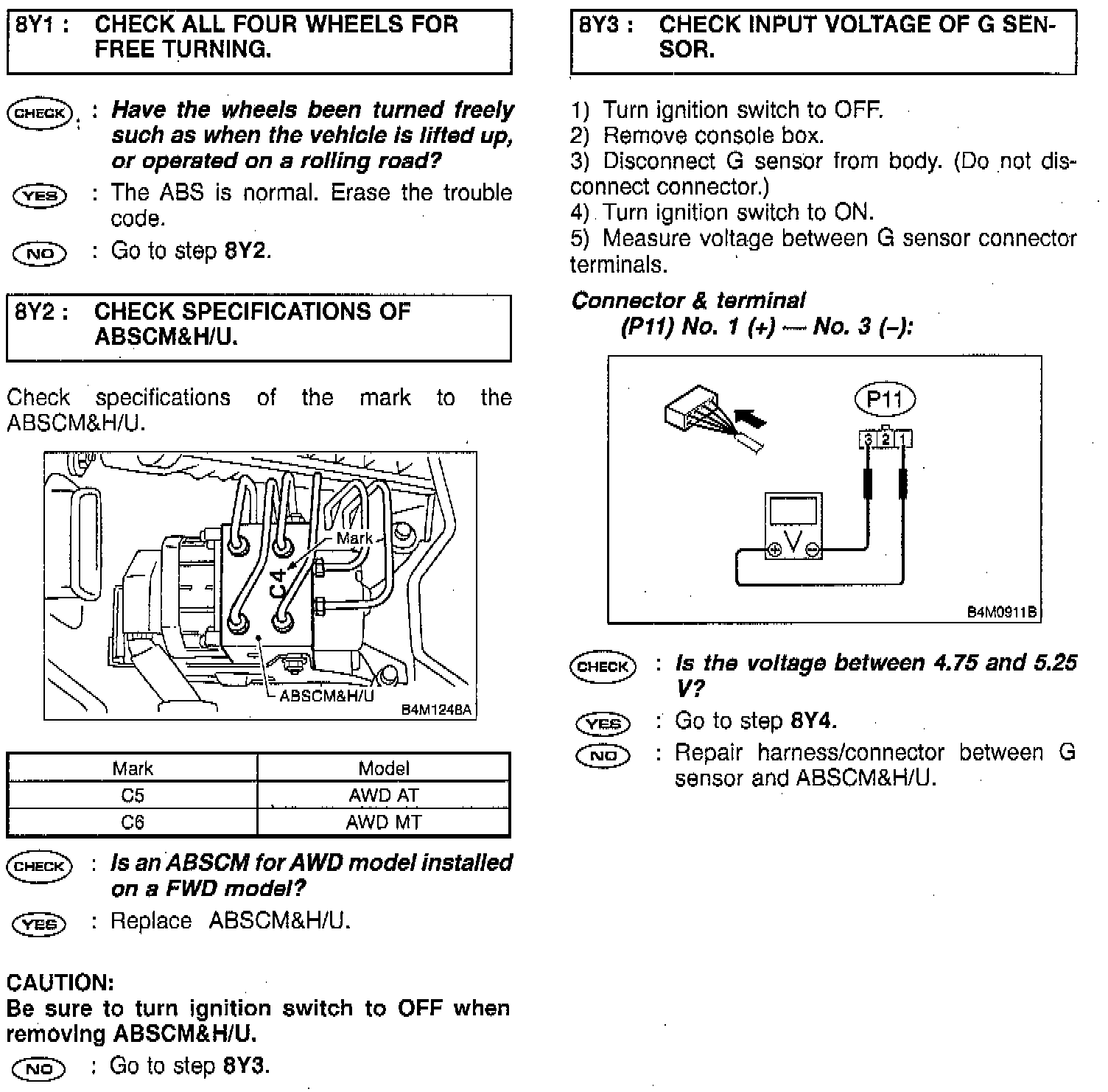

Part 1 Of 4:

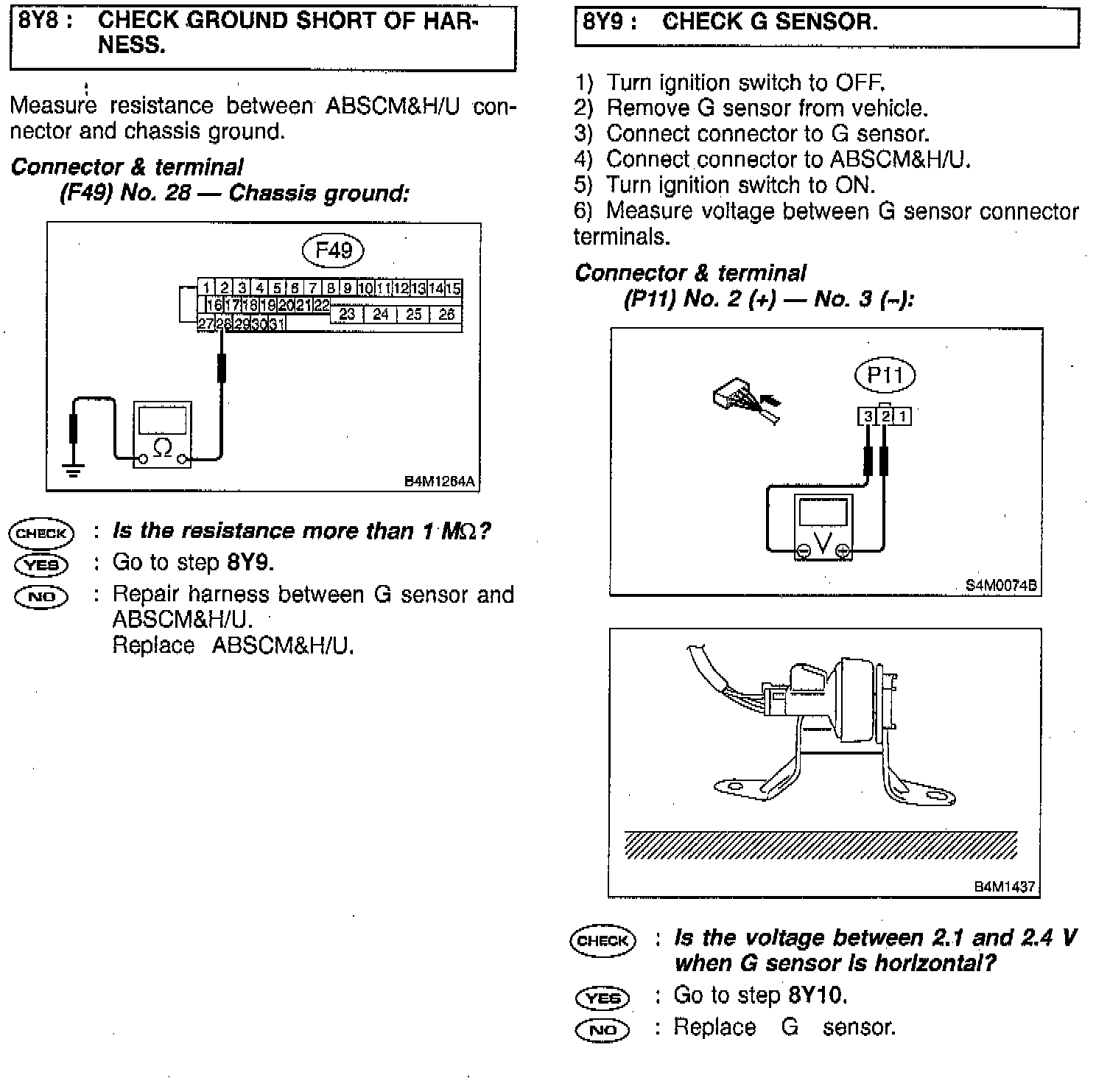

Part 2 Of 4:

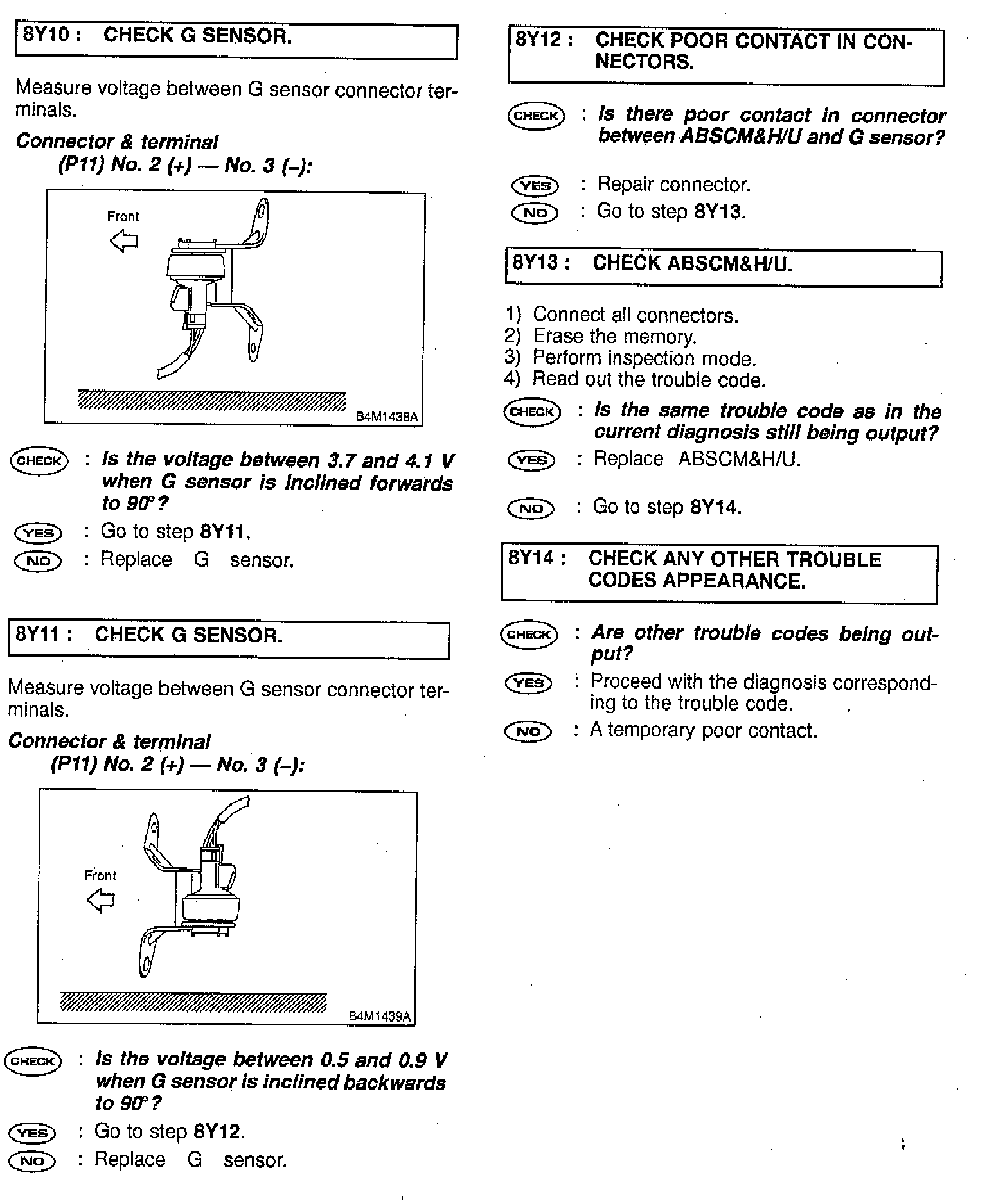

Part 3 Of 4:




Part 4 Of 4:






DIAGNOSIS:
Faulty G sensor output voltage

TROUBLE SYMPTOM:
ABS does not operate.

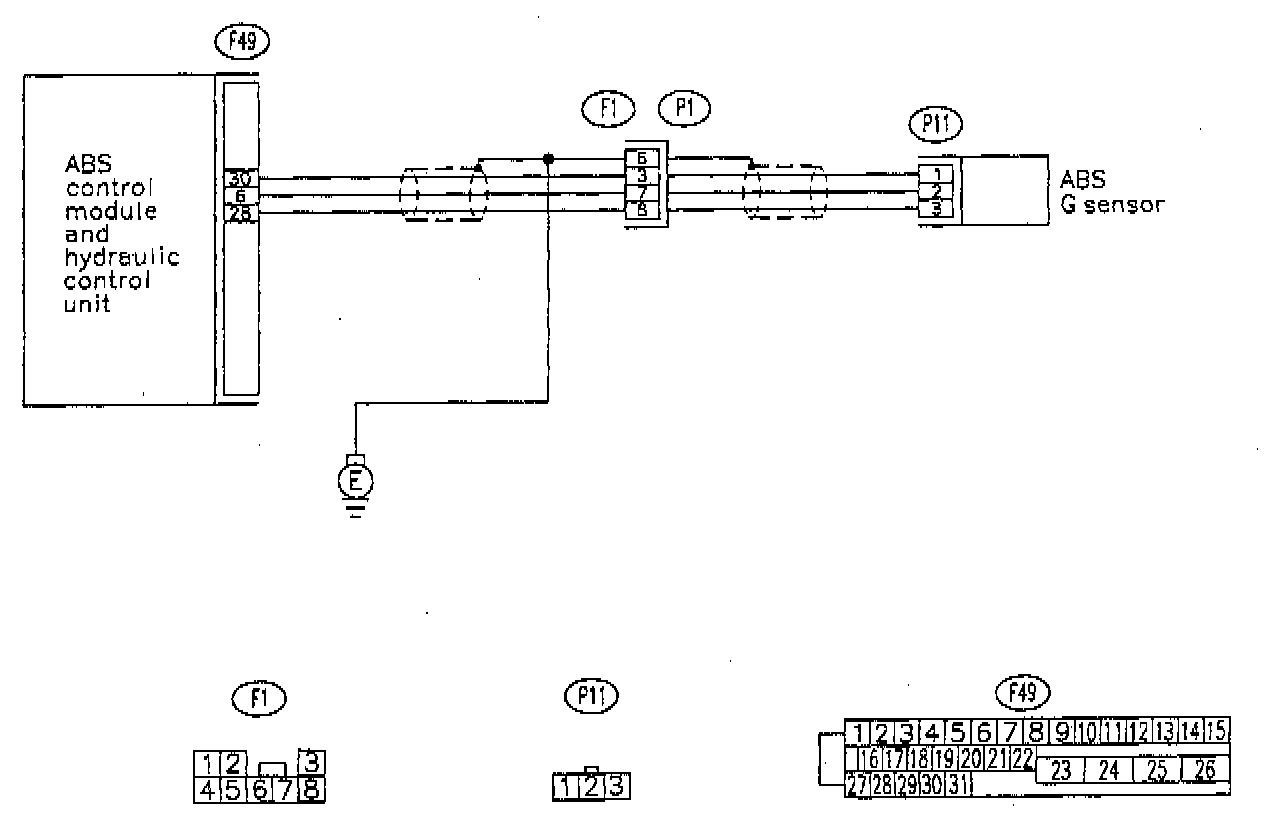

WIRING DIAGRAM:
