DTC 54
>>
ABS Trouble Code Charts For Warning Light Codes
ABS Trouble Code Charts For Warning Light Codes

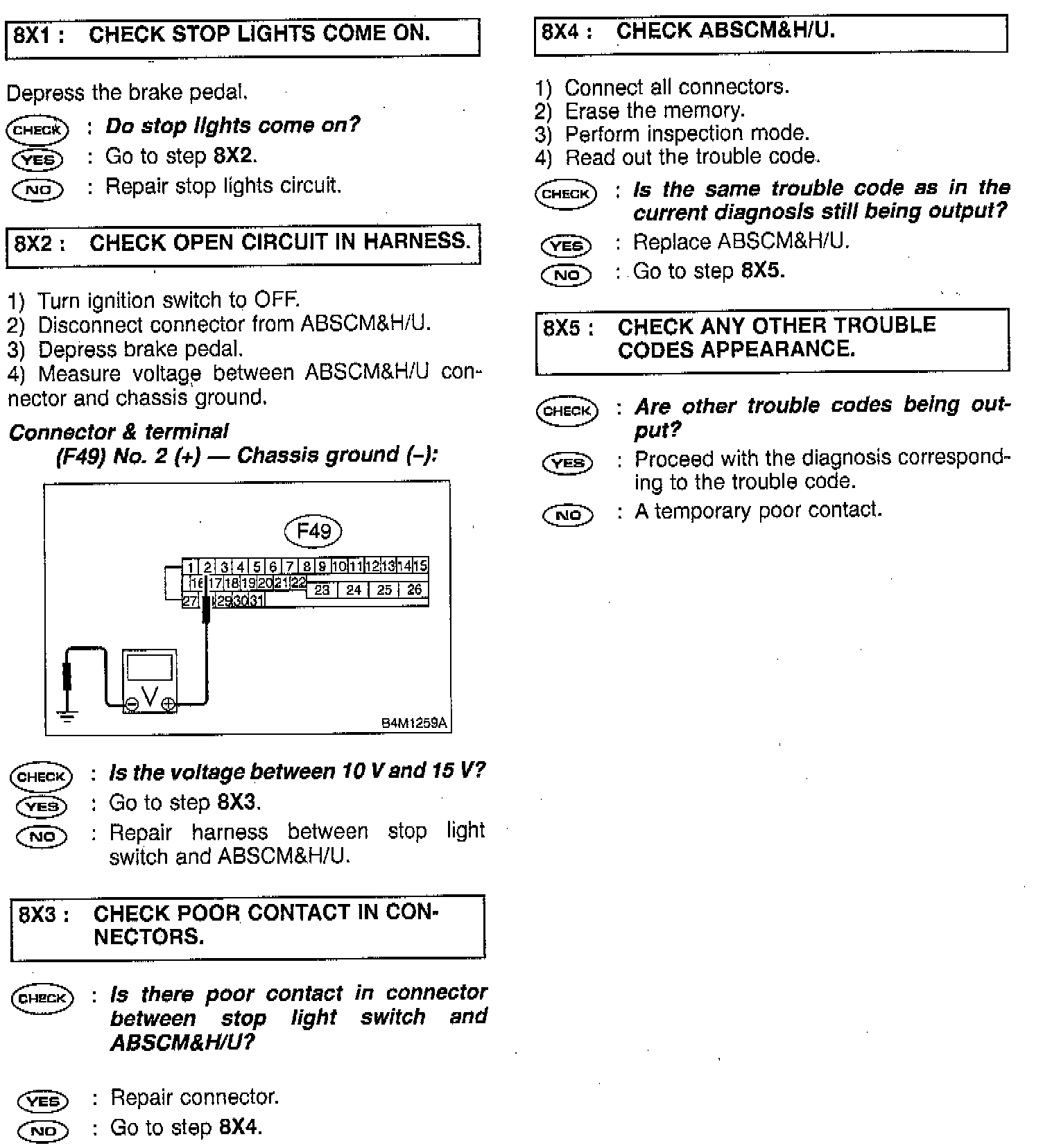

DIAGNOSIS:
Faulty stop light switch
TROUBLE SYMPTOM:
ABS does not operate.

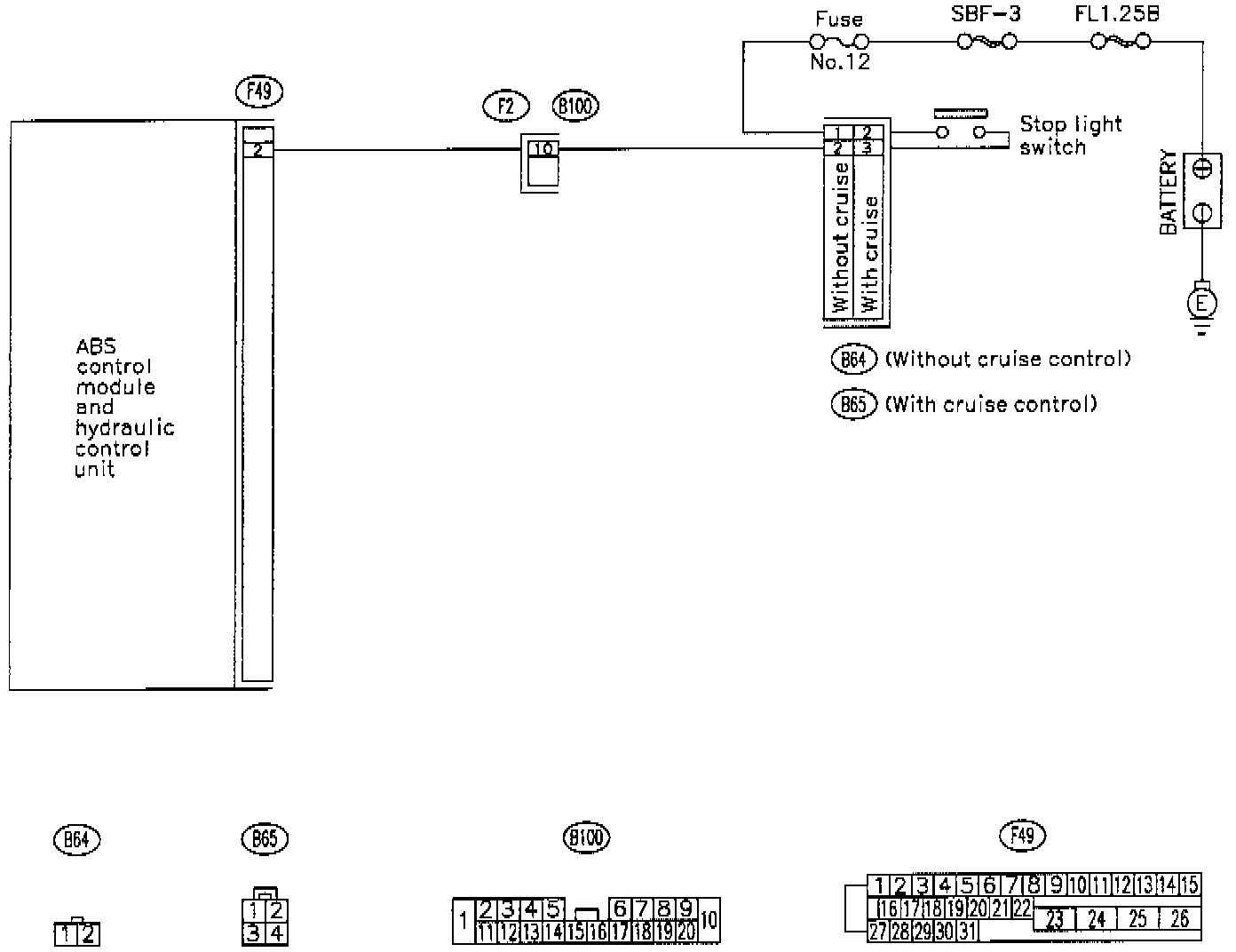

WIRING DIAGRAM:
