Vdc System Trouble Code Charts For Select Monitor Results

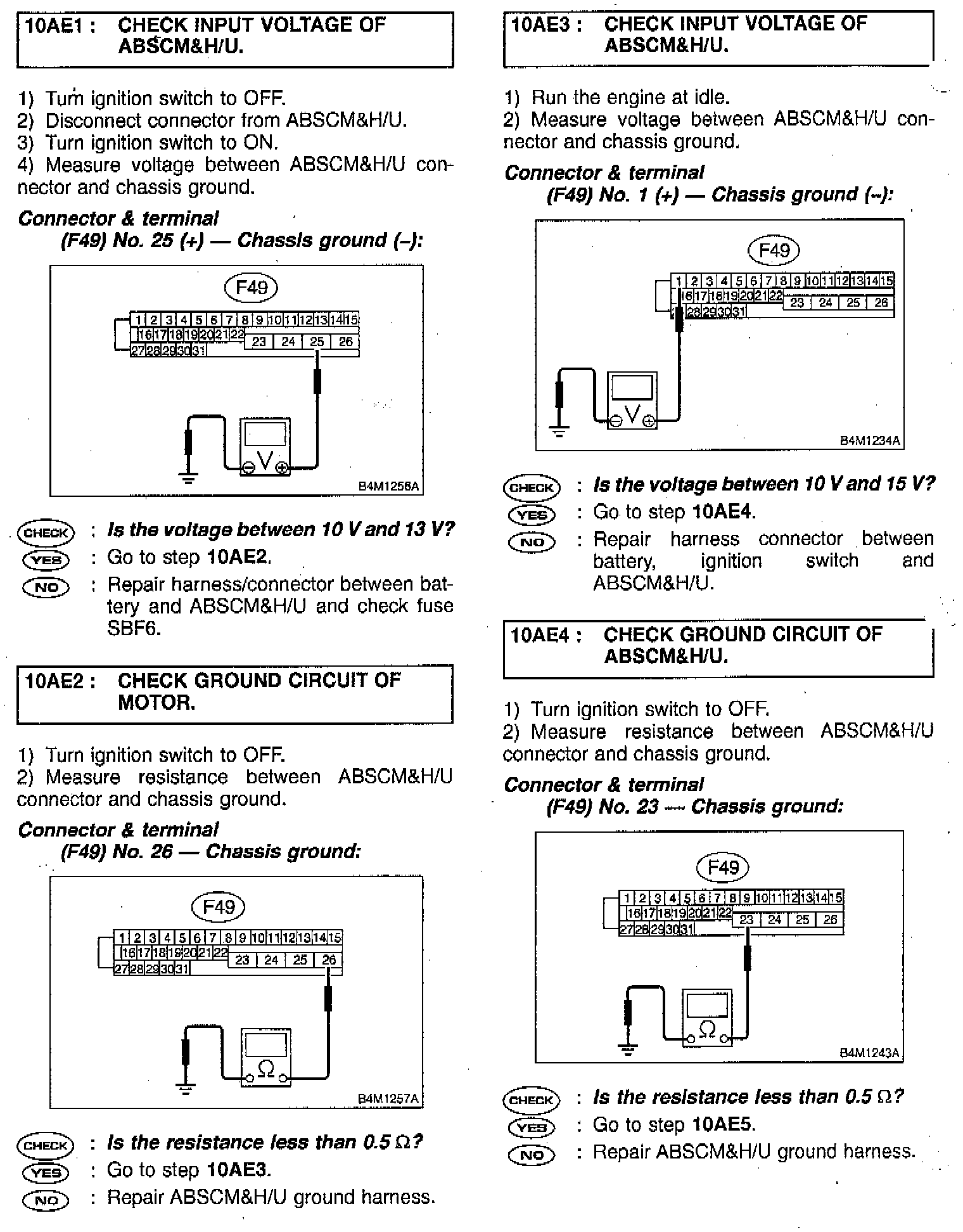

Part 1 Of 2:

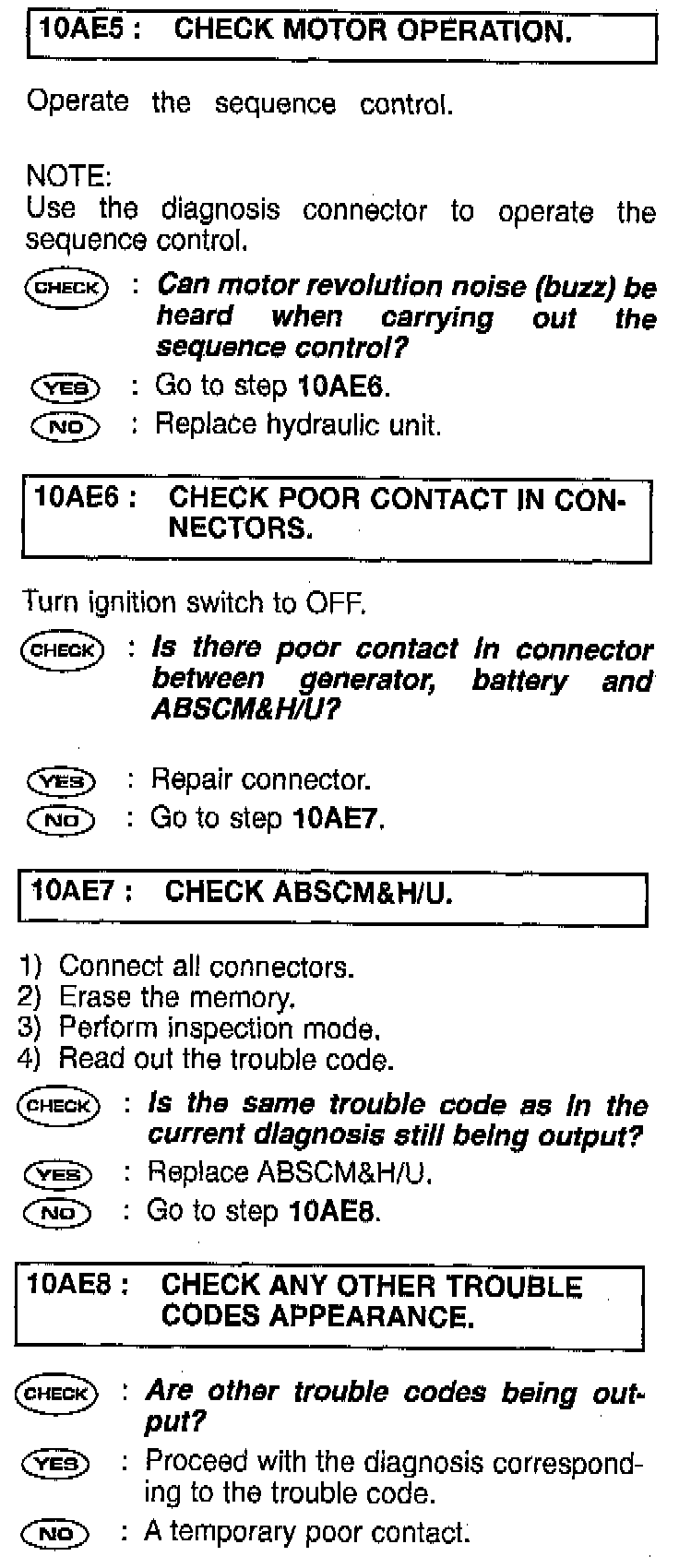

Part 2 Of 2:

DIAGNOSIS:
Faulty motor
Faulty motor relay
Faulty harness connector

TROUBLE SYMPTOM:
ABS does not operate.

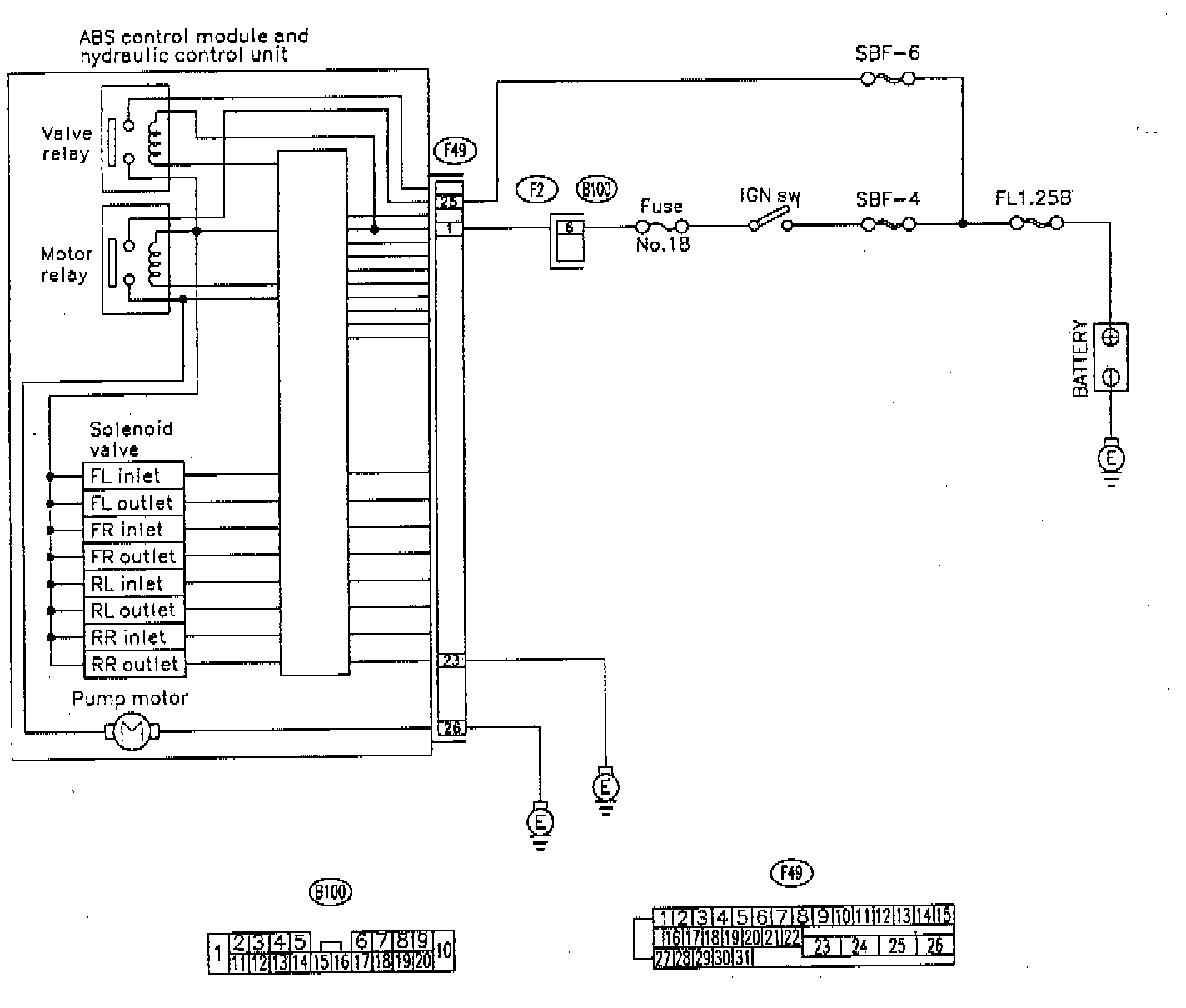

WIRING DIAGRAM:
