Motor Relay on Failure






DIAGNOSIS:
Faulty motor
Faulty motor relay
Faulty harness connector

TROUBLE SYMPTOM:
ABS does not operate.

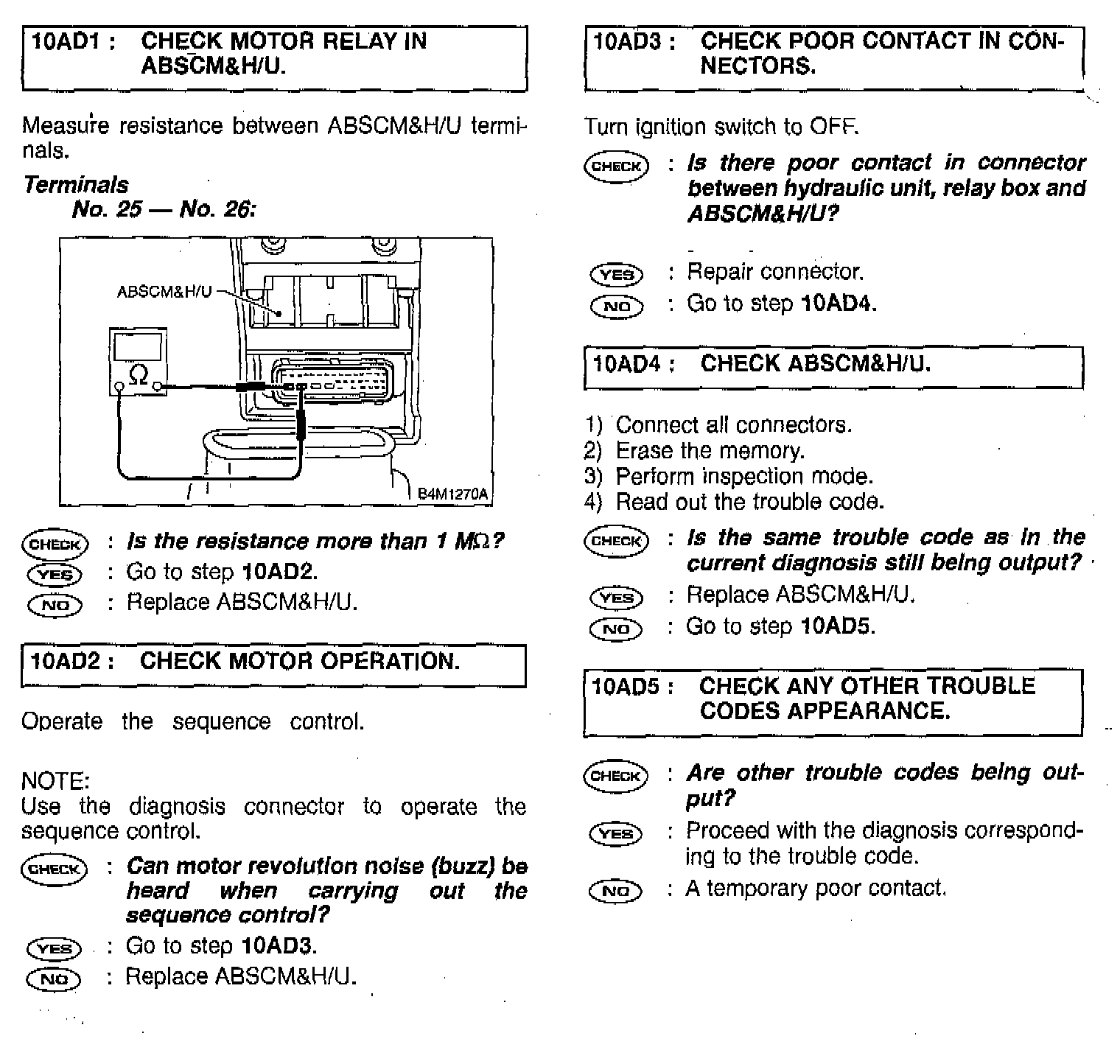

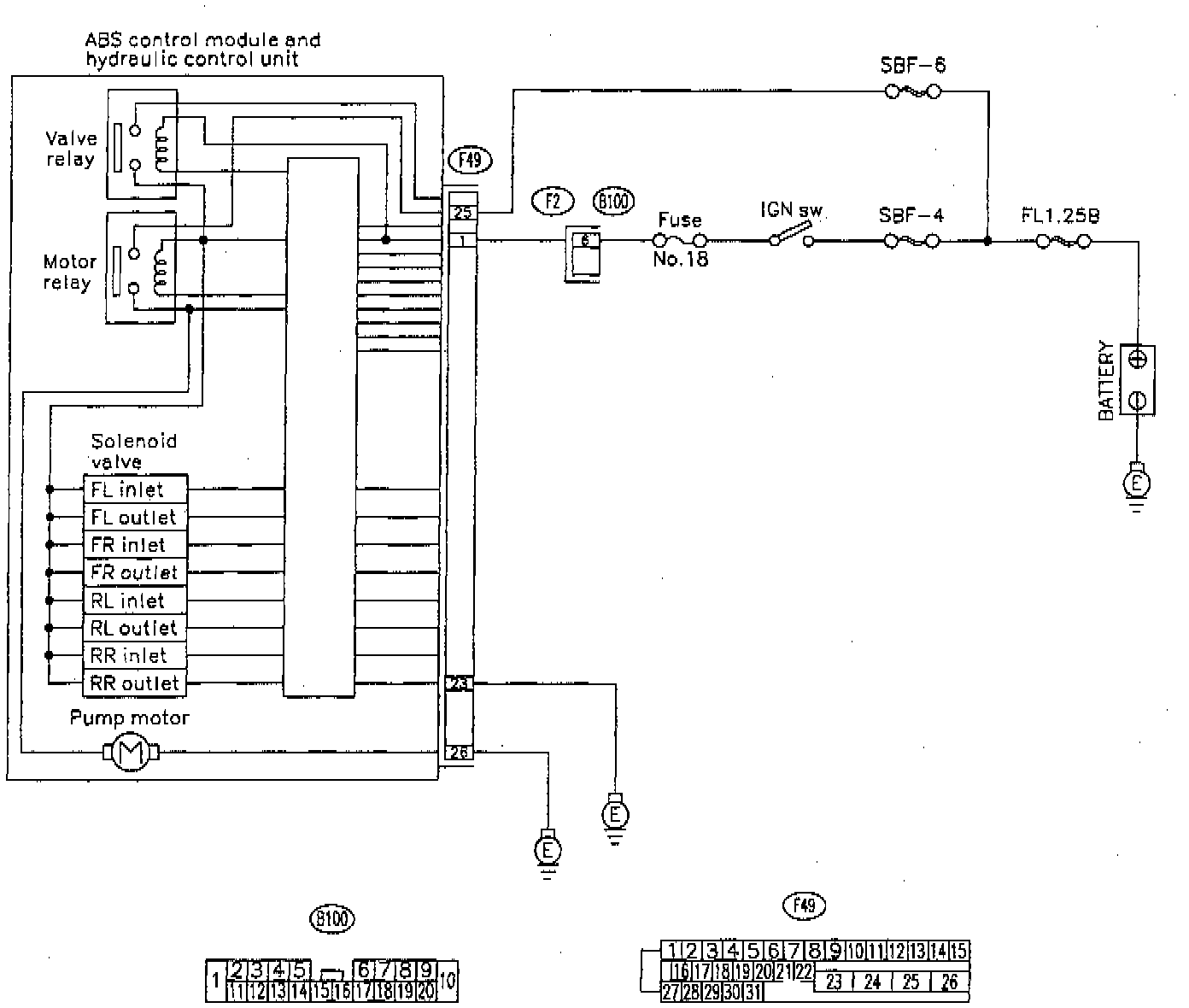

WIRING DIAGRAM:
