DTC 51
>>
Valve Relay Malfunction
Valve Relay Malfunction

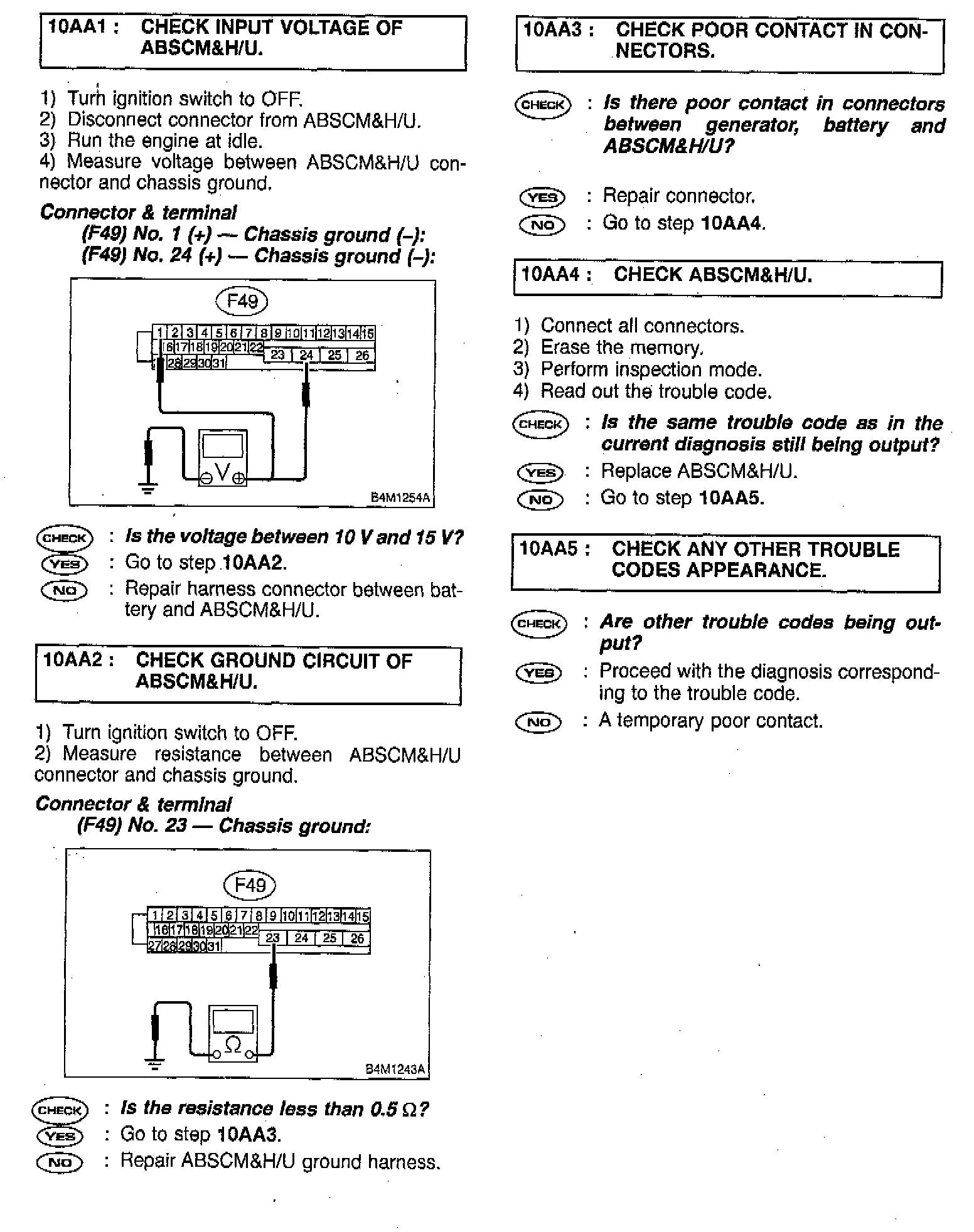

DIAGNOSIS:
Faulty valve relay
TROUBLE SYMPTOM:
ABS does not operate.

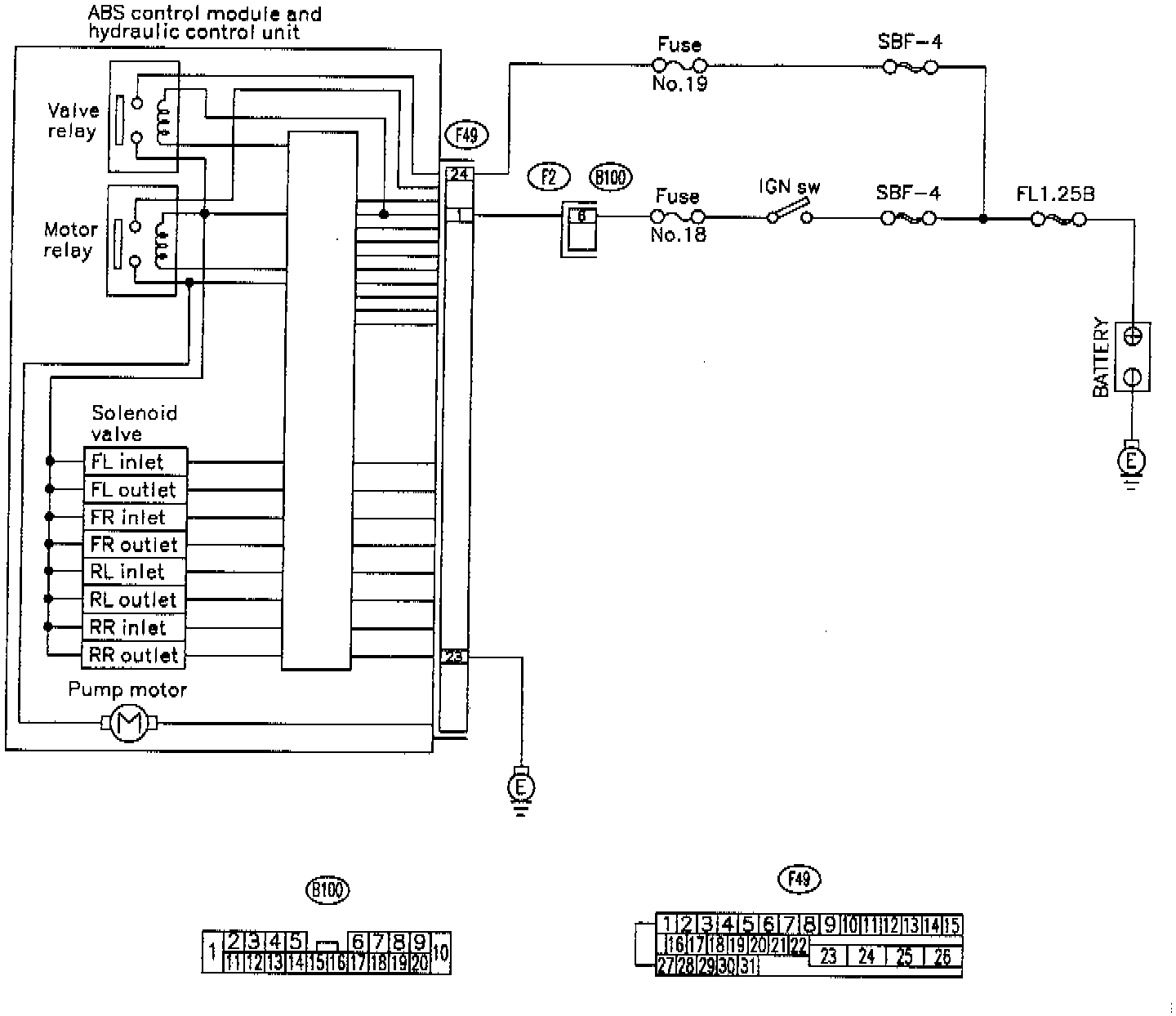

WIRING DIAGRAM:
