ABS-AT Control (Non Controlled)

DIAGNOSIS:
Combination of AT control faults

TROUBLE SYMPTOM:
ABS does not operate.

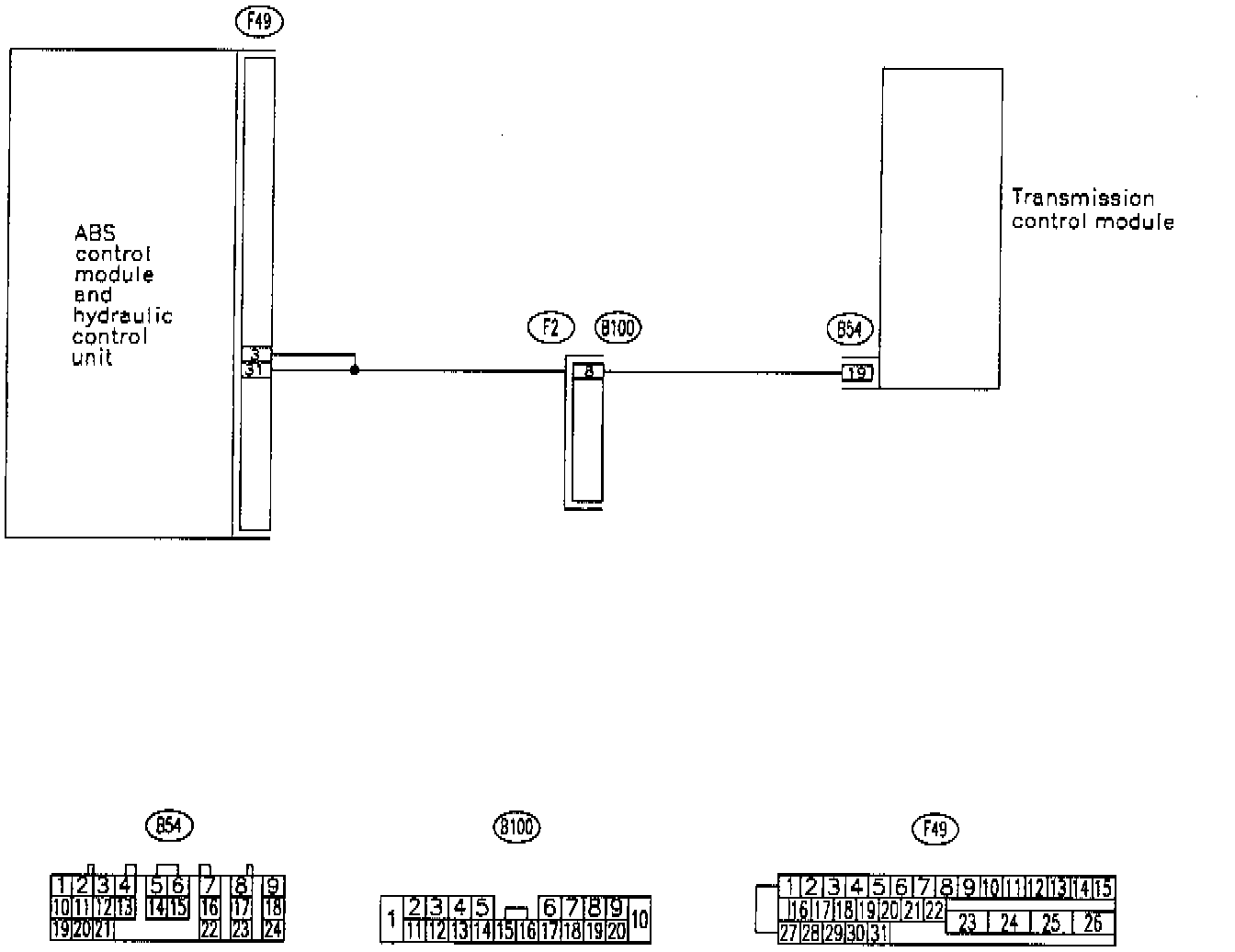

WIRING DIAGRAM:
