Restraint Systems

DIAGNOSIS:
- Passenger's airbag main harness circuit is shorted to ground.
- Passenger's airbag module harness circuit is shorted to ground.
- Airbag control module is faulty.

CAUTION: Before performing diagnostics on airbag system, turn ignition switch "OFF", disconnect battery ground cable and then wait at least 20 seconds.
After 20 seconds elapse, remove instrument panel lower cover, and disconnect (AB3) and (AB8), (AB9) and (AB10).

5T1: AIRBAG MAIN HARNESS INSPECTION
1. Disconnect connector (AB6) from airbag control module, and connect it to test harness E connector (1E).

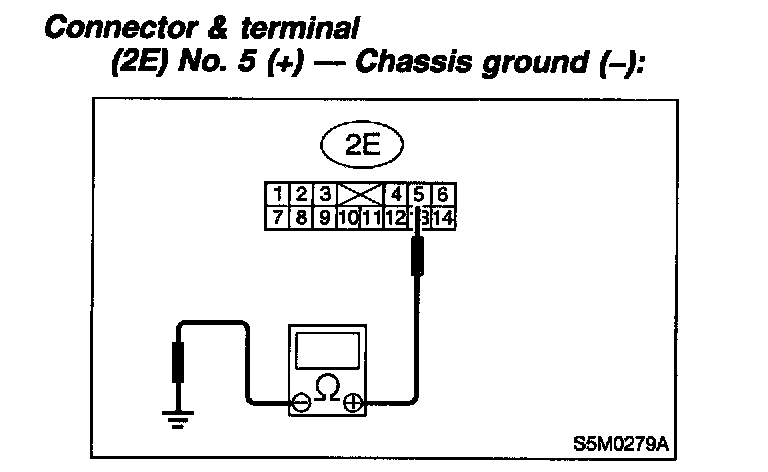

2. Measure resistance between test harness E connector (2E) terminals and chassis ground.

CHECK: Is resistance more than 200 Ohms?

YES: Go to step 5T2.

NO: Replace airbag main harness.

5T2: AIRBAG MAIN HARNESS INSPECTION




Measure resistance between test harness E connector (2E) terminals and chassis ground.

CHECK: Is resistance more than 200 Ohms?

YES: Replace airbag control module.

NO: Replace airbag main harness.
