ABS Trouble Code Charts For Warning Light Codes

DIAGNOSIS:
Power source voltage of the ABS Control Module And Hydraulic Control Unit (ABSCM&H/U) is low or high.

TROUBLE SYMPTOM:
ABS does not operate.

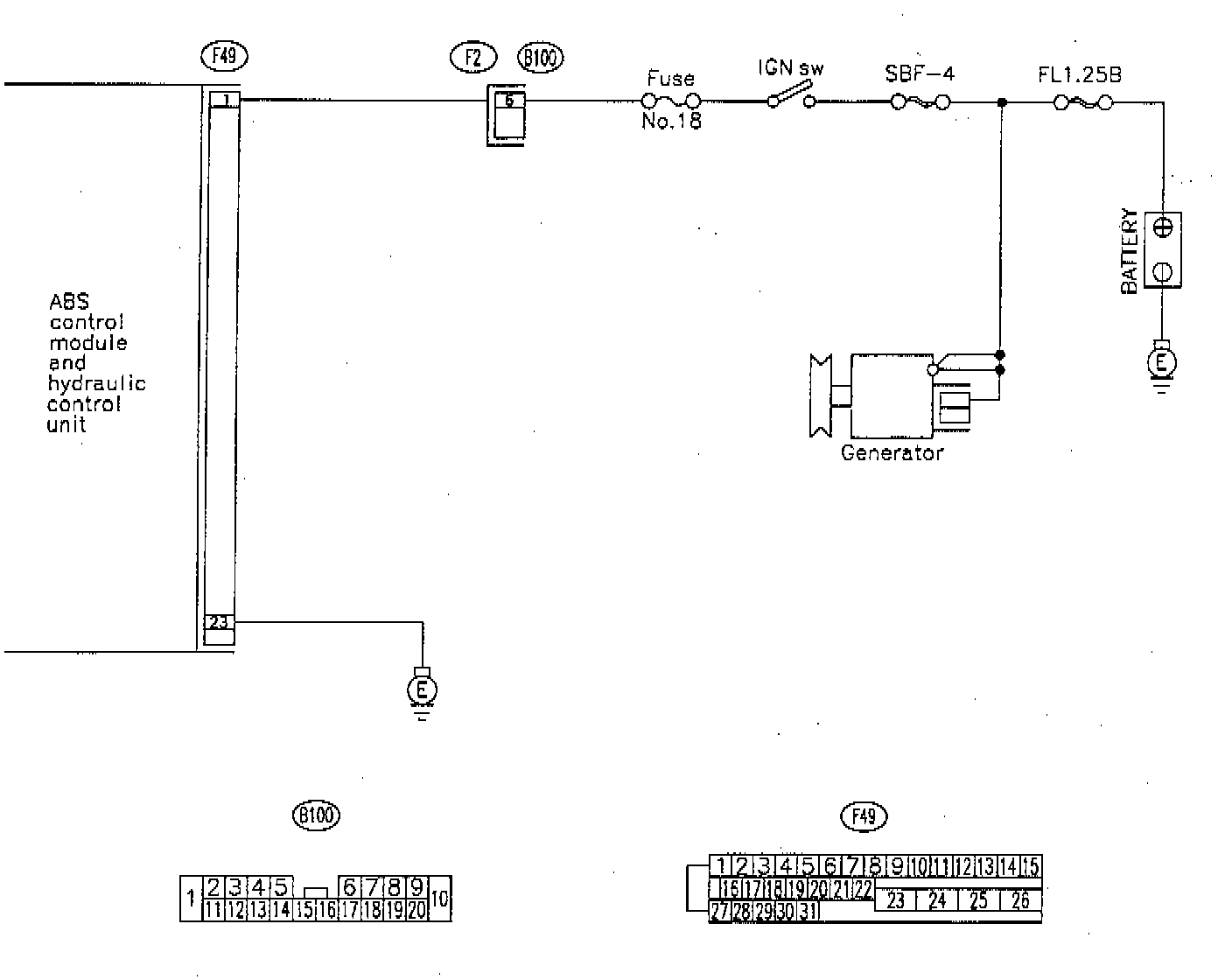

WIRING DIAGRAM:
