ABS Trouble Code Charts For Select Monitor Results






DIAGNOSIS:
Faulty ABS Control Module And Hydraulic Control Unit (ABSCM&H/U)

TROUBLE SYMPTOM:
ABS does not operate.

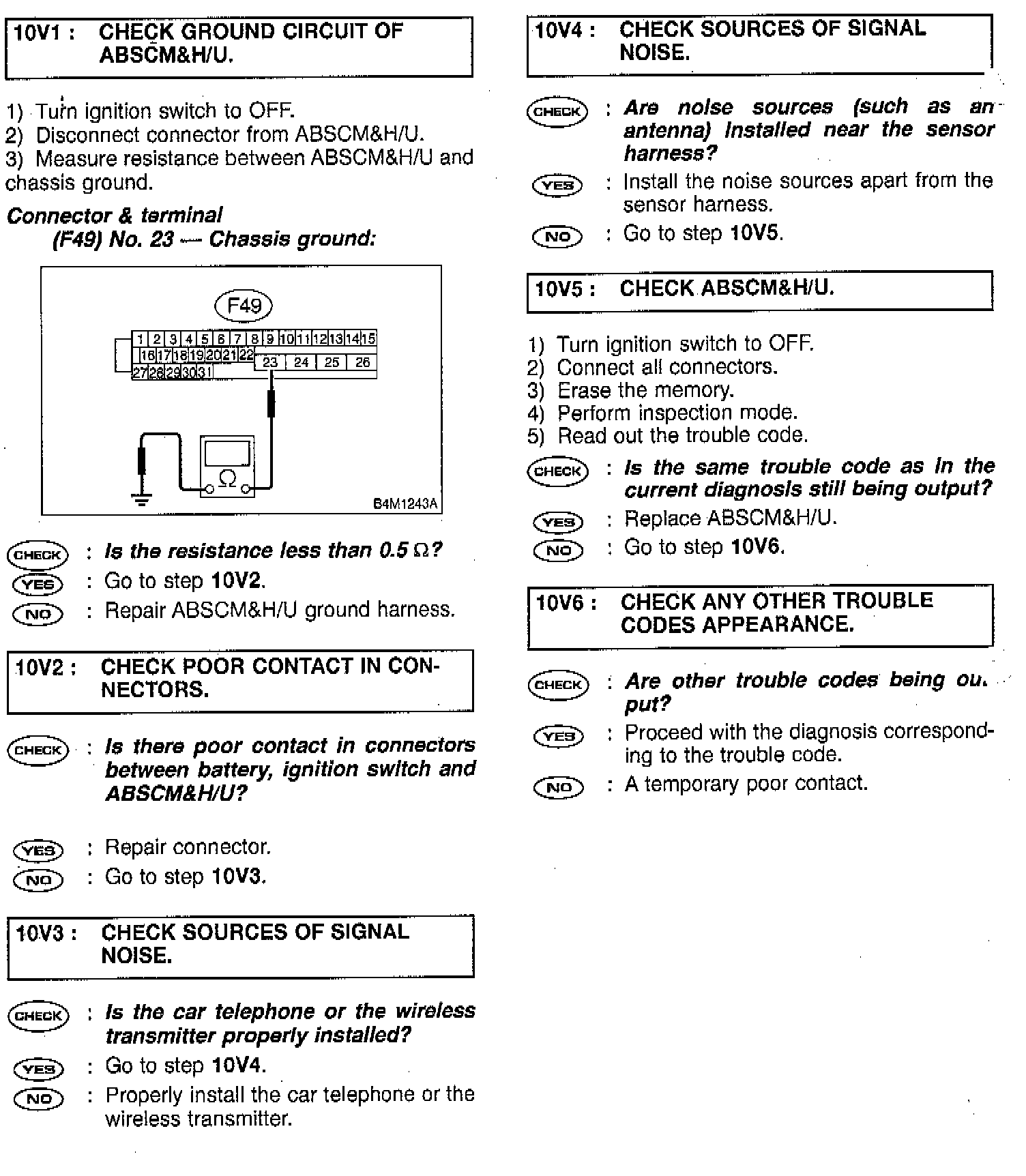

ABS Control Module And Hydraulic Control Unit Malfunction Diagnosis:

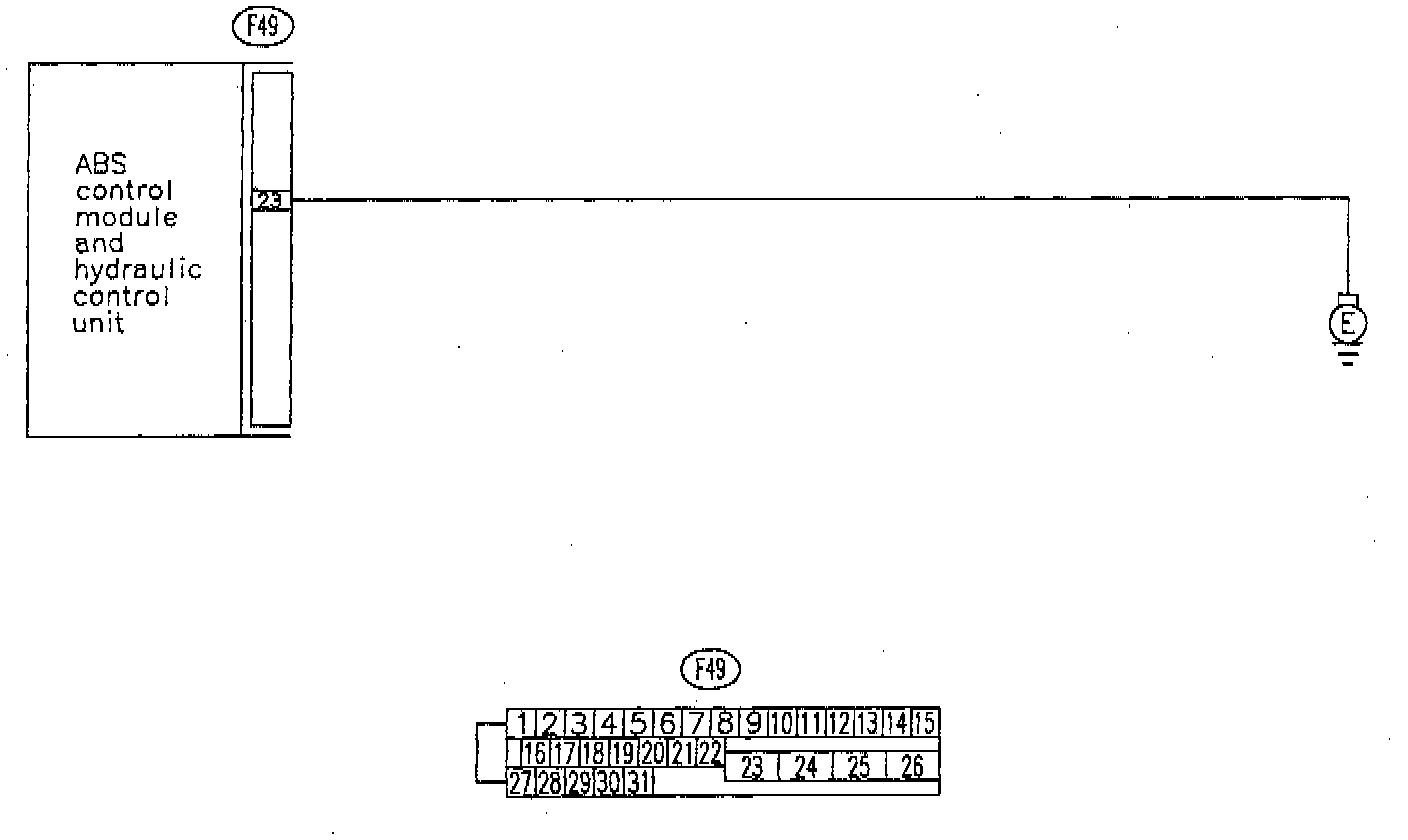

WIRING DIAGRAM:
